SPECpower_ssj2008
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX1320 M6 | SPECpower_ssj2008 = 12,825 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 20, 2025 |
| Hardware Availability: | Apr-2025 | Software Availability: | Jan-2024 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

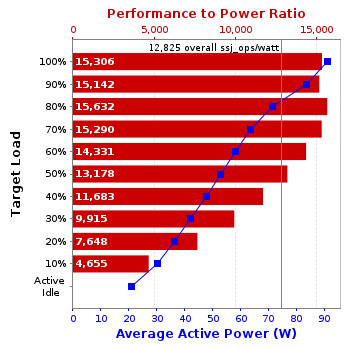

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.2% | 1,393,596 | 91.1 | 15,306 |
| 90% | 90.9% | 1,264,824 | 83.5 | 15,142 |
| 80% | 80.1% | 1,114,062 | 71.3 | 15,632 |
| 70% | 69.9% | 973,036 | 63.6 | 15,290 |
| 60% | 59.9% | 833,346 | 58.2 | 14,331 |
| 50% | 50.1% | 696,888 | 52.9 | 13,178 |
| 40% | 40.0% | 556,798 | 47.7 | 11,683 |
| 30% | 30.1% | 418,234 | 42.2 | 9,915 |
| 20% | 20.0% | 278,520 | 36.4 | 7,648 |
| 10% | 10.1% | 140,368 | 30.2 | 4,655 |
| Active Idle | 0 | 21.1 | 0 | |
| ∑ssj_ops / ∑power = | 12,825 | |||
| Set Identifier: | TX1320M6 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Single Node |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX1320 M6 |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon 6369P |
| CPU Characteristics: | 8-Core, 3.30 GHz, 24 MB L3 Cache |
| CPU Frequency (MHz): | 3300 |
| CPU(s) Enabled: | 8 cores, 1 chip, 8 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 48 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per core |
| Tertiary Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 2 x 16384 MB |
| Memory Details: | 2 x 16 GB 1Rx8 DDR5-4800 U ECC; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 280 |
| Power Supply Details: | Standard 280W Platinum PSU, S26113-E665-V71-1 |
| Disk Drive: | 1 x M.2 SSD 240GB, PY-MF24YN5 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver |
| Operating System (OS): | Windows Server 2022 Standard |
| OS Version: | Version 21H2, OS build 20348.1906 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing) |
| JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:FreqInlineSize=2500 -XX:MaxInlineSize=270 -XX:UseAVX=0 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:+UseAdaptiveSizePolicy -XX:+UseParallelGC -XX:+UseBiasedLocking -XX:InitialTenuringThreshold=12 -XX:LoopUnrollLimit=45 -XX:+OptimizeFill |
| JVM Affinity: | START /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R2.1.0 |
| Management Firmware Version: | 2.58S |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | None |
Set the following options in BIOS.
Set the following options in OS.
Execute the following commands in OS.
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX2530 M2 |
| CPU Description: | 2 x Intel Xeon E5-2643 v4 |
| Memory amount (GB): | 128 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2019 Standard |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211 |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY246003096 |
| Date of Calibration: | 18-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 91.1 | 20.8 |
| 90% | 83.5 | 20.9 |
| 80% | 71.3 | 21.1 |
| 70% | 63.6 | 21.2 |
| 60% | 58.2 | 21.2 |
| 50% | 52.9 | 21.4 |
| 40% | 47.7 | 21.4 |
| 30% | 42.2 | 21.5 |
| 20% | 36.4 | 21.5 |
| 10% | 30.2 | 21.5 |
| Active Idle | 21.1 | 21.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 200V / 50 Hz / 1 phase / 2 wires | 20.8 | 15 |

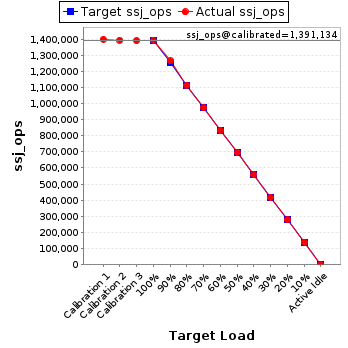

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,398,817 | ||
| Calibration 2 | 1,392,982 | ||
| Calibration 3 | 1,389,287 | ||
| ssj_ops@calibrated=1,391,134 | |||
| 100% | 100.2% | 1,391,134 | 1,393,596 |
| 90% | 90.9% | 1,252,021 | 1,264,824 |
| 80% | 80.1% | 1,112,908 | 1,114,062 |
| 70% | 69.9% | 973,794 | 973,036 |
| 60% | 59.9% | 834,681 | 833,346 |
| 50% | 50.1% | 695,567 | 696,888 |
| 40% | 40.0% | 556,454 | 556,798 |
| 30% | 30.1% | 417,340 | 418,234 |
| 20% | 20.0% | 278,227 | 278,520 |
| 10% | 10.1% | 139,113 | 140,368 |
| Active Idle | 0 | 0 | |
