SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SD535 V3 | SPECpower_ssj2008 = 39,083 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Mar 4, 2025 |
| Hardware Availability: | Jan-2025 | Software Availability: | Jun-2024 | Publication: | Mar 31, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

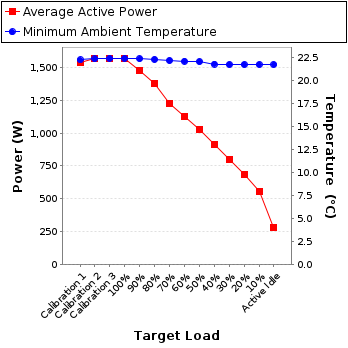

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,538 | 22.2 |
| Calibration 2 | 1,566 | 22.4 |
| Calibration 3 | 1,568 | 22.4 |
| 100% | 1,566 | 22.4 |
| 90% | 1,472 | 22.4 |
| 80% | 1,377 | 22.3 |
| 70% | 1,228 | 22.2 |
| 60% | 1,127 | 22.1 |
| 50% | 1,024 | 22.1 |
| 40% | 912 | 21.8 |
| 30% | 802 | 21.8 |
| 20% | 682 | 21.8 |
| 10% | 556 | 21.8 |
| Active Idle | 280 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17023E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE |
| Calibration Label: | 1GA24011968-0002 |
| Date of Calibration: | 10-Oct-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 7.00 | 10.0 | 0.999 | 1,538 | 0.2% |
| Calibration 2 | 220 | 300.0 | 7.13 | 10.0 | 0.999 | 1,566 | 0.2% |
| Calibration 3 | 220 | 300.0 | 7.14 | 10.0 | 0.999 | 1,568 | 0.2% |
| 100% | 220 | 300.0 | 7.13 | 10.0 | 0.999 | 1,566 | 0.2% |
| 90% | 220 | 300.0 | 6.70 | 10.0 | 0.999 | 1,472 | 0.2% |
| 80% | 220 | 300.0 | 6.27 | 10.0 | 0.999 | 1,377 | 0.2% |
| 70% | 220 | 300.0 | 5.59 | 10.0 | 0.999 | 1,228 | 0.2% |
| 60% | 220 | 300.0 | 5.13 | 10.0 | 0.999 | 1,127 | 0.3% |
| 50% | 220 | 300.0 | 4.66 | 10.0 | 0.999 | 1,024 | 0.3% |
| 40% | 220 | 300.0 | 4.15 | 5.0 | 0.999 | 912 | 0.2% |
| 30% | 220 | 300.0 | 3.65 | 5.0 | 0.998 | 802 | 0.2% |
| 20% | 220 | 300.0 | 3.11 | 5.0 | 0.997 | 682 | 0.2% |
| 10% | 220 | 300.0 | 2.54 | 5.0 | 0.996 | 556 | 0.3% |
| Active Idle | 220 | 300.0 | 1.29 | 5.0 | 0.984 | 280 | 0.4% |
