SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R470 | SPECpower_ssj2008 = 20,149 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 27, 2025 |
| Hardware Availability: | Dec-2024 | Software Availability: | Oct-2024 | Publication: | Mar 26, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

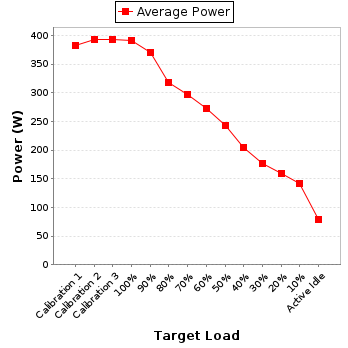

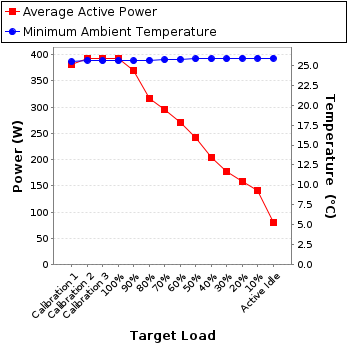

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 382 | 25.4 |
| Calibration 2 | 393 | 25.6 |
| Calibration 3 | 393 | 25.6 |
| 100% | 392 | 25.6 |
| 90% | 370 | 25.6 |
| 80% | 317 | 25.6 |
| 70% | 296 | 25.7 |
| 60% | 272 | 25.8 |
| 50% | 243 | 25.8 |
| 40% | 204 | 25.8 |
| 30% | 177 | 25.8 |
| 20% | 159 | 25.9 |
| 10% | 141 | 25.9 |
| Active Idle | 79.4 | 25.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91KA21979 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76417 |
| Date of Calibration: | 04-Oct-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 1.87 | 5.0 | 0.992 | 382 | 0.6% |
| Calibration 2 | 206 | 300.0 | 1.92 | 5.0 | 0.992 | 393 | 0.6% |
| Calibration 3 | 206 | 300.0 | 1.92 | 5.0 | 0.992 | 393 | 0.6% |
| 100% | 206 | 300.0 | 1.92 | 5.0 | 0.992 | 392 | 0.6% |
| 90% | 206 | 300.0 | 1.81 | 5.0 | 0.991 | 370 | 0.6% |
| 80% | 206 | 300.0 | 1.56 | 2.0 | 0.989 | 317 | 0.4% |
| 70% | 206 | 300.0 | 1.45 | 2.0 | 0.987 | 296 | 0.4% |
| 60% | 206 | 300.0 | 1.34 | 2.0 | 0.983 | 272 | 0.4% |
| 50% | 206 | 300.0 | 1.20 | 2.0 | 0.980 | 243 | 0.4% |
| 40% | 206 | 300.0 | 1.01 | 1.0 | 0.976 | 204 | 0.3% |
| 30% | 206 | 300.0 | 0.880 | 1.0 | 0.973 | 177 | 0.4% |
| 20% | 206 | 300.0 | 0.792 | 1.0 | 0.970 | 159 | 0.4% |
| 10% | 207 | 300.0 | 0.705 | 1.0 | 0.966 | 141 | 0.4% |
| Active Idle | 207 | 300.0 | 0.411 | 1.0 | 0.934 | 79.4 | 0.6% |
