IEIT Systems Co., Ltd. meta brain NF5180G8 SPECpower_ssj2008 = 24,133 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Feb 12, 2025
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Mar 11, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 661 23.8
Calibration 2 664 24.3
Calibration 3 664 24.7
100% 665 24.8
90% 586 24.8
80% 489 24.7
70% 439 24.6
60% 392 24.6
50% 361 24.6
40% 329 24.6
30% 289 24.6
20% 249 24.6
10% 222 24.5
Active Idle 186 24.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: C2406041730287
Date of Calibration: 19-Jun-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 232 300.0 2.90 10.0 0.984 661 0.4%
Calibration 2 232 300.0 2.91 10.0 0.984 664 0.4%
Calibration 3 232 300.0 2.91 10.0 0.984 664 0.4%
100% 233 300.0 2.91 10.0 0.984 665 0.4%
90% 233 300.0 2.59 10.0 0.979 586 0.4%
80% 233 300.0 2.16 10.0 0.975 489 0.5%
70% 233 300.0 1.94 10.0 0.970 439 0.5%
60% 233 300.0 1.76 10.0 0.963 392 0.5%
50% 233 300.0 1.62 10.0 0.958 361 0.6%
40% 233 300.0 1.49 10.0 0.950 329 0.6%
30% 233 300.0 1.32 10.0 0.940 289 0.7%
20% 234 300.0 1.15 5.0 0.926 249 0.5%
10% 234 300.0 1.04 5.0 0.913 222 0.5%
Active Idle 234 300.0 0.898 5.0 0.885 186 0.6%

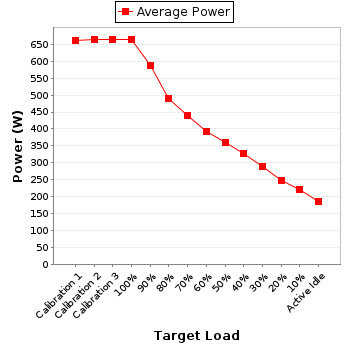

Power details for pwr1
