Hewlett Packard Enterprise ProLiant Compute DL360 Gen12 SPECpower_ssj2008 = 19,190 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 5, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Feb 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 17,149,565 807 21,263
90% 90.0% 15,456,622 695 22,246
80% 80.1% 13,755,746 638 21,552
70% 70.0% 12,020,126 523 22,976
60% 60.0% 10,301,264 439 23,479
50% 49.9% 8,580,200 391 21,946
40% 40.0% 6,864,772 361 19,006
30% 30.0% 5,157,369 319 16,172
20% 20.0% 3,439,510 279 12,330
10% 10.0% 1,719,629 249 6,909
Active Idle 0 221 0
∑ssj_ops / ∑power = 19,190
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant Compute DL360 Gen12
Form Factor: 1U
CPU Name: Intel Xeon 6780E 2.2 GHz
CPU Characteristics: 144 core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-6400B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit 96% (P03178-B21)
Disk Drive: 1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc SSD
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 (Build 20348.2700)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0,1,2,3,4,5] /AFFINITY [0x3,0xc - 0x300000000000,0xc00000000000]
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U72 v1.20 (02/04/2025)
Management Firmware Version: 1.01.00 Jan 01 2025
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-200-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 807 26.1
90% 695 26.3
80% 638 26.2
70% 523 26.4
60% 439 26.8
50% 391 27.2
40% 361 27.4
30% 319 27.4
20% 279 27.1
10% 249 26.8
Active Idle 221 26.4
Line Standard Minimum Temperature (°C) Elevation (m)
210V / 60 Hz / 1 phase / 2 wires 26.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,957,630
Calibration 2     17,121,897
Calibration 3     17,236,270
ssj_ops@calibrated=17,179,084
100% 99.8% 17,179,084 17,149,565
90% 90.0% 15,461,175 15,456,622
80% 80.1% 13,743,267 13,755,746
70% 70.0% 12,025,358 12,020,126
60% 60.0% 10,307,450 10,301,264
50% 49.9% 8,589,542 8,580,200
40% 40.0% 6,871,633 6,864,772
30% 30.0% 5,153,725 5,157,369
20% 20.0% 3,435,817 3,439,510
10% 10.0% 1,717,908 1,719,629
Active Idle   0 0

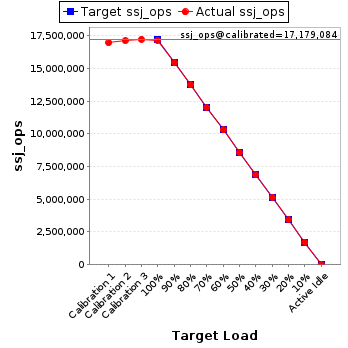

Graph of results
See the Host Performance Report for additional details.
