SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute ML350 Gen12 | SPECpower_ssj2008 = 18,745 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 2, 2024 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

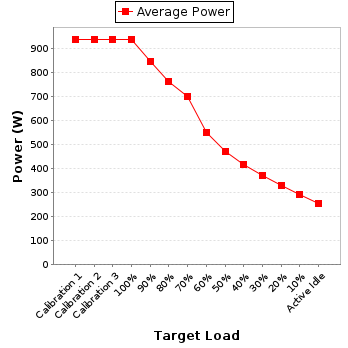

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 939 | 22.0 |
| Calibration 2 | 937 | 22.1 |
| Calibration 3 | 938 | 22.4 |
| 100% | 937 | 22.6 |
| 90% | 844 | 22.8 |
| 80% | 762 | 22.8 |
| 70% | 701 | 22.8 |
| 60% | 551 | 22.7 |
| 50% | 472 | 22.6 |
| 40% | 417 | 22.6 |
| 30% | 370 | 22.6 |
| 20% | 331 | 22.5 |
| 10% | 291 | 22.4 |
| Active Idle | 255 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-80-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 4.63 | 5.0 | 0.982 | 939 | 0.3% |
| Calibration 2 | 207 | 300.0 | 4.62 | 5.0 | 0.982 | 937 | 0.3% |
| Calibration 3 | 207 | 300.0 | 4.63 | 5.0 | 0.982 | 938 | 0.3% |
| 100% | 207 | 300.0 | 4.62 | 5.0 | 0.982 | 937 | 0.3% |
| 90% | 207 | 300.0 | 4.18 | 5.0 | 0.977 | 844 | 0.4% |
| 80% | 207 | 300.0 | 3.79 | 5.0 | 0.973 | 762 | 0.4% |
| 70% | 207 | 300.0 | 3.50 | 5.0 | 0.968 | 701 | 0.4% |
| 60% | 207 | 300.0 | 2.80 | 5.0 | 0.951 | 551 | 0.5% |
| 50% | 207 | 300.0 | 2.44 | 5.0 | 0.934 | 472 | 0.5% |
| 40% | 207 | 300.0 | 2.19 | 5.0 | 0.918 | 417 | 0.6% |
| 30% | 207 | 300.0 | 1.98 | 5.0 | 0.900 | 370 | 0.7% |
| 20% | 207 | 300.0 | 1.81 | 5.0 | 0.880 | 331 | 0.7% |
| 10% | 207 | 300.0 | 1.64 | 5.0 | 0.854 | 291 | 0.8% |
| Active Idle | 207 | 300.0 | 1.49 | 5.0 | 0.825 | 255 | 0.9% |
