SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL380 Gen12 | SPECpower_ssj2008 = 19,521 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 8, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2025 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

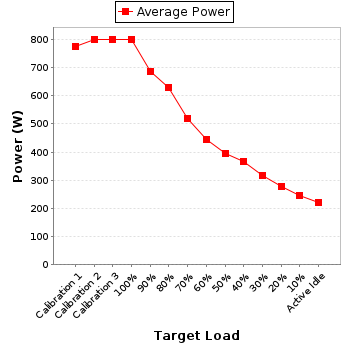

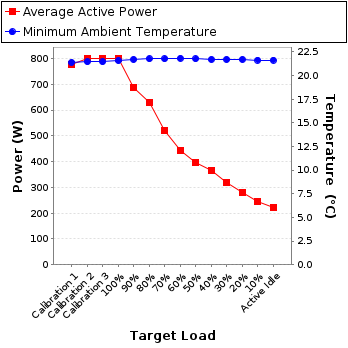

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 776 | 21.4 |
| Calibration 2 | 798 | 21.4 |
| Calibration 3 | 801 | 21.4 |
| 100% | 801 | 21.6 |
| 90% | 687 | 21.7 |
| 80% | 630 | 21.8 |
| 70% | 520 | 21.8 |
| 60% | 444 | 21.8 |
| 50% | 396 | 21.8 |
| 40% | 366 | 21.7 |
| 30% | 317 | 21.7 |
| 20% | 279 | 21.7 |
| 10% | 247 | 21.6 |
| Active Idle | 220 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-60-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 3.80 | 5.0 | 0.994 | 776 | 0.4% |
| Calibration 2 | 205 | 300.0 | 3.91 | 5.0 | 0.994 | 798 | 0.4% |
| Calibration 3 | 205 | 300.0 | 3.92 | 5.0 | 0.994 | 801 | 0.4% |
| 100% | 206 | 300.0 | 3.92 | 5.0 | 0.994 | 801 | 0.4% |
| 90% | 206 | 300.0 | 3.37 | 5.0 | 0.992 | 687 | 0.4% |
| 80% | 206 | 300.0 | 3.09 | 5.0 | 0.991 | 630 | 0.4% |
| 70% | 206 | 300.0 | 2.56 | 5.0 | 0.986 | 520 | 0.5% |
| 60% | 206 | 300.0 | 2.19 | 5.0 | 0.981 | 444 | 0.5% |
| 50% | 207 | 300.0 | 1.96 | 5.0 | 0.977 | 396 | 0.6% |
| 40% | 206 | 300.0 | 1.82 | 5.0 | 0.973 | 366 | 0.6% |
| 30% | 206 | 300.0 | 1.59 | 2.0 | 0.966 | 317 | 0.4% |
| 20% | 207 | 300.0 | 1.41 | 2.0 | 0.960 | 279 | 0.4% |
| 10% | 207 | 300.0 | 1.26 | 2.0 | 0.952 | 247 | 0.5% |
| Active Idle | 207 | 300.0 | 1.13 | 2.0 | 0.943 | 220 | 0.5% |
