SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL380a Gen12 | SPECpower_ssj2008 = 23,276 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 4, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

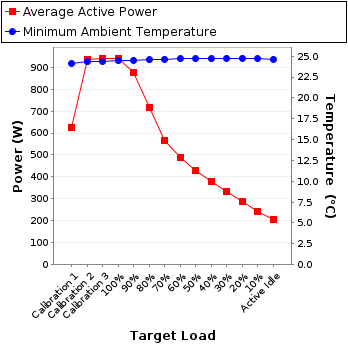

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 626 | 24.1 |
| Calibration 2 | 937 | 24.3 |
| Calibration 3 | 940 | 24.4 |
| 100% | 941 | 24.4 |
| 90% | 876 | 24.5 |
| 80% | 715 | 24.6 |
| 70% | 567 | 24.6 |
| 60% | 488 | 24.7 |
| 50% | 427 | 24.7 |
| 40% | 377 | 24.7 |
| 30% | 334 | 24.8 |
| 20% | 287 | 24.8 |
| 10% | 243 | 24.7 |
| Active Idle | 205 | 24.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K218964 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H16YM-120-1 |
| Date of Calibration: | 06-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

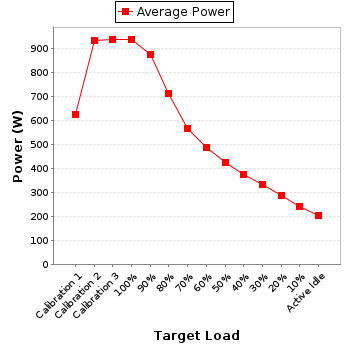

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 3.50 | 5.0 | 0.882 | 626 | 0.5% |
| Calibration 2 | 207 | 300.0 | 4.76 | 5.0 | 0.952 | 937 | 0.4% |
| Calibration 3 | 207 | 300.0 | 4.77 | 5.0 | 0.952 | 940 | 0.4% |
| 100% | 207 | 300.0 | 4.78 | 5.0 | 0.952 | 941 | 0.4% |
| 90% | 207 | 300.0 | 4.48 | 5.0 | 0.946 | 876 | 0.4% |
| 80% | 207 | 300.0 | 3.74 | 5.0 | 0.924 | 715 | 0.4% |
| 70% | 207 | 300.0 | 3.09 | 5.0 | 0.888 | 567 | 0.5% |
| 60% | 207 | 300.0 | 2.75 | 5.0 | 0.856 | 488 | 0.6% |
| 50% | 207 | 300.0 | 2.50 | 5.0 | 0.823 | 427 | 0.6% |
| 40% | 207 | 300.0 | 2.31 | 5.0 | 0.789 | 377 | 0.7% |
| 30% | 209 | 300.0 | 2.14 | 5.0 | 0.750 | 334 | 0.8% |
| 20% | 209 | 300.0 | 1.97 | 5.0 | 0.698 | 287 | 0.9% |
| 10% | 210 | 300.0 | 1.82 | 2.0 | 0.633 | 243 | 0.6% |
| Active Idle | 210 | 300.0 | 1.72 | 2.0 | 0.569 | 205 | 0.7% |
