SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX1440 M2 | SPECpower_ssj2008 = 37,108 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Nov 9, 2024 |
| Hardware Availability: | Jan-2025 | Software Availability: | Oct-2024 | Publication: | Dec 3, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

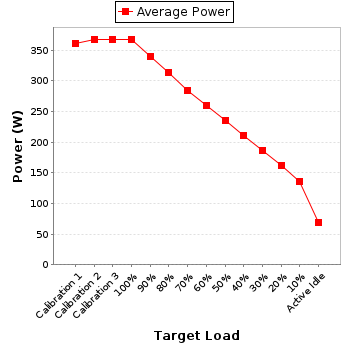

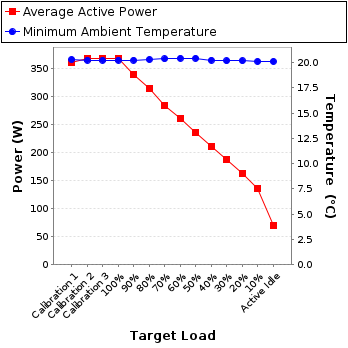

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 361 | 20.3 |
| Calibration 2 | 368 | 20.2 |
| Calibration 3 | 368 | 20.2 |
| 100% | 367 | 20.2 |
| 90% | 340 | 20.2 |
| 80% | 315 | 20.3 |
| 70% | 285 | 20.4 |
| 60% | 260 | 20.4 |
| 50% | 236 | 20.4 |
| 40% | 211 | 20.2 |
| 30% | 187 | 20.2 |
| 20% | 163 | 20.2 |
| 10% | 136 | 20.1 |
| Active Idle | 69.3 | 20.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY246003096 |
| Date of Calibration: | 18-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 1.88 | 5.0 | 0.938 | 361 | 0.3% |
| Calibration 2 | 206 | 300.0 | 1.90 | 5.0 | 0.939 | 368 | 0.3% |
| Calibration 3 | 205 | 300.0 | 1.91 | 5.0 | 0.940 | 368 | 0.3% |
| 100% | 205 | 300.0 | 1.90 | 5.0 | 0.939 | 367 | 0.3% |
| 90% | 205 | 300.0 | 1.78 | 5.0 | 0.931 | 340 | 0.4% |
| 80% | 205 | 300.0 | 1.66 | 5.0 | 0.924 | 315 | 0.4% |
| 70% | 205 | 300.0 | 1.52 | 5.0 | 0.912 | 285 | 0.4% |
| 60% | 206 | 300.0 | 1.40 | 5.0 | 0.900 | 260 | 0.4% |
| 50% | 205 | 300.0 | 1.29 | 5.0 | 0.888 | 236 | 0.5% |
| 40% | 206 | 300.0 | 1.17 | 5.0 | 0.878 | 211 | 0.5% |
| 30% | 206 | 300.0 | 1.05 | 5.0 | 0.862 | 187 | 0.6% |
| 20% | 206 | 300.0 | 0.925 | 5.0 | 0.853 | 163 | 0.6% |
| 10% | 207 | 300.0 | 0.789 | 5.0 | 0.834 | 136 | 0.7% |
| Active Idle | 208 | 300.0 | 0.439 | 2.0 | 0.761 | 69.3 | 0.6% |
