Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 42,312 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 4, 2024
Hardware Availability: Feb-2025 Software Availability: Sep-2024 Publication: Nov 19, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 37,300,944 712 52,362
90% 90.0% 33,642,498 637 52,830
80% 80.0% 29,880,933 588 50,783
70% 70.0% 26,160,655 547 47,812
60% 60.0% 22,410,329 502 44,650
50% 50.0% 18,668,283 455 41,008
40% 40.0% 14,953,876 407 36,780
30% 30.0% 11,202,851 355 31,577
20% 20.0% 7,476,765 299 24,989
10% 10.0% 3,738,540 238 15,708
Active Idle 0 115 0
∑ssj_ops / ∑power = 42,312

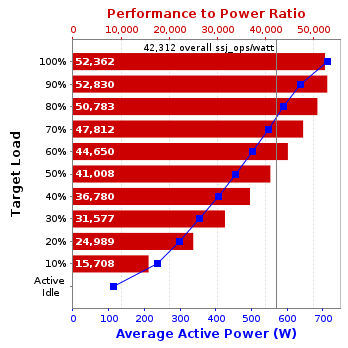

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9845 2.1 GHz
CPU Characteristics: 160-Core,2.10GHz 320MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 320 cores, 2 chips, 160 cores/chip
Hardware Threads: 640 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.2700)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0-19] /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 160
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: KAE131A
Management Firmware Version: KAX343I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5042881
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Thinksystem SR665
CPU Description: 2 x AMD EPYC 7773X
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2022 DataCenter - Version 21H2 (OS Build 20348.1249)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE
Calibration Label: 1GA24011968-0002
Date of Calibration: 10-Oct-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 712 21.8
90% 637 21.9
80% 588 21.9
70% 547 21.9
60% 502 22.0
50% 455 22.0
40% 407 22.1
30% 355 22.1
20% 299 22.1
10% 238 21.8
Active Idle 115 21.7
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 21.7 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     35,011,251
Calibration 2     37,402,965
Calibration 3     37,320,742
ssj_ops@calibrated=37,361,853
100% 99.8% 37,361,853 37,300,944
90% 90.0% 33,625,668 33,642,498
80% 80.0% 29,889,483 29,880,933
70% 70.0% 26,153,297 26,160,655
60% 60.0% 22,417,112 22,410,329
50% 50.0% 18,680,927 18,668,283
40% 40.0% 14,944,741 14,953,876
30% 30.0% 11,208,556 11,202,851
20% 20.0% 7,472,371 7,476,765
10% 10.0% 3,736,185 3,738,540
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
