SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7725 | SPECpower_ssj2008 = 35,920 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 25, 2024 |
| Hardware Availability: | Nov-2024 | Software Availability: | Sep-2024 | Publication: | Oct 28, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

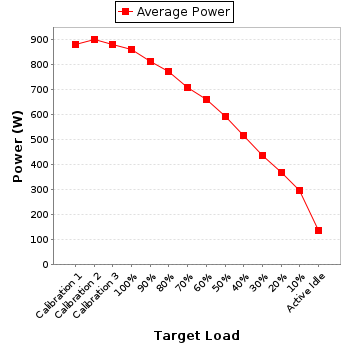

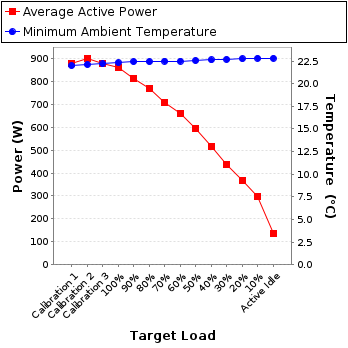

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 880 | 22.0 |
| Calibration 2 | 901 | 22.1 |
| Calibration 3 | 878 | 22.2 |
| 100% | 861 | 22.3 |
| 90% | 812 | 22.4 |
| 80% | 771 | 22.4 |
| 70% | 710 | 22.5 |
| 60% | 661 | 22.5 |
| 50% | 593 | 22.6 |
| 40% | 515 | 22.6 |
| 30% | 438 | 22.7 |
| 20% | 367 | 22.8 |
| 10% | 297 | 22.8 |
| Active Idle | 138 | 22.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91KA21978 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76421 |
| Date of Calibration: | 13-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 4.29 | 5.0 | 0.981 | 880 | 0.4% |
| Calibration 2 | 209 | 300.0 | 4.40 | 5.0 | 0.981 | 901 | 0.4% |
| Calibration 3 | 209 | 300.0 | 4.30 | 5.0 | 0.977 | 878 | 0.4% |
| 100% | 209 | 300.0 | 4.21 | 5.0 | 0.979 | 861 | 0.4% |
| 90% | 209 | 300.0 | 3.91 | 5.0 | 0.993 | 812 | 0.4% |
| 80% | 209 | 300.0 | 3.70 | 5.0 | 0.994 | 771 | 0.4% |
| 70% | 209 | 300.0 | 3.41 | 5.0 | 0.995 | 710 | 0.4% |
| 60% | 209 | 300.0 | 3.17 | 5.0 | 0.994 | 661 | 0.4% |
| 50% | 209 | 300.0 | 2.85 | 5.0 | 0.994 | 593 | 0.4% |
| 40% | 210 | 300.0 | 2.47 | 5.0 | 0.993 | 515 | 0.5% |
| 30% | 210 | 300.0 | 2.11 | 5.0 | 0.993 | 438 | 0.5% |
| 20% | 210 | 300.0 | 1.76 | 2.0 | 0.993 | 367 | 0.3% |
| 10% | 210 | 300.0 | 1.43 | 2.0 | 0.989 | 297 | 0.4% |
| Active Idle | 210 | 300.0 | 0.694 | 2.0 | 0.944 | 138 | 0.7% |
