Lenovo Global Technology Think System SR655 V3 ssj_ops@100% = 16,240,830
ssj_ops@100% per JVM = 338,351
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 19, 2024
Hardware Availability: Nov-2024 Software Availability: Sep-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,943,992
Calibration 2     16,264,320
Calibration 3     16,331,983
ssj_ops@calibrated=16,298,151
100% 99.6% 16,298,151 16,240,830
90% 90.0% 14,668,336 14,672,118
80% 80.0% 13,038,521 13,037,937
70% 70.0% 11,408,706 11,413,604
60% 60.1% 9,778,891 9,788,775
50% 50.1% 8,149,076 8,158,577
40% 40.0% 6,519,261 6,514,736
30% 30.0% 4,889,445 4,890,149
20% 20.0% 3,259,630 3,258,954
10% 10.0% 1,629,815 1,631,336
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR655 V3
Form Factor: 2U
CPU Name: AMD EPYC 9655 2.60 GHz
CPU Characteristics: 96-Core,2.60GHz 384MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A82019
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.2700)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 48
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE125W
Management Firmware Version: KAX341H
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5042881
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B1JR5I5AHQQ.001 340,936
WIN-B1JR5I5AHQQ.002 343,893
WIN-B1JR5I5AHQQ.003 334,171
WIN-B1JR5I5AHQQ.004 330,851
WIN-B1JR5I5AHQQ.005 329,910
WIN-B1JR5I5AHQQ.006 343,245
WIN-B1JR5I5AHQQ.007 336,097
WIN-B1JR5I5AHQQ.008 339,256
WIN-B1JR5I5AHQQ.009 338,560
WIN-B1JR5I5AHQQ.010 343,054
WIN-B1JR5I5AHQQ.011 339,200
WIN-B1JR5I5AHQQ.012 336,025
WIN-B1JR5I5AHQQ.013 341,239
WIN-B1JR5I5AHQQ.014 344,354
WIN-B1JR5I5AHQQ.015 337,978
WIN-B1JR5I5AHQQ.016 333,224
WIN-B1JR5I5AHQQ.017 341,632
WIN-B1JR5I5AHQQ.018 335,272
WIN-B1JR5I5AHQQ.019 341,116
WIN-B1JR5I5AHQQ.020 335,657
WIN-B1JR5I5AHQQ.021 342,397
WIN-B1JR5I5AHQQ.022 344,754
WIN-B1JR5I5AHQQ.023 336,060
WIN-B1JR5I5AHQQ.024 332,646
WIN-B1JR5I5AHQQ.025 338,923
WIN-B1JR5I5AHQQ.026 340,294
WIN-B1JR5I5AHQQ.027 340,246
WIN-B1JR5I5AHQQ.028 338,496
WIN-B1JR5I5AHQQ.029 336,893
WIN-B1JR5I5AHQQ.030 336,123
WIN-B1JR5I5AHQQ.031 344,561
WIN-B1JR5I5AHQQ.032 331,552
WIN-B1JR5I5AHQQ.033 338,898
WIN-B1JR5I5AHQQ.034 346,403
WIN-B1JR5I5AHQQ.035 336,644
WIN-B1JR5I5AHQQ.036 325,554
WIN-B1JR5I5AHQQ.037 341,959
WIN-B1JR5I5AHQQ.038 341,874
WIN-B1JR5I5AHQQ.039 339,851
WIN-B1JR5I5AHQQ.040 337,964
WIN-B1JR5I5AHQQ.041 342,226
WIN-B1JR5I5AHQQ.042 339,700
WIN-B1JR5I5AHQQ.043 342,412
WIN-B1JR5I5AHQQ.044 332,473
WIN-B1JR5I5AHQQ.045 342,203
WIN-B1JR5I5AHQQ.046 343,661
WIN-B1JR5I5AHQQ.047 326,296
WIN-B1JR5I5AHQQ.048 334,101
ssj_ops@100% 16,240,830
ssj_ops@100% per JVM 338,351

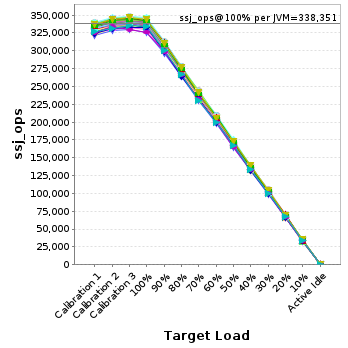

Graph of per-instance results

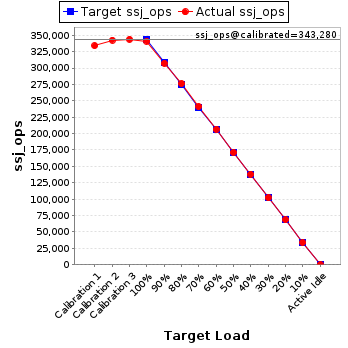

JVM 'WIN-B1JR5I5AHQQ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,059
Calibration 2     342,669
Calibration 3     343,892
ssj_ops@calibrated=343,280
100% 99.3% 343,280 340,936
90% 89.5% 308,952 307,084
80% 80.5% 274,624 276,316
70% 70.3% 240,296 241,397
60% 60.2% 205,968 206,694
50% 49.9% 171,640 171,444
40% 40.2% 137,312 138,064
30% 29.7% 102,984 102,024
20% 19.9% 68,656 68,465
10% 9.9% 34,328 34,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,475
Calibration 2     345,905
Calibration 3     345,659
ssj_ops@calibrated=345,782
100% 99.5% 345,782 343,893
90% 90.0% 311,204 311,052
80% 80.5% 276,625 278,270
70% 70.0% 242,047 242,146
60% 60.7% 207,469 209,796
50% 50.1% 172,891 173,110
40% 40.0% 138,313 138,458
30% 30.1% 103,735 104,200
20% 20.0% 69,156 69,196
10% 9.8% 34,578 33,802
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,526
Calibration 2     333,657
Calibration 3     334,190
ssj_ops@calibrated=333,923
100% 100.1% 333,923 334,171
90% 90.5% 300,531 302,074
80% 79.8% 267,139 266,583
70% 69.5% 233,746 232,176
60% 60.0% 200,354 200,308
50% 50.0% 166,962 167,117
40% 40.3% 133,569 134,574
30% 30.2% 100,177 100,920
20% 20.2% 66,785 67,346
10% 9.8% 33,392 32,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     323,091
Calibration 2     331,308
Calibration 3     332,226
ssj_ops@calibrated=331,767
100% 99.7% 331,767 330,851
90% 89.9% 298,590 298,414
80% 80.4% 265,413 266,754
70% 69.9% 232,237 231,948
60% 60.1% 199,060 199,490
50% 50.0% 165,883 165,754
40% 39.8% 132,707 132,208
30% 30.1% 99,530 99,776
20% 20.0% 66,353 66,403
10% 9.9% 33,177 32,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     325,621
Calibration 2     330,514
Calibration 3     332,512
ssj_ops@calibrated=331,513
100% 99.5% 331,513 329,910
90% 89.9% 298,362 297,985
80% 79.9% 265,211 264,985
70% 69.9% 232,059 231,892
60% 59.8% 198,908 198,239
50% 49.6% 165,757 164,477
40% 40.4% 132,605 133,813
30% 29.8% 99,454 98,827
20% 20.1% 66,303 66,490
10% 9.9% 33,151 32,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,472
Calibration 2     343,023
Calibration 3     344,342
ssj_ops@calibrated=343,683
100% 99.9% 343,683 343,245
90% 90.1% 309,314 309,665
80% 79.8% 274,946 274,410
70% 69.8% 240,578 239,995
60% 59.9% 206,210 206,000
50% 50.1% 171,841 172,307
40% 39.8% 137,473 136,687
30% 29.9% 103,105 102,837
20% 20.0% 68,737 68,828
10% 10.1% 34,368 34,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     327,529
Calibration 2     334,206
Calibration 3     337,209
ssj_ops@calibrated=335,708
100% 100.1% 335,708 336,097
90% 90.5% 302,137 303,974
80% 79.9% 268,566 268,231
70% 69.9% 234,995 234,622
60% 59.9% 201,425 201,227
50% 50.1% 167,854 168,154
40% 39.9% 134,283 133,837
30% 29.8% 100,712 99,985
20% 20.1% 67,142 67,350
10% 10.0% 33,571 33,665
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,850
Calibration 2     339,245
Calibration 3     340,480
ssj_ops@calibrated=339,862
100% 99.8% 339,862 339,256
90% 90.5% 305,876 307,527
80% 79.7% 271,890 270,765
70% 70.1% 237,903 238,172
60% 60.2% 203,917 204,543
50% 50.1% 169,931 170,326
40% 40.1% 135,945 136,213
30% 30.1% 101,959 102,372
20% 20.2% 67,972 68,768
10% 9.9% 33,986 33,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,870
Calibration 2     340,157
Calibration 3     339,669
ssj_ops@calibrated=339,913
100% 99.6% 339,913 338,560
90% 90.3% 305,922 306,990
80% 79.6% 271,930 270,544
70% 69.8% 237,939 237,265
60% 60.2% 203,948 204,633
50% 50.0% 169,956 169,960
40% 39.9% 135,965 135,657
30% 30.0% 101,974 102,129
20% 20.1% 67,983 68,170
10% 10.1% 33,991 34,335
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,244
Calibration 2     343,577
Calibration 3     345,354
ssj_ops@calibrated=344,465
100% 99.6% 344,465 343,054
90% 89.7% 310,019 308,905
80% 80.0% 275,572 275,667
70% 70.1% 241,126 241,340
60% 59.8% 206,679 205,927
50% 49.9% 172,233 172,000
40% 40.0% 137,786 137,809
30% 29.9% 103,340 102,866
20% 20.0% 68,893 69,050
10% 10.1% 34,447 34,844
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,304
Calibration 2     338,390
Calibration 3     340,939
ssj_ops@calibrated=339,665
100% 99.9% 339,665 339,200
90% 90.1% 305,698 305,883
80% 80.1% 271,732 272,030
70% 70.3% 237,765 238,654
60% 60.1% 203,799 204,185
50% 50.4% 169,832 171,322
40% 39.7% 135,866 134,855
30% 30.1% 101,899 102,155
20% 20.2% 67,933 68,533
10% 9.8% 33,966 33,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     327,131
Calibration 2     335,622
Calibration 3     337,922
ssj_ops@calibrated=336,772
100% 99.8% 336,772 336,025
90% 89.9% 303,095 302,728
80% 80.1% 269,418 269,897
70% 70.3% 235,740 236,762
60% 59.8% 202,063 201,455
50% 50.1% 168,386 168,727
40% 39.7% 134,709 133,548
30% 30.2% 101,032 101,860
20% 19.9% 67,354 67,004
10% 10.0% 33,677 33,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,617
Calibration 2     341,553
Calibration 3     341,642
ssj_ops@calibrated=341,597
100% 99.9% 341,597 341,239
90% 90.0% 307,437 307,558
80% 80.1% 273,278 273,667
70% 70.3% 239,118 240,149
60% 60.0% 204,958 204,829
50% 49.8% 170,799 170,017
40% 40.3% 136,639 137,818
30% 29.8% 102,479 101,899
20% 20.0% 68,319 68,254
10% 10.0% 34,160 34,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,244
Calibration 2     344,274
Calibration 3     344,320
ssj_ops@calibrated=344,297
100% 100.0% 344,297 344,354
90% 90.4% 309,867 311,088
80% 79.9% 275,438 275,137
70% 70.0% 241,008 240,989
60% 60.0% 206,578 206,556
50% 50.3% 172,149 173,029
40% 40.3% 137,719 138,626
30% 29.9% 103,289 102,824
20% 20.1% 68,859 69,358
10% 10.0% 34,430 34,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,577
Calibration 2     338,935
Calibration 3     339,443
ssj_ops@calibrated=339,189
100% 99.6% 339,189 337,978
90% 90.1% 305,270 305,619
80% 79.5% 271,351 269,583
70% 69.8% 237,432 236,896
60% 60.0% 203,513 203,434
50% 50.0% 169,595 169,480
40% 39.9% 135,676 135,172
30% 29.8% 101,757 101,053
20% 20.0% 67,838 67,887
10% 9.9% 33,919 33,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,161
Calibration 2     333,731
Calibration 3     336,042
ssj_ops@calibrated=334,887
100% 99.5% 334,887 333,224
90% 90.4% 301,398 302,686
80% 80.4% 267,909 269,408
70% 70.2% 234,421 234,998
60% 60.2% 200,932 201,709
50% 49.7% 167,443 166,370
40% 39.7% 133,955 132,953
30% 30.1% 100,466 100,927
20% 19.9% 66,977 66,721
10% 10.2% 33,489 34,003
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,820
Calibration 2     342,756
Calibration 3     343,093
ssj_ops@calibrated=342,924
100% 99.6% 342,924 341,632
90% 90.0% 308,632 308,510
80% 80.8% 274,340 276,951
70% 70.1% 240,047 240,418
60% 59.5% 205,755 204,128
50% 49.8% 171,462 170,913
40% 40.2% 137,170 138,000
30% 30.0% 102,877 102,920
20% 20.0% 68,585 68,584
10% 10.1% 34,292 34,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,468
Calibration 2     336,417
Calibration 3     337,329
ssj_ops@calibrated=336,873
100% 99.5% 336,873 335,272
90% 90.0% 303,186 303,284
80% 80.3% 269,498 270,352
70% 69.7% 235,811 234,663
60% 60.5% 202,124 203,744
50% 50.0% 168,436 168,545
40% 40.3% 134,749 135,845
30% 30.3% 101,062 101,913
20% 19.9% 67,375 67,120
10% 9.9% 33,687 33,273
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,858
Calibration 2     340,378
Calibration 3     343,755
ssj_ops@calibrated=342,067
100% 99.7% 342,067 341,116
90% 90.1% 307,860 308,055
80% 80.3% 273,653 274,593
70% 69.9% 239,447 239,131
60% 59.8% 205,240 204,571
50% 50.1% 171,033 171,208
40% 40.1% 136,827 137,114
30% 29.6% 102,620 101,364
20% 20.1% 68,413 68,650
10% 9.8% 34,207 33,373
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     329,970
Calibration 2     336,163
Calibration 3     338,544
ssj_ops@calibrated=337,354
100% 99.5% 337,354 335,657
90% 90.0% 303,618 303,467
80% 79.6% 269,883 268,669
70% 70.5% 236,147 237,739
60% 60.3% 202,412 203,550
50% 50.1% 168,677 169,077
40% 39.5% 134,941 133,293
30% 30.1% 101,206 101,667
20% 20.2% 67,471 68,132
10% 10.1% 33,735 34,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,621
Calibration 2     341,744
Calibration 3     344,601
ssj_ops@calibrated=343,173
100% 99.8% 343,173 342,397
90% 89.8% 308,855 308,214
80% 80.2% 274,538 275,115
70% 69.8% 240,221 239,581
60% 59.8% 205,904 205,244
50% 49.8% 171,586 170,934
40% 39.9% 137,269 136,789
30% 30.3% 102,952 104,142
20% 20.1% 68,635 68,829
10% 9.9% 34,317 34,105
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     339,558
Calibration 2     345,262
Calibration 3     347,782
ssj_ops@calibrated=346,522
100% 99.5% 346,522 344,754
90% 90.3% 311,870 313,007
80% 80.2% 277,217 277,939
70% 70.4% 242,565 244,079
60% 60.3% 207,913 208,959
50% 50.0% 173,261 173,142
40% 39.8% 138,609 138,016
30% 30.4% 103,957 105,225
20% 20.2% 69,304 70,137
10% 9.9% 34,652 34,453
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,534
Calibration 2     336,473
Calibration 3     338,083
ssj_ops@calibrated=337,278
100% 99.6% 337,278 336,060
90% 90.0% 303,550 303,586
80% 79.8% 269,823 269,175
70% 70.2% 236,095 236,804
60% 60.2% 202,367 203,040
50% 49.9% 168,639 168,342
40% 39.6% 134,911 133,598
30% 30.0% 101,183 101,088
20% 20.0% 67,456 67,319
10% 10.2% 33,728 34,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     326,298
Calibration 2     333,996
Calibration 3     335,020
ssj_ops@calibrated=334,508
100% 99.4% 334,508 332,646
90% 89.9% 301,058 300,796
80% 79.5% 267,607 266,089
70% 70.0% 234,156 234,123
60% 60.0% 200,705 200,590
50% 49.9% 167,254 166,910
40% 40.0% 133,803 133,753
30% 30.1% 100,353 100,843
20% 19.9% 66,902 66,628
10% 10.1% 33,451 33,661
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,982
Calibration 2     339,153
Calibration 3     340,189
ssj_ops@calibrated=339,671
100% 99.8% 339,671 338,923
90% 89.7% 305,704 304,776
80% 79.5% 271,737 270,031
70% 70.3% 237,770 238,817
60% 60.4% 203,803 205,158
50% 50.0% 169,836 169,858
40% 39.7% 135,868 135,008
30% 30.3% 101,901 102,838
20% 19.8% 67,934 67,374
10% 10.2% 33,967 34,553
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,927
Calibration 2     342,757
Calibration 3     340,848
ssj_ops@calibrated=341,802
100% 99.6% 341,802 340,294
90% 90.4% 307,622 309,135
80% 80.1% 273,442 273,788
70% 70.0% 239,262 239,387
60% 60.3% 205,081 206,073
50% 50.1% 170,901 171,146
40% 39.7% 136,721 135,599
30% 29.4% 102,541 100,498
20% 20.0% 68,360 68,390
10% 10.0% 34,180 34,190
Active Idle   0 0

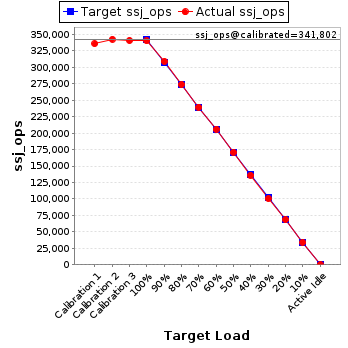

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,858
Calibration 2     338,559
Calibration 3     340,928
ssj_ops@calibrated=339,743
100% 100.1% 339,743 340,246
90% 90.2% 305,769 306,491
80% 80.2% 271,795 272,484
70% 70.0% 237,820 237,845
60% 60.4% 203,846 205,136
50% 49.9% 169,872 169,426
40% 39.9% 135,897 135,608
30% 29.9% 101,923 101,475
20% 19.7% 67,949 67,091
10% 10.1% 33,974 34,482
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,808
Calibration 2     339,323
Calibration 3     338,767
ssj_ops@calibrated=339,045
100% 99.8% 339,045 338,496
90% 89.6% 305,141 303,791
80% 80.1% 271,236 271,453
70% 70.6% 237,332 239,358
60% 60.0% 203,427 203,594
50% 50.4% 169,523 171,032
40% 39.8% 135,618 134,915
30% 30.0% 101,714 101,624
20% 19.6% 67,809 66,533
10% 9.9% 33,905 33,561
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,572
Calibration 2     336,122
Calibration 3     339,503
ssj_ops@calibrated=337,813
100% 99.7% 337,813 336,893
90% 89.7% 304,031 302,888
80% 79.4% 270,250 268,213
70% 69.6% 236,469 235,036
60% 60.5% 202,688 204,467
50% 50.0% 168,906 168,896
40% 40.0% 135,125 135,102
30% 29.9% 101,344 101,148
20% 19.8% 67,563 66,723
10% 10.1% 33,781 34,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,515
Calibration 2     335,735
Calibration 3     337,911
ssj_ops@calibrated=336,823
100% 99.8% 336,823 336,123
90% 90.2% 303,141 303,828
80% 79.4% 269,458 267,430
70% 70.0% 235,776 235,833
60% 60.1% 202,094 202,565
50% 49.8% 168,412 167,807
40% 39.8% 134,729 133,956
30% 30.0% 101,047 101,028
20% 20.0% 67,365 67,354
10% 10.0% 33,682 33,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     338,537
Calibration 2     342,152
Calibration 3     346,378
ssj_ops@calibrated=344,265
100% 100.1% 344,265 344,561
90% 90.0% 309,839 309,743
80% 79.7% 275,412 274,399
70% 69.9% 240,986 240,598
60% 59.7% 206,559 205,524
50% 50.1% 172,133 172,577
40% 39.9% 137,706 137,463
30% 29.8% 103,280 102,561
20% 20.0% 68,853 68,977
10% 9.9% 34,427 33,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,065
Calibration 2     334,304
Calibration 3     335,844
ssj_ops@calibrated=335,074
100% 98.9% 335,074 331,552
90% 90.2% 301,567 302,238
80% 80.4% 268,059 269,468
70% 70.1% 234,552 234,945
60% 60.2% 201,045 201,836
50% 50.6% 167,537 169,487
40% 39.4% 134,030 131,991
30% 30.0% 100,522 100,449
20% 19.8% 67,015 66,504
10% 10.1% 33,507 33,885
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,455
Calibration 2     340,187
Calibration 3     340,677
ssj_ops@calibrated=340,432
100% 99.5% 340,432 338,898
90% 90.4% 306,389 307,603
80% 80.3% 272,346 273,404
70% 70.3% 238,303 239,387
60% 59.6% 204,259 202,855
50% 50.2% 170,216 171,007
40% 40.2% 136,173 136,799
30% 30.4% 102,130 103,347
20% 20.1% 68,086 68,557
10% 10.0% 34,043 34,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     339,116
Calibration 2     345,981
Calibration 3     348,166
ssj_ops@calibrated=347,074
100% 99.8% 347,074 346,403
90% 90.0% 312,366 312,491
80% 80.2% 277,659 278,418
70% 70.1% 242,952 243,149
60% 60.1% 208,244 208,592
50% 50.6% 173,537 175,466
40% 40.2% 138,829 139,635
30% 29.8% 104,122 103,506
20% 19.9% 69,415 69,146
10% 10.0% 34,707 34,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,906
Calibration 2     337,937
Calibration 3     339,316
ssj_ops@calibrated=338,627
100% 99.4% 338,627 336,644
90% 89.9% 304,764 304,296
80% 79.9% 270,901 270,527
70% 70.0% 237,039 237,155
60% 59.9% 203,176 202,868
50% 50.3% 169,313 170,236
40% 40.0% 135,451 135,333
30% 30.2% 101,588 102,269
20% 20.1% 67,725 68,025
10% 10.1% 33,863 34,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     321,630
Calibration 2     329,053
Calibration 3     329,381
ssj_ops@calibrated=329,217
100% 98.9% 329,217 325,554
90% 89.8% 296,295 295,745
80% 80.0% 263,374 263,295
70% 69.8% 230,452 229,942
60% 60.1% 197,530 197,958
50% 50.0% 164,609 164,534
40% 40.2% 131,687 132,381
30% 30.1% 98,765 98,959
20% 20.0% 65,843 65,863
10% 10.1% 32,922 33,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,704
Calibration 2     345,112
Calibration 3     346,565
ssj_ops@calibrated=345,839
100% 98.9% 345,839 341,959
90% 89.5% 311,255 309,571
80% 79.9% 276,671 276,367
70% 70.5% 242,087 243,893
60% 60.2% 207,503 208,321
50% 50.1% 172,919 173,215
40% 40.1% 138,336 138,760
30% 29.8% 103,752 103,172
20% 19.8% 69,168 68,613
10% 10.1% 34,584 35,023
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,411
Calibration 2     343,610
Calibration 3     344,323
ssj_ops@calibrated=343,967
100% 99.4% 343,967 341,874
90% 90.2% 309,570 310,096
80% 79.8% 275,173 274,414
70% 70.4% 240,777 242,277
60% 60.0% 206,380 206,234
50% 50.3% 171,983 172,932
40% 39.9% 137,587 137,286
30% 30.1% 103,190 103,667
20% 19.8% 68,793 68,007
10% 10.0% 34,397 34,498
Active Idle   0 0

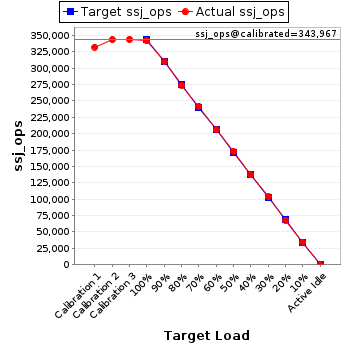

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,430
Calibration 2     338,396
Calibration 3     341,674
ssj_ops@calibrated=340,035
100% 99.9% 340,035 339,851
90% 89.9% 306,032 305,809
80% 80.2% 272,028 272,739
70% 70.0% 238,025 238,031
60% 59.8% 204,021 203,230
50% 50.2% 170,018 170,591
40% 40.3% 136,014 137,023
30% 30.0% 102,011 101,965
20% 19.9% 68,007 67,531
10% 10.0% 34,004 34,136
Active Idle   0 0

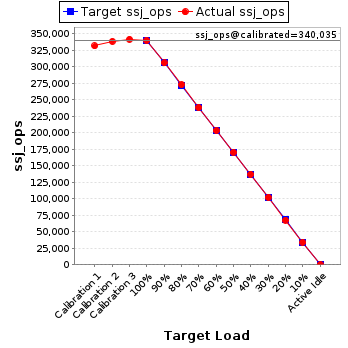

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,135
Calibration 2     338,814
Calibration 3     339,682
ssj_ops@calibrated=339,248
100% 99.6% 339,248 337,964
90% 89.7% 305,323 304,279
80% 80.2% 271,398 272,052
70% 70.1% 237,474 237,968
60% 59.9% 203,549 203,267
50% 50.4% 169,624 171,145
40% 40.3% 135,699 136,882
30% 29.8% 101,774 101,220
20% 19.9% 67,850 67,384
10% 10.1% 33,925 34,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,346
Calibration 2     342,156
Calibration 3     343,330
ssj_ops@calibrated=342,743
100% 99.8% 342,743 342,226
90% 89.9% 308,469 308,059
80% 79.8% 274,195 273,431
70% 69.9% 239,920 239,568
60% 60.1% 205,646 205,940
50% 50.1% 171,372 171,773
40% 40.0% 137,097 137,181
30% 29.9% 102,823 102,608
20% 20.0% 68,549 68,592
10% 10.1% 34,274 34,523
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,999
Calibration 2     338,713
Calibration 3     340,712
ssj_ops@calibrated=339,713
100% 100.0% 339,713 339,700
90% 89.7% 305,741 304,855
80% 80.1% 271,770 272,136
70% 70.2% 237,799 238,511
60% 60.2% 203,828 204,364
50% 50.0% 169,856 169,874
40% 39.9% 135,885 135,694
30% 30.1% 101,914 102,343
20% 20.1% 67,943 68,137
10% 9.8% 33,971 33,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,747
Calibration 2     343,204
Calibration 3     345,840
ssj_ops@calibrated=344,522
100% 99.4% 344,522 342,412
90% 90.4% 310,070 311,572
80% 79.9% 275,618 275,198
70% 69.6% 241,165 239,910
60% 59.9% 206,713 206,420
50% 49.7% 172,261 171,257
40% 39.9% 137,809 137,311
30% 29.9% 103,357 102,866
20% 20.4% 68,904 70,270
10% 10.0% 34,452 34,436
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     324,146
Calibration 2     331,235
Calibration 3     333,038
ssj_ops@calibrated=332,137
100% 100.1% 332,137 332,473
90% 90.1% 298,923 299,089
80% 79.5% 265,709 264,172
70% 70.1% 232,496 232,895
60% 60.1% 199,282 199,653
50% 50.4% 166,068 167,341
40% 39.7% 132,855 131,707
30% 29.9% 99,641 99,427
20% 20.0% 66,427 66,586
10% 10.1% 33,214 33,507
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,393
Calibration 2     342,312
Calibration 3     343,486
ssj_ops@calibrated=342,899
100% 99.8% 342,899 342,203
90% 90.0% 308,609 308,536
80% 80.0% 274,319 274,152
70% 69.8% 240,029 239,396
60% 60.5% 205,739 207,554
50% 50.2% 171,449 172,230
40% 39.9% 137,160 136,664
30% 30.0% 102,870 102,958
20% 19.7% 68,580 67,639
10% 9.9% 34,290 34,065
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,441
Calibration 2     344,279
Calibration 3     345,999
ssj_ops@calibrated=345,139
100% 99.6% 345,139 343,661
90% 89.8% 310,625 310,007
80% 80.1% 276,111 276,479
70% 69.8% 241,597 241,031
60% 59.4% 207,083 204,868
50% 50.0% 172,570 172,515
40% 40.4% 138,056 139,514
30% 30.2% 103,542 104,248
20% 19.9% 69,028 68,796
10% 10.0% 34,514 34,636
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     325,401
Calibration 2     334,056
Calibration 3     329,810
ssj_ops@calibrated=331,933
100% 98.3% 331,933 326,296
90% 89.9% 298,740 298,510
80% 80.2% 265,547 266,189
70% 70.0% 232,353 232,260
60% 60.2% 199,160 199,692
50% 49.7% 165,967 164,890
40% 40.0% 132,773 132,893
30% 30.1% 99,580 99,952
20% 20.1% 66,387 66,620
10% 10.2% 33,193 33,744
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B1JR5I5AHQQ.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     326,572
Calibration 2     331,211
Calibration 3     335,567
ssj_ops@calibrated=333,389
100% 100.2% 333,389 334,101
90% 90.2% 300,050 300,563
80% 80.0% 266,711 266,568
70% 69.1% 233,372 230,472
60% 59.9% 200,033 199,761
50% 50.0% 166,694 166,676
40% 40.0% 133,355 133,331
30% 30.1% 100,017 100,204
20% 20.1% 66,678 67,020
10% 10.2% 33,339 34,007
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
