Lenovo Global Technology Think System SR655 V3 SPECpower_ssj2008 = 33,182 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 19, 2024
Hardware Availability: Nov-2024 Software Availability: Sep-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 599 23.5
Calibration 2 601 23.6
Calibration 3 601 23.6
100% 383 23.7
90% 347 23.7
80% 323 23.7
70% 297 23.8
60% 274 23.8
50% 251 23.8
40% 226 23.9
30% 202 23.9
20% 176 24.0
10% 148 24.1
Active Idle 73.6 24.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 2.74 5.0 0.991 599 0.3%
Calibration 2 221 300.0 2.75 5.0 0.991 601 0.3%
Calibration 3 221 300.0 2.75 5.0 0.991 601 0.3%
100% 221 300.0 1.76 5.0 0.982 383 0.3%
90% 221 300.0 1.61 2.0 0.978 347 0.2%
80% 221 300.0 1.50 2.0 0.974 323 0.2%
70% 221 300.0 1.38 2.0 0.973 297 0.3%
60% 221 300.0 1.28 2.0 0.970 274 0.3%
50% 221 300.0 1.18 2.0 0.966 251 0.3%
40% 221 300.0 1.07 2.0 0.960 226 0.3%
30% 221 300.0 0.960 2.0 0.952 202 0.3%
20% 221 300.0 0.846 2.0 0.940 176 0.3%
10% 221 300.0 0.716 1.0 0.934 148 0.3%
Active Idle 221 300.0 0.408 1.0 0.817 73.6 0.4%

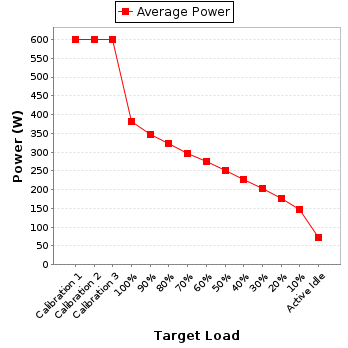

Power details for pwr1
