Quanta Computer Inc. S44NL-1U | SPECpower_ssj2008 = 31,874 overall ssj_ops/watt | ||||
Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Sep 21, 2024 |
Hardware Availability: | Oct-2024 | Software Availability: | Sep-2024 | Publication: | Oct 10, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

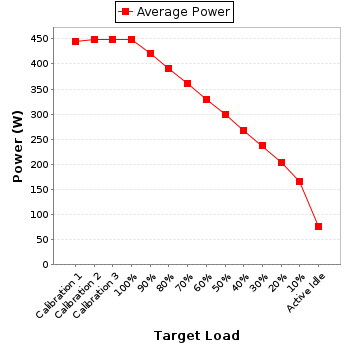

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 444 | 20.6 |
Calibration 2 | 449 | 20.6 |
Calibration 3 | 449 | 20.6 |
100% | 449 | 20.7 |
90% | 421 | 20.8 |
80% | 391 | 20.8 |
70% | 362 | 20.8 |
60% | 329 | 20.8 |
50% | 299 | 20.8 |
40% | 268 | 20.8 |
30% | 237 | 20.9 |
20% | 203 | 20.9 |
10% | 166 | 21.1 |
Active Idle | 76.3 | 21.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT310 |
Serial Number: | C2PM12064V |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory) |
Accredited by: | SGS |
Calibration Label: | ECR2416369 |
Date of Calibration: | 08-May-2024 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.11.0-a4047d62-20231205 |
Setup Description: | Connected to power supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/T |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 222 | 300.0 | 2.01 | 5.0 | 0.992 | 444 | 0.5% |
Calibration 2 | 222 | 300.0 | 2.03 | 5.0 | 0.992 | 449 | 0.5% |
Calibration 3 | 223 | 300.0 | 2.04 | 5.0 | 0.992 | 449 | 0.5% |
100% | 222 | 300.0 | 2.04 | 5.0 | 0.992 | 449 | 0.5% |
90% | 223 | 300.0 | 1.91 | 5.0 | 0.990 | 421 | 0.5% |
80% | 223 | 300.0 | 1.78 | 5.0 | 0.988 | 391 | 0.5% |
70% | 223 | 300.0 | 1.64 | 5.0 | 0.988 | 362 | 0.5% |
60% | 223 | 300.0 | 1.50 | 5.0 | 0.986 | 329 | 0.6% |
50% | 223 | 300.0 | 1.37 | 5.0 | 0.979 | 299 | 0.6% |
40% | 223 | 300.0 | 1.23 | 5.0 | 0.981 | 268 | 0.7% |
30% | 223 | 300.0 | 1.08 | 5.0 | 0.981 | 237 | 0.8% |
20% | 223 | 300.0 | 0.930 | 2.0 | 0.979 | 203 | 0.4% |
10% | 223 | 300.0 | 0.767 | 2.0 | 0.971 | 166 | 0.5% |
Active Idle | 223 | 300.0 | 0.373 | 2.0 | 0.920 | 76.3 | 0.9% |
