Hewlett Packard Enterprise ProLiant DL340 Gen12 SPECpower_ssj2008 = 16,445 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Sep 23, 2024
Hardware Availability: Jan-2025 Software Availability: Jul-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 8,199,615 359 22,824
90% 89.9% 7,398,064 339 21,819
80% 80.0% 6,581,587 317 20,761
70% 69.9% 5,749,184 297 19,360
60% 60.0% 4,937,546 278 17,789
50% 50.1% 4,117,784 257 16,048
40% 40.0% 3,290,419 233 14,092
30% 30.0% 2,468,042 209 11,835
20% 20.0% 1,646,113 187 8,804
10% 10.0% 822,251 149 5,510
Active Idle 0 125 0
∑ssj_ops / ∑power = 16,445

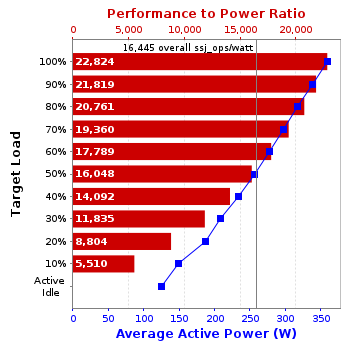

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL340 Gen12
Form Factor: 2U
CPU Name: Intel Xeon 6766E 1.90 GHz (Intel Turbo Boost Technology up to 2.70 GHz)
CPU Characteristics: 144-Core, 1.90 GHz, 108MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16 GB 1Rx8 PC5-6400B-RD1-1211-XT; slots 1, 3, 5, 7, 10, 12, 14 and 16
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Disk Drive: 1 x HPE 1.6TB NVMe MU SFF BC U.3 PM1735a SSD
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x 1 x Intel I350 1GbE 4p BASE-T OCP3 Adptr (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms750m -Xmx750m -Xmn550m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each physicalCore { numactl -C physicalCoreId }
JVM Instances: 144
JVM Initial Heap (MB): 750
JVM Maximum Heap (MB): 750
JVM Address Bits: 64
Boot Firmware Version: U69 v1.12 (09/06/2024)
Management Firmware Version: 1.62 Aug 13 2024
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08 (build 25.251-b08, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: 91K308556
Serial Number: Unknown
Connectivity: USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-100-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 359 27.4
90% 339 27.5
80% 317 27.3
70% 297 27.1
60% 278 27.1
50% 257 27.0
40% 233 26.9
30% 209 26.9
20% 187 26.8
10% 149 26.7
Active Idle 125 26.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 26.7 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,319,356
Calibration 2     8,243,226
Calibration 3     8,208,409
ssj_ops@calibrated=8,225,818
100% 99.7% 8,225,818 8,199,615
90% 89.9% 7,403,236 7,398,064
80% 80.0% 6,580,654 6,581,587
70% 69.9% 5,758,072 5,749,184
60% 60.0% 4,935,491 4,937,546
50% 50.1% 4,112,909 4,117,784
40% 40.0% 3,290,327 3,290,419
30% 30.0% 2,467,745 2,468,042
20% 20.0% 1,645,164 1,646,113
10% 10.0% 822,582 822,251
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
