SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL145 Gen11 | SPECpower_ssj2008 = 24,781 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 23, 2024 |
| Hardware Availability: | Oct-2024 | Software Availability: | Jul-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

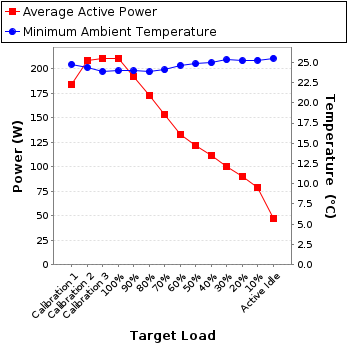

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 184 | 24.8 |
| Calibration 2 | 208 | 24.4 |
| Calibration 3 | 211 | 23.9 |
| 100% | 210 | 23.9 |
| 90% | 192 | 23.9 |
| 80% | 173 | 23.8 |
| 70% | 153 | 24.1 |
| 60% | 133 | 24.6 |
| 50% | 121 | 24.8 |
| 40% | 111 | 24.9 |
| 30% | 101 | 25.3 |
| 20% | 89.7 | 25.2 |
| 10% | 78.5 | 25.2 |
| Active Idle | 46.8 | 25.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22004V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-180-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 0.929 | 1.0 | 0.960 | 184 | 0.3% |
| Calibration 2 | 207 | 300.0 | 1.04 | 1.0 | 0.971 | 208 | 0.3% |
| Calibration 3 | 207 | 300.0 | 1.05 | 1.0 | 0.971 | 211 | 0.3% |
| 100% | 206 | 300.0 | 1.05 | 1.0 | 0.971 | 210 | 0.3% |
| 90% | 207 | 300.0 | 0.964 | 1.0 | 0.965 | 192 | 0.3% |
| 80% | 207 | 300.0 | 0.877 | 1.0 | 0.953 | 173 | 0.3% |
| 70% | 207 | 300.0 | 0.786 | 1.0 | 0.944 | 153 | 0.4% |
| 60% | 207 | 300.0 | 0.689 | 1.0 | 0.935 | 133 | 0.4% |
| 50% | 207 | 300.0 | 0.635 | 1.0 | 0.924 | 121 | 0.4% |
| 40% | 207 | 300.0 | 0.589 | 1.0 | 0.913 | 111 | 0.4% |
| 30% | 207 | 300.0 | 0.542 | 1.0 | 0.898 | 101 | 0.5% |
| 20% | 207 | 300.0 | 0.493 | 1.0 | 0.880 | 89.7 | 0.5% |
| 10% | 206 | 300.0 | 0.452 | 1.0 | 0.842 | 78.5 | 0.6% |
| Active Idle | 206 | 300.0 | 0.327 | 0.5 | 0.695 | 46.8 | 0.5% |
