SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL365 Gen11 | SPECpower_ssj2008 = 31,594 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 20, 2024 |
| Hardware Availability: | Jan-2025 | Software Availability: | Jul-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

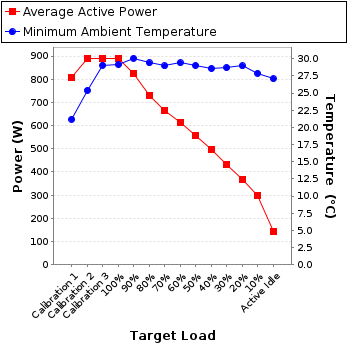

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 806 | 21.2 |
| Calibration 2 | 888 | 25.4 |
| Calibration 3 | 888 | 29.1 |
| 100% | 890 | 29.1 |
| 90% | 825 | 30.1 |
| 80% | 730 | 29.4 |
| 70% | 666 | 28.9 |
| 60% | 613 | 29.4 |
| 50% | 556 | 29.0 |
| 40% | 496 | 28.6 |
| 30% | 433 | 28.7 |
| 20% | 366 | 28.9 |
| 10% | 298 | 27.9 |
| Active Idle | 144 | 27.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H16YM-80-1 |
| Date of Calibration: | 06-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

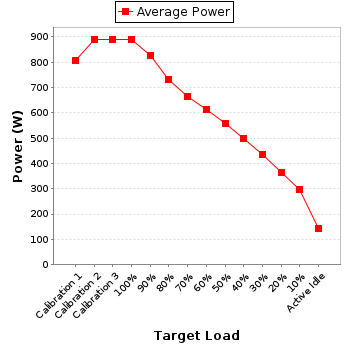

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 3.93 | 5.0 | 0.992 | 806 | 0.4% |
| Calibration 2 | 208 | 300.0 | 4.30 | 5.0 | 0.993 | 888 | 0.3% |
| Calibration 3 | 208 | 300.0 | 4.30 | 5.0 | 0.993 | 888 | 0.3% |
| 100% | 208 | 300.0 | 4.31 | 5.0 | 0.993 | 890 | 0.3% |
| 90% | 208 | 300.0 | 4.00 | 5.0 | 0.993 | 825 | 0.4% |
| 80% | 208 | 300.0 | 3.54 | 5.0 | 0.991 | 730 | 0.4% |
| 70% | 208 | 300.0 | 3.23 | 5.0 | 0.990 | 666 | 0.4% |
| 60% | 208 | 300.0 | 2.98 | 5.0 | 0.988 | 613 | 0.4% |
| 50% | 208 | 300.0 | 2.71 | 5.0 | 0.986 | 556 | 0.5% |
| 40% | 208 | 300.0 | 2.43 | 5.0 | 0.982 | 496 | 0.5% |
| 30% | 209 | 300.0 | 2.12 | 5.0 | 0.979 | 433 | 0.5% |
| 20% | 209 | 300.0 | 1.80 | 2.0 | 0.972 | 366 | 0.4% |
| 10% | 209 | 300.0 | 1.48 | 2.0 | 0.964 | 298 | 0.4% |
| Active Idle | 209 | 300.0 | 0.784 | 2.0 | 0.879 | 144 | 0.7% |
