Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
18,284,585 |
Calibration 2 |
|
|
18,261,837 |
Calibration 3 |
|
|
18,238,370 |
ssj_ops@calibrated=18,250,103 |
100% |
100.0% |
18,250,103 |
18,250,813 |
90% |
91.7% |
16,425,093 |
16,728,527 |
80% |
80.2% |
14,600,083 |
14,628,251 |
70% |
70.0% |
12,775,072 |
12,779,231 |
60% |
60.1% |
10,950,062 |
10,966,604 |
50% |
50.0% |
9,125,052 |
9,133,625 |
40% |
40.0% |
7,300,041 |
7,305,694 |
30% |
30.0% |
5,475,031 |
5,476,089 |
20% |
20.0% |
3,650,021 |
3,652,042 |
10% |
10.0% |
1,825,010 |
1,820,971 |
Active Idle |
|
0 |
0 |
Hardware |
Hardware Vendor: |
IEIT Systems Co., Ltd. |
Model: |
meta brain NF5280G8 |
Form Factor: |
2U |
CPU Name: |
Intel Xeon 6780E 2.2 GHz |
CPU Characteristics: |
144 core, 2.2GHz, 108MB L3 Cache |
CPU Frequency (MHz): |
2200 |
CPU(s) Enabled: |
288 cores, 2 chips, 144 cores/chip |
Hardware Threads: |
288 (1 / core) |
CPU(s) Orderable: |
1,2 chips |
Primary Cache: |
64 KB I + 32 KB D on chip per core |
Secondary Cache: |
4 MB I+D on chip per core |
Tertiary Cache: |
108 MB I+D on chip per chip |
Other Cache: |
None |
Memory Amount (GB): |
1024 |
# and size of DIMM: |
16 x 65536 MB |
Memory Details: |
16 x SA_64G_DDR5-6400ER_2R4_A40F-CS,M321R8GA0PB2-CCP, IEIT PN:ZMMY1001071;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated |
Power Supply Quantity and Rating (W): |
1 x 1600 |
Power Supply Details: |
1 x 1600w Great Wall Power; G_M_GW-CRPS1600D2W_1600W_1U_P; IEIT PN:ZMPS1000775 |
Disk Drive: |
1 x 960G PM963_MZQLW960HMJP-00003_NVME;IEIT PN:ZMHD1000265 |
Disk Controller: |
Integrated NVME controller |
# and type of Network Interface Cards (NICs) Installed: |
1 x Intel_W_I350-T2V2_RJ_PCI-E4X_1KM |
NICs Enabled in Firmware / OS / Connected: |
2/2/1 |
Network Speed (Mbit): |
1000 |
Keyboard: |
None |
Mouse: |
None |
Monitor: |
None |
Optical Drives: |
No |
Other Hardware: |
None |
Software |
Power Management: |
Balanced Mode enabled in OS |
Operating System (OS): |
Windows Server 2022 Datacenter |
OS Version: |
Version 21H2 (OS Build 20348.587) |
Filesystem: |
NTFS |
JVM Vendor: |
Oracle Corporation |
JVM Version: |
Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing) |
JVM Command-line Options: |
-server -Xmn1825m -Xms1995m -Xmx1995m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 |
JVM Affinity: |
start /NODE [0,1,2,3,4,5] /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000] |
JVM Instances: |
72 |
JVM Initial Heap (MB): |
1995 |
JVM Maximum Heap (MB): |
1995 |
JVM Address Bits: |
64 |
Boot Firmware Version: |
00.14.00 |
Management Firmware Version: |
6.05.05 |
Workload Version: |
SSJ 1.2.10 |
Director Location: |
Controller |
Other Software: |
Microsoft Windows (KB5039227) |
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
JVM Instance |
ssj_ops@100% |
WIN-CIOKGHFHLST.001 |
248,419 |
WIN-CIOKGHFHLST.002 |
253,555 |
WIN-CIOKGHFHLST.003 |
251,494 |
WIN-CIOKGHFHLST.004 |
255,479 |
WIN-CIOKGHFHLST.005 |
252,046 |
WIN-CIOKGHFHLST.006 |
250,463 |
WIN-CIOKGHFHLST.007 |
252,444 |
WIN-CIOKGHFHLST.008 |
250,959 |
WIN-CIOKGHFHLST.009 |
256,402 |
WIN-CIOKGHFHLST.010 |
258,133 |
WIN-CIOKGHFHLST.011 |
253,844 |
WIN-CIOKGHFHLST.012 |
256,825 |
WIN-CIOKGHFHLST.013 |
256,867 |
WIN-CIOKGHFHLST.014 |
248,545 |
WIN-CIOKGHFHLST.015 |
251,527 |
WIN-CIOKGHFHLST.016 |
256,917 |
WIN-CIOKGHFHLST.017 |
252,875 |
WIN-CIOKGHFHLST.018 |
256,396 |
WIN-CIOKGHFHLST.019 |
254,207 |
WIN-CIOKGHFHLST.020 |
257,173 |
WIN-CIOKGHFHLST.021 |
246,781 |
WIN-CIOKGHFHLST.022 |
245,179 |
WIN-CIOKGHFHLST.023 |
256,258 |
WIN-CIOKGHFHLST.024 |
254,172 |
WIN-CIOKGHFHLST.025 |
250,629 |
WIN-CIOKGHFHLST.026 |
255,479 |
WIN-CIOKGHFHLST.027 |
253,697 |
WIN-CIOKGHFHLST.028 |
252,471 |
WIN-CIOKGHFHLST.029 |
255,187 |
WIN-CIOKGHFHLST.030 |
258,279 |
WIN-CIOKGHFHLST.031 |
251,651 |
WIN-CIOKGHFHLST.032 |
256,677 |
WIN-CIOKGHFHLST.033 |
251,282 |
WIN-CIOKGHFHLST.034 |
253,252 |
WIN-CIOKGHFHLST.035 |
253,880 |
WIN-CIOKGHFHLST.036 |
252,553 |
WIN-CIOKGHFHLST.037 |
254,080 |
WIN-CIOKGHFHLST.038 |
250,761 |
WIN-CIOKGHFHLST.039 |
257,262 |
WIN-CIOKGHFHLST.040 |
256,559 |
WIN-CIOKGHFHLST.041 |
257,820 |
WIN-CIOKGHFHLST.042 |
248,616 |
WIN-CIOKGHFHLST.043 |
256,253 |
WIN-CIOKGHFHLST.044 |
258,906 |
WIN-CIOKGHFHLST.045 |
248,600 |
WIN-CIOKGHFHLST.046 |
252,446 |
WIN-CIOKGHFHLST.047 |
256,058 |
WIN-CIOKGHFHLST.048 |
249,692 |
WIN-CIOKGHFHLST.049 |
254,556 |
WIN-CIOKGHFHLST.050 |
255,017 |
WIN-CIOKGHFHLST.051 |
250,393 |
WIN-CIOKGHFHLST.052 |
253,451 |
WIN-CIOKGHFHLST.053 |
253,212 |
WIN-CIOKGHFHLST.054 |
256,535 |
WIN-CIOKGHFHLST.055 |
256,552 |
WIN-CIOKGHFHLST.056 |
254,112 |
WIN-CIOKGHFHLST.057 |
255,506 |
WIN-CIOKGHFHLST.058 |
252,586 |
WIN-CIOKGHFHLST.059 |
253,759 |
WIN-CIOKGHFHLST.060 |
253,124 |
WIN-CIOKGHFHLST.061 |
253,449 |
WIN-CIOKGHFHLST.062 |
254,751 |
WIN-CIOKGHFHLST.063 |
245,985 |
WIN-CIOKGHFHLST.064 |
254,842 |
WIN-CIOKGHFHLST.065 |
256,256 |
WIN-CIOKGHFHLST.066 |
252,123 |
WIN-CIOKGHFHLST.067 |
252,481 |
WIN-CIOKGHFHLST.068 |
252,634 |
WIN-CIOKGHFHLST.069 |
251,784 |
WIN-CIOKGHFHLST.070 |
257,616 |
WIN-CIOKGHFHLST.071 |
254,027 |
WIN-CIOKGHFHLST.072 |
247,013 |
ssj_ops@100% |
18,250,813 |
ssj_ops@100% per JVM |
253,484 |
JVM 'WIN-CIOKGHFHLST.001' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
244,735 |
Calibration 2 |
|
|
248,932 |
Calibration 3 |
|
|
248,286 |
ssj_ops@calibrated=248,609 |
100% |
99.9% |
248,609 |
248,419 |
90% |
91.3% |
223,748 |
226,902 |
80% |
80.0% |
198,887 |
198,803 |
70% |
69.7% |
174,026 |
173,329 |
60% |
59.7% |
149,165 |
148,533 |
50% |
50.2% |
124,305 |
124,901 |
40% |
40.1% |
99,444 |
99,596 |
30% |
30.0% |
74,583 |
74,681 |
20% |
20.0% |
49,722 |
49,810 |
10% |
10.0% |
24,861 |
24,950 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.002' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,288 |
Calibration 2 |
|
|
254,076 |
Calibration 3 |
|
|
254,399 |
ssj_ops@calibrated=254,238 |
100% |
99.7% |
254,238 |
253,555 |
90% |
91.7% |
228,814 |
233,169 |
80% |
79.9% |
203,390 |
203,102 |
70% |
70.0% |
177,966 |
177,978 |
60% |
59.9% |
152,543 |
152,367 |
50% |
49.7% |
127,119 |
126,368 |
40% |
40.3% |
101,695 |
102,450 |
30% |
29.8% |
76,271 |
75,646 |
20% |
20.1% |
50,848 |
51,063 |
10% |
9.7% |
25,424 |
24,703 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.003' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,440 |
Calibration 2 |
|
|
249,458 |
Calibration 3 |
|
|
250,831 |
ssj_ops@calibrated=250,145 |
100% |
100.5% |
250,145 |
251,494 |
90% |
90.7% |
225,130 |
226,949 |
80% |
80.5% |
200,116 |
201,406 |
70% |
69.8% |
175,101 |
174,705 |
60% |
59.9% |
150,087 |
149,770 |
50% |
50.0% |
125,072 |
125,051 |
40% |
40.3% |
100,058 |
100,847 |
30% |
29.9% |
75,043 |
74,907 |
20% |
20.2% |
50,029 |
50,574 |
10% |
9.9% |
25,014 |
24,689 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.004' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,062 |
Calibration 2 |
|
|
255,316 |
Calibration 3 |
|
|
255,211 |
ssj_ops@calibrated=255,264 |
100% |
100.1% |
255,264 |
255,479 |
90% |
92.2% |
229,737 |
235,425 |
80% |
80.6% |
204,211 |
205,621 |
70% |
69.6% |
178,685 |
177,696 |
60% |
60.0% |
153,158 |
153,216 |
50% |
50.4% |
127,632 |
128,598 |
40% |
40.1% |
102,106 |
102,457 |
30% |
29.7% |
76,579 |
75,824 |
20% |
19.9% |
51,053 |
50,891 |
10% |
9.9% |
25,526 |
25,293 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.005' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,132 |
Calibration 2 |
|
|
253,228 |
Calibration 3 |
|
|
252,341 |
ssj_ops@calibrated=252,785 |
100% |
99.7% |
252,785 |
252,046 |
90% |
90.9% |
227,506 |
229,731 |
80% |
80.4% |
202,228 |
203,311 |
70% |
70.1% |
176,949 |
177,254 |
60% |
60.0% |
151,671 |
151,777 |
50% |
50.5% |
126,392 |
127,781 |
40% |
40.4% |
101,114 |
102,127 |
30% |
29.8% |
75,835 |
75,354 |
20% |
20.4% |
50,557 |
51,582 |
10% |
9.8% |
25,278 |
24,891 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.006' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
250,929 |
Calibration 2 |
|
|
250,111 |
Calibration 3 |
|
|
250,483 |
ssj_ops@calibrated=250,297 |
100% |
100.1% |
250,297 |
250,463 |
90% |
91.8% |
225,267 |
229,814 |
80% |
79.8% |
200,237 |
199,827 |
70% |
70.1% |
175,208 |
175,440 |
60% |
60.3% |
150,178 |
150,946 |
50% |
49.9% |
125,148 |
124,989 |
40% |
39.9% |
100,119 |
99,750 |
30% |
30.3% |
75,089 |
75,962 |
20% |
20.3% |
50,059 |
50,784 |
10% |
10.0% |
25,030 |
24,958 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.007' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
255,192 |
Calibration 2 |
|
|
253,664 |
Calibration 3 |
|
|
253,192 |
ssj_ops@calibrated=253,428 |
100% |
99.6% |
253,428 |
252,444 |
90% |
91.7% |
228,085 |
232,490 |
80% |
80.6% |
202,742 |
204,167 |
70% |
69.8% |
177,400 |
176,805 |
60% |
60.3% |
152,057 |
152,885 |
50% |
50.0% |
126,714 |
126,669 |
40% |
40.1% |
101,371 |
101,527 |
30% |
30.4% |
76,028 |
77,047 |
20% |
20.0% |
50,686 |
50,771 |
10% |
9.9% |
25,343 |
25,099 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.008' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
252,340 |
Calibration 2 |
|
|
251,049 |
Calibration 3 |
|
|
251,123 |
ssj_ops@calibrated=251,086 |
100% |
99.9% |
251,086 |
250,959 |
90% |
92.0% |
225,977 |
230,985 |
80% |
80.3% |
200,869 |
201,647 |
70% |
70.4% |
175,760 |
176,756 |
60% |
60.1% |
150,652 |
150,918 |
50% |
50.1% |
125,543 |
125,816 |
40% |
39.9% |
100,434 |
100,155 |
30% |
29.7% |
75,326 |
74,506 |
20% |
20.0% |
50,217 |
50,311 |
10% |
10.0% |
25,109 |
25,209 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.009' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,997 |
Calibration 2 |
|
|
256,147 |
Calibration 3 |
|
|
255,580 |
ssj_ops@calibrated=255,864 |
100% |
100.2% |
255,864 |
256,402 |
90% |
92.0% |
230,277 |
235,519 |
80% |
80.3% |
204,691 |
205,585 |
70% |
70.0% |
179,105 |
179,030 |
60% |
59.9% |
153,518 |
153,168 |
50% |
50.1% |
127,932 |
128,100 |
40% |
39.8% |
102,345 |
101,811 |
30% |
30.0% |
76,759 |
76,741 |
20% |
20.4% |
51,173 |
52,219 |
10% |
10.2% |
25,586 |
26,074 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.010' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
258,553 |
Calibration 2 |
|
|
258,303 |
Calibration 3 |
|
|
258,326 |
ssj_ops@calibrated=258,315 |
100% |
99.9% |
258,315 |
258,133 |
90% |
91.9% |
232,483 |
237,391 |
80% |
80.3% |
206,652 |
207,409 |
70% |
69.6% |
180,820 |
179,832 |
60% |
60.4% |
154,989 |
155,923 |
50% |
49.8% |
129,157 |
128,674 |
40% |
40.1% |
103,326 |
103,495 |
30% |
30.0% |
77,494 |
77,392 |
20% |
20.1% |
51,663 |
52,014 |
10% |
10.0% |
25,831 |
25,752 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.011' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,271 |
Calibration 2 |
|
|
253,734 |
Calibration 3 |
|
|
253,402 |
ssj_ops@calibrated=253,568 |
100% |
100.1% |
253,568 |
253,844 |
90% |
91.8% |
228,211 |
232,892 |
80% |
80.1% |
202,855 |
203,046 |
70% |
69.6% |
177,498 |
176,572 |
60% |
60.0% |
152,141 |
152,145 |
50% |
50.2% |
126,784 |
127,182 |
40% |
39.8% |
101,427 |
100,808 |
30% |
29.7% |
76,070 |
75,399 |
20% |
20.0% |
50,714 |
50,702 |
10% |
10.2% |
25,357 |
25,769 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.012' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,590 |
Calibration 2 |
|
|
256,528 |
Calibration 3 |
|
|
257,316 |
ssj_ops@calibrated=256,922 |
100% |
100.0% |
256,922 |
256,825 |
90% |
91.3% |
231,230 |
234,466 |
80% |
80.6% |
205,538 |
207,007 |
70% |
69.6% |
179,845 |
178,838 |
60% |
60.5% |
154,153 |
155,377 |
50% |
49.5% |
128,461 |
127,119 |
40% |
39.8% |
102,769 |
102,274 |
30% |
30.3% |
77,077 |
77,773 |
20% |
19.9% |
51,384 |
51,200 |
10% |
10.0% |
25,692 |
25,808 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.013' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
258,002 |
Calibration 2 |
|
|
257,512 |
Calibration 3 |
|
|
257,093 |
ssj_ops@calibrated=257,303 |
100% |
99.8% |
257,303 |
256,867 |
90% |
91.5% |
231,572 |
235,470 |
80% |
80.0% |
205,842 |
205,894 |
70% |
69.9% |
180,112 |
179,969 |
60% |
59.5% |
154,382 |
153,140 |
50% |
50.1% |
128,651 |
129,011 |
40% |
39.8% |
102,921 |
102,474 |
30% |
30.1% |
77,191 |
77,557 |
20% |
19.8% |
51,461 |
50,891 |
10% |
9.9% |
25,730 |
25,536 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.014' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
250,344 |
Calibration 2 |
|
|
248,401 |
Calibration 3 |
|
|
248,735 |
ssj_ops@calibrated=248,568 |
100% |
100.0% |
248,568 |
248,545 |
90% |
92.2% |
223,711 |
229,226 |
80% |
79.9% |
198,854 |
198,710 |
70% |
69.9% |
173,997 |
173,658 |
60% |
59.9% |
149,141 |
148,841 |
50% |
49.8% |
124,284 |
123,775 |
40% |
40.3% |
99,427 |
100,178 |
30% |
30.1% |
74,570 |
74,786 |
20% |
20.2% |
49,714 |
50,202 |
10% |
10.0% |
24,857 |
24,764 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.015' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,682 |
Calibration 2 |
|
|
251,547 |
Calibration 3 |
|
|
251,182 |
ssj_ops@calibrated=251,365 |
100% |
100.1% |
251,365 |
251,527 |
90% |
91.5% |
226,228 |
229,943 |
80% |
80.1% |
201,092 |
201,461 |
70% |
69.4% |
175,955 |
174,549 |
60% |
59.8% |
150,819 |
150,259 |
50% |
50.0% |
125,682 |
125,575 |
40% |
40.5% |
100,546 |
101,845 |
30% |
29.7% |
75,409 |
74,607 |
20% |
20.2% |
50,273 |
50,722 |
10% |
9.8% |
25,136 |
24,639 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.016' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,545 |
Calibration 2 |
|
|
256,669 |
Calibration 3 |
|
|
257,098 |
ssj_ops@calibrated=256,883 |
100% |
100.0% |
256,883 |
256,917 |
90% |
92.0% |
231,195 |
236,326 |
80% |
80.2% |
205,507 |
205,895 |
70% |
70.8% |
179,818 |
181,750 |
60% |
60.1% |
154,130 |
154,390 |
50% |
49.9% |
128,442 |
128,257 |
40% |
39.9% |
102,753 |
102,616 |
30% |
30.1% |
77,065 |
77,290 |
20% |
19.9% |
51,377 |
51,165 |
10% |
10.0% |
25,688 |
25,568 |
Active Idle |
|
0 |
0 |

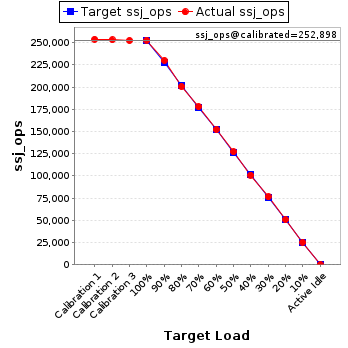

JVM 'WIN-CIOKGHFHLST.017' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,949 |
Calibration 2 |
|
|
253,249 |
Calibration 3 |
|
|
252,547 |
ssj_ops@calibrated=252,898 |
100% |
100.0% |
252,898 |
252,875 |
90% |
91.0% |
227,608 |
230,013 |
80% |
79.3% |
202,318 |
200,592 |
70% |
70.4% |
177,029 |
177,958 |
60% |
60.2% |
151,739 |
152,275 |
50% |
50.3% |
126,449 |
127,087 |
40% |
39.9% |
101,159 |
100,865 |
30% |
30.2% |
75,869 |
76,402 |
20% |
20.0% |
50,580 |
50,676 |
10% |
10.0% |
25,290 |
25,384 |
Active Idle |
|
0 |
0 |

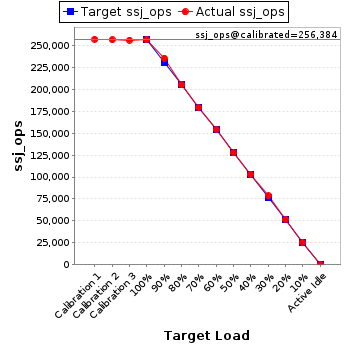

JVM 'WIN-CIOKGHFHLST.018' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,165 |
Calibration 2 |
|
|
256,470 |
Calibration 3 |
|
|
256,298 |
ssj_ops@calibrated=256,384 |
100% |
100.0% |
256,384 |
256,396 |
90% |
91.9% |
230,746 |
235,590 |
80% |
80.0% |
205,107 |
205,062 |
70% |
69.9% |
179,469 |
179,161 |
60% |
60.3% |
153,830 |
154,594 |
50% |
49.7% |
128,192 |
127,464 |
40% |
40.2% |
102,554 |
103,068 |
30% |
30.6% |
76,915 |
78,528 |
20% |
20.1% |
51,277 |
51,652 |
10% |
10.0% |
25,638 |
25,637 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.019' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,896 |
Calibration 2 |
|
|
253,995 |
Calibration 3 |
|
|
254,228 |
ssj_ops@calibrated=254,111 |
100% |
100.0% |
254,111 |
254,207 |
90% |
92.1% |
228,700 |
233,982 |
80% |
80.4% |
203,289 |
204,336 |
70% |
70.3% |
177,878 |
178,741 |
60% |
60.1% |
152,467 |
152,728 |
50% |
50.3% |
127,056 |
127,743 |
40% |
40.0% |
101,645 |
101,688 |
30% |
30.2% |
76,233 |
76,666 |
20% |
19.8% |
50,822 |
50,384 |
10% |
9.8% |
25,411 |
24,960 |
Active Idle |
|
0 |
0 |

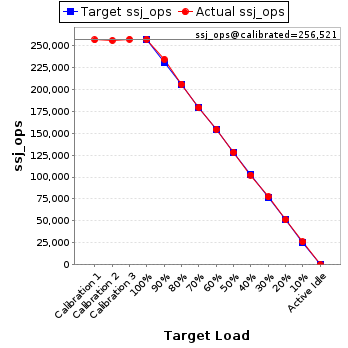

JVM 'WIN-CIOKGHFHLST.020' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,449 |
Calibration 2 |
|
|
255,804 |
Calibration 3 |
|
|
257,237 |
ssj_ops@calibrated=256,521 |
100% |
100.3% |
256,521 |
257,173 |
90% |
91.3% |
230,868 |
234,313 |
80% |
80.3% |
205,216 |
206,000 |
70% |
69.8% |
179,564 |
179,111 |
60% |
60.2% |
153,912 |
154,303 |
50% |
50.0% |
128,260 |
128,301 |
40% |
39.9% |
102,608 |
102,312 |
30% |
30.1% |
76,956 |
77,315 |
20% |
20.0% |
51,304 |
51,231 |
10% |
10.1% |
25,652 |
25,933 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.021' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
247,905 |
Calibration 2 |
|
|
247,572 |
Calibration 3 |
|
|
247,315 |
ssj_ops@calibrated=247,444 |
100% |
99.7% |
247,444 |
246,781 |
90% |
91.5% |
222,699 |
226,362 |
80% |
80.3% |
197,955 |
198,679 |
70% |
69.2% |
173,210 |
171,342 |
60% |
59.5% |
148,466 |
147,182 |
50% |
49.7% |
123,722 |
122,933 |
40% |
39.9% |
98,977 |
98,756 |
30% |
30.2% |
74,233 |
74,726 |
20% |
19.6% |
49,489 |
48,560 |
10% |
10.1% |
24,744 |
25,013 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.022' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
247,475 |
Calibration 2 |
|
|
245,987 |
Calibration 3 |
|
|
245,780 |
ssj_ops@calibrated=245,884 |
100% |
99.7% |
245,884 |
245,179 |
90% |
91.9% |
221,296 |
225,874 |
80% |
80.3% |
196,707 |
197,417 |
70% |
70.2% |
172,119 |
172,703 |
60% |
60.4% |
147,530 |
148,616 |
50% |
49.8% |
122,942 |
122,488 |
40% |
39.9% |
98,354 |
98,094 |
30% |
29.9% |
73,765 |
73,635 |
20% |
19.8% |
49,177 |
48,629 |
10% |
10.1% |
24,588 |
24,942 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.023' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,989 |
Calibration 2 |
|
|
256,739 |
Calibration 3 |
|
|
255,949 |
ssj_ops@calibrated=256,344 |
100% |
100.0% |
256,344 |
256,258 |
90% |
92.6% |
230,710 |
237,490 |
80% |
80.2% |
205,075 |
205,604 |
70% |
70.6% |
179,441 |
180,860 |
60% |
60.2% |
153,806 |
154,205 |
50% |
49.8% |
128,172 |
127,746 |
40% |
40.2% |
102,538 |
103,128 |
30% |
29.8% |
76,903 |
76,494 |
20% |
19.9% |
51,269 |
50,923 |
10% |
10.0% |
25,634 |
25,666 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.024' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
255,451 |
Calibration 2 |
|
|
254,035 |
Calibration 3 |
|
|
254,994 |
ssj_ops@calibrated=254,514 |
100% |
99.9% |
254,514 |
254,172 |
90% |
92.1% |
229,063 |
234,455 |
80% |
79.8% |
203,611 |
203,099 |
70% |
69.8% |
178,160 |
177,755 |
60% |
60.6% |
152,709 |
154,240 |
50% |
49.8% |
127,257 |
126,830 |
40% |
40.3% |
101,806 |
102,690 |
30% |
30.1% |
76,354 |
76,609 |
20% |
19.9% |
50,903 |
50,648 |
10% |
9.9% |
25,451 |
25,112 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.025' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,000 |
Calibration 2 |
|
|
251,102 |
Calibration 3 |
|
|
250,570 |
ssj_ops@calibrated=250,836 |
100% |
99.9% |
250,836 |
250,629 |
90% |
91.6% |
225,752 |
229,737 |
80% |
80.6% |
200,669 |
202,059 |
70% |
69.5% |
175,585 |
174,243 |
60% |
60.4% |
150,502 |
151,445 |
50% |
50.5% |
125,418 |
126,715 |
40% |
39.8% |
100,334 |
99,929 |
30% |
30.1% |
75,251 |
75,576 |
20% |
19.9% |
50,167 |
49,949 |
10% |
10.1% |
25,084 |
25,246 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.026' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,465 |
Calibration 2 |
|
|
255,697 |
Calibration 3 |
|
|
255,495 |
ssj_ops@calibrated=255,596 |
100% |
100.0% |
255,596 |
255,479 |
90% |
91.0% |
230,036 |
232,486 |
80% |
79.9% |
204,477 |
204,114 |
70% |
69.8% |
178,917 |
178,327 |
60% |
59.6% |
153,358 |
152,316 |
50% |
50.0% |
127,798 |
127,889 |
40% |
40.1% |
102,238 |
102,414 |
30% |
30.0% |
76,679 |
76,705 |
20% |
20.0% |
51,119 |
51,049 |
10% |
10.0% |
25,560 |
25,658 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.027' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,832 |
Calibration 2 |
|
|
253,941 |
Calibration 3 |
|
|
253,578 |
ssj_ops@calibrated=253,760 |
100% |
100.0% |
253,760 |
253,697 |
90% |
91.9% |
228,384 |
233,142 |
80% |
81.2% |
203,008 |
205,937 |
70% |
70.0% |
177,632 |
177,571 |
60% |
60.2% |
152,256 |
152,847 |
50% |
50.4% |
126,880 |
127,774 |
40% |
40.3% |
101,504 |
102,212 |
30% |
29.8% |
76,128 |
75,618 |
20% |
19.9% |
50,752 |
50,462 |
10% |
10.1% |
25,376 |
25,595 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.028' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,553 |
Calibration 2 |
|
|
252,727 |
Calibration 3 |
|
|
252,576 |
ssj_ops@calibrated=252,652 |
100% |
99.9% |
252,652 |
252,471 |
90% |
91.2% |
227,387 |
230,530 |
80% |
80.0% |
202,121 |
202,080 |
70% |
70.0% |
176,856 |
176,732 |
60% |
59.9% |
151,591 |
151,366 |
50% |
50.4% |
126,326 |
127,414 |
40% |
40.3% |
101,061 |
101,808 |
30% |
29.6% |
75,796 |
74,908 |
20% |
20.1% |
50,530 |
50,723 |
10% |
9.9% |
25,265 |
24,965 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.029' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,984 |
Calibration 2 |
|
|
255,504 |
Calibration 3 |
|
|
255,245 |
ssj_ops@calibrated=255,375 |
100% |
99.9% |
255,375 |
255,187 |
90% |
91.2% |
229,837 |
232,929 |
80% |
79.8% |
204,300 |
203,710 |
70% |
70.1% |
178,762 |
179,027 |
60% |
60.6% |
153,225 |
154,753 |
50% |
50.0% |
127,687 |
127,687 |
40% |
40.0% |
102,150 |
102,238 |
30% |
29.9% |
76,612 |
76,430 |
20% |
20.1% |
51,075 |
51,454 |
10% |
10.0% |
25,537 |
25,547 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.030' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
259,409 |
Calibration 2 |
|
|
258,077 |
Calibration 3 |
|
|
258,188 |
ssj_ops@calibrated=258,133 |
100% |
100.1% |
258,133 |
258,279 |
90% |
91.3% |
232,319 |
235,734 |
80% |
79.8% |
206,506 |
205,933 |
70% |
70.1% |
180,693 |
180,943 |
60% |
60.3% |
154,880 |
155,562 |
50% |
49.9% |
129,066 |
128,782 |
40% |
40.0% |
103,253 |
103,247 |
30% |
29.9% |
77,440 |
77,310 |
20% |
20.0% |
51,627 |
51,525 |
10% |
10.1% |
25,813 |
26,032 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.031' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,853 |
Calibration 2 |
|
|
251,425 |
Calibration 3 |
|
|
251,049 |
ssj_ops@calibrated=251,237 |
100% |
100.2% |
251,237 |
251,651 |
90% |
90.9% |
226,114 |
228,479 |
80% |
80.3% |
200,990 |
201,689 |
70% |
70.1% |
175,866 |
176,182 |
60% |
59.7% |
150,742 |
150,040 |
50% |
50.4% |
125,619 |
126,607 |
40% |
40.1% |
100,495 |
100,847 |
30% |
29.7% |
75,371 |
74,567 |
20% |
20.1% |
50,247 |
50,422 |
10% |
9.8% |
25,124 |
24,733 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.032' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,044 |
Calibration 2 |
|
|
256,908 |
Calibration 3 |
|
|
256,955 |
ssj_ops@calibrated=256,932 |
100% |
99.9% |
256,932 |
256,677 |
90% |
91.1% |
231,238 |
233,946 |
80% |
80.0% |
205,545 |
205,594 |
70% |
70.1% |
179,852 |
180,034 |
60% |
60.3% |
154,159 |
154,867 |
50% |
50.3% |
128,466 |
129,141 |
40% |
39.4% |
102,773 |
101,312 |
30% |
30.0% |
77,079 |
77,005 |
20% |
20.2% |
51,386 |
52,009 |
10% |
9.8% |
25,693 |
25,284 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.033' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,511 |
Calibration 2 |
|
|
254,358 |
Calibration 3 |
|
|
252,852 |
ssj_ops@calibrated=253,605 |
100% |
99.1% |
253,605 |
251,282 |
90% |
92.3% |
228,244 |
234,081 |
80% |
80.4% |
202,884 |
203,948 |
70% |
70.1% |
177,523 |
177,671 |
60% |
59.8% |
152,163 |
151,740 |
50% |
49.7% |
126,802 |
126,153 |
40% |
39.7% |
101,442 |
100,627 |
30% |
30.0% |
76,081 |
76,054 |
20% |
19.8% |
50,721 |
50,318 |
10% |
9.9% |
25,360 |
25,230 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.034' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
255,189 |
Calibration 2 |
|
|
254,891 |
Calibration 3 |
|
|
253,679 |
ssj_ops@calibrated=254,285 |
100% |
99.6% |
254,285 |
253,252 |
90% |
91.7% |
228,857 |
233,254 |
80% |
80.7% |
203,428 |
205,100 |
70% |
70.3% |
178,000 |
178,737 |
60% |
59.9% |
152,571 |
152,394 |
50% |
50.5% |
127,143 |
128,424 |
40% |
40.0% |
101,714 |
101,722 |
30% |
30.2% |
76,286 |
76,781 |
20% |
19.9% |
50,857 |
50,617 |
10% |
10.0% |
25,429 |
25,375 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.035' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,425 |
Calibration 2 |
|
|
254,776 |
Calibration 3 |
|
|
254,334 |
ssj_ops@calibrated=254,555 |
100% |
99.7% |
254,555 |
253,880 |
90% |
91.7% |
229,099 |
233,352 |
80% |
80.1% |
203,644 |
203,959 |
70% |
70.2% |
178,188 |
178,805 |
60% |
60.6% |
152,733 |
154,248 |
50% |
50.1% |
127,277 |
127,649 |
40% |
40.3% |
101,822 |
102,479 |
30% |
30.1% |
76,366 |
76,707 |
20% |
20.2% |
50,911 |
51,307 |
10% |
9.7% |
25,455 |
24,750 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.036' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
252,641 |
Calibration 2 |
|
|
252,184 |
Calibration 3 |
|
|
252,293 |
ssj_ops@calibrated=252,238 |
100% |
100.1% |
252,238 |
252,553 |
90% |
90.5% |
227,014 |
228,236 |
80% |
80.2% |
201,791 |
202,272 |
70% |
69.8% |
176,567 |
176,051 |
60% |
60.1% |
151,343 |
151,620 |
50% |
50.2% |
126,119 |
126,624 |
40% |
40.1% |
100,895 |
101,149 |
30% |
30.0% |
75,671 |
75,601 |
20% |
20.0% |
50,448 |
50,337 |
10% |
10.0% |
25,224 |
25,209 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.037' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
249,481 |
Calibration 2 |
|
|
254,164 |
Calibration 3 |
|
|
253,658 |
ssj_ops@calibrated=253,911 |
100% |
100.1% |
253,911 |
254,080 |
90% |
91.7% |
228,520 |
232,814 |
80% |
80.3% |
203,129 |
203,764 |
70% |
70.4% |
177,738 |
178,799 |
60% |
59.6% |
152,346 |
151,406 |
50% |
50.0% |
126,955 |
126,897 |
40% |
40.0% |
101,564 |
101,667 |
30% |
30.2% |
76,173 |
76,682 |
20% |
20.2% |
50,782 |
51,261 |
10% |
10.0% |
25,391 |
25,292 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.038' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,740 |
Calibration 2 |
|
|
250,781 |
Calibration 3 |
|
|
249,883 |
ssj_ops@calibrated=250,332 |
100% |
100.2% |
250,332 |
250,761 |
90% |
91.3% |
225,299 |
228,451 |
80% |
80.1% |
200,266 |
200,559 |
70% |
69.4% |
175,232 |
173,850 |
60% |
59.9% |
150,199 |
149,915 |
50% |
50.3% |
125,166 |
126,005 |
40% |
40.0% |
100,133 |
100,011 |
30% |
30.1% |
75,100 |
75,293 |
20% |
19.9% |
50,066 |
49,924 |
10% |
10.1% |
25,033 |
25,176 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.039' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,578 |
Calibration 2 |
|
|
258,128 |
Calibration 3 |
|
|
256,891 |
ssj_ops@calibrated=257,510 |
100% |
99.9% |
257,510 |
257,262 |
90% |
92.5% |
231,759 |
238,271 |
80% |
79.8% |
206,008 |
205,379 |
70% |
70.1% |
180,257 |
180,442 |
60% |
60.2% |
154,506 |
154,919 |
50% |
49.8% |
128,755 |
128,263 |
40% |
40.2% |
103,004 |
103,444 |
30% |
30.3% |
77,253 |
77,968 |
20% |
19.7% |
51,502 |
50,754 |
10% |
9.9% |
25,751 |
25,397 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.040' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,510 |
Calibration 2 |
|
|
257,068 |
Calibration 3 |
|
|
256,555 |
ssj_ops@calibrated=256,811 |
100% |
99.9% |
256,811 |
256,559 |
90% |
91.4% |
231,130 |
234,600 |
80% |
79.9% |
205,449 |
205,300 |
70% |
70.5% |
179,768 |
181,081 |
60% |
60.1% |
154,087 |
154,328 |
50% |
50.2% |
128,406 |
128,890 |
40% |
39.6% |
102,725 |
101,799 |
30% |
30.0% |
77,043 |
77,055 |
20% |
20.1% |
51,362 |
51,498 |
10% |
10.0% |
25,681 |
25,682 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.041' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,930 |
Calibration 2 |
|
|
258,297 |
Calibration 3 |
|
|
258,239 |
ssj_ops@calibrated=258,268 |
100% |
99.8% |
258,268 |
257,820 |
90% |
91.6% |
232,441 |
236,597 |
80% |
80.2% |
206,615 |
207,084 |
70% |
70.1% |
180,788 |
180,928 |
60% |
59.6% |
154,961 |
153,995 |
50% |
50.3% |
129,134 |
129,919 |
40% |
40.1% |
103,307 |
103,485 |
30% |
30.0% |
77,480 |
77,365 |
20% |
20.3% |
51,654 |
52,382 |
10% |
9.7% |
25,827 |
25,115 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.042' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,864 |
Calibration 2 |
|
|
251,779 |
Calibration 3 |
|
|
251,463 |
ssj_ops@calibrated=251,621 |
100% |
98.8% |
251,621 |
248,616 |
90% |
91.5% |
226,459 |
230,135 |
80% |
80.2% |
201,297 |
201,732 |
70% |
69.5% |
176,135 |
174,861 |
60% |
60.2% |
150,972 |
151,591 |
50% |
49.7% |
125,810 |
124,978 |
40% |
40.1% |
100,648 |
100,880 |
30% |
30.1% |
75,486 |
75,824 |
20% |
20.0% |
50,324 |
50,431 |
10% |
10.0% |
25,162 |
25,172 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.043' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,859 |
Calibration 2 |
|
|
255,974 |
Calibration 3 |
|
|
256,500 |
ssj_ops@calibrated=256,237 |
100% |
100.0% |
256,237 |
256,253 |
90% |
91.7% |
230,613 |
234,937 |
80% |
80.3% |
204,990 |
205,822 |
70% |
70.4% |
179,366 |
180,472 |
60% |
60.1% |
153,742 |
153,919 |
50% |
50.2% |
128,119 |
128,628 |
40% |
39.8% |
102,495 |
101,987 |
30% |
29.9% |
76,871 |
76,712 |
20% |
20.1% |
51,247 |
51,442 |
10% |
10.1% |
25,624 |
25,904 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.044' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
261,109 |
Calibration 2 |
|
|
258,567 |
Calibration 3 |
|
|
258,540 |
ssj_ops@calibrated=258,553 |
100% |
100.1% |
258,553 |
258,906 |
90% |
92.4% |
232,698 |
238,779 |
80% |
81.0% |
206,843 |
209,373 |
70% |
70.6% |
180,987 |
182,539 |
60% |
60.5% |
155,132 |
156,334 |
50% |
49.6% |
129,277 |
128,330 |
40% |
40.2% |
103,421 |
104,033 |
30% |
29.8% |
77,566 |
77,060 |
20% |
19.9% |
51,711 |
51,560 |
10% |
9.9% |
25,855 |
25,589 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.045' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
250,226 |
Calibration 2 |
|
|
250,596 |
Calibration 3 |
|
|
250,520 |
ssj_ops@calibrated=250,558 |
100% |
99.2% |
250,558 |
248,600 |
90% |
91.4% |
225,502 |
228,962 |
80% |
79.9% |
200,446 |
200,293 |
70% |
70.1% |
175,391 |
175,613 |
60% |
60.6% |
150,335 |
151,885 |
50% |
50.3% |
125,279 |
126,035 |
40% |
40.0% |
100,223 |
100,194 |
30% |
30.4% |
75,167 |
76,119 |
20% |
19.9% |
50,112 |
49,923 |
10% |
9.9% |
25,056 |
24,916 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.046' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,493 |
Calibration 2 |
|
|
249,946 |
Calibration 3 |
|
|
251,116 |
ssj_ops@calibrated=250,531 |
100% |
100.8% |
250,531 |
252,446 |
90% |
91.9% |
225,478 |
230,186 |
80% |
80.1% |
200,424 |
200,710 |
70% |
70.3% |
175,371 |
176,034 |
60% |
59.7% |
150,318 |
149,542 |
50% |
49.7% |
125,265 |
124,496 |
40% |
39.8% |
100,212 |
99,708 |
30% |
29.9% |
75,159 |
74,857 |
20% |
20.0% |
50,106 |
50,150 |
10% |
10.1% |
25,053 |
25,204 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.047' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,020 |
Calibration 2 |
|
|
256,256 |
Calibration 3 |
|
|
255,583 |
ssj_ops@calibrated=255,920 |
100% |
100.1% |
255,920 |
256,058 |
90% |
91.5% |
230,328 |
234,058 |
80% |
80.0% |
204,736 |
204,789 |
70% |
70.2% |
179,144 |
179,745 |
60% |
59.8% |
153,552 |
152,975 |
50% |
50.0% |
127,960 |
127,952 |
40% |
39.9% |
102,368 |
102,113 |
30% |
29.7% |
76,776 |
75,960 |
20% |
20.2% |
51,184 |
51,815 |
10% |
10.2% |
25,592 |
26,028 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.048' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
250,580 |
Calibration 2 |
|
|
250,119 |
Calibration 3 |
|
|
249,368 |
ssj_ops@calibrated=249,743 |
100% |
100.0% |
249,743 |
249,692 |
90% |
91.3% |
224,769 |
228,016 |
80% |
80.2% |
199,795 |
200,234 |
70% |
70.1% |
174,820 |
175,026 |
60% |
60.3% |
149,846 |
150,584 |
50% |
50.0% |
124,872 |
124,826 |
40% |
40.3% |
99,897 |
100,596 |
30% |
30.2% |
74,923 |
75,470 |
20% |
19.9% |
49,949 |
49,786 |
10% |
10.1% |
24,974 |
25,189 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.049' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
255,400 |
Calibration 2 |
|
|
255,596 |
Calibration 3 |
|
|
254,052 |
ssj_ops@calibrated=254,824 |
100% |
99.9% |
254,824 |
254,556 |
90% |
91.1% |
229,342 |
232,186 |
80% |
80.7% |
203,859 |
205,534 |
70% |
70.1% |
178,377 |
178,642 |
60% |
60.3% |
152,894 |
153,556 |
50% |
49.8% |
127,412 |
126,817 |
40% |
40.1% |
101,930 |
102,167 |
30% |
29.7% |
76,447 |
75,771 |
20% |
19.9% |
50,965 |
50,594 |
10% |
9.8% |
25,482 |
24,871 |
Active Idle |
|
0 |
0 |

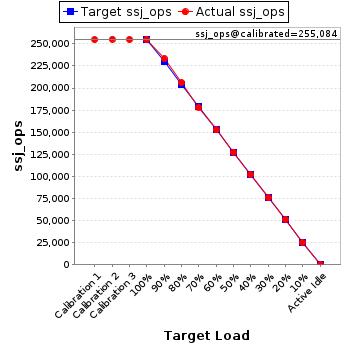

JVM 'WIN-CIOKGHFHLST.050' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,700 |
Calibration 2 |
|
|
255,248 |
Calibration 3 |
|
|
254,920 |
ssj_ops@calibrated=255,084 |
100% |
100.0% |
255,084 |
255,017 |
90% |
91.4% |
229,576 |
233,253 |
80% |
80.8% |
204,067 |
206,166 |
70% |
69.8% |
178,559 |
178,097 |
60% |
59.8% |
153,051 |
152,617 |
50% |
50.0% |
127,542 |
127,566 |
40% |
40.1% |
102,034 |
102,169 |
30% |
29.8% |
76,525 |
75,956 |
20% |
20.1% |
51,017 |
51,321 |
10% |
9.9% |
25,508 |
25,146 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.051' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
250,057 |
Calibration 2 |
|
|
250,280 |
Calibration 3 |
|
|
249,695 |
ssj_ops@calibrated=249,987 |
100% |
100.2% |
249,987 |
250,393 |
90% |
91.9% |
224,989 |
229,619 |
80% |
79.9% |
199,990 |
199,860 |
70% |
70.1% |
174,991 |
175,269 |
60% |
59.3% |
149,992 |
148,207 |
50% |
50.1% |
124,994 |
125,153 |
40% |
40.1% |
99,995 |
100,272 |
30% |
29.8% |
74,996 |
74,599 |
20% |
19.8% |
49,997 |
49,463 |
10% |
10.0% |
24,999 |
24,929 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.052' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
252,361 |
Calibration 2 |
|
|
251,218 |
Calibration 3 |
|
|
252,104 |
ssj_ops@calibrated=251,661 |
100% |
100.7% |
251,661 |
253,451 |
90% |
92.5% |
226,495 |
232,662 |
80% |
80.7% |
201,329 |
203,016 |
70% |
70.7% |
176,163 |
178,038 |
60% |
60.5% |
150,997 |
152,348 |
50% |
49.8% |
125,830 |
125,444 |
40% |
39.7% |
100,664 |
99,905 |
30% |
29.7% |
75,498 |
74,778 |
20% |
20.2% |
50,332 |
50,874 |
10% |
10.1% |
25,166 |
25,384 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.053' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,088 |
Calibration 2 |
|
|
253,641 |
Calibration 3 |
|
|
252,664 |
ssj_ops@calibrated=253,153 |
100% |
100.0% |
253,153 |
253,212 |
90% |
92.2% |
227,837 |
233,366 |
80% |
80.0% |
202,522 |
202,614 |
70% |
69.8% |
177,207 |
176,778 |
60% |
60.2% |
151,892 |
152,285 |
50% |
50.3% |
126,576 |
127,349 |
40% |
39.9% |
101,261 |
101,005 |
30% |
29.9% |
75,946 |
75,768 |
20% |
19.9% |
50,631 |
50,425 |
10% |
9.9% |
25,315 |
25,053 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.054' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
257,274 |
Calibration 2 |
|
|
256,714 |
Calibration 3 |
|
|
254,979 |
ssj_ops@calibrated=255,846 |
100% |
100.3% |
255,846 |
256,535 |
90% |
91.5% |
230,262 |
234,161 |
80% |
80.1% |
204,677 |
204,894 |
70% |
70.0% |
179,092 |
179,207 |
60% |
60.2% |
153,508 |
153,941 |
50% |
49.8% |
127,923 |
127,297 |
40% |
39.9% |
102,339 |
102,037 |
30% |
30.0% |
76,754 |
76,785 |
20% |
20.3% |
51,169 |
52,038 |
10% |
10.1% |
25,585 |
25,822 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.055' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
255,811 |
Calibration 2 |
|
|
255,956 |
Calibration 3 |
|
|
255,964 |
ssj_ops@calibrated=255,960 |
100% |
100.2% |
255,960 |
256,552 |
90% |
91.6% |
230,364 |
234,356 |
80% |
80.1% |
204,768 |
204,912 |
70% |
70.3% |
179,172 |
179,814 |
60% |
60.3% |
153,576 |
154,329 |
50% |
50.1% |
127,980 |
128,248 |
40% |
40.2% |
102,384 |
102,959 |
30% |
29.8% |
76,788 |
76,260 |
20% |
19.9% |
51,192 |
50,919 |
10% |
9.8% |
25,596 |
25,023 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.056' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,935 |
Calibration 2 |
|
|
255,101 |
Calibration 3 |
|
|
254,023 |
ssj_ops@calibrated=254,562 |
100% |
99.8% |
254,562 |
254,112 |
90% |
91.9% |
229,106 |
233,962 |
80% |
80.5% |
203,650 |
204,840 |
70% |
69.7% |
178,193 |
177,552 |
60% |
59.6% |
152,737 |
151,714 |
50% |
49.5% |
127,281 |
126,045 |
40% |
39.8% |
101,825 |
101,272 |
30% |
29.9% |
76,369 |
76,014 |
20% |
19.8% |
50,912 |
50,402 |
10% |
9.8% |
25,456 |
24,866 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.057' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,817 |
Calibration 2 |
|
|
255,324 |
Calibration 3 |
|
|
255,252 |
ssj_ops@calibrated=255,288 |
100% |
100.1% |
255,288 |
255,506 |
90% |
91.1% |
229,760 |
232,540 |
80% |
80.2% |
204,231 |
204,853 |
70% |
70.1% |
178,702 |
178,892 |
60% |
60.0% |
153,173 |
153,106 |
50% |
50.3% |
127,644 |
128,384 |
40% |
40.0% |
102,115 |
102,130 |
30% |
29.6% |
76,587 |
75,661 |
20% |
20.2% |
51,058 |
51,515 |
10% |
10.0% |
25,529 |
25,443 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.058' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,753 |
Calibration 2 |
|
|
252,499 |
Calibration 3 |
|
|
251,140 |
ssj_ops@calibrated=251,820 |
100% |
100.3% |
251,820 |
252,586 |
90% |
91.9% |
226,638 |
231,362 |
80% |
80.5% |
201,456 |
202,668 |
70% |
70.4% |
176,274 |
177,243 |
60% |
60.3% |
151,092 |
151,876 |
50% |
50.3% |
125,910 |
126,789 |
40% |
39.4% |
100,728 |
99,236 |
30% |
30.0% |
75,546 |
75,455 |
20% |
20.1% |
50,364 |
50,717 |
10% |
10.0% |
25,182 |
25,279 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.059' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,699 |
Calibration 2 |
|
|
254,979 |
Calibration 3 |
|
|
254,050 |
ssj_ops@calibrated=254,515 |
100% |
99.7% |
254,515 |
253,759 |
90% |
91.7% |
229,063 |
233,410 |
80% |
80.2% |
203,612 |
204,008 |
70% |
70.5% |
178,160 |
179,331 |
60% |
60.3% |
152,709 |
153,595 |
50% |
50.1% |
127,257 |
127,595 |
40% |
39.5% |
101,806 |
100,477 |
30% |
30.1% |
76,354 |
76,590 |
20% |
19.8% |
50,903 |
50,305 |
10% |
9.7% |
25,451 |
24,606 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.060' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,341 |
Calibration 2 |
|
|
252,940 |
Calibration 3 |
|
|
252,407 |
ssj_ops@calibrated=252,674 |
100% |
100.2% |
252,674 |
253,124 |
90% |
92.1% |
227,406 |
232,838 |
80% |
79.9% |
202,139 |
201,794 |
70% |
70.6% |
176,872 |
178,384 |
60% |
60.2% |
151,604 |
152,109 |
50% |
49.4% |
126,337 |
124,868 |
40% |
40.4% |
101,069 |
102,096 |
30% |
30.1% |
75,802 |
76,180 |
20% |
20.1% |
50,535 |
50,761 |
10% |
10.0% |
25,267 |
25,337 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.061' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,181 |
Calibration 2 |
|
|
253,398 |
Calibration 3 |
|
|
252,939 |
ssj_ops@calibrated=253,168 |
100% |
100.1% |
253,168 |
253,449 |
90% |
91.9% |
227,852 |
232,729 |
80% |
80.0% |
202,535 |
202,437 |
70% |
69.9% |
177,218 |
176,965 |
60% |
60.2% |
151,901 |
152,396 |
50% |
50.2% |
126,584 |
127,025 |
40% |
40.3% |
101,267 |
101,906 |
30% |
30.1% |
75,951 |
76,269 |
20% |
19.9% |
50,634 |
50,360 |
10% |
10.1% |
25,317 |
25,529 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.062' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,717 |
Calibration 2 |
|
|
254,574 |
Calibration 3 |
|
|
253,871 |
ssj_ops@calibrated=254,223 |
100% |
100.2% |
254,223 |
254,751 |
90% |
92.1% |
228,800 |
234,071 |
80% |
79.7% |
203,378 |
202,693 |
70% |
69.4% |
177,956 |
176,548 |
60% |
60.1% |
152,534 |
152,881 |
50% |
50.0% |
127,111 |
127,039 |
40% |
40.2% |
101,689 |
102,308 |
30% |
29.8% |
76,267 |
75,652 |
20% |
20.2% |
50,845 |
51,253 |
10% |
10.2% |
25,422 |
25,961 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.063' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
245,611 |
Calibration 2 |
|
|
245,311 |
Calibration 3 |
|
|
245,274 |
ssj_ops@calibrated=245,293 |
100% |
100.3% |
245,293 |
245,985 |
90% |
91.9% |
220,763 |
225,524 |
80% |
79.8% |
196,234 |
195,777 |
70% |
70.0% |
171,705 |
171,657 |
60% |
59.9% |
147,176 |
147,026 |
50% |
50.2% |
122,646 |
123,020 |
40% |
39.8% |
98,117 |
97,541 |
30% |
30.0% |
73,588 |
73,706 |
20% |
19.9% |
49,059 |
48,869 |
10% |
9.8% |
24,529 |
24,070 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.064' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,172 |
Calibration 2 |
|
|
255,394 |
Calibration 3 |
|
|
254,035 |
ssj_ops@calibrated=254,714 |
100% |
100.1% |
254,714 |
254,842 |
90% |
92.1% |
229,243 |
234,680 |
80% |
79.9% |
203,771 |
203,597 |
70% |
70.2% |
178,300 |
178,720 |
60% |
60.2% |
152,829 |
153,321 |
50% |
50.2% |
127,357 |
127,903 |
40% |
39.8% |
101,886 |
101,277 |
30% |
30.0% |
76,414 |
76,504 |
20% |
19.8% |
50,943 |
50,520 |
10% |
10.2% |
25,471 |
25,898 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.065' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
254,220 |
Calibration 2 |
|
|
254,853 |
Calibration 3 |
|
|
254,163 |
ssj_ops@calibrated=254,508 |
100% |
100.7% |
254,508 |
256,256 |
90% |
92.5% |
229,057 |
235,346 |
80% |
80.4% |
203,606 |
204,740 |
70% |
69.7% |
178,155 |
177,351 |
60% |
60.5% |
152,705 |
154,013 |
50% |
50.2% |
127,254 |
127,810 |
40% |
39.9% |
101,803 |
101,650 |
30% |
30.0% |
76,352 |
76,397 |
20% |
19.9% |
50,902 |
50,705 |
10% |
10.3% |
25,451 |
26,177 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.066' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,841 |
Calibration 2 |
|
|
251,279 |
Calibration 3 |
|
|
250,610 |
ssj_ops@calibrated=250,945 |
100% |
100.5% |
250,945 |
252,123 |
90% |
92.1% |
225,850 |
231,065 |
80% |
80.1% |
200,756 |
200,887 |
70% |
69.5% |
175,661 |
174,289 |
60% |
60.5% |
150,567 |
151,821 |
50% |
50.5% |
125,472 |
126,775 |
40% |
40.6% |
100,378 |
101,811 |
30% |
30.2% |
75,283 |
75,905 |
20% |
19.7% |
50,189 |
49,487 |
10% |
10.1% |
25,094 |
25,323 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.067' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
252,521 |
Calibration 2 |
|
|
252,838 |
Calibration 3 |
|
|
251,895 |
ssj_ops@calibrated=252,366 |
100% |
100.0% |
252,366 |
252,481 |
90% |
90.7% |
227,130 |
228,821 |
80% |
79.4% |
201,893 |
200,477 |
70% |
69.9% |
176,656 |
176,453 |
60% |
60.4% |
151,420 |
152,370 |
50% |
49.7% |
126,183 |
125,484 |
40% |
40.4% |
100,947 |
101,944 |
30% |
29.9% |
75,710 |
75,573 |
20% |
20.2% |
50,473 |
50,911 |
10% |
10.0% |
25,237 |
25,281 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.068' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
252,912 |
Calibration 2 |
|
|
252,417 |
Calibration 3 |
|
|
252,083 |
ssj_ops@calibrated=252,250 |
100% |
100.2% |
252,250 |
252,634 |
90% |
92.3% |
227,025 |
232,805 |
80% |
79.5% |
201,800 |
200,657 |
70% |
69.4% |
176,575 |
174,938 |
60% |
60.1% |
151,350 |
151,514 |
50% |
50.0% |
126,125 |
126,192 |
40% |
39.8% |
100,900 |
100,304 |
30% |
30.1% |
75,675 |
75,873 |
20% |
19.9% |
50,450 |
50,247 |
10% |
10.1% |
25,225 |
25,452 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.069' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
251,461 |
Calibration 2 |
|
|
251,837 |
Calibration 3 |
|
|
251,115 |
ssj_ops@calibrated=251,476 |
100% |
100.1% |
251,476 |
251,784 |
90% |
91.7% |
226,328 |
230,568 |
80% |
79.6% |
201,181 |
200,219 |
70% |
70.6% |
176,033 |
177,471 |
60% |
59.7% |
150,886 |
150,083 |
50% |
49.9% |
125,738 |
125,407 |
40% |
39.9% |
100,590 |
100,277 |
30% |
29.7% |
75,443 |
74,728 |
20% |
20.2% |
50,295 |
50,912 |
10% |
9.9% |
25,148 |
25,012 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.070' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
256,895 |
Calibration 2 |
|
|
256,917 |
Calibration 3 |
|
|
256,245 |
ssj_ops@calibrated=256,581 |
100% |
100.4% |
256,581 |
257,616 |
90% |
91.3% |
230,923 |
234,208 |
80% |
79.8% |
205,265 |
204,728 |
70% |
70.3% |
179,607 |
180,448 |
60% |
60.1% |
153,949 |
154,242 |
50% |
50.5% |
128,291 |
129,451 |
40% |
40.5% |
102,633 |
103,948 |
30% |
30.4% |
76,974 |
77,971 |
20% |
20.0% |
51,316 |
51,272 |
10% |
10.1% |
25,658 |
25,898 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.071' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
253,532 |
Calibration 2 |
|
|
254,873 |
Calibration 3 |
|
|
253,925 |
ssj_ops@calibrated=254,399 |
100% |
99.9% |
254,399 |
254,027 |
90% |
91.3% |
228,959 |
232,309 |
80% |
79.9% |
203,519 |
203,296 |
70% |
69.9% |
178,079 |
177,863 |
60% |
60.3% |
152,639 |
153,511 |
50% |
50.2% |
127,199 |
127,738 |
40% |
40.2% |
101,760 |
102,316 |
30% |
30.5% |
76,320 |
77,625 |
20% |
20.0% |
50,880 |
50,890 |
10% |
10.0% |
25,440 |
25,522 |
Active Idle |
|
0 |
0 |
JVM 'WIN-CIOKGHFHLST.072' Scores:
Target Load |
Actual Load |
ssj_ops |
Target |
Actual |
Calibration 1 |
|
|
248,613 |
Calibration 2 |
|
|
246,859 |
Calibration 3 |
|
|
246,883 |
ssj_ops@calibrated=246,871 |
100% |
100.1% |
246,871 |
247,013 |
90% |
91.6% |
222,184 |
226,198 |
80% |
80.4% |
197,497 |
198,466 |
70% |
70.4% |
172,810 |
173,776 |
60% |
59.7% |
148,123 |
147,355 |
50% |
50.1% |
123,435 |
123,684 |
40% |
40.4% |
98,748 |
99,777 |
30% |
30.2% |
74,061 |
74,594 |
20% |
19.7% |
49,374 |
48,585 |
10% |
9.9% |
24,687 |
24,450 |
Active Idle |
|
0 |
0 |
