IEIT Systems Co., Ltd. meta brain NF5280G8 SPECpower_ssj2008 = 21,357 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Aug 30, 2024
Hardware Availability: Oct-2024 Software Availability: Jun-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 722 23.6
Calibration 2 727 23.6
Calibration 3 727 23.7
100% 727 23.6
90% 646 23.6
80% 555 23.6
70% 497 23.6
60% 446 23.6
50% 413 23.6
40% 376 23.6
30% 328 23.6
20% 281 23.7
10% 247 23.8
Active Idle 200 23.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: C2406041730287
Date of Calibration: 19-Jun-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 300.0 3.17 10.0 0.995 722 0.3%
Calibration 2 228 300.0 3.20 10.0 0.995 727 0.3%
Calibration 3 229 300.0 3.18 10.0 0.995 727 0.3%
100% 226 300.0 3.23 10.0 0.995 727 0.3%
90% 228 300.0 2.87 10.0 0.993 646 0.4%
80% 228 300.0 2.46 10.0 0.992 555 0.4%
70% 229 300.0 2.20 10.0 0.989 497 0.4%
60% 229 300.0 1.97 10.0 0.987 446 0.5%
50% 228 300.0 1.85 10.0 0.984 413 0.5%
40% 228 300.0 1.70 10.0 0.977 376 0.5%
30% 228 300.0 1.47 10.0 0.980 328 0.6%
20% 228 300.0 1.26 5.0 0.977 281 0.4%
10% 229 300.0 1.11 5.0 0.971 247 0.4%
Active Idle 229 300.0 0.913 5.0 0.961 200 0.5%

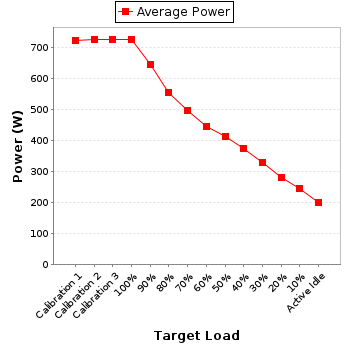

Power details for pwr1
