SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid D55Q-2U | SPECpower_ssj2008 = 21,157 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Aug 29, 2024 |
| Hardware Availability: | Sep-2024 | Software Availability: | Apr-2024 | Publication: | Oct 3, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

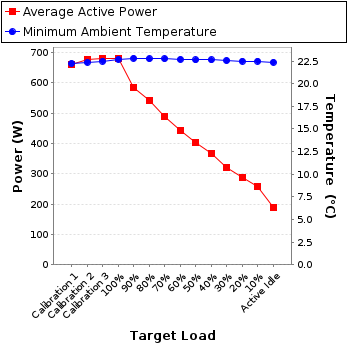

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 661 | 22.2 |
| Calibration 2 | 679 | 22.4 |
| Calibration 3 | 681 | 22.5 |
| 100% | 681 | 22.7 |
| 90% | 586 | 22.8 |
| 80% | 542 | 22.8 |
| 70% | 490 | 22.8 |
| 60% | 443 | 22.7 |
| 50% | 404 | 22.6 |
| 40% | 368 | 22.6 |
| 30% | 320 | 22.6 |
| 20% | 287 | 22.5 |
| 10% | 258 | 22.5 |
| Active Idle | 188 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | SGS |
| Calibration Label: | ECR2416369 |
| Date of Calibration: | 08-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 3.05 | 10.0 | 0.991 | 661 | 0.6% |
| Calibration 2 | 219 | 300.0 | 3.13 | 10.0 | 0.992 | 679 | 0.6% |
| Calibration 3 | 219 | 300.0 | 3.14 | 10.0 | 0.992 | 681 | 0.6% |
| 100% | 219 | 300.0 | 3.14 | 10.0 | 0.991 | 681 | 0.6% |
| 90% | 219 | 300.0 | 2.70 | 5.0 | 0.988 | 586 | 0.4% |
| 80% | 220 | 300.0 | 2.50 | 5.0 | 0.986 | 542 | 0.4% |
| 70% | 220 | 300.0 | 2.27 | 5.0 | 0.983 | 490 | 0.4% |
| 60% | 220 | 300.0 | 2.06 | 5.0 | 0.980 | 443 | 0.5% |
| 50% | 220 | 300.0 | 1.88 | 5.0 | 0.977 | 404 | 0.5% |
| 40% | 220 | 300.0 | 1.72 | 5.0 | 0.973 | 368 | 0.5% |
| 30% | 220 | 300.0 | 1.50 | 5.0 | 0.970 | 320 | 0.6% |
| 20% | 220 | 300.0 | 1.35 | 2.0 | 0.964 | 287 | 0.4% |
| 10% | 220 | 300.0 | 1.23 | 2.0 | 0.956 | 258 | 0.4% |
| Active Idle | 220 | 300.0 | 0.923 | 2.0 | 0.922 | 188 | 0.5% |
