Supermicro System SYS-212H-TN ssj_ops@100% = 10,129,406
ssj_ops@100% per JVM = 140,686
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Jul 29, 2024
Hardware Availability: Jun-2024 Software Availability: Jun-2024 Publication: Aug 13, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,237,558
Calibration 2     10,186,679
Calibration 3     10,168,152
ssj_ops@calibrated=10,177,416
100% 99.5% 10,177,416 10,129,406
90% 90.1% 9,159,674 9,169,135
80% 79.9% 8,141,932 8,130,568
70% 70.0% 7,124,191 7,128,886
60% 60.1% 6,106,449 6,114,142
50% 50.0% 5,088,708 5,084,648
40% 40.0% 4,070,966 4,074,996
30% 30.0% 3,053,225 3,055,069
20% 20.0% 2,035,483 2,035,085
10% 10.0% 1,017,742 1,019,271
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: System SYS-212H-TN
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) Gold 6780E, 2.20GHz
CPU Characteristics: 144 Core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32 GB
Memory Details: 32GB 2Rx8 PC5-6400; slots CPU1 A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: PWS-1K63A-1R
Disk Drive: 1x960GB M.2 NVMe GEN4 Samsung,MZ1L2960HCJR
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Dual I350 Gigabit Ethernet controller,AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.524)
Filesystem: NTFS
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM(build 17+35-2724, mixed mode)
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0X300, 0XC00, 0X3000, 0XC000, 0X30000]
JVM Instances: 72
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 1.0a
Management Firmware Version: 1.00.11.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UPPD23FCDHG.001 136,949
WIN-UPPD23FCDHG.002 140,601
WIN-UPPD23FCDHG.003 140,855
WIN-UPPD23FCDHG.004 138,758
WIN-UPPD23FCDHG.005 141,268
WIN-UPPD23FCDHG.006 140,520
WIN-UPPD23FCDHG.007 140,869
WIN-UPPD23FCDHG.008 142,314
WIN-UPPD23FCDHG.009 141,288
WIN-UPPD23FCDHG.010 139,627
WIN-UPPD23FCDHG.011 140,404
WIN-UPPD23FCDHG.012 141,991
WIN-UPPD23FCDHG.013 140,274
WIN-UPPD23FCDHG.014 144,603
WIN-UPPD23FCDHG.015 140,918
WIN-UPPD23FCDHG.016 140,376
WIN-UPPD23FCDHG.017 141,972
WIN-UPPD23FCDHG.018 138,714
WIN-UPPD23FCDHG.019 141,899
WIN-UPPD23FCDHG.020 143,578
WIN-UPPD23FCDHG.021 139,346
WIN-UPPD23FCDHG.022 140,127
WIN-UPPD23FCDHG.023 144,399
WIN-UPPD23FCDHG.024 140,960
WIN-UPPD23FCDHG.025 140,377
WIN-UPPD23FCDHG.026 142,383
WIN-UPPD23FCDHG.027 140,661
WIN-UPPD23FCDHG.028 139,882
WIN-UPPD23FCDHG.029 139,015
WIN-UPPD23FCDHG.030 140,687
WIN-UPPD23FCDHG.031 140,143
WIN-UPPD23FCDHG.032 140,015
WIN-UPPD23FCDHG.033 140,679
WIN-UPPD23FCDHG.034 140,251
WIN-UPPD23FCDHG.035 143,007
WIN-UPPD23FCDHG.036 141,105
WIN-UPPD23FCDHG.037 142,637
WIN-UPPD23FCDHG.038 141,209
WIN-UPPD23FCDHG.039 141,161
WIN-UPPD23FCDHG.040 140,681
WIN-UPPD23FCDHG.041 139,175
WIN-UPPD23FCDHG.042 138,915
WIN-UPPD23FCDHG.043 139,502
WIN-UPPD23FCDHG.044 138,164
WIN-UPPD23FCDHG.045 142,629
WIN-UPPD23FCDHG.046 141,069
WIN-UPPD23FCDHG.047 142,536
WIN-UPPD23FCDHG.048 142,514
WIN-UPPD23FCDHG.049 139,746
WIN-UPPD23FCDHG.050 138,511
WIN-UPPD23FCDHG.051 141,649
WIN-UPPD23FCDHG.052 140,235
WIN-UPPD23FCDHG.053 138,738
WIN-UPPD23FCDHG.054 142,057
WIN-UPPD23FCDHG.055 140,435
WIN-UPPD23FCDHG.056 139,886
WIN-UPPD23FCDHG.057 142,426
WIN-UPPD23FCDHG.058 143,373
WIN-UPPD23FCDHG.059 141,249
WIN-UPPD23FCDHG.060 140,588
WIN-UPPD23FCDHG.061 139,465
WIN-UPPD23FCDHG.062 141,411
WIN-UPPD23FCDHG.063 142,903
WIN-UPPD23FCDHG.064 137,821
WIN-UPPD23FCDHG.065 140,112
WIN-UPPD23FCDHG.066 140,490
WIN-UPPD23FCDHG.067 140,167
WIN-UPPD23FCDHG.068 138,711
WIN-UPPD23FCDHG.069 141,367
WIN-UPPD23FCDHG.070 138,560
WIN-UPPD23FCDHG.071 139,223
WIN-UPPD23FCDHG.072 139,277
ssj_ops@100% 10,129,406
ssj_ops@100% per JVM 140,686

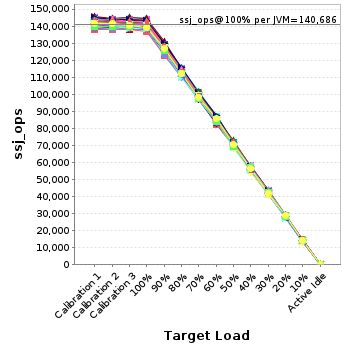

Graph of per-instance results

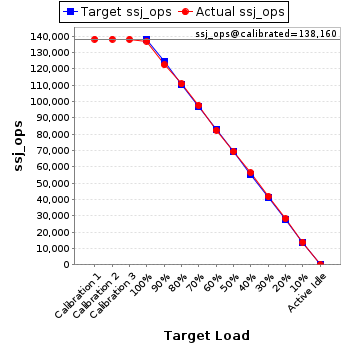

JVM 'WIN-UPPD23FCDHG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,203
Calibration 2     138,200
Calibration 3     138,120
ssj_ops@calibrated=138,160
100% 99.1% 138,160 136,949
90% 88.7% 124,344 122,494
80% 80.2% 110,528 110,773
70% 70.7% 96,712 97,653
60% 59.6% 82,896 82,407
50% 50.2% 69,080 69,291
40% 40.8% 55,264 56,316
30% 30.3% 41,448 41,798
20% 20.5% 27,632 28,266
10% 10.0% 13,816 13,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

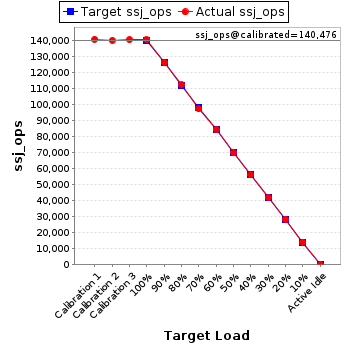

JVM 'WIN-UPPD23FCDHG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,015
Calibration 2     140,292
Calibration 3     140,660
ssj_ops@calibrated=140,476
100% 100.1% 140,476 140,601
90% 90.1% 126,428 126,572
80% 80.0% 112,381 112,441
70% 69.3% 98,333 97,410
60% 60.4% 84,286 84,781
50% 49.8% 70,238 69,891
40% 40.0% 56,190 56,175
30% 29.9% 42,143 42,003
20% 20.3% 28,095 28,470
10% 10.1% 14,048 14,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,594
Calibration 2     141,294
Calibration 3     141,629
ssj_ops@calibrated=141,462
100% 99.6% 141,462 140,855
90% 90.5% 127,316 128,058
80% 79.2% 113,169 112,097
70% 69.6% 99,023 98,475
60% 60.1% 84,877 84,988
50% 50.0% 70,731 70,684
40% 40.2% 56,585 56,912
30% 29.9% 42,439 42,291
20% 19.7% 28,292 27,853
10% 9.8% 14,146 13,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,373
Calibration 2     138,905
Calibration 3     138,818
ssj_ops@calibrated=138,862
100% 99.9% 138,862 138,758
90% 90.0% 124,975 125,020
80% 79.6% 111,089 110,593
70% 71.0% 97,203 98,595
60% 60.7% 83,317 84,229
50% 50.1% 69,431 69,623
40% 39.1% 55,545 54,355
30% 29.8% 41,658 41,389
20% 20.3% 27,772 28,144
10% 10.1% 13,886 14,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,709
Calibration 2     141,953
Calibration 3     142,062
ssj_ops@calibrated=142,008
100% 99.5% 142,008 141,268
90% 91.1% 127,807 129,307
80% 80.3% 113,606 114,076
70% 70.4% 99,405 99,929
60% 59.8% 85,205 84,912
50% 50.3% 71,004 71,430
40% 40.6% 56,803 57,711
30% 29.8% 42,602 42,281
20% 20.1% 28,402 28,590
10% 10.1% 14,201 14,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,061
Calibration 2     141,757
Calibration 3     141,043
ssj_ops@calibrated=141,400
100% 99.4% 141,400 140,520
90% 90.0% 127,260 127,288
80% 79.4% 113,120 112,275
70% 69.4% 98,980 98,191
60% 59.5% 84,840 84,116
50% 49.9% 70,700 70,539
40% 40.2% 56,560 56,867
30% 30.2% 42,420 42,767
20% 20.4% 28,280 28,821
10% 10.2% 14,140 14,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,925
Calibration 2     142,769
Calibration 3     142,349
ssj_ops@calibrated=142,559
100% 98.8% 142,559 140,869
90% 90.3% 128,303 128,723
80% 79.7% 114,047 113,550
70% 70.1% 99,791 99,973
60% 61.4% 85,535 87,510
50% 50.8% 71,279 72,405
40% 39.9% 57,024 56,853
30% 29.9% 42,768 42,647
20% 20.1% 28,512 28,659
10% 10.1% 14,256 14,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,348
Calibration 2     143,702
Calibration 3     143,699
ssj_ops@calibrated=143,701
100% 99.0% 143,701 142,314
90% 90.0% 129,330 129,273
80% 79.9% 114,960 114,752
70% 70.6% 100,590 101,518
60% 60.7% 86,220 87,293
50% 49.8% 71,850 71,559
40% 39.9% 57,480 57,391
30% 29.6% 43,110 42,605
20% 19.8% 28,740 28,512
10% 10.2% 14,370 14,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,749
Calibration 2     141,153
Calibration 3     141,197
ssj_ops@calibrated=141,175
100% 100.1% 141,175 141,288
90% 89.3% 127,058 126,025
80% 80.5% 112,940 113,611
70% 70.1% 98,823 99,002
60% 59.7% 84,705 84,245
50% 49.4% 70,588 69,681
40% 39.8% 56,470 56,170
30% 30.1% 42,353 42,517
20% 19.9% 28,235 28,148
10% 10.1% 14,118 14,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,781
Calibration 2     141,206
Calibration 3     140,441
ssj_ops@calibrated=140,824
100% 99.1% 140,824 139,627
90% 90.2% 126,741 126,990
80% 80.4% 112,659 113,195
70% 69.7% 98,577 98,091
60% 60.2% 84,494 84,775
50% 50.0% 70,412 70,468
40% 40.1% 56,329 56,421
30% 30.0% 42,247 42,271
20% 20.2% 28,165 28,407
10% 10.2% 14,082 14,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,834
Calibration 2     141,437
Calibration 3     141,681
ssj_ops@calibrated=141,559
100% 99.2% 141,559 140,404
90% 90.1% 127,403 127,595
80% 80.5% 113,247 113,921
70% 70.2% 99,091 99,420
60% 60.2% 84,935 85,151
50% 50.1% 70,780 70,853
40% 40.0% 56,624 56,558
30% 30.3% 42,468 42,882
20% 19.9% 28,312 28,124
10% 9.9% 14,156 14,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,799
Calibration 2     142,610
Calibration 3     141,692
ssj_ops@calibrated=142,151
100% 99.9% 142,151 141,991
90% 91.0% 127,936 129,346
80% 79.8% 113,721 113,475
70% 70.2% 99,506 99,834
60% 60.0% 85,291 85,300
50% 49.6% 71,076 70,499
40% 39.9% 56,861 56,700
30% 30.2% 42,645 42,931
20% 20.0% 28,430 28,478
10% 10.3% 14,215 14,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,800
Calibration 2     141,887
Calibration 3     141,607
ssj_ops@calibrated=141,747
100% 99.0% 141,747 140,274
90% 90.5% 127,573 128,264
80% 79.3% 113,398 112,431
70% 70.7% 99,223 100,219
60% 60.6% 85,048 85,936
50% 50.1% 70,874 71,025
40% 39.5% 56,699 55,934
30% 30.4% 42,524 43,116
20% 19.8% 28,349 28,120
10% 10.0% 14,175 14,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,072
Calibration 2     144,478
Calibration 3     145,053
ssj_ops@calibrated=144,766
100% 99.9% 144,766 144,603
90% 89.1% 130,289 128,939
80% 80.0% 115,812 115,767
70% 70.2% 101,336 101,622
60% 60.1% 86,859 87,055
50% 49.6% 72,383 71,867
40% 40.2% 57,906 58,236
30% 30.0% 43,430 43,380
20% 20.2% 28,953 29,235
10% 10.2% 14,477 14,751
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,780
Calibration 2     141,675
Calibration 3     141,829
ssj_ops@calibrated=141,752
100% 99.4% 141,752 140,918
90% 90.5% 127,577 128,253
80% 79.4% 113,402 112,560
70% 70.4% 99,227 99,798
60% 60.4% 85,051 85,680
50% 49.9% 70,876 70,755
40% 39.6% 56,701 56,190
30% 29.9% 42,526 42,354
20% 20.0% 28,350 28,387
10% 10.0% 14,175 14,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,814
Calibration 2     141,187
Calibration 3     140,308
ssj_ops@calibrated=140,747
100% 99.7% 140,747 140,376
90% 90.6% 126,673 127,511
80% 80.4% 112,598 113,216
70% 69.4% 98,523 97,670
60% 60.0% 84,448 84,474
50% 48.9% 70,374 68,771
40% 39.8% 56,299 55,963
30% 29.5% 42,224 41,583
20% 20.0% 28,149 28,195
10% 9.9% 14,075 13,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,141
Calibration 2     142,924
Calibration 3     142,553
ssj_ops@calibrated=142,739
100% 99.5% 142,739 141,972
90% 89.7% 128,465 128,100
80% 79.8% 114,191 113,842
70% 70.1% 99,917 100,116
60% 59.8% 85,643 85,330
50% 50.0% 71,369 71,303
40% 40.8% 57,096 58,168
30% 30.1% 42,822 42,968
20% 19.7% 28,548 28,061
10% 10.2% 14,274 14,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,161
Calibration 2     139,936
Calibration 3     139,349
ssj_ops@calibrated=139,642
100% 99.3% 139,642 138,714
90% 89.5% 125,678 125,005
80% 80.5% 111,714 112,349
70% 69.8% 97,750 97,528
60% 60.5% 83,785 84,510
50% 50.2% 69,821 70,155
40% 40.2% 55,857 56,180
30% 29.9% 41,893 41,756
20% 20.1% 27,928 28,077
10% 9.9% 13,964 13,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

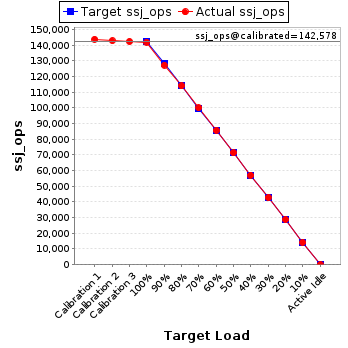

JVM 'WIN-UPPD23FCDHG.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,764
Calibration 2     142,795
Calibration 3     142,361
ssj_ops@calibrated=142,578
100% 99.5% 142,578 141,899
90% 89.2% 128,320 127,241
80% 79.9% 114,062 113,971
70% 70.1% 99,805 100,009
60% 60.1% 85,547 85,717
50% 50.0% 71,289 71,325
40% 40.0% 57,031 57,049
30% 30.0% 42,773 42,752
20% 20.2% 28,516 28,759
10% 10.0% 14,258 14,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,184
Calibration 2     143,755
Calibration 3     143,618
ssj_ops@calibrated=143,687
100% 99.9% 143,687 143,578
90% 89.7% 129,318 128,843
80% 80.2% 114,949 115,275
70% 70.3% 100,581 100,968
60% 60.0% 86,212 86,143
50% 50.1% 71,843 71,950
40% 40.6% 57,475 58,271
30% 30.2% 43,106 43,459
20% 19.8% 28,737 28,459
10% 10.0% 14,369 14,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,629
Calibration 2     142,133
Calibration 3     141,879
ssj_ops@calibrated=142,006
100% 98.1% 142,006 139,346
90% 89.8% 127,805 127,480
80% 80.1% 113,605 113,738
70% 70.0% 99,404 99,355
60% 61.1% 85,204 86,758
50% 49.8% 71,003 70,659
40% 39.5% 56,802 56,105
30% 30.3% 42,602 43,090
20% 20.0% 28,401 28,424
10% 10.0% 14,201 14,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,807
Calibration 2     140,761
Calibration 3     140,541
ssj_ops@calibrated=140,651
100% 99.6% 140,651 140,127
90% 90.1% 126,586 126,690
80% 79.5% 112,521 111,874
70% 70.4% 98,456 99,075
60% 59.3% 84,391 83,470
50% 50.8% 70,326 71,407
40% 40.3% 56,260 56,718
30% 29.9% 42,195 42,099
20% 20.0% 28,130 28,179
10% 9.8% 14,065 13,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

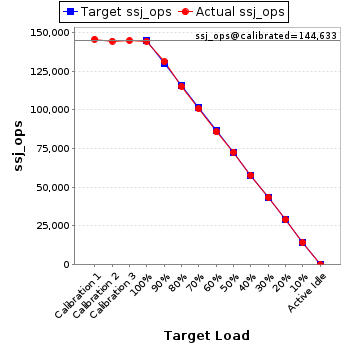

JVM 'WIN-UPPD23FCDHG.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,670
Calibration 2     144,485
Calibration 3     144,782
ssj_ops@calibrated=144,633
100% 99.8% 144,633 144,399
90% 90.6% 130,170 131,070
80% 79.7% 115,707 115,289
70% 69.7% 101,243 100,837
60% 59.4% 86,780 85,887
50% 50.3% 72,317 72,800
40% 39.9% 57,853 57,763
30% 30.0% 43,390 43,460
20% 20.0% 28,927 28,980
10% 9.9% 14,463 14,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,164
Calibration 2     142,310
Calibration 3     141,702
ssj_ops@calibrated=142,006
100% 99.3% 142,006 140,960
90% 90.7% 127,805 128,749
80% 80.1% 113,605 113,758
70% 70.5% 99,404 100,153
60% 59.8% 85,204 84,877
50% 50.2% 71,003 71,246
40% 40.3% 56,802 57,211
30% 29.4% 42,602 41,747
20% 20.0% 28,401 28,463
10% 10.1% 14,201 14,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,214
Calibration 2     139,315
Calibration 3     141,476
ssj_ops@calibrated=140,395
100% 100.0% 140,395 140,377
90% 89.9% 126,356 126,190
80% 80.8% 112,316 113,432
70% 69.5% 98,277 97,593
60% 60.1% 84,237 84,382
50% 50.2% 70,198 70,494
40% 40.3% 56,158 56,638
30% 30.1% 42,119 42,323
20% 20.2% 28,079 28,373
10% 10.1% 14,040 14,144
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,459
Calibration 2     141,290
Calibration 3     142,820
ssj_ops@calibrated=142,055
100% 100.2% 142,055 142,383
90% 90.2% 127,850 128,094
80% 80.1% 113,644 113,760
70% 69.7% 99,439 99,033
60% 60.0% 85,233 85,253
50% 50.3% 71,028 71,396
40% 39.9% 56,822 56,661
30% 29.8% 42,617 42,389
20% 20.0% 28,411 28,365
10% 10.1% 14,206 14,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,082
Calibration 2     141,036
Calibration 3     141,091
ssj_ops@calibrated=141,063
100% 99.7% 141,063 140,661
90% 89.7% 126,957 126,482
80% 79.8% 112,851 112,564
70% 70.0% 98,744 98,727
60% 60.2% 84,638 84,871
50% 49.6% 70,532 69,934
40% 40.3% 56,425 56,853
30% 30.2% 42,319 42,544
20% 19.6% 28,213 27,664
10% 10.5% 14,106 14,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,229
Calibration 2     140,716
Calibration 3     140,446
ssj_ops@calibrated=140,581
100% 99.5% 140,581 139,882
90% 90.6% 126,523 127,415
80% 79.9% 112,465 112,310
70% 70.2% 98,407 98,630
60% 59.7% 84,349 83,917
50% 49.5% 70,290 69,613
40% 40.6% 56,232 57,041
30% 30.4% 42,174 42,773
20% 20.2% 28,116 28,361
10% 9.9% 14,058 13,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,447
Calibration 2     140,798
Calibration 3     138,120
ssj_ops@calibrated=139,459
100% 99.7% 139,459 139,015
90% 89.9% 125,513 125,398
80% 79.2% 111,567 110,498
70% 70.1% 97,621 97,743
60% 59.7% 83,675 83,201
50% 49.5% 69,729 69,085
40% 39.7% 55,783 55,421
30% 30.2% 41,838 42,106
20% 20.0% 27,892 27,846
10% 9.9% 13,946 13,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

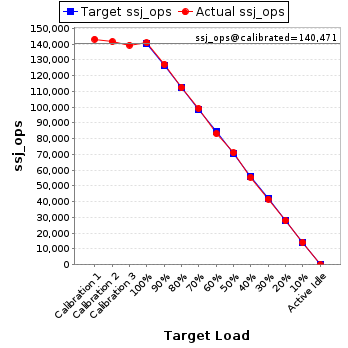

JVM 'WIN-UPPD23FCDHG.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,055
Calibration 2     141,581
Calibration 3     139,360
ssj_ops@calibrated=140,471
100% 100.2% 140,471 140,687
90% 90.5% 126,423 127,158
80% 80.0% 112,376 112,408
70% 70.5% 98,329 99,063
60% 59.2% 84,282 83,193
50% 50.5% 70,235 70,943
40% 39.5% 56,188 55,497
30% 29.7% 42,141 41,658
20% 19.9% 28,094 27,965
10% 10.1% 14,047 14,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,613
Calibration 2     140,160
Calibration 3     139,715
ssj_ops@calibrated=139,937
100% 100.1% 139,937 140,143
90% 90.6% 125,943 126,827
80% 79.7% 111,950 111,575
70% 70.5% 97,956 98,653
60% 59.9% 83,962 83,873
50% 49.9% 69,969 69,834
40% 40.0% 55,975 56,042
30% 29.8% 41,981 41,702
20% 19.7% 27,987 27,541
10% 10.4% 13,994 14,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,539
Calibration 2     141,898
Calibration 3     141,014
ssj_ops@calibrated=141,456
100% 99.0% 141,456 140,015
90% 89.7% 127,310 126,868
80% 80.2% 113,165 113,383
70% 69.5% 99,019 98,295
60% 59.7% 84,874 84,484
50% 49.9% 70,728 70,533
40% 40.6% 56,582 57,486
30% 29.7% 42,437 41,947
20% 20.0% 28,291 28,233
10% 9.8% 14,146 13,806
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,945
Calibration 2     141,244
Calibration 3     140,914
ssj_ops@calibrated=141,079
100% 99.7% 141,079 140,679
90% 90.1% 126,971 127,172
80% 79.5% 112,863 112,182
70% 70.2% 98,755 99,059
60% 59.9% 84,647 84,482
50% 49.6% 70,539 69,986
40% 40.3% 56,431 56,919
30% 29.9% 42,324 42,157
20% 20.2% 28,216 28,515
10% 9.8% 14,108 13,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,285
Calibration 2     141,029
Calibration 3     140,801
ssj_ops@calibrated=140,915
100% 99.5% 140,915 140,251
90% 90.6% 126,824 127,637
80% 79.2% 112,732 111,556
70% 70.4% 98,641 99,236
60% 60.3% 84,549 84,960
50% 49.9% 70,458 70,355
40% 39.4% 56,366 55,458
30% 29.8% 42,275 42,046
20% 19.5% 28,183 27,466
10% 9.8% 14,092 13,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,397
Calibration 2     144,448
Calibration 3     144,068
ssj_ops@calibrated=144,258
100% 99.1% 144,258 143,007
90% 89.8% 129,832 129,489
80% 79.4% 115,406 114,557
70% 69.9% 100,981 100,882
60% 60.2% 86,555 86,914
50% 49.7% 72,129 71,728
40% 40.3% 57,703 58,149
30% 30.2% 43,277 43,635
20% 19.8% 28,852 28,620
10% 10.1% 14,426 14,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,094
Calibration 2     141,266
Calibration 3     141,292
ssj_ops@calibrated=141,279
100% 99.9% 141,279 141,105
90% 90.9% 127,151 128,408
80% 79.4% 113,023 112,182
70% 70.3% 98,895 99,261
60% 59.8% 84,767 84,546
50% 50.1% 70,639 70,843
40% 40.1% 56,512 56,631
30% 30.4% 42,384 42,990
20% 20.4% 28,256 28,868
10% 9.9% 14,128 13,956
Active Idle   0 0

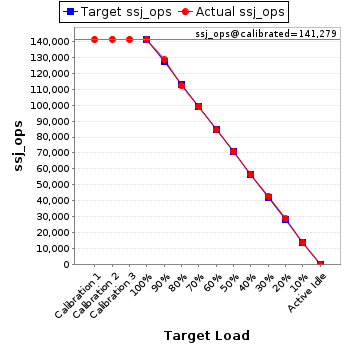

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,617
Calibration 2     143,543
Calibration 3     142,523
ssj_ops@calibrated=143,033
100% 99.7% 143,033 142,637
90% 90.1% 128,730 128,901
80% 79.0% 114,426 113,036
70% 69.6% 100,123 99,589
60% 59.9% 85,820 85,693
50% 50.3% 71,516 71,914
40% 39.8% 57,213 56,990
30% 30.2% 42,910 43,209
20% 20.2% 28,607 28,843
10% 9.9% 14,303 14,210
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,783
Calibration 2     142,234
Calibration 3     142,261
ssj_ops@calibrated=142,248
100% 99.3% 142,248 141,209
90% 89.1% 128,023 126,775
80% 79.6% 113,798 113,175
70% 70.1% 99,573 99,680
60% 60.3% 85,349 85,777
50% 49.7% 71,124 70,737
40% 40.1% 56,899 56,999
30% 29.4% 42,674 41,860
20% 19.3% 28,450 27,490
10% 9.9% 14,225 14,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,488
Calibration 2     141,569
Calibration 3     141,558
ssj_ops@calibrated=141,563
100% 99.7% 141,563 141,161
90% 89.7% 127,407 126,930
80% 80.2% 113,251 113,503
70% 69.8% 99,094 98,878
60% 59.9% 84,938 84,784
50% 49.8% 70,782 70,472
40% 40.4% 56,625 57,259
30% 30.0% 42,469 42,516
20% 20.2% 28,313 28,632
10% 10.2% 14,156 14,453
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,760
Calibration 2     142,143
Calibration 3     141,194
ssj_ops@calibrated=141,669
100% 99.3% 141,669 140,681
90% 90.8% 127,502 128,656
80% 79.9% 113,335 113,162
70% 69.9% 99,168 98,976
60% 60.0% 85,001 84,951
50% 50.1% 70,834 71,026
40% 39.7% 56,667 56,209
30% 30.1% 42,501 42,648
20% 19.9% 28,334 28,211
10% 9.9% 14,167 14,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,886
Calibration 2     141,172
Calibration 3     140,318
ssj_ops@calibrated=140,745
100% 98.9% 140,745 139,175
90% 90.3% 126,670 127,037
80% 79.6% 112,596 112,004
70% 70.3% 98,521 98,948
60% 60.1% 84,447 84,602
50% 50.4% 70,372 70,989
40% 40.3% 56,298 56,681
30% 30.0% 42,223 42,243
20% 20.0% 28,149 28,149
10% 9.8% 14,074 13,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,223
Calibration 2     139,792
Calibration 3     139,840
ssj_ops@calibrated=139,816
100% 99.4% 139,816 138,915
90% 90.1% 125,835 125,952
80% 80.4% 111,853 112,470
70% 70.1% 97,871 97,966
60% 60.4% 83,890 84,381
50% 49.5% 69,908 69,272
40% 40.1% 55,926 56,127
30% 29.8% 41,945 41,660
20% 19.9% 27,963 27,811
10% 10.0% 13,982 13,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,816
Calibration 2     140,056
Calibration 3     138,011
ssj_ops@calibrated=139,034
100% 100.3% 139,034 139,502
90% 91.2% 125,130 126,796
80% 80.5% 111,227 111,879
70% 69.9% 97,324 97,227
60% 60.7% 83,420 84,401
50% 50.4% 69,517 70,040
40% 40.6% 55,613 56,420
30% 29.7% 41,710 41,302
20% 20.0% 27,807 27,803
10% 10.1% 13,903 13,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,730
Calibration 2     138,976
Calibration 3     138,860
ssj_ops@calibrated=138,918
100% 99.5% 138,918 138,164
90% 89.9% 125,026 124,860
80% 79.6% 111,134 110,648
70% 69.8% 97,243 96,977
60% 59.8% 83,351 83,079
50% 50.4% 69,459 70,028
40% 39.7% 55,567 55,178
30% 29.7% 41,675 41,308
20% 20.1% 27,784 27,948
10% 9.9% 13,892 13,740
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,592
Calibration 2     143,792
Calibration 3     143,407
ssj_ops@calibrated=143,600
100% 99.3% 143,600 142,629
90% 90.4% 129,240 129,869
80% 79.8% 114,880 114,606
70% 70.1% 100,520 100,609
60% 60.4% 86,160 86,757
50% 50.4% 71,800 72,392
40% 40.1% 57,440 57,514
30% 29.6% 43,080 42,434
20% 20.1% 28,720 28,811
10% 10.0% 14,360 14,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,770
Calibration 2     141,703
Calibration 3     142,078
ssj_ops@calibrated=141,890
100% 99.4% 141,890 141,069
90% 89.9% 127,701 127,625
80% 80.8% 113,512 114,630
70% 69.6% 99,323 98,749
60% 59.5% 85,134 84,422
50% 49.5% 70,945 70,228
40% 39.7% 56,756 56,360
30% 30.0% 42,567 42,615
20% 20.4% 28,378 28,924
10% 10.2% 14,189 14,436
Active Idle   0 0

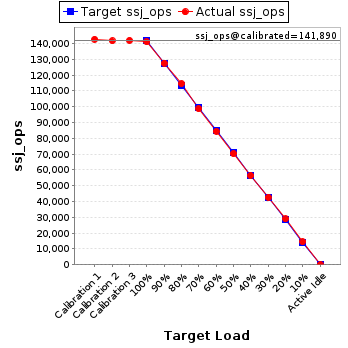

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,455
Calibration 2     142,444
Calibration 3     142,898
ssj_ops@calibrated=142,671
100% 99.9% 142,671 142,536
90% 90.8% 128,404 129,607
80% 79.8% 114,137 113,810
70% 70.4% 99,870 100,467
60% 59.3% 85,603 84,638
50% 49.9% 71,335 71,228
40% 40.3% 57,068 57,550
30% 30.7% 42,801 43,770
20% 19.8% 28,534 28,245
10% 10.0% 14,267 14,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,291
Calibration 2     143,362
Calibration 3     142,370
ssj_ops@calibrated=142,866
100% 99.8% 142,866 142,514
90% 89.7% 128,580 128,127
80% 80.1% 114,293 114,369
70% 69.7% 100,006 99,628
60% 59.1% 85,720 84,505
50% 50.5% 71,433 72,106
40% 39.5% 57,147 56,371
30% 30.5% 42,860 43,579
20% 20.1% 28,573 28,762
10% 9.7% 14,287 13,926
Active Idle   0 0

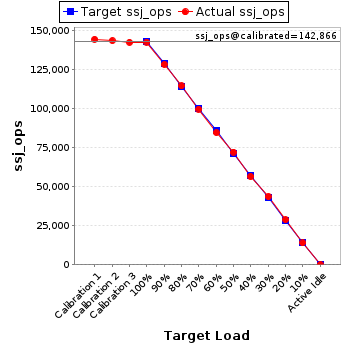

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,081
Calibration 2     140,919
Calibration 3     140,384
ssj_ops@calibrated=140,652
100% 99.4% 140,652 139,746
90% 89.4% 126,586 125,686
80% 79.5% 112,521 111,749
70% 70.5% 98,456 99,195
60% 59.7% 84,391 83,968
50% 49.7% 70,326 69,972
40% 40.1% 56,261 56,432
30% 30.0% 42,195 42,260
20% 19.6% 28,130 27,518
10% 9.9% 14,065 13,965
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,427
Calibration 2     139,816
Calibration 3     140,039
ssj_ops@calibrated=139,928
100% 99.0% 139,928 138,511
90% 89.8% 125,935 125,691
80% 80.7% 111,942 112,967
70% 69.3% 97,949 96,982
60% 61.2% 83,957 85,654
50% 49.7% 69,964 69,587
40% 40.0% 55,971 56,019
30% 29.9% 41,978 41,833
20% 19.8% 27,986 27,648
10% 9.7% 13,993 13,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,302
Calibration 2     143,246
Calibration 3     142,700
ssj_ops@calibrated=142,973
100% 99.1% 142,973 141,649
90% 90.5% 128,676 129,444
80% 79.9% 114,379 114,302
70% 69.5% 100,081 99,409
60% 60.1% 85,784 85,967
50% 49.8% 71,487 71,177
40% 39.8% 57,189 56,961
30% 30.2% 42,892 43,215
20% 20.0% 28,595 28,538
10% 9.8% 14,297 13,943
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,466
Calibration 2     140,860
Calibration 3     140,754
ssj_ops@calibrated=140,807
100% 99.6% 140,807 140,235
90% 89.5% 126,726 126,078
80% 80.6% 112,645 113,435
70% 69.9% 98,565 98,431
60% 60.7% 84,484 85,500
50% 49.6% 70,403 69,838
40% 39.7% 56,323 55,916
30% 30.1% 42,242 42,356
20% 19.9% 28,161 28,070
10% 10.0% 14,081 14,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,021
Calibration 2     139,532
Calibration 3     139,209
ssj_ops@calibrated=139,371
100% 99.5% 139,371 138,738
90% 90.3% 125,434 125,873
80% 80.2% 111,497 111,798
70% 70.5% 97,560 98,323
60% 60.2% 83,622 83,940
50% 49.5% 69,685 69,031
40% 39.8% 55,748 55,529
30% 29.6% 41,811 41,262
20% 20.0% 27,874 27,832
10% 9.9% 13,937 13,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,473
Calibration 2     142,555
Calibration 3     142,604
ssj_ops@calibrated=142,580
100% 99.6% 142,580 142,057
90% 90.6% 128,322 129,225
80% 79.9% 114,064 113,869
70% 69.6% 99,806 99,170
60% 60.0% 85,548 85,559
50% 50.2% 71,290 71,641
40% 40.1% 57,032 57,143
30% 30.0% 42,774 42,844
20% 20.3% 28,516 28,927
10% 10.1% 14,258 14,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,329
Calibration 2     141,368
Calibration 3     140,677
ssj_ops@calibrated=141,022
100% 99.6% 141,022 140,435
90% 90.7% 126,920 127,942
80% 80.6% 112,818 113,599
70% 70.2% 98,716 98,968
60% 59.9% 84,613 84,510
50% 50.2% 70,511 70,760
40% 40.0% 56,409 56,418
30% 29.9% 42,307 42,189
20% 20.1% 28,204 28,329
10% 10.0% 14,102 14,146
Active Idle   0 0

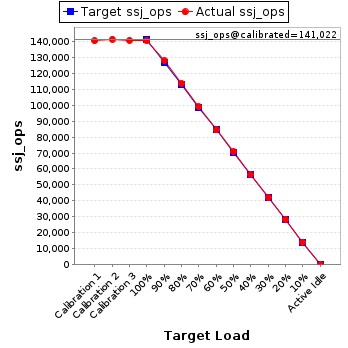

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,898
Calibration 2     142,066
Calibration 3     141,661
ssj_ops@calibrated=141,863
100% 98.6% 141,863 139,886
90% 89.9% 127,677 127,577
80% 80.1% 113,491 113,577
70% 69.9% 99,304 99,118
60% 59.3% 85,118 84,176
50% 50.2% 70,932 71,284
40% 40.4% 56,745 57,316
30% 29.9% 42,559 42,385
20% 19.9% 28,373 28,220
10% 10.0% 14,186 14,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,490
Calibration 2     143,131
Calibration 3     143,230
ssj_ops@calibrated=143,180
100% 99.5% 143,180 142,426
90% 90.5% 128,862 129,530
80% 79.7% 114,544 114,166
70% 70.3% 100,226 100,647
60% 59.9% 85,908 85,772
50% 49.5% 71,590 70,931
40% 39.8% 57,272 56,987
30% 29.3% 42,954 42,006
20% 20.2% 28,636 28,928
10% 10.0% 14,318 14,282
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,213
Calibration 2     143,785
Calibration 3     143,790
ssj_ops@calibrated=143,787
100% 99.7% 143,787 143,373
90% 90.2% 129,409 129,706
80% 80.3% 115,030 115,485
70% 70.1% 100,651 100,791
60% 60.7% 86,272 87,307
50% 49.7% 71,894 71,492
40% 40.2% 57,515 57,821
30% 30.1% 43,136 43,278
20% 19.8% 28,757 28,490
10% 10.2% 14,379 14,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,009
Calibration 2     142,054
Calibration 3     141,784
ssj_ops@calibrated=141,919
100% 99.5% 141,919 141,249
90% 90.1% 127,727 127,915
80% 79.6% 113,536 112,913
70% 71.1% 99,344 100,949
60% 59.8% 85,152 84,839
50% 49.3% 70,960 69,954
40% 40.1% 56,768 56,901
30% 29.9% 42,576 42,426
20% 20.1% 28,384 28,582
10% 9.9% 14,192 14,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,458
Calibration 2     140,788
Calibration 3     141,063
ssj_ops@calibrated=140,926
100% 99.8% 140,926 140,588
90% 89.3% 126,833 125,909
80% 79.8% 112,741 112,447
70% 69.9% 98,648 98,526
60% 60.1% 84,555 84,646
50% 50.2% 70,463 70,774
40% 39.8% 56,370 56,032
30% 30.3% 42,278 42,632
20% 20.1% 28,185 28,357
10% 9.9% 14,093 13,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,656
Calibration 2     139,689
Calibration 3     139,794
ssj_ops@calibrated=139,742
100% 99.8% 139,742 139,465
90% 90.3% 125,768 126,187
80% 79.7% 111,793 111,375
70% 69.6% 97,819 97,315
60% 59.8% 83,845 83,574
50% 50.4% 69,871 70,480
40% 39.8% 55,897 55,620
30% 30.4% 41,923 42,496
20% 19.9% 27,948 27,876
10% 10.0% 13,974 13,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,156
Calibration 2     142,059
Calibration 3     141,868
ssj_ops@calibrated=141,963
100% 99.6% 141,963 141,411
90% 89.9% 127,767 127,629
80% 79.1% 113,571 112,241
70% 69.9% 99,374 99,208
60% 60.4% 85,178 85,770
50% 50.5% 70,982 71,667
40% 40.3% 56,785 57,187
30% 30.2% 42,589 42,859
20% 19.8% 28,393 28,131
10% 10.1% 14,196 14,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,348
Calibration 2     143,765
Calibration 3     142,418
ssj_ops@calibrated=143,092
100% 99.9% 143,092 142,903
90% 89.5% 128,782 128,073
80% 80.2% 114,473 114,764
70% 69.6% 100,164 99,623
60% 60.1% 85,855 86,054
50% 50.0% 71,546 71,490
40% 39.8% 57,237 56,950
30% 30.4% 42,927 43,544
20% 20.2% 28,618 28,929
10% 10.0% 14,309 14,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,709
Calibration 2     138,267
Calibration 3     138,562
ssj_ops@calibrated=138,415
100% 99.6% 138,415 137,821
90% 88.8% 124,573 122,880
80% 79.2% 110,732 109,631
70% 70.6% 96,890 97,674
60% 60.3% 83,049 83,415
50% 50.1% 69,207 69,366
40% 40.3% 55,366 55,778
30% 30.2% 41,524 41,781
20% 19.8% 27,683 27,383
10% 10.1% 13,841 14,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,242
Calibration 2     140,803
Calibration 3     140,267
ssj_ops@calibrated=140,535
100% 99.7% 140,535 140,112
90% 90.3% 126,482 126,920
80% 80.5% 112,428 113,136
70% 69.7% 98,375 98,000
60% 60.1% 84,321 84,466
50% 50.0% 70,268 70,276
40% 40.5% 56,214 56,858
30% 29.8% 42,161 41,919
20% 19.6% 28,107 27,515
10% 10.0% 14,054 14,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,736
Calibration 2     140,624
Calibration 3     140,661
ssj_ops@calibrated=140,642
100% 99.9% 140,642 140,490
90% 90.5% 126,578 127,256
80% 79.5% 112,514 111,819
70% 70.4% 98,450 98,999
60% 60.6% 84,385 85,277
50% 49.8% 70,321 70,059
40% 40.0% 56,257 56,320
30% 29.7% 42,193 41,802
20% 20.3% 28,128 28,499
10% 10.1% 14,064 14,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,519
Calibration 2     140,231
Calibration 3     140,743
ssj_ops@calibrated=140,487
100% 99.8% 140,487 140,167
90% 90.2% 126,438 126,768
80% 80.2% 112,390 112,738
70% 70.0% 98,341 98,394
60% 59.6% 84,292 83,767
50% 49.7% 70,244 69,786
40% 39.9% 56,195 56,002
30% 30.7% 42,146 43,164
20% 19.7% 28,097 27,716
10% 10.0% 14,049 14,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,834
Calibration 2     139,469
Calibration 3     138,792
ssj_ops@calibrated=139,130
100% 99.7% 139,130 138,711
90% 90.2% 125,217 125,559
80% 79.0% 111,304 109,896
70% 69.6% 97,391 96,858
60% 60.4% 83,478 83,987
50% 49.5% 69,565 68,881
40% 39.9% 55,652 55,526
30% 29.9% 41,739 41,635
20% 19.3% 27,826 26,895
10% 10.0% 13,913 13,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,592
Calibration 2     141,945
Calibration 3     141,707
ssj_ops@calibrated=141,826
100% 99.7% 141,826 141,367
90% 89.7% 127,644 127,182
80% 79.5% 113,461 112,756
70% 69.5% 99,278 98,627
60% 60.0% 85,096 85,074
50% 50.1% 70,913 71,089
40% 39.2% 56,730 55,650
30% 30.0% 42,548 42,506
20% 20.3% 28,365 28,732
10% 10.3% 14,183 14,540
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,979
Calibration 2     139,623
Calibration 3     140,017
ssj_ops@calibrated=139,820
100% 99.1% 139,820 138,560
90% 90.4% 125,838 126,346
80% 79.3% 111,856 110,890
70% 70.5% 97,874 98,551
60% 59.8% 83,892 83,543
50% 50.2% 69,910 70,136
40% 39.9% 55,928 55,858
30% 30.6% 41,946 42,776
20% 19.9% 27,964 27,803
10% 9.8% 13,982 13,772
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,743
Calibration 2     139,662
Calibration 3     139,731
ssj_ops@calibrated=139,696
100% 99.7% 139,696 139,223
90% 90.0% 125,727 125,716
80% 80.3% 111,757 112,211
70% 69.8% 97,788 97,445
60% 60.2% 83,818 84,166
50% 49.5% 69,848 69,192
40% 40.6% 55,879 56,726
30% 30.3% 41,909 42,318
20% 20.2% 27,939 28,173
10% 10.0% 13,970 13,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UPPD23FCDHG.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,729
Calibration 2     141,249
Calibration 3     140,287
ssj_ops@calibrated=140,768
100% 98.9% 140,768 139,277
90% 90.2% 126,691 126,936
80% 79.8% 112,614 112,275
70% 69.9% 98,538 98,375
60% 60.8% 84,461 85,603
50% 50.0% 70,384 70,422
40% 40.0% 56,307 56,375
30% 29.9% 42,230 42,022
20% 20.4% 28,154 28,736
10% 10.1% 14,077 14,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
