Hewlett Packard Enterprise ProLiant DL320 Gen11 ssj_ops@100% = 5,876,849
ssj_ops@100% per JVM = 97,947
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 15, 2024
Hardware Availability: Feb-2024 Software Availability: Jan-2024 Publication: May 2, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,067,019
Calibration 2     5,902,512
Calibration 3     5,886,588
ssj_ops@calibrated=5,894,550
100% 99.7% 5,894,550 5,876,849
90% 89.9% 5,305,095 5,296,647
80% 80.0% 4,715,640 4,713,835
70% 70.0% 4,126,185 4,123,541
60% 59.9% 3,536,730 3,533,240
50% 50.0% 2,947,275 2,946,766
40% 40.0% 2,357,820 2,357,484
30% 30.0% 1,768,365 1,769,465
20% 20.1% 1,178,910 1,182,004
10% 10.0% 589,455 589,523
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL320 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8581V 2.00 GHz (Intel Turbo Boost Technology up to 3.9 GHz)
CPU Characteristics: 60-Core, 2.00 GHz, 300 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 60 cores, 1 chip, 60 cores/chip
Hardware Threads: 120 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 300 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16 GB 1Rx8 PC5-5600; slots 1, 3, 5, 7, 10, 12, 14 and 16
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HP 800W Flex Slot Titanium Power Supply Kit
Disk Drive: 1 x 480GB M.2 SSD SATA (P47818-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5720 1GbE 2p BASE-T LOM Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options: -server -Xms1600m -Xmx1600m -Xmn1400m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 60}
JVM Instances: 60
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: U63 v2.20 (02/01/2024)
Management Firmware Version: 1.57 Feb 27 2024
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
DL320Gen11.001 89,496
DL320Gen11.002 90,236
DL320Gen11.003 103,541
DL320Gen11.004 105,036
DL320Gen11.005 93,581
DL320Gen11.006 96,483
DL320Gen11.007 103,173
DL320Gen11.008 106,398
DL320Gen11.009 106,658
DL320Gen11.010 105,286
DL320Gen11.011 97,269
DL320Gen11.012 98,962
DL320Gen11.013 95,834
DL320Gen11.014 99,850
DL320Gen11.015 105,245
DL320Gen11.016 91,038
DL320Gen11.017 109,324
DL320Gen11.018 87,383
DL320Gen11.019 90,166
DL320Gen11.020 94,407
DL320Gen11.021 104,301
DL320Gen11.022 108,078
DL320Gen11.023 95,752
DL320Gen11.024 108,119
DL320Gen11.025 94,988
DL320Gen11.026 99,190
DL320Gen11.027 104,755
DL320Gen11.028 100,381
DL320Gen11.029 104,845
DL320Gen11.030 104,030
DL320Gen11.031 99,079
DL320Gen11.032 103,624
DL320Gen11.033 104,358
DL320Gen11.034 104,314
DL320Gen11.035 105,950
DL320Gen11.036 104,966
DL320Gen11.037 107,213
DL320Gen11.038 107,529
DL320Gen11.039 105,751
DL320Gen11.040 105,689
DL320Gen11.041 106,149
DL320Gen11.042 107,167
DL320Gen11.043 82,639
DL320Gen11.044 90,931
DL320Gen11.045 89,857
DL320Gen11.046 90,484
DL320Gen11.047 91,081
DL320Gen11.048 91,683
DL320Gen11.049 81,541
DL320Gen11.050 95,229
DL320Gen11.051 107,108
DL320Gen11.052 92,152
DL320Gen11.053 91,493
DL320Gen11.054 94,770
DL320Gen11.055 85,922
DL320Gen11.056 89,563
DL320Gen11.057 88,284
DL320Gen11.058 88,838
DL320Gen11.059 87,615
DL320Gen11.060 82,066
ssj_ops@100% 5,876,849
ssj_ops@100% per JVM 97,947

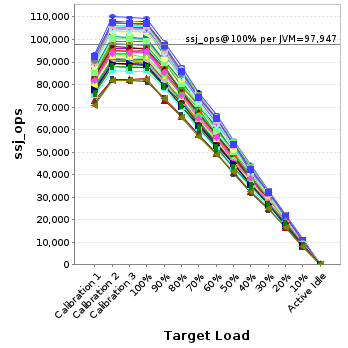

Graph of per-instance results
JVM 'DL320Gen11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,400
Calibration 2     90,506
Calibration 3     90,309
ssj_ops@calibrated=90,408
100% 99.0% 90,408 89,496
90% 90.2% 81,367 81,565
80% 80.1% 72,326 72,379
70% 70.7% 63,285 63,936
60% 59.4% 54,245 53,665
50% 49.4% 45,204 44,699
40% 40.6% 36,163 36,688
30% 30.8% 27,122 27,859
20% 20.2% 18,082 18,233
10% 10.5% 9,041 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

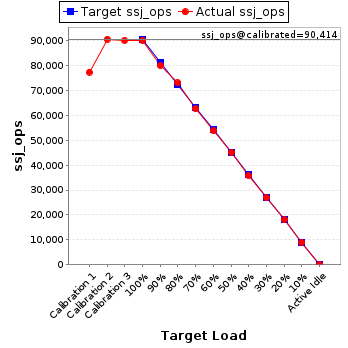

JVM 'DL320Gen11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,429
Calibration 2     90,609
Calibration 3     90,218
ssj_ops@calibrated=90,414
100% 99.8% 90,414 90,236
90% 88.5% 81,372 79,976
80% 80.8% 72,331 73,044
70% 69.3% 63,289 62,613
60% 59.5% 54,248 53,761
50% 49.9% 45,207 45,081
40% 39.7% 36,165 35,850
30% 29.7% 27,124 26,839
20% 19.9% 18,083 18,010
10% 9.9% 9,041 8,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,729
Calibration 2     103,598
Calibration 3     103,462
ssj_ops@calibrated=103,530
100% 100.0% 103,530 103,541
90% 89.8% 93,177 92,960
80% 80.2% 82,824 83,003
70% 71.1% 72,471 73,605
60% 60.2% 62,118 62,344
50% 50.0% 51,765 51,782
40% 40.3% 41,412 41,771
30% 29.3% 31,059 30,327
20% 19.9% 20,706 20,555
10% 9.9% 10,353 10,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,492
Calibration 2     105,513
Calibration 3     105,427
ssj_ops@calibrated=105,470
100% 99.6% 105,470 105,036
90% 89.5% 94,923 94,409
80% 80.4% 84,376 84,778
70% 69.0% 73,829 72,756
60% 59.3% 63,282 62,545
50% 49.7% 52,735 52,396
40% 39.9% 42,188 42,116
30% 29.9% 31,641 31,492
20% 20.2% 21,094 21,321
10% 10.4% 10,547 10,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

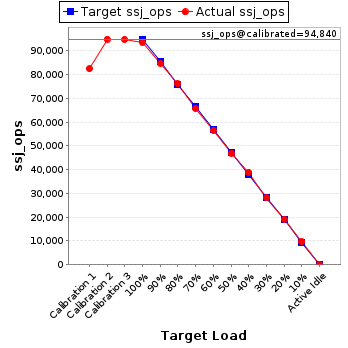

JVM 'DL320Gen11.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,406
Calibration 2     94,890
Calibration 3     94,790
ssj_ops@calibrated=94,840
100% 98.7% 94,840 93,581
90% 89.3% 85,356 84,712
80% 80.3% 75,872 76,149
70% 69.3% 66,388 65,686
60% 59.5% 56,904 56,464
50% 49.5% 47,420 46,913
40% 41.0% 37,936 38,863
30% 29.6% 28,452 28,062
20% 20.3% 18,968 19,220
10% 10.3% 9,484 9,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

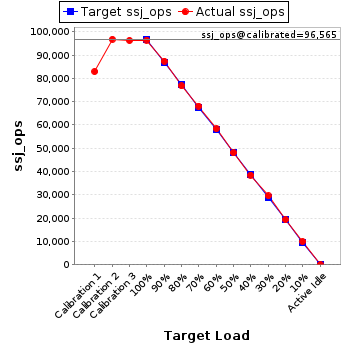

JVM 'DL320Gen11.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,945
Calibration 2     96,822
Calibration 3     96,308
ssj_ops@calibrated=96,565
100% 99.9% 96,565 96,483
90% 90.5% 86,908 87,430
80% 79.5% 77,252 76,752
70% 70.6% 67,595 68,127
60% 60.4% 57,939 58,371
50% 49.7% 48,282 48,028
40% 39.8% 38,626 38,472
30% 30.6% 28,969 29,579
20% 20.0% 19,313 19,308
10% 10.3% 9,656 9,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,678
Calibration 2     103,843
Calibration 3     103,493
ssj_ops@calibrated=103,668
100% 99.5% 103,668 103,173
90% 90.6% 93,301 93,911
80% 79.2% 82,934 82,110
70% 70.1% 72,567 72,637
60% 59.5% 62,201 61,651
50% 49.9% 51,834 51,748
40% 39.9% 41,467 41,384
30% 30.4% 31,100 31,564
20% 20.3% 20,734 21,021
10% 9.8% 10,367 10,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,975
Calibration 2     107,253
Calibration 3     107,201
ssj_ops@calibrated=107,227
100% 99.2% 107,227 106,398
90% 90.1% 96,504 96,581
80% 79.8% 85,781 85,596
70% 69.0% 75,059 73,978
60% 60.4% 64,336 64,802
50% 50.5% 53,613 54,186
40% 40.2% 42,891 43,156
30% 30.0% 32,168 32,145
20% 19.6% 21,445 21,056
10% 9.8% 10,723 10,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,020
Calibration 2     107,620
Calibration 3     107,417
ssj_ops@calibrated=107,518
100% 99.2% 107,518 106,658
90% 88.9% 96,766 95,610
80% 79.8% 86,015 85,775
70% 69.5% 75,263 74,679
60% 60.1% 64,511 64,575
50% 48.7% 53,759 52,349
40% 39.5% 43,007 42,505
30% 29.9% 32,255 32,161
20% 20.1% 21,504 21,629
10% 9.9% 10,752 10,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,815
Calibration 2     105,841
Calibration 3     105,754
ssj_ops@calibrated=105,798
100% 99.5% 105,798 105,286
90% 90.0% 95,218 95,228
80% 80.7% 84,638 85,327
70% 70.4% 74,058 74,483
60% 58.9% 63,479 62,329
50% 49.9% 52,899 52,813
40% 40.2% 42,319 42,568
30% 30.4% 31,739 32,200
20% 20.4% 21,160 21,621
10% 10.0% 10,580 10,573
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,912
Calibration 2     98,379
Calibration 3     97,793
ssj_ops@calibrated=98,086
100% 99.2% 98,086 97,269
90% 89.6% 88,278 87,863
80% 79.0% 78,469 77,455
70% 70.7% 68,660 69,368
60% 59.0% 58,852 57,896
50% 49.9% 49,043 48,987
40% 39.5% 39,235 38,730
30% 30.2% 29,426 29,600
20% 20.6% 19,617 20,184
10% 9.9% 9,809 9,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,858
Calibration 2     99,240
Calibration 3     98,998
ssj_ops@calibrated=99,119
100% 99.8% 99,119 98,962
90% 90.0% 89,207 89,169
80% 80.9% 79,295 80,154
70% 70.7% 69,383 70,070
60% 60.6% 59,471 60,046
50% 50.1% 49,559 49,682
40% 40.8% 39,648 40,411
30% 29.9% 29,736 29,649
20% 19.8% 19,824 19,625
10% 9.8% 9,912 9,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

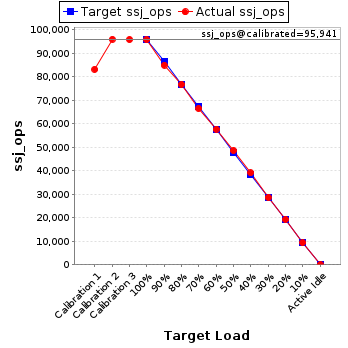

JVM 'DL320Gen11.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,188
Calibration 2     96,015
Calibration 3     95,866
ssj_ops@calibrated=95,941
100% 99.9% 95,941 95,834
90% 88.6% 86,347 84,997
80% 80.0% 76,753 76,754
70% 69.3% 67,158 66,529
60% 60.2% 57,564 57,746
50% 50.7% 47,970 48,608
40% 40.7% 38,376 39,089
30% 29.8% 28,782 28,610
20% 20.1% 19,188 19,320
10% 9.8% 9,594 9,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

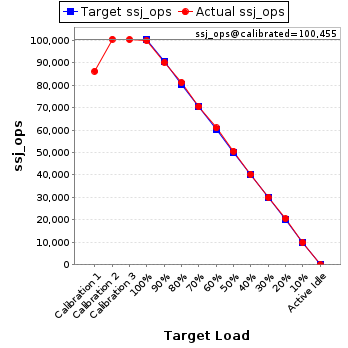

JVM 'DL320Gen11.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,272
Calibration 2     100,529
Calibration 3     100,381
ssj_ops@calibrated=100,455
100% 99.4% 100,455 99,850
90% 89.7% 90,409 90,154
80% 80.9% 80,364 81,273
70% 70.2% 70,318 70,493
60% 60.7% 60,273 60,976
50% 50.4% 50,227 50,606
40% 40.1% 40,182 40,250
30% 29.9% 30,136 29,988
20% 20.5% 20,091 20,564
10% 9.9% 10,045 9,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,761
Calibration 2     104,925
Calibration 3     104,462
ssj_ops@calibrated=104,694
100% 100.5% 104,694 105,245
90% 88.9% 94,225 93,092
80% 80.7% 83,755 84,440
70% 69.4% 73,286 72,676
60% 60.2% 62,816 62,986
50% 49.2% 52,347 51,542
40% 39.5% 41,878 41,394
30% 30.3% 31,408 31,711
20% 19.9% 20,939 20,792
10% 9.8% 10,469 10,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,456
Calibration 2     91,635
Calibration 3     91,291
ssj_ops@calibrated=91,463
100% 99.5% 91,463 91,038
90% 90.6% 82,317 82,902
80% 80.4% 73,171 73,496
70% 69.7% 64,024 63,774
60% 59.4% 54,878 54,297
50% 50.1% 45,732 45,801
40% 39.7% 36,585 36,307
30% 29.8% 27,439 27,214
20% 20.2% 18,293 18,484
10% 10.0% 9,146 9,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,374
Calibration 2     110,246
Calibration 3     109,712
ssj_ops@calibrated=109,979
100% 99.4% 109,979 109,324
90% 89.7% 98,981 98,681
80% 79.8% 87,984 87,802
70% 69.7% 76,986 76,646
60% 60.5% 65,988 66,485
50% 50.3% 54,990 55,272
40% 40.3% 43,992 44,291
30% 30.0% 32,994 32,999
20% 20.2% 21,996 22,242
10% 10.5% 10,998 11,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,252
Calibration 2     88,043
Calibration 3     87,907
ssj_ops@calibrated=87,975
100% 99.3% 87,975 87,383
90% 90.5% 79,177 79,606
80% 80.2% 70,380 70,538
70% 70.1% 61,582 61,696
60% 59.7% 52,785 52,524
50% 50.6% 43,987 44,513
40% 40.3% 35,190 35,459
30% 30.4% 26,392 26,766
20% 20.1% 17,595 17,703
10% 10.2% 8,797 9,009
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,294
Calibration 2     90,460
Calibration 3     90,122
ssj_ops@calibrated=90,291
100% 99.9% 90,291 90,166
90% 89.7% 81,262 80,979
80% 79.6% 72,233 71,861
70% 70.2% 63,204 63,372
60% 60.8% 54,174 54,903
50% 49.8% 45,145 44,944
40% 40.2% 36,116 36,261
30% 29.9% 27,087 27,002
20% 20.2% 18,058 18,243
10% 10.1% 9,029 9,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,888
Calibration 2     95,066
Calibration 3     94,741
ssj_ops@calibrated=94,903
100% 99.5% 94,903 94,407
90% 88.9% 85,413 84,408
80% 79.7% 75,923 75,675
70% 70.3% 66,432 66,725
60% 60.6% 56,942 57,493
50% 50.5% 47,452 47,925
40% 39.7% 37,961 37,652
30% 29.8% 28,471 28,245
20% 20.4% 18,981 19,393
10% 9.8% 9,490 9,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,993
Calibration 2     104,907
Calibration 3     104,563
ssj_ops@calibrated=104,735
100% 99.6% 104,735 104,301
90% 90.5% 94,262 94,760
80% 79.4% 83,788 83,171
70% 69.5% 73,315 72,815
60% 60.7% 62,841 63,573
50% 50.6% 52,368 52,972
40% 39.8% 41,894 41,646
30% 29.8% 31,421 31,215
20% 20.3% 20,947 21,294
10% 9.9% 10,474 10,364
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,125
Calibration 2     107,931
Calibration 3     107,549
ssj_ops@calibrated=107,740
100% 100.3% 107,740 108,078
90% 90.0% 96,966 96,914
80% 80.6% 86,192 86,789
70% 70.0% 75,418 75,365
60% 60.8% 64,644 65,454
50% 50.7% 53,870 54,576
40% 40.9% 43,096 44,035
30% 29.7% 32,322 31,988
20% 20.2% 21,548 21,753
10% 9.8% 10,774 10,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,638
Calibration 2     96,733
Calibration 3     96,658
ssj_ops@calibrated=96,695
100% 99.0% 96,695 95,752
90% 90.0% 87,026 87,017
80% 79.4% 77,356 76,804
70% 70.0% 67,687 67,684
60% 59.5% 58,017 57,564
50% 50.2% 48,348 48,565
40% 39.2% 38,678 37,951
30% 29.8% 29,009 28,798
20% 20.2% 19,339 19,504
10% 9.9% 9,670 9,572
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,725
Calibration 2     108,010
Calibration 3     107,604
ssj_ops@calibrated=107,807
100% 100.3% 107,807 108,119
90% 89.3% 97,026 96,286
80% 79.7% 86,246 85,896
70% 70.4% 75,465 75,854
60% 59.1% 64,684 63,664
50% 49.9% 53,903 53,775
40% 40.3% 43,123 43,414
30% 29.8% 32,342 32,154
20% 19.9% 21,561 21,458
10% 10.1% 10,781 10,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

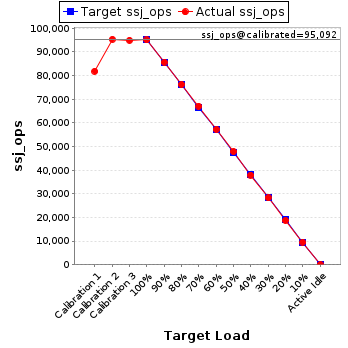

JVM 'DL320Gen11.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,780
Calibration 2     95,301
Calibration 3     94,882
ssj_ops@calibrated=95,092
100% 99.9% 95,092 94,988
90% 90.1% 85,583 85,645
80% 80.1% 76,074 76,137
70% 70.5% 66,564 67,029
60% 60.2% 57,055 57,213
50% 50.3% 47,546 47,847
40% 39.8% 38,037 37,881
30% 29.7% 28,528 28,220
20% 19.7% 19,018 18,695
10% 10.0% 9,509 9,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,768
Calibration 2     99,205
Calibration 3     99,278
ssj_ops@calibrated=99,241
100% 99.9% 99,241 99,190
90% 90.8% 89,317 90,138
80% 79.8% 79,393 79,152
70% 71.0% 69,469 70,474
60% 60.1% 59,545 59,606
50% 50.3% 49,621 49,896
40% 39.9% 39,697 39,646
30% 29.7% 29,772 29,500
20% 19.6% 19,848 19,475
10% 10.1% 9,924 9,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,467
Calibration 2     105,777
Calibration 3     105,720
ssj_ops@calibrated=105,749
100% 99.1% 105,749 104,755
90% 90.1% 95,174 95,274
80% 80.1% 84,599 84,693
70% 69.5% 74,024 73,451
60% 59.6% 63,449 63,048
50% 50.1% 52,874 52,951
40% 39.9% 42,299 42,163
30% 30.7% 31,725 32,415
20% 20.2% 21,150 21,402
10% 10.0% 10,575 10,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,080
Calibration 2     101,350
Calibration 3     100,746
ssj_ops@calibrated=101,048
100% 99.3% 101,048 100,381
90% 89.7% 90,943 90,625
80% 81.1% 80,838 81,967
70% 69.8% 70,734 70,507
60% 60.1% 60,629 60,753
50% 49.4% 50,524 49,913
40% 40.4% 40,419 40,815
30% 30.5% 30,314 30,814
20% 19.4% 20,210 19,634
10% 10.4% 10,105 10,489
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,630
Calibration 2     105,182
Calibration 3     104,414
ssj_ops@calibrated=104,798
100% 100.0% 104,798 104,845
90% 89.5% 94,318 93,785
80% 80.1% 83,839 83,899
70% 68.7% 73,359 72,036
60% 60.4% 62,879 63,256
50% 50.0% 52,399 52,388
40% 39.9% 41,919 41,781
30% 30.2% 31,439 31,633
20% 20.2% 20,960 21,124
10% 10.1% 10,480 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,510
Calibration 2     105,405
Calibration 3     105,117
ssj_ops@calibrated=105,261
100% 98.8% 105,261 104,030
90% 89.9% 94,735 94,620
80% 79.0% 84,209 83,135
70% 69.6% 73,683 73,297
60% 59.6% 63,157 62,721
50% 50.4% 52,630 53,065
40% 40.4% 42,104 42,487
30% 30.3% 31,578 31,924
20% 19.8% 21,052 20,827
10% 10.0% 10,526 10,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,362
Calibration 2     100,345
Calibration 3     100,352
ssj_ops@calibrated=100,348
100% 98.7% 100,348 99,079
90% 89.6% 90,314 89,891
80% 80.0% 80,279 80,322
70% 71.2% 70,244 71,434
60% 59.0% 60,209 59,169
50% 50.1% 50,174 50,230
40% 40.5% 40,139 40,684
30% 29.9% 30,105 30,024
20% 20.0% 20,070 20,039
10% 10.0% 10,035 10,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,074
Calibration 2     103,554
Calibration 3     103,027
ssj_ops@calibrated=103,291
100% 100.3% 103,291 103,624
90% 88.6% 92,962 91,566
80% 79.6% 82,633 82,213
70% 70.2% 72,303 72,475
60% 60.2% 61,974 62,210
50% 49.6% 51,645 51,233
40% 40.1% 41,316 41,404
30% 29.6% 30,987 30,543
20% 19.9% 20,658 20,564
10% 10.1% 10,329 10,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,790
Calibration 2     105,252
Calibration 3     104,753
ssj_ops@calibrated=105,003
100% 99.4% 105,003 104,358
90% 89.4% 94,502 93,875
80% 80.8% 84,002 84,821
70% 70.6% 73,502 74,168
60% 60.7% 63,002 63,758
50% 50.2% 52,501 52,718
40% 40.3% 42,001 42,300
30% 30.0% 31,501 31,460
20% 20.0% 21,001 20,972
10% 10.1% 10,500 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,855
Calibration 2     104,119
Calibration 3     103,681
ssj_ops@calibrated=103,900
100% 100.4% 103,900 104,314
90% 90.3% 93,510 93,811
80% 79.8% 83,120 82,932
70% 70.0% 72,730 72,682
60% 59.6% 62,340 61,959
50% 50.5% 51,950 52,478
40% 40.0% 41,560 41,569
30% 30.2% 31,170 31,379
20% 19.6% 20,780 20,393
10% 9.8% 10,390 10,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,616
Calibration 2     106,084
Calibration 3     105,709
ssj_ops@calibrated=105,896
100% 100.1% 105,896 105,950
90% 89.7% 95,307 94,979
80% 79.2% 84,717 83,922
70% 70.4% 74,128 74,536
60% 60.0% 63,538 63,547
50% 50.1% 52,948 53,083
40% 39.4% 42,359 41,728
30% 29.9% 31,769 31,613
20% 20.0% 21,179 21,136
10% 10.0% 10,590 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,961
Calibration 2     105,805
Calibration 3     105,814
ssj_ops@calibrated=105,810
100% 99.2% 105,810 104,966
90% 90.5% 95,229 95,735
80% 79.4% 84,648 84,059
70% 69.6% 74,067 73,674
60% 59.8% 63,486 63,289
50% 50.3% 52,905 53,179
40% 39.2% 42,324 41,442
30% 30.5% 31,743 32,315
20% 19.8% 21,162 20,998
10% 10.0% 10,581 10,556
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,491
Calibration 2     107,383
Calibration 3     107,406
ssj_ops@calibrated=107,395
100% 99.8% 107,395 107,213
90% 88.9% 96,655 95,459
80% 80.4% 85,916 86,317
70% 70.6% 75,176 75,837
60% 59.6% 64,437 64,033
50% 51.1% 53,697 54,867
40% 40.6% 42,958 43,649
30% 30.3% 32,218 32,552
20% 19.7% 21,479 21,153
10% 10.2% 10,739 10,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,610
Calibration 2     107,555
Calibration 3     107,414
ssj_ops@calibrated=107,485
100% 100.0% 107,485 107,529
90% 91.4% 96,736 98,226
80% 79.1% 85,988 84,985
70% 70.2% 75,239 75,434
60% 59.4% 64,491 63,855
50% 49.5% 53,742 53,228
40% 39.9% 42,994 42,847
30% 30.2% 32,245 32,412
20% 19.9% 21,497 21,376
10% 10.1% 10,748 10,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,316
Calibration 2     106,062
Calibration 3     105,868
ssj_ops@calibrated=105,965
100% 99.8% 105,965 105,751
90% 90.3% 95,369 95,703
80% 79.7% 84,772 84,483
70% 70.1% 74,176 74,322
60% 60.0% 63,579 63,581
50% 50.0% 52,983 53,013
40% 39.9% 42,386 42,264
30% 30.0% 31,790 31,756
20% 20.1% 21,193 21,327
10% 9.7% 10,597 10,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,854
Calibration 2     105,882
Calibration 3     105,747
ssj_ops@calibrated=105,815
100% 99.9% 105,815 105,689
90% 90.0% 95,233 95,244
80% 79.8% 84,652 84,450
70% 70.3% 74,070 74,396
60% 60.2% 63,489 63,693
50% 49.7% 52,907 52,543
40% 40.4% 42,326 42,791
30% 29.8% 31,744 31,538
20% 20.0% 21,163 21,193
10% 10.0% 10,581 10,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,384
Calibration 2     105,997
Calibration 3     105,991
ssj_ops@calibrated=105,994
100% 100.1% 105,994 106,149
90% 89.9% 95,395 95,323
80% 80.3% 84,795 85,140
70% 69.5% 74,196 73,696
60% 60.3% 63,596 63,890
50% 50.0% 52,997 53,032
40% 40.4% 42,398 42,806
30% 30.2% 31,798 31,986
20% 20.3% 21,199 21,530
10% 9.9% 10,599 10,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,729
Calibration 2     107,206
Calibration 3     106,889
ssj_ops@calibrated=107,048
100% 100.1% 107,048 107,167
90% 89.9% 96,343 96,273
80% 79.1% 85,638 84,681
70% 70.1% 74,933 75,046
60% 60.7% 64,229 64,967
50% 49.9% 53,524 53,373
40% 39.7% 42,819 42,498
30% 30.2% 32,114 32,288
20% 20.2% 21,410 21,631
10% 9.9% 10,705 10,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,700
Calibration 2     82,311
Calibration 3     82,205
ssj_ops@calibrated=82,258
100% 100.5% 82,258 82,639
90% 88.7% 74,032 72,983
80% 79.8% 65,806 65,674
70% 70.3% 57,580 57,822
60% 59.8% 49,355 49,159
50% 49.9% 41,129 41,051
40% 39.5% 32,903 32,521
30% 30.4% 24,677 24,973
20% 20.0% 16,452 16,430
10% 9.9% 8,226 8,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,840
Calibration 2     91,280
Calibration 3     90,555
ssj_ops@calibrated=90,918
100% 100.0% 90,918 90,931
90% 89.8% 81,826 81,615
80% 79.7% 72,734 72,437
70% 70.0% 63,642 63,623
60% 59.9% 54,551 54,444
50% 50.5% 45,459 45,891
40% 39.6% 36,367 35,961
30% 29.6% 27,275 26,955
20% 19.8% 18,184 17,983
10% 9.7% 9,092 8,781
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,323
Calibration 2     90,275
Calibration 3     90,073
ssj_ops@calibrated=90,174
100% 99.6% 90,174 89,857
90% 90.2% 81,157 81,300
80% 80.0% 72,139 72,136
70% 69.3% 63,122 62,474
60% 59.8% 54,105 53,956
50% 49.8% 45,087 44,937
40% 39.9% 36,070 36,008
30% 29.8% 27,052 26,900
20% 20.0% 18,035 18,077
10% 10.1% 9,017 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,133
Calibration 2     91,046
Calibration 3     90,480
ssj_ops@calibrated=90,763
100% 99.7% 90,763 90,484
90% 90.3% 81,686 81,992
80% 79.4% 72,610 72,093
70% 70.4% 63,534 63,895
60% 60.4% 54,458 54,798
50% 50.6% 45,381 45,888
40% 40.1% 36,305 36,352
30% 30.1% 27,229 27,296
20% 19.9% 18,153 18,104
10% 10.2% 9,076 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,104
Calibration 2     91,177
Calibration 3     90,911
ssj_ops@calibrated=91,044
100% 100.0% 91,044 91,081
90% 89.9% 81,939 81,844
80% 80.5% 72,835 73,333
70% 70.3% 63,731 64,007
60% 60.9% 54,626 55,446
50% 50.3% 45,522 45,768
40% 40.0% 36,418 36,444
30% 29.7% 27,313 27,049
20% 19.4% 18,209 17,642
10% 10.2% 9,104 9,321
Active Idle   0 0

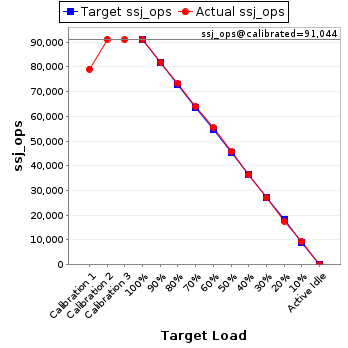

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,230
Calibration 2     91,713
Calibration 3     91,311
ssj_ops@calibrated=91,512
100% 100.2% 91,512 91,683
90% 90.0% 82,361 82,386
80% 79.6% 73,210 72,819
70% 70.0% 64,058 64,037
60% 59.9% 54,907 54,811
50% 50.5% 45,756 46,216
40% 40.1% 36,605 36,688
30% 30.0% 27,454 27,432
20% 19.9% 18,302 18,200
10% 10.0% 9,151 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,593
Calibration 2     82,293
Calibration 3     81,886
ssj_ops@calibrated=82,089
100% 99.3% 82,089 81,541
90% 89.7% 73,880 73,669
80% 80.5% 65,671 66,100
70% 70.4% 57,462 57,801
60% 60.0% 49,253 49,215
50% 49.5% 41,045 40,666
40% 39.2% 32,836 32,202
30% 29.7% 24,627 24,353
20% 20.4% 16,418 16,736
10% 9.8% 8,209 8,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,078
Calibration 2     95,203
Calibration 3     94,801
ssj_ops@calibrated=95,002
100% 100.2% 95,002 95,229
90% 90.2% 85,502 85,689
80% 79.7% 76,002 75,719
70% 70.4% 66,501 66,906
60% 60.0% 57,001 56,987
50% 49.8% 47,501 47,351
40% 39.5% 38,001 37,533
30% 30.0% 28,501 28,523
20% 20.3% 19,000 19,321
10% 10.0% 9,500 9,496
Active Idle   0 0

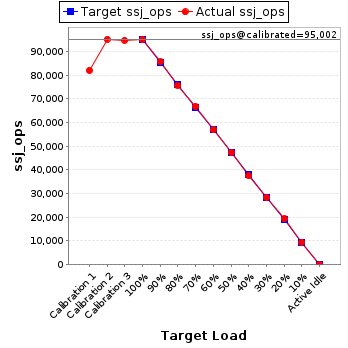

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,288
Calibration 2     107,429
Calibration 3     107,052
ssj_ops@calibrated=107,241
100% 99.9% 107,241 107,108
90% 90.7% 96,517 97,230
80% 80.1% 85,793 85,949
70% 69.2% 75,069 74,184
60% 60.7% 64,344 65,103
50% 49.9% 53,620 53,476
40% 39.4% 42,896 42,296
30% 29.7% 32,172 31,845
20% 19.8% 21,448 21,281
10% 10.1% 10,724 10,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,478
Calibration 2     93,372
Calibration 3     93,158
ssj_ops@calibrated=93,265
100% 98.8% 93,265 92,152
90% 90.3% 83,939 84,248
80% 80.7% 74,612 75,253
70% 70.5% 65,286 65,759
60% 59.0% 55,959 55,062
50% 49.7% 46,633 46,389
40% 39.5% 37,306 36,832
30% 30.1% 27,980 28,045
20% 19.7% 18,653 18,416
10% 9.9% 9,327 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,384
Calibration 2     93,071
Calibration 3     92,446
ssj_ops@calibrated=92,759
100% 98.6% 92,759 91,493
90% 89.2% 83,483 82,702
80% 79.8% 74,207 74,006
70% 69.4% 64,931 64,348
60% 59.5% 55,655 55,180
50% 49.2% 46,379 45,671
40% 40.0% 37,104 37,145
30% 30.7% 27,828 28,471
20% 20.5% 18,552 19,013
10% 9.9% 9,276 9,187
Active Idle   0 0

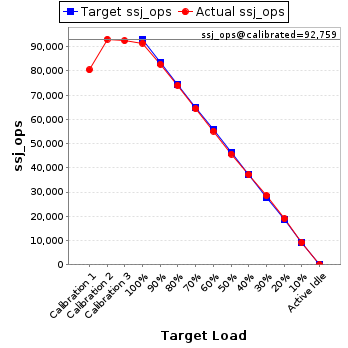

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,852
Calibration 2     93,640
Calibration 3     93,970
ssj_ops@calibrated=93,805
100% 101.0% 93,805 94,770
90% 90.8% 84,424 85,205
80% 79.9% 75,044 74,976
70% 69.2% 65,663 64,911
60% 60.0% 56,283 56,306
50% 48.6% 46,902 45,580
40% 40.8% 37,522 38,317
30% 29.5% 28,141 27,676
20% 20.5% 18,761 19,193
10% 10.2% 9,380 9,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,034
Calibration 2     86,220
Calibration 3     85,747
ssj_ops@calibrated=85,984
100% 99.9% 85,984 85,922
90% 90.8% 77,385 78,041
80% 80.7% 68,787 69,379
70% 69.9% 60,189 60,133
60% 60.0% 51,590 51,608
50% 49.7% 42,992 42,701
40% 39.9% 34,393 34,325
30% 29.7% 25,795 25,513
20% 19.9% 17,197 17,139
10% 10.0% 8,598 8,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,414
Calibration 2     89,387
Calibration 3     89,073
ssj_ops@calibrated=89,230
100% 100.4% 89,230 89,563
90% 90.7% 80,307 80,958
80% 80.0% 71,384 71,371
70% 69.7% 62,461 62,166
60% 59.3% 53,538 52,878
50% 49.5% 44,615 44,131
40% 39.7% 35,692 35,401
30% 30.0% 26,769 26,779
20% 20.0% 17,846 17,837
10% 9.8% 8,923 8,765
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,805
Calibration 2     89,185
Calibration 3     88,935
ssj_ops@calibrated=89,060
100% 99.1% 89,060 88,284
90% 88.8% 80,154 79,051
80% 81.1% 71,248 72,223
70% 69.9% 62,342 62,252
60% 60.2% 53,436 53,635
50% 50.6% 44,530 45,041
40% 40.0% 35,624 35,654
30% 29.9% 26,718 26,585
20% 20.6% 17,812 18,321
10% 10.0% 8,906 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,899
Calibration 2     89,118
Calibration 3     89,430
ssj_ops@calibrated=89,274
100% 99.5% 89,274 88,838
90% 89.0% 80,346 79,468
80% 78.5% 71,419 70,063
70% 69.1% 62,492 61,676
60% 59.3% 53,564 52,980
50% 50.1% 44,637 44,767
40% 39.7% 35,710 35,420
30% 30.1% 26,782 26,845
20% 19.6% 17,855 17,469
10% 9.8% 8,927 8,717
Active Idle   0 0

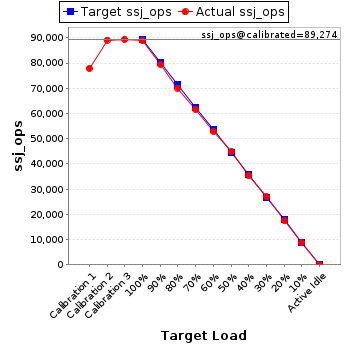

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,214
Calibration 2     88,008
Calibration 3     87,778
ssj_ops@calibrated=87,893
100% 99.7% 87,893 87,615
90% 90.2% 79,104 79,300
80% 80.5% 70,315 70,739
70% 69.1% 61,525 60,714
60% 59.4% 52,736 52,244
50% 49.1% 43,947 43,160
40% 39.9% 35,157 35,071
30% 30.4% 26,368 26,704
20% 20.7% 17,579 18,175
10% 9.8% 8,789 8,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DL320Gen11.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,751
Calibration 2     81,705
Calibration 3     81,942
ssj_ops@calibrated=81,824
100% 100.3% 81,824 82,066
90% 89.9% 73,641 73,579
80% 79.7% 65,459 65,236
70% 69.4% 57,277 56,774
60% 59.6% 49,094 48,764
50% 50.5% 40,912 41,282
40% 39.5% 32,729 32,293
30% 30.5% 24,547 24,983
20% 20.4% 16,365 16,665
10% 9.7% 8,182 7,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
