SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL320 Gen11 | SPECpower_ssj2008 = 14,291 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 15, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Jan-2024 | Publication: | May 2, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

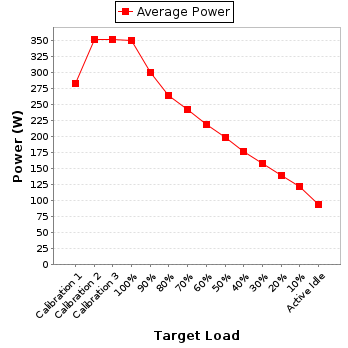

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 283 | 25.1 |
| Calibration 2 | 352 | 25.1 |
| Calibration 3 | 351 | 25.2 |
| 100% | 349 | 25.1 |
| 90% | 299 | 25.1 |
| 80% | 265 | 25.1 |
| 70% | 243 | 25.4 |
| 60% | 219 | 25.7 |
| 50% | 198 | 25.9 |
| 40% | 177 | 26.0 |
| 30% | 158 | 26.0 |
| 20% | 140 | 26.0 |
| 10% | 123 | 25.9 |
| Active Idle | 94.4 | 25.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HC75N-140-1 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.42 | 2.0 | 0.975 | 283 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.73 | 2.0 | 0.982 | 352 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.72 | 2.0 | 0.982 | 351 | 0.4% |
| 100% | 207 | 300.0 | 1.72 | 2.0 | 0.982 | 349 | 0.4% |
| 90% | 207 | 300.0 | 1.47 | 2.0 | 0.979 | 299 | 0.4% |
| 80% | 207 | 300.0 | 1.31 | 2.0 | 0.975 | 265 | 0.4% |
| 70% | 208 | 300.0 | 1.21 | 2.0 | 0.971 | 243 | 0.4% |
| 60% | 207 | 300.0 | 1.09 | 2.0 | 0.969 | 219 | 0.5% |
| 50% | 208 | 300.0 | 0.991 | 2.0 | 0.963 | 198 | 0.5% |
| 40% | 208 | 300.0 | 0.895 | 2.0 | 0.955 | 177 | 0.6% |
| 30% | 207 | 300.0 | 0.807 | 2.0 | 0.947 | 158 | 0.6% |
| 20% | 207 | 300.0 | 0.722 | 2.0 | 0.935 | 140 | 0.7% |
| 10% | 208 | 300.0 | 0.644 | 2.0 | 0.918 | 123 | 0.7% |
| Active Idle | 207 | 300.0 | 0.518 | 1.0 | 0.878 | 94.4 | 0.6% |
