Lenovo Global Technology ThinkSystem SD535 V3 ssj_ops@100% = 14,087,176
ssj_ops@100% per JVM = 220,112
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 25, 2024
Hardware Availability: May-2024 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,225,610
Calibration 2     14,161,286
Calibration 3     14,169,335
ssj_ops@calibrated=14,165,310
100% 99.4% 14,165,310 14,087,176
90% 89.2% 12,748,779 12,640,386
80% 78.9% 11,332,248 11,180,596
70% 70.0% 9,915,717 9,916,742
60% 60.0% 8,499,186 8,492,457
50% 49.9% 7,082,655 7,074,300
40% 40.1% 5,666,124 5,677,058
30% 30.0% 4,249,593 4,253,130
20% 20.0% 2,833,062 2,838,758
10% 10.0% 1,416,531 1,416,568
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD535 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754
CPU Characteristics: 128-Core, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1 to 12 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10GBASE-T 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:InlineSmallCode=3900 -XX:AutoBoxCacheMax=20000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: GPE103H
Management Firmware Version: QGX319Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Hilo-32.001 223,319
Hilo-32.002 224,266
Hilo-32.003 221,998
Hilo-32.004 222,641
Hilo-32.005 223,883
Hilo-32.006 210,990
Hilo-32.007 223,355
Hilo-32.008 222,555
Hilo-32.009 222,032
Hilo-32.010 224,396
Hilo-32.011 207,608
Hilo-32.012 222,309
Hilo-32.013 206,547
Hilo-32.014 221,382
Hilo-32.015 219,800
Hilo-32.016 213,182
Hilo-32.017 219,640
Hilo-32.018 224,331
Hilo-32.019 224,128
Hilo-32.020 226,149
Hilo-32.021 216,651
Hilo-32.022 221,329
Hilo-32.023 219,643
Hilo-32.024 225,921
Hilo-32.025 225,190
Hilo-32.026 214,008
Hilo-32.027 223,339
Hilo-32.028 219,577
Hilo-32.029 214,562
Hilo-32.030 215,409
Hilo-32.031 224,132
Hilo-32.032 217,368
Hilo-32.033 213,844
Hilo-32.034 218,726
Hilo-32.035 222,086
Hilo-32.036 222,904
Hilo-32.037 221,030
Hilo-32.038 221,624
Hilo-32.039 222,384
Hilo-32.040 207,010
Hilo-32.041 221,052
Hilo-32.042 224,882
Hilo-32.043 221,128
Hilo-32.044 221,471
Hilo-32.045 223,057
Hilo-32.046 221,517
Hilo-32.047 224,331
Hilo-32.048 221,423
Hilo-32.049 223,966
Hilo-32.050 221,505
Hilo-32.051 221,108
Hilo-32.052 203,909
Hilo-32.053 211,856
Hilo-32.054 225,949
Hilo-32.055 213,068
Hilo-32.056 226,782
Hilo-32.057 211,980
Hilo-32.058 225,635
Hilo-32.059 219,979
Hilo-32.060 225,096
Hilo-32.061 225,485
Hilo-32.062 219,009
Hilo-32.063 221,136
Hilo-32.064 220,606
ssj_ops@100% 14,087,176
ssj_ops@100% per JVM 220,112

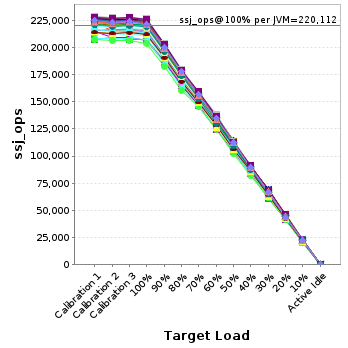

Graph of per-instance results
JVM 'Hilo-32.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,093
Calibration 2     224,814
Calibration 3     223,976
ssj_ops@calibrated=224,395
100% 99.5% 224,395 223,319
90% 89.1% 201,955 199,825
80% 79.1% 179,516 177,495
70% 70.0% 157,076 156,971
60% 59.7% 134,637 134,048
50% 50.2% 112,197 112,602
40% 40.0% 89,758 89,679
30% 29.9% 67,318 66,984
20% 20.2% 44,879 45,358
10% 9.9% 22,439 22,187
Active Idle   0 0
Graph of results
JVM 'Hilo-32.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,132
Calibration 2     226,246
Calibration 3     225,170
ssj_ops@calibrated=225,708
100% 99.4% 225,708 224,266
90% 88.9% 203,137 200,644
80% 78.3% 180,567 176,651
70% 69.8% 157,996 157,634
60% 59.8% 135,425 135,068
50% 50.2% 112,854 113,383
40% 40.0% 90,283 90,305
30% 29.7% 67,712 67,045
20% 20.3% 45,142 45,764
10% 9.9% 22,571 22,432
Active Idle   0 0
Graph of results
JVM 'Hilo-32.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,618
Calibration 2     221,801
Calibration 3     222,854
ssj_ops@calibrated=222,328
100% 99.9% 222,328 221,998
90% 89.4% 200,095 198,718
80% 78.8% 177,862 175,100
70% 69.6% 155,629 154,827
60% 60.4% 133,397 134,244
50% 50.1% 111,164 111,454
40% 40.8% 88,931 90,607
30% 30.6% 66,698 67,943
20% 20.1% 44,466 44,731
10% 9.9% 22,233 22,112
Active Idle   0 0
Graph of results

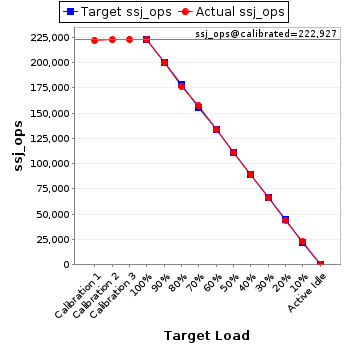

JVM 'Hilo-32.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,245
Calibration 2     222,604
Calibration 3     223,251
ssj_ops@calibrated=222,927
100% 99.9% 222,927 222,641
90% 89.7% 200,635 199,877
80% 79.2% 178,342 176,612
70% 70.5% 156,049 157,251
60% 60.2% 133,756 134,282
50% 49.9% 111,464 111,306
40% 40.0% 89,171 89,179
30% 29.7% 66,878 66,177
20% 19.8% 44,585 44,202
10% 10.2% 22,293 22,659
Active Idle   0 0
Graph of results
JVM 'Hilo-32.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,126
Calibration 2     226,615
Calibration 3     226,229
ssj_ops@calibrated=226,422
100% 98.9% 226,422 223,883
90% 87.6% 203,780 198,242
80% 78.5% 181,137 177,743
70% 70.4% 158,495 159,325
60% 59.8% 135,853 135,505
50% 49.6% 113,211 112,315
40% 40.2% 90,569 90,966
30% 30.1% 67,927 68,254
20% 20.2% 45,284 45,625
10% 10.3% 22,642 23,229
Active Idle   0 0
Graph of results
JVM 'Hilo-32.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,790
Calibration 2     212,506
Calibration 3     211,657
ssj_ops@calibrated=212,081
100% 99.5% 212,081 210,990
90% 89.1% 190,873 189,057
80% 78.8% 169,665 167,164
70% 70.1% 148,457 148,664
60% 60.3% 127,249 127,910
50% 49.9% 106,041 105,842
40% 39.8% 84,833 84,486
30% 30.0% 63,624 63,545
20% 20.2% 42,416 42,836
10% 9.8% 21,208 20,687
Active Idle   0 0
Graph of results
JVM 'Hilo-32.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,488
Calibration 2     225,111
Calibration 3     224,693
ssj_ops@calibrated=224,902
100% 99.3% 224,902 223,355
90% 88.8% 202,412 199,680
80% 78.0% 179,922 175,443
70% 70.1% 157,431 157,744
60% 59.8% 134,941 134,415
50% 49.9% 112,451 112,172
40% 40.0% 89,961 89,863
30% 30.1% 67,471 67,640
20% 20.0% 44,980 44,938
10% 10.2% 22,490 22,971
Active Idle   0 0
Graph of results
JVM 'Hilo-32.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,310
Calibration 2     223,613
Calibration 3     222,893
ssj_ops@calibrated=223,253
100% 99.7% 223,253 222,555
90% 89.5% 200,927 199,803
80% 79.2% 178,602 176,811
70% 70.1% 156,277 156,456
60% 60.2% 133,952 134,459
50% 49.8% 111,626 111,089
40% 40.4% 89,301 90,193
30% 30.1% 66,976 67,136
20% 20.4% 44,651 45,600
10% 9.8% 22,325 21,929
Active Idle   0 0
Graph of results
JVM 'Hilo-32.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,541
Calibration 2     223,836
Calibration 3     226,208
ssj_ops@calibrated=225,022
100% 98.7% 225,022 222,032
90% 89.0% 202,520 200,284
80% 78.5% 180,018 176,577
70% 70.3% 157,515 158,294
60% 60.0% 135,013 135,002
50% 49.9% 112,511 112,371
40% 40.6% 90,009 91,279
30% 30.4% 67,507 68,490
20% 20.2% 45,004 45,409
10% 9.7% 22,502 21,833
Active Idle   0 0
Graph of results

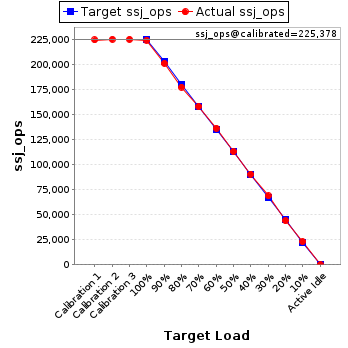

JVM 'Hilo-32.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,648
Calibration 2     225,408
Calibration 3     225,348
ssj_ops@calibrated=225,378
100% 99.6% 225,378 224,396
90% 89.3% 202,840 201,325
80% 78.8% 180,302 177,645
70% 70.2% 157,764 158,116
60% 60.6% 135,227 136,484
50% 50.2% 112,689 113,241
40% 40.2% 90,151 90,548
30% 30.5% 67,613 68,798
20% 19.5% 45,076 43,883
10% 10.2% 22,538 22,970
Active Idle   0 0
Graph of results

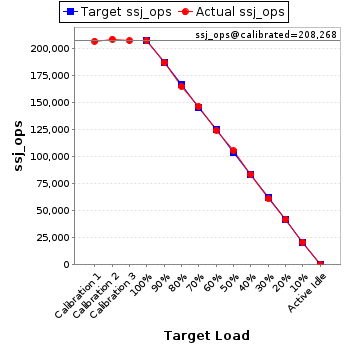

JVM 'Hilo-32.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,112
Calibration 2     208,977
Calibration 3     207,559
ssj_ops@calibrated=208,268
100% 99.7% 208,268 207,608
90% 89.9% 187,441 187,152
80% 79.4% 166,614 165,437
70% 70.4% 145,788 146,637
60% 59.8% 124,961 124,566
50% 50.6% 104,134 105,463
40% 40.2% 83,307 83,710
30% 29.5% 62,480 61,356
20% 20.1% 41,654 41,964
10% 10.0% 20,827 20,886
Active Idle   0 0
Graph of results
JVM 'Hilo-32.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,026
Calibration 2     223,221
Calibration 3     223,778
ssj_ops@calibrated=223,500
100% 99.5% 223,500 222,309
90% 89.5% 201,150 200,044
80% 78.7% 178,800 175,860
70% 70.0% 156,450 156,341
60% 59.9% 134,100 133,827
50% 49.8% 111,750 111,394
40% 39.8% 89,400 89,055
30% 29.9% 67,050 66,909
20% 20.1% 44,700 45,029
10% 9.9% 22,350 22,200
Active Idle   0 0
Graph of results

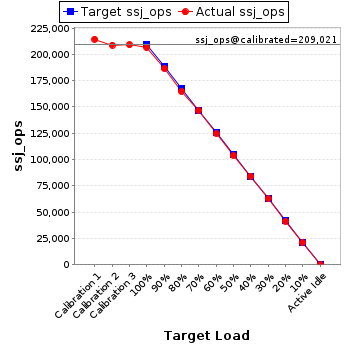

JVM 'Hilo-32.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,436
Calibration 2     208,948
Calibration 3     209,094
ssj_ops@calibrated=209,021
100% 98.8% 209,021 206,547
90% 89.2% 188,119 186,480
80% 78.9% 167,217 164,901
70% 70.2% 146,315 146,694
60% 59.6% 125,413 124,559
50% 49.8% 104,510 103,998
40% 40.3% 83,608 84,275
30% 30.0% 62,706 62,792
20% 19.9% 41,804 41,509
10% 10.1% 20,902 21,050
Active Idle   0 0
Graph of results

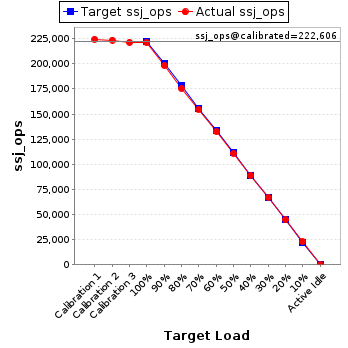

JVM 'Hilo-32.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,523
Calibration 2     223,736
Calibration 3     221,477
ssj_ops@calibrated=222,606
100% 99.5% 222,606 221,382
90% 89.1% 200,346 198,283
80% 78.9% 178,085 175,563
70% 69.6% 155,824 154,876
60% 59.6% 133,564 132,624
50% 49.7% 111,303 110,731
40% 39.9% 89,043 88,835
30% 30.2% 66,782 67,152
20% 20.1% 44,521 44,641
10% 10.2% 22,261 22,708
Active Idle   0 0
Graph of results
JVM 'Hilo-32.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,719
Calibration 2     219,980
Calibration 3     221,594
ssj_ops@calibrated=220,787
100% 99.6% 220,787 219,800
90% 89.1% 198,708 196,651
80% 79.9% 176,630 176,330
70% 69.9% 154,551 154,304
60% 60.1% 132,472 132,780
50% 49.6% 110,393 109,423
40% 39.7% 88,315 87,735
30% 30.1% 66,236 66,526
20% 19.8% 44,157 43,740
10% 10.2% 22,079 22,475
Active Idle   0 0
Graph of results
JVM 'Hilo-32.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,736
Calibration 2     215,700
Calibration 3     214,748
ssj_ops@calibrated=215,224
100% 99.1% 215,224 213,182
90% 89.2% 193,701 191,994
80% 79.2% 172,179 170,496
70% 70.0% 150,657 150,732
60% 60.1% 129,134 129,282
50% 50.3% 107,612 108,364
40% 39.8% 86,090 85,561
30% 29.8% 64,567 64,063
20% 20.1% 43,045 43,153
10% 10.0% 21,522 21,425
Active Idle   0 0
Graph of results
JVM 'Hilo-32.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,162
Calibration 2     219,969
Calibration 3     221,392
ssj_ops@calibrated=220,680
100% 99.5% 220,680 219,640
90% 88.9% 198,612 196,217
80% 79.4% 176,544 175,207
70% 70.0% 154,476 154,586
60% 59.7% 132,408 131,853
50% 49.5% 110,340 109,337
40% 40.4% 88,272 89,235
30% 29.8% 66,204 65,735
20% 20.0% 44,136 44,168
10% 10.0% 22,068 22,048
Active Idle   0 0
Graph of results
JVM 'Hilo-32.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,449
Calibration 2     224,628
Calibration 3     227,403
ssj_ops@calibrated=226,015
100% 99.3% 226,015 224,331
90% 88.8% 203,414 200,777
80% 79.1% 180,812 178,740
70% 70.1% 158,211 158,455
60% 60.1% 135,609 135,782
50% 49.6% 113,008 112,034
40% 39.9% 90,406 90,179
30% 30.1% 67,805 67,988
20% 20.0% 45,203 45,187
10% 9.7% 22,602 21,991
Active Idle   0 0
Graph of results
JVM 'Hilo-32.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,200
Calibration 2     225,952
Calibration 3     220,823
ssj_ops@calibrated=223,387
100% 100.3% 223,387 224,128
90% 90.1% 201,048 201,264
80% 79.3% 178,710 177,090
70% 69.8% 156,371 156,032
60% 59.7% 134,032 133,455
50% 50.2% 111,694 112,066
40% 40.1% 89,355 89,667
30% 30.4% 67,016 67,803
20% 20.3% 44,677 45,267
10% 10.0% 22,339 22,242
Active Idle   0 0
Graph of results
JVM 'Hilo-32.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,298
Calibration 2     226,248
Calibration 3     225,913
ssj_ops@calibrated=226,080
100% 100.0% 226,080 226,149
90% 89.6% 203,472 202,485
80% 78.9% 180,864 178,297
70% 69.0% 158,256 156,002
60% 60.8% 135,648 137,369
50% 49.9% 113,040 112,863
40% 39.9% 90,432 90,240
30% 30.0% 67,824 67,813
20% 19.8% 45,216 44,716
10% 9.9% 22,608 22,363
Active Idle   0 0
Graph of results
JVM 'Hilo-32.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,837
Calibration 2     217,910
Calibration 3     217,591
ssj_ops@calibrated=217,751
100% 99.5% 217,751 216,651
90% 89.2% 195,976 194,334
80% 78.8% 174,201 171,629
70% 70.6% 152,426 153,801
60% 60.0% 130,650 130,629
50% 50.0% 108,875 108,793
40% 40.1% 87,100 87,252
30% 30.1% 65,325 65,467
20% 20.0% 43,550 43,487
10% 10.1% 21,775 21,887
Active Idle   0 0
Graph of results
JVM 'Hilo-32.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,140
Calibration 2     222,837
Calibration 3     223,327
ssj_ops@calibrated=223,082
100% 99.2% 223,082 221,329
90% 89.4% 200,774 199,350
80% 79.0% 178,466 176,193
70% 69.7% 156,158 155,557
60% 60.2% 133,849 134,258
50% 50.3% 111,541 112,233
40% 39.9% 89,233 88,990
30% 29.9% 66,925 66,725
20% 20.5% 44,616 45,763
10% 10.0% 22,308 22,382
Active Idle   0 0
Graph of results
JVM 'Hilo-32.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,919
Calibration 2     219,430
Calibration 3     221,673
ssj_ops@calibrated=220,551
100% 99.6% 220,551 219,643
90% 89.6% 198,496 197,582
80% 79.8% 176,441 175,904
70% 70.1% 154,386 154,532
60% 60.1% 132,331 132,577
50% 49.4% 110,276 108,904
40% 39.8% 88,220 87,719
30% 29.9% 66,165 65,978
20% 20.1% 44,110 44,326
10% 10.3% 22,055 22,621
Active Idle   0 0
Graph of results
JVM 'Hilo-32.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,660
Calibration 2     226,129
Calibration 3     227,375
ssj_ops@calibrated=226,752
100% 99.6% 226,752 225,921
90% 89.2% 204,077 202,350
80% 78.9% 181,402 178,951
70% 70.1% 158,726 158,900
60% 60.1% 136,051 136,238
50% 50.3% 113,376 114,118
40% 39.6% 90,701 89,816
30% 30.5% 68,026 69,140
20% 20.2% 45,350 45,852
10% 10.1% 22,675 22,893
Active Idle   0 0
Graph of results
JVM 'Hilo-32.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,174
Calibration 2     225,961
Calibration 3     226,085
ssj_ops@calibrated=226,023
100% 99.6% 226,023 225,190
90% 88.8% 203,421 200,713
80% 78.6% 180,818 177,684
70% 70.1% 158,216 158,457
60% 59.9% 135,614 135,482
50% 49.8% 113,012 112,594
40% 39.9% 90,409 90,092
30% 29.5% 67,807 66,626
20% 20.3% 45,205 45,889
10% 10.1% 22,602 22,742
Active Idle   0 0
Graph of results
JVM 'Hilo-32.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,374
Calibration 2     215,653
Calibration 3     215,999
ssj_ops@calibrated=215,826
100% 99.2% 215,826 214,008
90% 89.1% 194,244 192,211
80% 78.7% 172,661 169,857
70% 69.9% 151,078 150,803
60% 59.1% 129,496 127,619
50% 50.8% 107,913 109,671
40% 40.2% 86,331 86,825
30% 30.3% 64,748 65,352
20% 20.2% 43,165 43,670
10% 9.9% 21,583 21,371
Active Idle   0 0
Graph of results
JVM 'Hilo-32.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,708
Calibration 2     224,748
Calibration 3     224,156
ssj_ops@calibrated=224,452
100% 99.5% 224,452 223,339
90% 89.1% 202,007 200,025
80% 78.7% 179,562 176,745
70% 70.2% 157,117 157,565
60% 59.9% 134,671 134,514
50% 49.9% 112,226 111,960
40% 40.1% 89,781 89,936
30% 30.0% 67,336 67,390
20% 19.9% 44,890 44,747
10% 10.1% 22,445 22,613
Active Idle   0 0
Graph of results
JVM 'Hilo-32.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,905
Calibration 2     221,446
Calibration 3     220,703
ssj_ops@calibrated=221,075
100% 99.3% 221,075 219,577
90% 89.6% 198,967 198,094
80% 78.8% 176,860 174,207
70% 70.4% 154,752 155,691
60% 59.9% 132,645 132,379
50% 50.2% 110,537 110,959
40% 40.2% 88,430 88,947
30% 30.0% 66,322 66,214
20% 20.5% 44,215 45,391
10% 10.1% 22,107 22,261
Active Idle   0 0
Graph of results
JVM 'Hilo-32.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,447
Calibration 2     215,230
Calibration 3     216,735
ssj_ops@calibrated=215,983
100% 99.3% 215,983 214,562
90% 87.9% 194,384 189,767
80% 77.6% 172,786 167,638
70% 70.0% 151,188 151,242
60% 59.9% 129,590 129,353
50% 49.9% 107,991 107,811
40% 40.3% 86,393 87,052
30% 30.4% 64,795 65,607
20% 19.8% 43,197 42,792
10% 9.9% 21,598 21,454
Active Idle   0 0
Graph of results
JVM 'Hilo-32.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,923
Calibration 2     216,250
Calibration 3     216,850
ssj_ops@calibrated=216,550
100% 99.5% 216,550 215,409
90% 89.0% 194,895 192,675
80% 78.2% 173,240 169,311
70% 69.7% 151,585 150,892
60% 60.1% 129,930 130,102
50% 49.5% 108,275 107,215
40% 39.8% 86,620 86,240
30% 29.7% 64,965 64,420
20% 19.8% 43,310 42,799
10% 10.1% 21,655 21,871
Active Idle   0 0
Graph of results
JVM 'Hilo-32.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,934
Calibration 2     225,210
Calibration 3     222,716
ssj_ops@calibrated=223,963
100% 100.1% 223,963 224,132
90% 89.2% 201,567 199,767
80% 79.5% 179,170 178,150
70% 69.9% 156,774 156,642
60% 60.1% 134,378 134,516
50% 50.1% 111,982 112,170
40% 39.9% 89,585 89,380
30% 29.9% 67,189 67,067
20% 19.9% 44,793 44,546
10% 10.2% 22,396 22,750
Active Idle   0 0
Graph of results
JVM 'Hilo-32.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,130
Calibration 2     217,941
Calibration 3     219,260
ssj_ops@calibrated=218,601
100% 99.4% 218,601 217,368
90% 89.1% 196,741 194,669
80% 78.8% 174,880 172,183
70% 69.7% 153,020 152,391
60% 59.9% 131,160 130,884
50% 50.4% 109,300 110,143
40% 40.0% 87,440 87,470
30% 30.0% 65,580 65,566
20% 19.8% 43,720 43,193
10% 10.0% 21,860 21,798
Active Idle   0 0
Graph of results
JVM 'Hilo-32.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,854
Calibration 2     212,013
Calibration 3     214,215
ssj_ops@calibrated=213,114
100% 100.3% 213,114 213,844
90% 89.2% 191,803 189,999
80% 78.5% 170,491 167,282
70% 70.0% 149,180 149,233
60% 59.6% 127,869 127,020
50% 50.1% 106,557 106,781
40% 39.9% 85,246 85,091
30% 30.6% 63,934 65,139
20% 20.1% 42,623 42,784
10% 9.8% 21,311 20,798
Active Idle   0 0
Graph of results
JVM 'Hilo-32.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,099
Calibration 2     218,828
Calibration 3     219,814
ssj_ops@calibrated=219,321
100% 99.7% 219,321 218,726
90% 89.4% 197,389 196,002
80% 79.4% 175,457 174,181
70% 70.5% 153,525 154,564
60% 59.9% 131,593 131,478
50% 49.7% 109,660 109,010
40% 39.6% 87,728 86,746
30% 29.4% 65,796 64,532
20% 20.1% 43,864 44,104
10% 9.8% 21,932 21,492
Active Idle   0 0
Graph of results
JVM 'Hilo-32.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,416
Calibration 2     225,172
Calibration 3     223,998
ssj_ops@calibrated=224,585
100% 98.9% 224,585 222,086
90% 89.4% 202,127 200,678
80% 78.7% 179,668 176,743
70% 70.0% 157,210 157,174
60% 60.3% 134,751 135,510
50% 50.0% 112,293 112,207
40% 39.9% 89,834 89,676
30% 30.0% 67,376 67,281
20% 20.0% 44,917 44,990
10% 10.1% 22,459 22,579
Active Idle   0 0
Graph of results
JVM 'Hilo-32.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,576
Calibration 2     224,085
Calibration 3     224,362
ssj_ops@calibrated=224,224
100% 99.4% 224,224 222,904
90% 89.3% 201,801 200,270
80% 79.0% 179,379 177,040
70% 69.3% 156,956 155,289
60% 60.3% 134,534 135,185
50% 49.9% 112,112 111,803
40% 39.8% 89,689 89,322
30% 30.4% 67,267 68,097
20% 20.0% 44,845 44,787
10% 10.1% 22,422 22,570
Active Idle   0 0

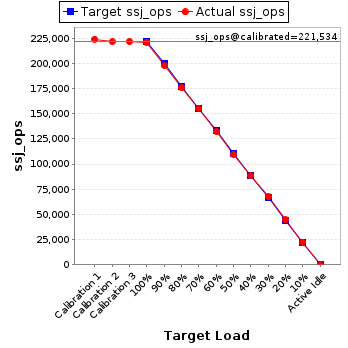

Graph of results
JVM 'Hilo-32.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,953
Calibration 2     221,451
Calibration 3     221,618
ssj_ops@calibrated=221,534
100% 99.8% 221,534 221,030
90% 89.3% 199,381 197,802
80% 79.3% 177,228 175,754
70% 70.0% 155,074 155,143
60% 59.9% 132,921 132,644
50% 49.5% 110,767 109,661
40% 39.8% 88,614 88,148
30% 30.5% 66,460 67,581
20% 20.1% 44,307 44,515
10% 10.1% 22,153 22,385
Active Idle   0 0
Graph of results
JVM 'Hilo-32.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,208
Calibration 2     223,726
Calibration 3     222,480
ssj_ops@calibrated=223,103
100% 99.3% 223,103 221,624
90% 89.8% 200,793 200,296
80% 78.9% 178,483 175,956
70% 70.0% 156,172 156,236
60% 59.5% 133,862 132,664
50% 50.6% 111,552 112,852
40% 40.1% 89,241 89,426
30% 29.9% 66,931 66,705
20% 20.0% 44,621 44,573
10% 10.1% 22,310 22,556
Active Idle   0 0
Graph of results
JVM 'Hilo-32.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,685
Calibration 2     224,143
Calibration 3     223,235
ssj_ops@calibrated=223,689
100% 99.4% 223,689 222,384
90% 89.6% 201,320 200,473
80% 79.1% 178,951 176,872
70% 69.6% 156,582 155,582
60% 59.8% 134,213 133,728
50% 49.7% 111,844 111,081
40% 40.3% 89,476 90,178
30% 29.9% 67,107 66,993
20% 20.0% 44,738 44,712
10% 10.1% 22,369 22,587
Active Idle   0 0
Graph of results
JVM 'Hilo-32.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     208,411
Calibration 2     207,991
Calibration 3     208,106
ssj_ops@calibrated=208,049
100% 99.5% 208,049 207,010
90% 89.0% 187,244 185,125
80% 78.5% 166,439 163,389
70% 70.0% 145,634 145,708
60% 60.2% 124,829 125,333
50% 50.4% 104,024 104,921
40% 40.0% 83,219 83,274
30% 29.9% 62,415 62,173
20% 20.0% 41,610 41,542
10% 9.9% 20,805 20,585
Active Idle   0 0
Graph of results
JVM 'Hilo-32.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,454
Calibration 2     221,993
Calibration 3     220,994
ssj_ops@calibrated=221,493
100% 99.8% 221,493 221,052
90% 89.9% 199,344 199,143
80% 79.7% 177,195 176,442
70% 70.6% 155,045 156,375
60% 59.5% 132,896 131,796
50% 49.9% 110,747 110,597
40% 40.6% 88,597 89,941
30% 29.8% 66,448 66,038
20% 20.2% 44,299 44,694
10% 9.9% 22,149 21,927
Active Idle   0 0
Graph of results
JVM 'Hilo-32.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,299
Calibration 2     226,177
Calibration 3     226,968
ssj_ops@calibrated=226,573
100% 99.3% 226,573 224,882
90% 89.0% 203,915 201,627
80% 78.2% 181,258 177,235
70% 69.7% 158,601 157,883
60% 59.9% 135,944 135,739
50% 49.9% 113,286 113,062
40% 40.2% 90,629 91,164
30% 29.9% 67,972 67,765
20% 19.9% 45,315 45,118
10% 10.2% 22,657 23,019
Active Idle   0 0
Graph of results
JVM 'Hilo-32.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,006
Calibration 2     222,583
Calibration 3     222,099
ssj_ops@calibrated=222,341
100% 99.5% 222,341 221,128
90% 89.5% 200,107 199,075
80% 78.9% 177,873 175,441
70% 70.2% 155,639 156,092
60% 59.7% 133,405 132,826
50% 49.8% 111,170 110,731
40% 39.9% 88,936 88,797
30% 30.1% 66,702 66,893
20% 19.8% 44,468 43,999
10% 9.9% 22,234 21,935
Active Idle   0 0
Graph of results
JVM 'Hilo-32.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,454
Calibration 2     223,200
Calibration 3     222,393
ssj_ops@calibrated=222,796
100% 99.4% 222,796 221,471
90% 89.8% 200,517 200,097
80% 78.7% 178,237 175,407
70% 70.3% 155,958 156,727
60% 60.1% 133,678 133,895
50% 49.9% 111,398 111,170
40% 40.3% 89,119 89,695
30% 30.2% 66,839 67,386
20% 19.7% 44,559 43,877
10% 10.0% 22,280 22,342
Active Idle   0 0
Graph of results
JVM 'Hilo-32.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,281
Calibration 2     224,227
Calibration 3     224,216
ssj_ops@calibrated=224,222
100% 99.5% 224,222 223,057
90% 89.5% 201,799 200,698
80% 79.1% 179,377 177,456
70% 69.7% 156,955 156,234
60% 59.4% 134,533 133,116
50% 49.7% 112,111 111,528
40% 40.3% 89,689 90,422
30% 30.1% 67,266 67,380
20% 20.3% 44,844 45,420
10% 10.1% 22,422 22,540
Active Idle   0 0
Graph of results
JVM 'Hilo-32.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,583
Calibration 2     220,679
Calibration 3     221,765
ssj_ops@calibrated=221,222
100% 100.1% 221,222 221,517
90% 89.1% 199,100 197,124
80% 79.2% 176,978 175,316
70% 70.2% 154,855 155,282
60% 59.8% 132,733 132,254
50% 49.8% 110,611 110,192
40% 40.2% 88,489 88,996
30% 30.4% 66,367 67,158
20% 20.1% 44,244 44,557
10% 10.0% 22,122 22,132
Active Idle   0 0
Graph of results
JVM 'Hilo-32.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,476
Calibration 2     225,998
Calibration 3     225,700
ssj_ops@calibrated=225,849
100% 99.3% 225,849 224,331
90% 88.9% 203,264 200,831
80% 79.1% 180,679 178,676
70% 70.2% 158,094 158,451
60% 60.1% 135,509 135,639
50% 49.7% 112,925 112,323
40% 40.2% 90,340 90,714
30% 30.2% 67,755 68,109
20% 20.1% 45,170 45,300
10% 10.2% 22,585 22,996
Active Idle   0 0
Graph of results
JVM 'Hilo-32.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,289
Calibration 2     222,843
Calibration 3     221,293
ssj_ops@calibrated=222,068
100% 99.7% 222,068 221,423
90% 89.9% 199,861 199,646
80% 79.1% 177,654 175,672
70% 69.8% 155,448 154,942
60% 59.9% 133,241 132,979
50% 49.8% 111,034 110,697
40% 40.3% 88,827 89,530
30% 29.9% 66,620 66,346
20% 19.9% 44,414 44,222
10% 9.9% 22,207 21,950
Active Idle   0 0
Graph of results
JVM 'Hilo-32.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,691
Calibration 2     224,975
Calibration 3     225,357
ssj_ops@calibrated=225,166
100% 99.5% 225,166 223,966
90% 88.6% 202,649 199,609
80% 78.7% 180,133 177,123
70% 70.1% 157,616 157,834
60% 59.2% 135,100 133,225
50% 50.0% 112,583 112,545
40% 39.9% 90,066 89,820
30% 30.0% 67,550 67,589
20% 20.0% 45,033 45,064
10% 9.8% 22,517 22,138
Active Idle   0 0
Graph of results
JVM 'Hilo-32.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,028
Calibration 2     222,382
Calibration 3     224,459
ssj_ops@calibrated=223,421
100% 99.1% 223,421 221,505
90% 89.7% 201,079 200,478
80% 79.1% 178,737 176,808
70% 69.7% 156,395 155,819
60% 60.5% 134,052 135,238
50% 50.1% 111,710 112,029
40% 40.3% 89,368 90,142
30% 30.2% 67,026 67,363
20% 19.9% 44,684 44,354
10% 10.0% 22,342 22,242
Active Idle   0 0
Graph of results
JVM 'Hilo-32.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,074
Calibration 2     226,029
Calibration 3     225,126
ssj_ops@calibrated=225,578
100% 98.0% 225,578 221,108
90% 89.0% 203,020 200,652
80% 78.9% 180,462 178,000
70% 70.3% 157,904 158,621
60% 60.2% 135,347 135,738
50% 49.8% 112,789 112,439
40% 40.0% 90,231 90,330
30% 29.8% 67,673 67,303
20% 20.2% 45,116 45,496
10% 10.1% 22,558 22,836
Active Idle   0 0
Graph of results
JVM 'Hilo-32.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     207,195
Calibration 2     206,390
Calibration 3     206,564
ssj_ops@calibrated=206,477
100% 98.8% 206,477 203,909
90% 88.4% 185,830 182,461
80% 77.5% 165,182 160,043
70% 70.4% 144,534 145,358
60% 60.2% 123,886 124,282
50% 49.6% 103,239 102,467
40% 39.9% 82,591 82,428
30% 30.0% 61,943 62,023
20% 20.1% 41,295 41,406
10% 9.9% 20,648 20,483
Active Idle   0 0
Graph of results
JVM 'Hilo-32.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,243
Calibration 2     212,416
Calibration 3     213,960
ssj_ops@calibrated=213,188
100% 99.4% 213,188 211,856
90% 89.5% 191,869 190,851
80% 79.7% 170,550 169,874
70% 70.2% 149,232 149,692
60% 59.4% 127,913 126,678
50% 49.6% 106,594 105,758
40% 40.1% 85,275 85,410
30% 29.5% 63,956 62,824
20% 20.0% 42,638 42,674
10% 10.0% 21,319 21,249
Active Idle   0 0
Graph of results
JVM 'Hilo-32.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,479
Calibration 2     225,527
Calibration 3     227,181
ssj_ops@calibrated=226,354
100% 99.8% 226,354 225,949
90% 89.3% 203,719 202,058
80% 79.3% 181,083 179,522
70% 70.1% 158,448 158,680
60% 60.0% 135,812 135,799
50% 50.3% 113,177 113,755
40% 40.0% 90,542 90,650
30% 30.1% 67,906 68,163
20% 20.1% 45,271 45,508
10% 10.0% 22,635 22,707
Active Idle   0 0
Graph of results
JVM 'Hilo-32.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,400
Calibration 2     214,592
Calibration 3     215,292
ssj_ops@calibrated=214,942
100% 99.1% 214,942 213,068
90% 88.5% 193,448 190,206
80% 78.4% 171,954 168,419
70% 69.5% 150,459 149,488
60% 60.2% 128,965 129,422
50% 50.1% 107,471 107,670
40% 39.8% 85,977 85,567
30% 29.6% 64,483 63,656
20% 20.2% 42,988 43,491
10% 9.8% 21,494 21,129
Active Idle   0 0
Graph of results
JVM 'Hilo-32.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,158
Calibration 2     227,493
Calibration 3     227,304
ssj_ops@calibrated=227,398
100% 99.7% 227,398 226,782
90% 89.6% 204,659 203,689
80% 79.1% 181,919 179,974
70% 69.7% 159,179 158,505
60% 60.7% 136,439 138,052
50% 49.9% 113,699 113,407
40% 39.9% 90,959 90,712
30% 30.2% 68,220 68,584
20% 19.7% 45,480 44,881
10% 9.9% 22,740 22,566
Active Idle   0 0
Graph of results
JVM 'Hilo-32.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,893
Calibration 2     212,991
Calibration 3     213,240
ssj_ops@calibrated=213,115
100% 99.5% 213,115 211,980
90% 89.3% 191,804 190,225
80% 78.9% 170,492 168,245
70% 70.2% 149,181 149,523
60% 60.1% 127,869 128,110
50% 49.9% 106,558 106,334
40% 40.8% 85,246 86,979
30% 30.0% 63,935 63,936
20% 19.9% 42,623 42,348
10% 10.1% 21,312 21,512
Active Idle   0 0
Graph of results
JVM 'Hilo-32.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,279
Calibration 2     225,633
Calibration 3     225,893
ssj_ops@calibrated=225,763
100% 99.9% 225,763 225,635
90% 89.7% 203,187 202,442
80% 79.0% 180,611 178,299
70% 69.4% 158,034 156,768
60% 59.8% 135,458 135,002
50% 49.9% 112,882 112,574
40% 40.1% 90,305 90,471
30% 30.5% 67,729 68,868
20% 20.2% 45,153 45,545
10% 9.8% 22,576 22,213
Active Idle   0 0
Graph of results
JVM 'Hilo-32.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,985
Calibration 2     221,991
Calibration 3     220,839
ssj_ops@calibrated=221,415
100% 99.4% 221,415 219,979
90% 89.4% 199,273 198,005
80% 79.3% 177,132 175,575
70% 70.3% 154,990 155,665
60% 59.7% 132,849 132,230
50% 49.4% 110,707 109,405
40% 40.0% 88,566 88,638
30% 29.8% 66,424 66,042
20% 20.0% 44,283 44,353
10% 10.0% 22,141 22,203
Active Idle   0 0
Graph of results
JVM 'Hilo-32.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,449
Calibration 2     226,246
Calibration 3     227,175
ssj_ops@calibrated=226,711
100% 99.3% 226,711 225,096
90% 89.1% 204,040 201,956
80% 78.8% 181,368 178,685
70% 69.9% 158,697 158,427
60% 60.0% 136,026 135,965
50% 50.0% 113,355 113,257
40% 40.1% 90,684 90,968
30% 30.0% 68,013 67,934
20% 20.3% 45,342 46,054
10% 10.1% 22,671 23,000
Active Idle   0 0
Graph of results
JVM 'Hilo-32.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,755
Calibration 2     226,483
Calibration 3     227,194
ssj_ops@calibrated=226,839
100% 99.4% 226,839 225,485
90% 89.5% 204,155 202,921
80% 79.0% 181,471 179,106
70% 70.3% 158,787 159,412
60% 60.2% 136,103 136,465
50% 49.6% 113,419 112,527
40% 40.3% 90,735 91,357
30% 29.9% 68,052 67,806
20% 20.2% 45,368 45,893
10% 9.9% 22,684 22,554
Active Idle   0 0
Graph of results
JVM 'Hilo-32.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,135
Calibration 2     219,058
Calibration 3     220,319
ssj_ops@calibrated=219,688
100% 99.7% 219,688 219,009
90% 89.4% 197,720 196,407
80% 79.2% 175,751 174,063
70% 69.7% 153,782 153,106
60% 59.3% 131,813 130,218
50% 49.7% 109,844 109,242
40% 40.1% 87,875 88,018
30% 29.9% 65,907 65,667
20% 20.2% 43,938 44,425
10% 10.1% 21,969 22,087
Active Idle   0 0
Graph of results
JVM 'Hilo-32.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,096
Calibration 2     222,299
Calibration 3     223,657
ssj_ops@calibrated=222,978
100% 99.2% 222,978 221,136
90% 89.4% 200,680 199,366
80% 79.3% 178,382 176,782
70% 70.0% 156,085 156,037
60% 59.8% 133,787 133,258
50% 50.2% 111,489 112,037
40% 40.1% 89,191 89,385
30% 30.2% 66,893 67,276
20% 19.8% 44,596 44,057
10% 9.8% 22,298 21,862
Active Idle   0 0
Graph of results
JVM 'Hilo-32.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,906
Calibration 2     223,013
Calibration 3     223,990
ssj_ops@calibrated=223,501
100% 98.7% 223,501 220,606
90% 89.4% 201,151 199,835
80% 79.5% 178,801 177,604
70% 70.0% 156,451 156,479
60% 60.4% 134,101 134,901
50% 50.2% 111,751 112,221
40% 40.2% 89,400 89,748
30% 29.9% 67,050 66,820
20% 19.6% 44,700 43,839
10% 10.0% 22,350 22,350
Active Idle   0 0
Graph of results
