Lenovo Global Technology ThinkSystem SD535 V3 ssj_ops@100% = 14,004,128
ssj_ops@100% per JVM = 218,814
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 25, 2024
Hardware Availability: May-2024 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,094,196
Calibration 2     14,089,019
Calibration 3     14,094,757
ssj_ops@calibrated=14,091,888
100% 99.4% 14,091,888 14,004,128
90% 89.1% 12,682,699 12,559,791
80% 78.9% 11,273,510 11,113,112
70% 70.0% 9,864,322 9,868,315
60% 60.0% 8,455,133 8,455,410
50% 50.0% 7,045,944 7,044,127
40% 40.0% 5,636,755 5,635,053
30% 30.0% 4,227,566 4,227,204
20% 20.0% 2,818,378 2,822,214
10% 10.0% 1,409,189 1,409,626
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD535 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754
CPU Characteristics: 128-Core, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1 to 12 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10GBASE-T 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:InlineSmallCode=3900 -XX:AutoBoxCacheMax=20000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: GPE103H
Management Firmware Version: QGX319Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Hilo-29.001 224,343
Hilo-29.002 220,102
Hilo-29.003 221,326
Hilo-29.004 218,043
Hilo-29.005 212,785
Hilo-29.006 216,476
Hilo-29.007 216,113
Hilo-29.008 221,893
Hilo-29.009 212,088
Hilo-29.010 223,206
Hilo-29.011 222,377
Hilo-29.012 221,312
Hilo-29.013 198,248
Hilo-29.014 216,856
Hilo-29.015 223,234
Hilo-29.016 222,499
Hilo-29.017 222,080
Hilo-29.018 221,732
Hilo-29.019 219,324
Hilo-29.020 214,350
Hilo-29.021 219,084
Hilo-29.022 221,264
Hilo-29.023 222,987
Hilo-29.024 219,681
Hilo-29.025 223,644
Hilo-29.026 222,999
Hilo-29.027 217,537
Hilo-29.028 217,214
Hilo-29.029 213,451
Hilo-29.030 226,597
Hilo-29.031 220,657
Hilo-29.032 209,869
Hilo-29.033 224,220
Hilo-29.034 219,074
Hilo-29.035 204,419
Hilo-29.036 224,149
Hilo-29.037 223,906
Hilo-29.038 221,656
Hilo-29.039 207,591
Hilo-29.040 223,181
Hilo-29.041 222,162
Hilo-29.042 219,189
Hilo-29.043 197,982
Hilo-29.044 225,003
Hilo-29.045 223,950
Hilo-29.046 218,930
Hilo-29.047 224,880
Hilo-29.048 211,844
Hilo-29.049 208,025
Hilo-29.050 206,430
Hilo-29.051 220,739
Hilo-29.052 222,207
Hilo-29.053 220,932
Hilo-29.054 222,491
Hilo-29.055 226,331
Hilo-29.056 220,066
Hilo-29.057 230,473
Hilo-29.058 222,288
Hilo-29.059 214,540
Hilo-29.060 206,621
Hilo-29.061 219,405
Hilo-29.062 225,814
Hilo-29.063 221,063
Hilo-29.064 221,195
ssj_ops@100% 14,004,128
ssj_ops@100% per JVM 218,814

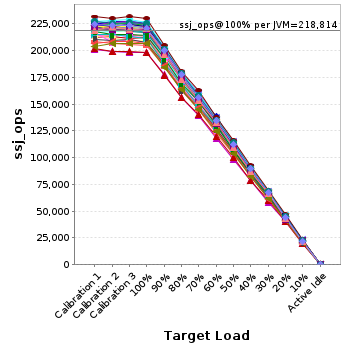

Graph of per-instance results
JVM 'Hilo-29.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,489
Calibration 2     225,495
Calibration 3     225,086
ssj_ops@calibrated=225,291
100% 99.6% 225,291 224,343
90% 89.4% 202,761 201,512
80% 78.9% 180,232 177,675
70% 70.2% 157,703 158,224
60% 59.7% 135,174 134,600
50% 50.0% 112,645 112,703
40% 40.0% 90,116 90,142
30% 30.4% 67,587 68,560
20% 20.1% 45,058 45,390
10% 10.0% 22,529 22,437
Active Idle   0 0
Graph of results
JVM 'Hilo-29.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,466
Calibration 2     221,369
Calibration 3     223,070
ssj_ops@calibrated=222,219
100% 99.0% 222,219 220,102
90% 89.4% 199,997 198,631
80% 78.8% 177,775 175,152
70% 69.5% 155,553 154,431
60% 59.4% 133,332 132,043
50% 49.9% 111,110 110,980
40% 40.2% 88,888 89,308
30% 30.1% 66,666 66,856
20% 20.0% 44,444 44,531
10% 9.9% 22,222 21,996
Active Idle   0 0
Graph of results
JVM 'Hilo-29.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,372
Calibration 2     221,783
Calibration 3     223,338
ssj_ops@calibrated=222,560
100% 99.4% 222,560 221,326
90% 89.4% 200,304 199,060
80% 78.9% 178,048 175,671
70% 70.7% 155,792 157,281
60% 60.2% 133,536 134,060
50% 50.2% 111,280 111,732
40% 40.1% 89,024 89,186
30% 30.1% 66,768 67,047
20% 19.6% 44,512 43,579
10% 9.9% 22,256 22,131
Active Idle   0 0
Graph of results
JVM 'Hilo-29.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,511
Calibration 2     218,323
Calibration 3     219,151
ssj_ops@calibrated=218,737
100% 99.7% 218,737 218,043
90% 89.4% 196,863 195,567
80% 79.0% 174,990 172,838
70% 70.3% 153,116 153,850
60% 59.7% 131,242 130,480
50% 50.3% 109,368 110,121
40% 39.3% 87,495 86,062
30% 30.0% 65,621 65,667
20% 20.2% 43,747 44,099
10% 10.1% 21,874 21,998
Active Idle   0 0
Graph of results
JVM 'Hilo-29.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,136
Calibration 2     211,807
Calibration 3     213,264
ssj_ops@calibrated=212,535
100% 100.1% 212,535 212,785
90% 88.8% 191,282 188,664
80% 78.3% 170,028 166,363
70% 71.0% 148,775 150,855
60% 59.7% 127,521 126,835
50% 49.4% 106,268 104,959
40% 39.7% 85,014 84,425
30% 30.2% 63,761 64,269
20% 20.3% 42,507 43,157
10% 10.1% 21,254 21,424
Active Idle   0 0
Graph of results
JVM 'Hilo-29.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,784
Calibration 2     218,280
Calibration 3     218,600
ssj_ops@calibrated=218,440
100% 99.1% 218,440 216,476
90% 88.7% 196,596 193,657
80% 78.4% 174,752 171,166
70% 69.8% 152,908 152,459
60% 60.1% 131,064 131,304
50% 50.2% 109,220 109,710
40% 40.3% 87,376 88,006
30% 29.8% 65,532 65,169
20% 20.3% 43,688 44,288
10% 10.1% 21,844 22,066
Active Idle   0 0
Graph of results

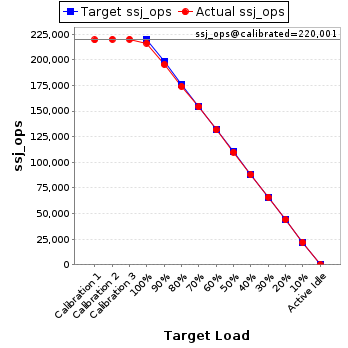

JVM 'Hilo-29.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,397
Calibration 2     219,933
Calibration 3     220,070
ssj_ops@calibrated=220,001
100% 98.2% 220,001 216,113
90% 88.8% 198,001 195,364
80% 79.0% 176,001 173,895
70% 70.0% 154,001 154,048
60% 59.8% 132,001 131,526
50% 49.9% 110,001 109,849
40% 39.8% 88,001 87,657
30% 30.0% 66,000 65,958
20% 19.9% 44,000 43,859
10% 10.0% 22,000 21,903
Active Idle   0 0
Graph of results
JVM 'Hilo-29.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,618
Calibration 2     224,086
Calibration 3     223,446
ssj_ops@calibrated=223,766
100% 99.2% 223,766 221,893
90% 89.4% 201,389 200,109
80% 79.1% 179,013 176,887
70% 69.4% 156,636 155,388
60% 59.7% 134,260 133,495
50% 49.8% 111,883 111,437
40% 39.9% 89,506 89,386
30% 30.1% 67,130 67,334
20% 20.1% 44,753 44,880
10% 9.9% 22,377 22,046
Active Idle   0 0
Graph of results
JVM 'Hilo-29.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,045
Calibration 2     213,046
Calibration 3     211,785
ssj_ops@calibrated=212,415
100% 99.8% 212,415 212,088
90% 88.3% 191,174 187,531
80% 78.6% 169,932 166,949
70% 70.1% 148,691 148,979
60% 59.5% 127,449 126,363
50% 49.5% 106,208 105,048
40% 39.5% 84,966 83,981
30% 29.9% 63,725 63,468
20% 20.3% 42,483 43,079
10% 9.9% 21,242 21,051
Active Idle   0 0
Graph of results
JVM 'Hilo-29.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,723
Calibration 2     226,159
Calibration 3     224,669
ssj_ops@calibrated=225,414
100% 99.0% 225,414 223,206
90% 89.1% 202,873 200,859
80% 79.1% 180,332 178,334
70% 69.8% 157,790 157,339
60% 59.4% 135,249 134,006
50% 50.2% 112,707 113,225
40% 40.1% 90,166 90,396
30% 29.8% 67,624 67,156
20% 19.8% 45,083 44,744
10% 9.9% 22,541 22,358
Active Idle   0 0
Graph of results
JVM 'Hilo-29.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,426
Calibration 2     222,659
Calibration 3     224,158
ssj_ops@calibrated=223,409
100% 99.5% 223,409 222,377
90% 89.0% 201,068 198,818
80% 78.8% 178,727 176,034
70% 70.6% 156,386 157,645
60% 60.4% 134,045 134,982
50% 50.2% 111,704 112,094
40% 39.8% 89,364 88,979
30% 30.1% 67,023 67,140
20% 19.9% 44,682 44,550
10% 10.1% 22,341 22,673
Active Idle   0 0
Graph of results
JVM 'Hilo-29.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,945
Calibration 2     221,597
Calibration 3     221,670
ssj_ops@calibrated=221,634
100% 99.9% 221,634 221,312
90% 89.1% 199,471 197,454
80% 79.5% 177,307 176,210
70% 69.8% 155,144 154,730
60% 60.2% 132,980 133,438
50% 49.4% 110,817 109,544
40% 39.8% 88,654 88,168
30% 30.5% 66,490 67,531
20% 20.1% 44,327 44,620
10% 10.3% 22,163 22,733
Active Idle   0 0
Graph of results
JVM 'Hilo-29.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,355
Calibration 2     198,978
Calibration 3     198,227
ssj_ops@calibrated=198,602
100% 99.8% 198,602 198,248
90% 89.3% 178,742 177,356
80% 78.6% 158,882 156,199
70% 70.2% 139,022 139,402
60% 59.3% 119,161 117,772
50% 49.7% 99,301 98,765
40% 39.7% 79,441 78,936
30% 29.3% 59,581 58,257
20% 20.5% 39,720 40,731
10% 9.9% 19,860 19,629
Active Idle   0 0
Graph of results

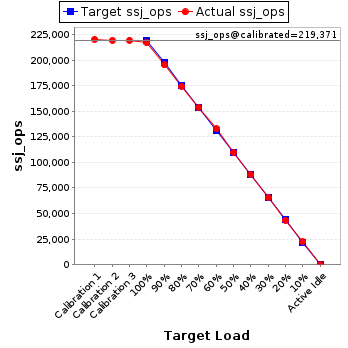

JVM 'Hilo-29.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,413
Calibration 2     219,264
Calibration 3     219,478
ssj_ops@calibrated=219,371
100% 98.9% 219,371 216,856
90% 89.0% 197,434 195,241
80% 79.5% 175,497 174,359
70% 70.1% 153,560 153,796
60% 60.6% 131,622 132,834
50% 49.9% 109,685 109,573
40% 40.1% 87,748 88,057
30% 29.9% 65,811 65,537
20% 19.9% 43,874 43,552
10% 10.1% 21,937 22,260
Active Idle   0 0
Graph of results
JVM 'Hilo-29.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,900
Calibration 2     223,878
Calibration 3     222,461
ssj_ops@calibrated=223,169
100% 100.0% 223,169 223,234
90% 89.8% 200,852 200,341
80% 79.6% 178,535 177,628
70% 70.3% 156,219 156,888
60% 60.6% 133,902 135,151
50% 49.6% 111,585 110,708
40% 40.2% 89,268 89,722
30% 30.2% 66,951 67,396
20% 20.0% 44,634 44,602
10% 10.0% 22,317 22,222
Active Idle   0 0
Graph of results
JVM 'Hilo-29.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,590
Calibration 2     223,485
Calibration 3     223,136
ssj_ops@calibrated=223,311
100% 99.6% 223,311 222,499
90% 88.9% 200,980 198,489
80% 79.0% 178,649 176,314
70% 70.3% 156,317 157,013
60% 59.4% 133,986 132,671
50% 49.4% 111,655 110,331
40% 39.7% 89,324 88,713
30% 30.1% 66,993 67,311
20% 20.1% 44,662 44,778
10% 9.8% 22,331 21,854
Active Idle   0 0
Graph of results

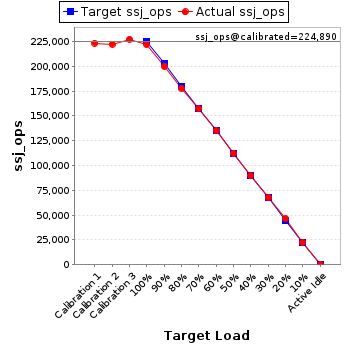

JVM 'Hilo-29.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,498
Calibration 2     222,462
Calibration 3     227,317
ssj_ops@calibrated=224,890
100% 98.8% 224,890 222,080
90% 88.9% 202,401 199,999
80% 79.2% 179,912 178,045
70% 69.9% 157,423 157,206
60% 60.1% 134,934 135,098
50% 49.9% 112,445 112,314
40% 39.9% 89,956 89,729
30% 30.1% 67,467 67,801
20% 20.6% 44,978 46,323
10% 10.0% 22,489 22,502
Active Idle   0 0
Graph of results
JVM 'Hilo-29.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,653
Calibration 2     223,035
Calibration 3     222,579
ssj_ops@calibrated=222,807
100% 99.5% 222,807 221,732
90% 89.1% 200,526 198,481
80% 79.6% 178,246 177,285
70% 69.5% 155,965 154,781
60% 60.2% 133,684 134,028
50% 50.2% 111,404 111,880
40% 40.2% 89,123 89,644
30% 29.9% 66,842 66,708
20% 20.0% 44,561 44,606
10% 10.0% 22,281 22,255
Active Idle   0 0
Graph of results
JVM 'Hilo-29.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,667
Calibration 2     219,910
Calibration 3     221,048
ssj_ops@calibrated=220,479
100% 99.5% 220,479 219,324
90% 89.3% 198,431 196,779
80% 79.0% 176,383 174,180
70% 70.0% 154,335 154,392
60% 59.8% 132,287 131,799
50% 50.1% 110,240 110,564
40% 40.2% 88,192 88,540
30% 30.1% 66,144 66,313
20% 19.7% 44,096 43,332
10% 9.8% 22,048 21,586
Active Idle   0 0
Graph of results
JVM 'Hilo-29.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,509
Calibration 2     215,091
Calibration 3     213,789
ssj_ops@calibrated=214,440
100% 100.0% 214,440 214,350
90% 89.4% 192,996 191,813
80% 78.2% 171,552 167,734
70% 70.0% 150,108 150,059
60% 59.7% 128,664 127,995
50% 49.7% 107,220 106,620
40% 40.1% 85,776 86,063
30% 29.7% 64,332 63,631
20% 20.3% 42,888 43,505
10% 10.3% 21,444 21,987
Active Idle   0 0
Graph of results
JVM 'Hilo-29.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,314
Calibration 2     221,859
Calibration 3     221,704
ssj_ops@calibrated=221,781
100% 98.8% 221,781 219,084
90% 88.1% 199,603 195,442
80% 78.5% 177,425 174,152
70% 70.3% 155,247 155,916
60% 60.6% 133,069 134,465
50% 49.9% 110,891 110,582
40% 39.6% 88,713 87,920
30% 29.5% 66,534 65,457
20% 19.7% 44,356 43,790
10% 10.0% 22,178 22,151
Active Idle   0 0
Graph of results
JVM 'Hilo-29.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,387
Calibration 2     220,853
Calibration 3     223,057
ssj_ops@calibrated=221,955
100% 99.7% 221,955 221,264
90% 89.5% 199,760 198,590
80% 78.7% 177,564 174,597
70% 70.1% 155,369 155,541
60% 59.9% 133,173 132,866
50% 49.8% 110,978 110,618
40% 40.4% 88,782 89,755
30% 30.1% 66,587 66,914
20% 19.9% 44,391 44,195
10% 10.1% 22,196 22,417
Active Idle   0 0
Graph of results
JVM 'Hilo-29.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,208
Calibration 2     225,540
Calibration 3     224,310
ssj_ops@calibrated=224,925
100% 99.1% 224,925 222,987
90% 89.3% 202,432 200,853
80% 79.0% 179,940 177,773
70% 70.0% 157,447 157,379
60% 59.9% 134,955 134,751
50% 50.3% 112,462 113,176
40% 40.2% 89,970 90,400
30% 30.2% 67,477 68,024
20% 19.9% 44,985 44,823
10% 9.9% 22,492 22,365
Active Idle   0 0
Graph of results
JVM 'Hilo-29.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,939
Calibration 2     221,262
Calibration 3     218,978
ssj_ops@calibrated=220,120
100% 99.8% 220,120 219,681
90% 89.1% 198,108 196,199
80% 78.9% 176,096 173,747
70% 70.1% 154,084 154,285
60% 59.6% 132,072 131,247
50% 50.2% 110,060 110,495
40% 40.0% 88,048 88,141
30% 30.2% 66,036 66,537
20% 20.0% 44,024 44,009
10% 10.0% 22,012 21,992
Active Idle   0 0
Graph of results
JVM 'Hilo-29.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,801
Calibration 2     225,266
Calibration 3     223,927
ssj_ops@calibrated=224,597
100% 99.6% 224,597 223,644
90% 88.9% 202,137 199,774
80% 79.0% 179,677 177,339
70% 70.1% 157,218 157,353
60% 60.0% 134,758 134,794
50% 50.7% 112,298 113,833
40% 40.6% 89,839 91,076
30% 30.2% 67,379 67,830
20% 19.9% 44,919 44,767
10% 9.9% 22,460 22,139
Active Idle   0 0
Graph of results
JVM 'Hilo-29.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,297
Calibration 2     223,391
Calibration 3     224,460
ssj_ops@calibrated=223,926
100% 99.6% 223,926 222,999
90% 88.9% 201,533 199,011
80% 78.7% 179,141 176,329
70% 70.3% 156,748 157,503
60% 60.6% 134,355 135,660
50% 50.2% 111,963 112,434
40% 40.3% 89,570 90,182
30% 30.0% 67,178 67,159
20% 19.9% 44,785 44,660
10% 10.2% 22,393 22,942
Active Idle   0 0
Graph of results
JVM 'Hilo-29.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,747
Calibration 2     221,042
Calibration 3     221,583
ssj_ops@calibrated=221,312
100% 98.3% 221,312 217,537
90% 89.5% 199,181 198,179
80% 79.3% 177,050 175,428
70% 69.9% 154,919 154,766
60% 59.8% 132,787 132,370
50% 49.9% 110,656 110,416
40% 39.9% 88,525 88,252
30% 30.1% 66,394 66,524
20% 20.2% 44,262 44,621
10% 10.1% 22,131 22,371
Active Idle   0 0
Graph of results
JVM 'Hilo-29.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,375
Calibration 2     220,473
Calibration 3     218,373
ssj_ops@calibrated=219,423
100% 99.0% 219,423 217,214
90% 89.0% 197,481 195,352
80% 79.0% 175,538 173,450
70% 69.6% 153,596 152,725
60% 60.1% 131,654 131,949
50% 50.0% 109,712 109,713
40% 40.3% 87,769 88,448
30% 29.9% 65,827 65,705
20% 20.1% 43,885 44,000
10% 9.8% 21,942 21,574
Active Idle   0 0
Graph of results
JVM 'Hilo-29.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,155
Calibration 2     214,487
Calibration 3     215,582
ssj_ops@calibrated=215,034
100% 99.3% 215,034 213,451
90% 88.2% 193,531 189,717
80% 77.9% 172,027 167,428
70% 69.3% 150,524 148,934
60% 60.2% 129,021 129,411
50% 49.7% 107,517 106,769
40% 40.4% 86,014 86,904
30% 30.1% 64,510 64,793
20% 20.0% 43,007 43,108
10% 10.0% 21,503 21,408
Active Idle   0 0
Graph of results
JVM 'Hilo-29.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,294
Calibration 2     226,567
Calibration 3     227,666
ssj_ops@calibrated=227,117
100% 99.8% 227,117 226,597
90% 88.7% 204,405 201,520
80% 78.6% 181,693 178,478
70% 70.8% 158,982 160,703
60% 60.4% 136,270 137,092
50% 50.5% 113,558 114,661
40% 39.7% 90,847 90,061
30% 30.0% 68,135 68,157
20% 19.8% 45,423 44,977
10% 10.3% 22,712 23,468
Active Idle   0 0
Graph of results
JVM 'Hilo-29.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,053
Calibration 2     223,307
Calibration 3     223,119
ssj_ops@calibrated=223,213
100% 98.9% 223,213 220,657
90% 88.4% 200,892 197,355
80% 78.9% 178,570 176,134
70% 70.1% 156,249 156,577
60% 59.8% 133,928 133,552
50% 49.8% 111,607 111,257
40% 39.9% 89,285 89,010
30% 30.0% 66,964 67,056
20% 20.0% 44,643 44,651
10% 9.9% 22,321 22,033
Active Idle   0 0
Graph of results
JVM 'Hilo-29.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,142
Calibration 2     211,948
Calibration 3     209,018
ssj_ops@calibrated=210,483
100% 99.7% 210,483 209,869
90% 89.3% 189,435 187,960
80% 78.5% 168,387 165,174
70% 70.2% 147,338 147,701
60% 59.6% 126,290 125,445
50% 49.9% 105,242 105,088
40% 39.9% 84,193 84,047
30% 29.9% 63,145 62,879
20% 19.8% 42,097 41,680
10% 10.0% 21,048 20,979
Active Idle   0 0
Graph of results
JVM 'Hilo-29.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,819
Calibration 2     226,109
Calibration 3     226,076
ssj_ops@calibrated=226,093
100% 99.2% 226,093 224,220
90% 89.6% 203,484 202,586
80% 78.3% 180,874 177,046
70% 70.0% 158,265 158,267
60% 59.7% 135,656 134,969
50% 49.8% 113,046 112,486
40% 39.7% 90,437 89,765
30% 29.8% 67,828 67,400
20% 19.8% 45,219 44,777
10% 10.1% 22,609 22,875
Active Idle   0 0
Graph of results
JVM 'Hilo-29.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,297
Calibration 2     220,732
Calibration 3     221,420
ssj_ops@calibrated=221,076
100% 99.1% 221,076 219,074
90% 89.3% 198,968 197,412
80% 79.7% 176,861 176,284
70% 69.9% 154,753 154,586
60% 59.9% 132,646 132,421
50% 49.7% 110,538 109,897
40% 40.3% 88,430 89,033
30% 30.1% 66,323 66,485
20% 20.1% 44,215 44,359
10% 9.9% 22,108 21,983
Active Idle   0 0
Graph of results
JVM 'Hilo-29.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     208,575
Calibration 2     206,405
Calibration 3     205,983
ssj_ops@calibrated=206,194
100% 99.1% 206,194 204,419
90% 89.8% 185,575 185,068
80% 78.9% 164,955 162,689
70% 70.2% 144,336 144,792
60% 59.6% 123,716 122,927
50% 49.8% 103,097 102,587
40% 40.3% 82,478 83,094
30% 30.1% 61,858 62,139
20% 19.9% 41,239 41,105
10% 10.3% 20,619 21,187
Active Idle   0 0
Graph of results
JVM 'Hilo-29.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,003
Calibration 2     225,521
Calibration 3     225,221
ssj_ops@calibrated=225,371
100% 99.5% 225,371 224,149
90% 88.9% 202,834 200,333
80% 78.5% 180,297 177,018
70% 70.8% 157,760 159,653
60% 59.9% 135,223 134,930
50% 50.1% 112,685 112,845
40% 40.0% 90,148 90,213
30% 29.6% 67,611 66,759
20% 19.8% 45,074 44,613
10% 10.0% 22,537 22,634
Active Idle   0 0
Graph of results
JVM 'Hilo-29.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,062
Calibration 2     226,454
Calibration 3     224,407
ssj_ops@calibrated=225,431
100% 99.3% 225,431 223,906
90% 89.3% 202,888 201,224
80% 79.1% 180,344 178,374
70% 70.4% 157,801 158,728
60% 60.1% 135,258 135,387
50% 50.5% 112,715 113,815
40% 40.0% 90,172 90,080
30% 29.9% 67,629 67,454
20% 20.1% 45,086 45,217
10% 10.0% 22,543 22,500
Active Idle   0 0
Graph of results
JVM 'Hilo-29.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,726
Calibration 2     224,711
Calibration 3     223,638
ssj_ops@calibrated=224,174
100% 98.9% 224,174 221,656
90% 89.7% 201,757 200,991
80% 79.2% 179,339 177,627
70% 70.3% 156,922 157,586
60% 60.0% 134,505 134,532
50% 50.0% 112,087 112,166
40% 40.0% 89,670 89,658
30% 29.9% 67,252 66,948
20% 20.2% 44,835 45,211
10% 10.0% 22,417 22,466
Active Idle   0 0
Graph of results

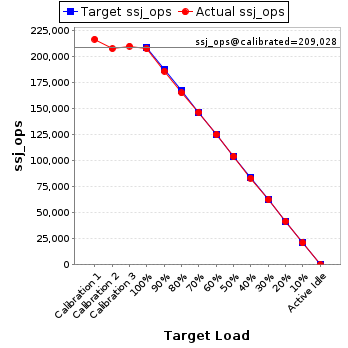

JVM 'Hilo-29.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,847
Calibration 2     207,794
Calibration 3     210,263
ssj_ops@calibrated=209,028
100% 99.3% 209,028 207,591
90% 89.1% 188,126 186,146
80% 79.0% 167,223 165,178
70% 70.2% 146,320 146,663
60% 59.9% 125,417 125,196
50% 49.9% 104,514 104,403
40% 39.9% 83,611 83,312
30% 29.9% 62,709 62,553
20% 20.0% 41,806 41,838
10% 10.1% 20,903 21,057
Active Idle   0 0
Graph of results
JVM 'Hilo-29.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,512
Calibration 2     224,461
Calibration 3     224,549
ssj_ops@calibrated=224,505
100% 99.4% 224,505 223,181
90% 89.1% 202,055 200,093
80% 78.6% 179,604 176,478
70% 69.8% 157,154 156,709
60% 60.0% 134,703 134,615
50% 49.2% 112,253 110,380
40% 40.0% 89,802 89,790
30% 30.1% 67,352 67,476
20% 20.4% 44,901 45,867
10% 9.7% 22,451 21,703
Active Idle   0 0
Graph of results

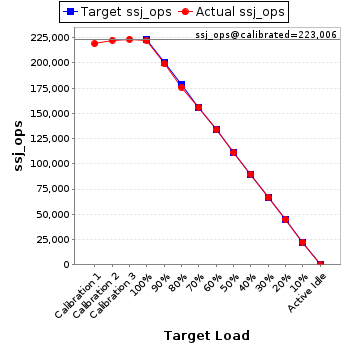

JVM 'Hilo-29.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,094
Calibration 2     222,527
Calibration 3     223,486
ssj_ops@calibrated=223,006
100% 99.6% 223,006 222,162
90% 89.3% 200,706 199,056
80% 78.9% 178,405 176,008
70% 70.0% 156,104 156,030
60% 60.0% 133,804 133,782
50% 49.8% 111,503 111,029
40% 40.2% 89,203 89,715
30% 30.0% 66,902 66,979
20% 20.0% 44,601 44,662
10% 10.0% 22,301 22,342
Active Idle   0 0
Graph of results
JVM 'Hilo-29.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,919
Calibration 2     220,001
Calibration 3     220,419
ssj_ops@calibrated=220,210
100% 99.5% 220,210 219,189
90% 89.6% 198,189 197,257
80% 79.1% 176,168 174,196
70% 69.7% 154,147 153,496
60% 60.0% 132,126 132,114
50% 50.3% 110,105 110,688
40% 39.9% 88,084 87,860
30% 29.7% 66,063 65,511
20% 20.2% 44,042 44,438
10% 9.8% 22,021 21,588
Active Idle   0 0
Graph of results
JVM 'Hilo-29.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,894
Calibration 2     199,152
Calibration 3     199,699
ssj_ops@calibrated=199,425
100% 99.3% 199,425 197,982
90% 88.7% 179,483 176,799
80% 78.3% 159,540 156,073
70% 70.4% 139,598 140,419
60% 59.9% 119,655 119,533
50% 50.3% 99,713 100,325
40% 39.4% 79,770 78,589
30% 30.3% 59,828 60,417
20% 20.1% 39,885 40,051
10% 9.8% 19,943 19,592
Active Idle   0 0
Graph of results
JVM 'Hilo-29.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,089
Calibration 2     227,139
Calibration 3     226,888
ssj_ops@calibrated=227,013
100% 99.1% 227,013 225,003
90% 89.0% 204,312 202,116
80% 78.7% 181,611 178,737
70% 69.8% 158,909 158,476
60% 61.1% 136,208 138,625
50% 49.3% 113,507 112,000
40% 39.6% 90,805 89,961
30% 30.1% 68,104 68,302
20% 19.9% 45,403 45,162
10% 10.1% 22,701 22,828
Active Idle   0 0
Graph of results
JVM 'Hilo-29.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,827
Calibration 2     224,256
Calibration 3     225,158
ssj_ops@calibrated=224,707
100% 99.7% 224,707 223,950
90% 89.2% 202,236 200,344
80% 78.6% 179,766 176,702
70% 69.6% 157,295 156,328
60% 59.4% 134,824 133,551
50% 49.9% 112,353 112,201
40% 40.2% 89,883 90,369
30% 29.7% 67,412 66,837
20% 19.9% 44,941 44,810
10% 10.0% 22,471 22,379
Active Idle   0 0
Graph of results
JVM 'Hilo-29.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,389
Calibration 2     221,267
Calibration 3     221,025
ssj_ops@calibrated=221,146
100% 99.0% 221,146 218,930
90% 89.3% 199,031 197,534
80% 78.9% 176,917 174,533
70% 69.9% 154,802 154,622
60% 60.1% 132,688 132,829
50% 50.2% 110,573 110,908
40% 39.8% 88,458 87,946
30% 30.1% 66,344 66,661
20% 20.4% 44,229 45,221
10% 10.1% 22,115 22,312
Active Idle   0 0
Graph of results
JVM 'Hilo-29.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,083
Calibration 2     226,366
Calibration 3     227,225
ssj_ops@calibrated=226,796
100% 99.2% 226,796 224,880
90% 88.8% 204,116 201,400
80% 78.7% 181,437 178,442
70% 70.1% 158,757 158,961
60% 60.0% 136,078 136,086
50% 50.6% 113,398 114,784
40% 39.9% 90,718 90,408
30% 29.9% 68,039 67,811
20% 20.1% 45,359 45,635
10% 10.2% 22,680 23,026
Active Idle   0 0
Graph of results
JVM 'Hilo-29.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,476
Calibration 2     215,117
Calibration 3     213,063
ssj_ops@calibrated=214,090
100% 99.0% 214,090 211,844
90% 87.7% 192,681 187,756
80% 78.5% 171,272 167,984
70% 69.1% 149,863 147,906
60% 60.2% 128,454 128,830
50% 50.4% 107,045 107,871
40% 39.9% 85,636 85,439
30% 29.9% 64,227 64,111
20% 20.0% 42,818 42,749
10% 10.1% 21,409 21,608
Active Idle   0 0
Graph of results
JVM 'Hilo-29.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,850
Calibration 2     209,869
Calibration 3     210,612
ssj_ops@calibrated=210,241
100% 98.9% 210,241 208,025
90% 89.1% 189,217 187,408
80% 77.6% 168,193 163,065
70% 69.7% 147,169 146,559
60% 60.1% 126,144 126,457
50% 50.2% 105,120 105,535
40% 40.2% 84,096 84,422
30% 29.8% 63,072 62,748
20% 20.3% 42,048 42,661
10% 9.8% 21,024 20,687
Active Idle   0 0
Graph of results

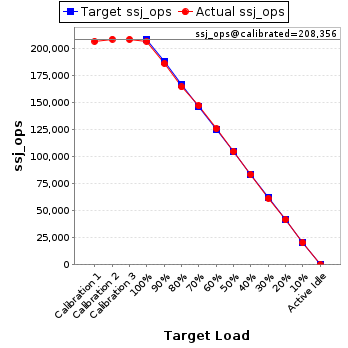

JVM 'Hilo-29.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     206,481
Calibration 2     208,430
Calibration 3     208,282
ssj_ops@calibrated=208,356
100% 99.1% 208,356 206,430
90% 89.3% 187,520 185,982
80% 78.8% 166,685 164,283
70% 70.5% 145,849 146,954
60% 60.3% 125,014 125,699
50% 50.2% 104,178 104,555
40% 39.9% 83,342 83,219
30% 29.4% 62,507 61,308
20% 19.9% 41,671 41,516
10% 9.8% 20,836 20,396
Active Idle   0 0
Graph of results
JVM 'Hilo-29.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,839
Calibration 2     221,366
Calibration 3     222,313
ssj_ops@calibrated=221,840
100% 99.5% 221,840 220,739
90% 89.4% 199,656 198,310
80% 78.8% 177,472 174,857
70% 70.0% 155,288 155,217
60% 59.5% 133,104 132,043
50% 50.5% 110,920 111,949
40% 40.2% 88,736 89,084
30% 29.9% 66,552 66,394
20% 20.1% 44,368 44,546
10% 9.8% 22,184 21,641
Active Idle   0 0
Graph of results

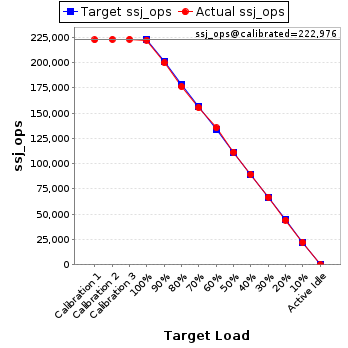

JVM 'Hilo-29.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,455
Calibration 2     222,866
Calibration 3     223,086
ssj_ops@calibrated=222,976
100% 99.7% 222,976 222,207
90% 89.6% 200,678 199,751
80% 79.0% 178,380 176,091
70% 69.6% 156,083 155,294
60% 60.8% 133,785 135,484
50% 50.0% 111,488 111,448
40% 40.0% 89,190 89,170
30% 29.9% 66,893 66,728
20% 19.8% 44,595 44,080
10% 10.0% 22,298 22,229
Active Idle   0 0
Graph of results
JVM 'Hilo-29.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,661
Calibration 2     222,590
Calibration 3     222,653
ssj_ops@calibrated=222,622
100% 99.2% 222,622 220,932
90% 89.4% 200,359 198,996
80% 79.4% 178,097 176,713
70% 69.9% 155,835 155,712
60% 60.3% 133,573 134,327
50% 50.2% 111,311 111,734
40% 40.0% 89,049 89,130
30% 30.1% 66,786 67,114
20% 20.2% 44,524 44,909
10% 9.9% 22,262 22,096
Active Idle   0 0
Graph of results
JVM 'Hilo-29.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,084
Calibration 2     223,565
Calibration 3     224,583
ssj_ops@calibrated=224,074
100% 99.3% 224,074 222,491
90% 89.1% 201,667 199,630
80% 78.9% 179,259 176,691
70% 69.5% 156,852 155,831
60% 60.2% 134,444 134,806
50% 49.6% 112,037 111,217
40% 40.1% 89,630 89,759
30% 30.0% 67,222 67,155
20% 19.9% 44,815 44,608
10% 10.2% 22,407 22,915
Active Idle   0 0
Graph of results
JVM 'Hilo-29.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,563
Calibration 2     228,645
Calibration 3     228,830
ssj_ops@calibrated=228,737
100% 98.9% 228,737 226,331
90% 89.3% 205,863 204,267
80% 78.6% 182,990 179,845
70% 69.5% 160,116 158,992
60% 60.1% 137,242 137,410
50% 49.8% 114,369 113,913
40% 40.0% 91,495 91,469
30% 29.8% 68,621 68,271
20% 19.9% 45,747 45,541
10% 9.9% 22,874 22,704
Active Idle   0 0
Graph of results
JVM 'Hilo-29.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,317
Calibration 2     221,186
Calibration 3     220,173
ssj_ops@calibrated=220,679
100% 99.7% 220,679 220,066
90% 89.2% 198,611 196,953
80% 78.8% 176,543 173,973
70% 70.0% 154,475 154,440
60% 60.6% 132,407 133,837
50% 49.9% 110,340 110,036
40% 40.1% 88,272 88,395
30% 30.2% 66,204 66,621
20% 20.3% 44,136 44,834
10% 10.0% 22,068 22,175
Active Idle   0 0
Graph of results
JVM 'Hilo-29.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,765
Calibration 2     230,518
Calibration 3     232,042
ssj_ops@calibrated=231,280
100% 99.7% 231,280 230,473
90% 88.8% 208,152 205,280
80% 78.1% 185,024 180,709
70% 70.5% 161,896 163,152
60% 59.6% 138,768 137,948
50% 50.3% 115,640 116,446
40% 40.1% 92,512 92,806
30% 29.9% 69,384 69,105
20% 20.4% 46,256 47,071
10% 10.3% 23,128 23,848
Active Idle   0 0
Graph of results
JVM 'Hilo-29.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,186
Calibration 2     222,851
Calibration 3     224,059
ssj_ops@calibrated=223,455
100% 99.5% 223,455 222,288
90% 89.5% 201,109 199,940
80% 79.3% 178,764 177,292
70% 69.9% 156,418 156,229
60% 60.1% 134,073 134,281
50% 49.7% 111,727 110,963
40% 40.2% 89,382 89,815
30% 29.7% 67,036 66,275
20% 20.0% 44,691 44,773
10% 10.2% 22,345 22,896
Active Idle   0 0
Graph of results
JVM 'Hilo-29.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,567
Calibration 2     215,352
Calibration 3     215,533
ssj_ops@calibrated=215,443
100% 99.6% 215,443 214,540
90% 89.4% 193,899 192,693
80% 78.7% 172,354 169,546
70% 70.9% 150,810 152,681
60% 60.4% 129,266 130,136
50% 49.7% 107,721 107,091
40% 40.1% 86,177 86,397
30% 30.0% 64,633 64,618
20% 20.1% 43,089 43,240
10% 10.2% 21,544 21,930
Active Idle   0 0
Graph of results
JVM 'Hilo-29.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,363
Calibration 2     206,459
Calibration 3     206,809
ssj_ops@calibrated=206,634
100% 100.0% 206,634 206,621
90% 89.1% 185,971 184,160
80% 79.1% 165,307 163,528
70% 70.2% 144,644 144,960
60% 60.4% 123,980 124,756
50% 50.1% 103,317 103,546
40% 40.0% 82,654 82,723
30% 30.0% 61,990 62,029
20% 20.0% 41,327 41,343
10% 10.0% 20,663 20,658
Active Idle   0 0
Graph of results
JVM 'Hilo-29.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,053
Calibration 2     219,373
Calibration 3     219,269
ssj_ops@calibrated=219,321
100% 100.0% 219,321 219,405
90% 89.5% 197,389 196,298
80% 79.5% 175,457 174,375
70% 69.8% 153,525 153,119
60% 60.1% 131,593 131,750
50% 50.2% 109,661 110,061
40% 39.8% 87,729 87,186
30% 30.2% 65,796 66,159
20% 19.5% 43,864 42,668
10% 10.1% 21,932 22,192
Active Idle   0 0
Graph of results
JVM 'Hilo-29.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,199
Calibration 2     225,318
Calibration 3     226,332
ssj_ops@calibrated=225,825
100% 100.0% 225,825 225,814
90% 89.2% 203,243 201,374
80% 79.2% 180,660 178,918
70% 70.0% 158,078 158,074
60% 59.8% 135,495 135,010
50% 50.4% 112,913 113,841
40% 40.0% 90,330 90,218
30% 30.5% 67,748 68,835
20% 20.1% 45,165 45,429
10% 10.0% 22,583 22,487
Active Idle   0 0
Graph of results
JVM 'Hilo-29.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,052
Calibration 2     222,229
Calibration 3     219,750
ssj_ops@calibrated=220,989
100% 100.0% 220,989 221,063
90% 88.9% 198,890 196,565
80% 78.5% 176,792 173,505
70% 69.5% 154,693 153,608
60% 60.0% 132,594 132,602
50% 49.7% 110,495 109,862
40% 39.5% 88,396 87,248
30% 30.1% 66,297 66,600
20% 19.7% 44,198 43,444
10% 9.8% 22,099 21,717
Active Idle   0 0
Graph of results
JVM 'Hilo-29.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,939
Calibration 2     223,756
Calibration 3     223,791
ssj_ops@calibrated=223,773
100% 98.8% 223,773 221,195
90% 89.6% 201,396 200,390
80% 79.3% 179,019 177,407
70% 69.8% 156,641 156,122
60% 60.1% 134,264 134,454
50% 50.2% 111,887 112,344
40% 40.0% 89,509 89,484
30% 30.1% 67,132 67,258
20% 19.8% 44,755 44,348
10% 9.8% 22,377 22,021
Active Idle   0 0
Graph of results
