Hewlett Packard Enterprise ProLiant DL380 Gen11 SPECpower_ssj2008 = 16,340 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 20, 2024
Hardware Availability: Feb-2024 Software Availability: Oct-2023 Publication: Mar 12, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 15,051,840 770 19,550
90% 90.0% 13,601,676 683 19,902
80% 80.0% 12,086,193 598 20,219
70% 70.0% 10,577,498 539 19,619
60% 60.0% 9,068,413 487 18,602
50% 50.0% 7,555,280 439 17,199
40% 39.9% 6,034,770 396 15,237
30% 30.1% 4,543,530 355 12,808
20% 20.0% 3,026,441 316 9,575
10% 10.0% 1,512,949 275 5,492
Active Idle 0 224 0
∑ssj_ops / ∑power = 16,340

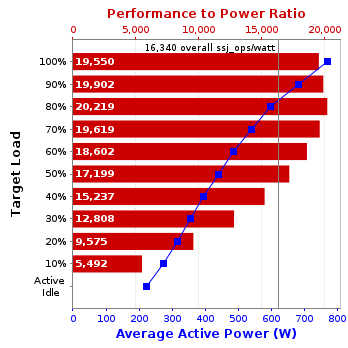

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380 Gen11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+ Processor 1.90 GHz
CPU Characteristics: 64 core, 1.90 GHz, 320 MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-5600B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: 1 x Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201, mixed mode)
JVM Command-line Options: -server -Xmn1400m -Xms1600m -Xmx1600m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: numactl -C $((physicalCoreId + 0)),$((physicalCoreId + 128))
JVM Instances: 128
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: U54 v2.12 (12/13/2023)
Management Firmware Version: 1.56 pass 03 Dec 18 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HPE
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22005V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-HF8LX-20-1
Date of Calibration: 19-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 770 24.6
90% 683 24.4
80% 598 24.2
70% 539 24.9
60% 487 24.7
50% 439 24.7
40% 396 25.5
30% 355 24.7
20% 316 24.8
10% 275 25.4
Active Idle 224 24.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,890,251
Calibration 2     15,150,453
Calibration 3     15,083,774
ssj_ops@calibrated=15,117,113
100% 99.6% 15,117,113 15,051,840
90% 90.0% 13,605,402 13,601,676
80% 80.0% 12,093,690 12,086,193
70% 70.0% 10,581,979 10,577,498
60% 60.0% 9,070,268 9,068,413
50% 50.0% 7,558,557 7,555,280
40% 39.9% 6,046,845 6,034,770
30% 30.1% 4,535,134 4,543,530
20% 20.0% 3,023,423 3,026,441
10% 10.0% 1,511,711 1,512,949
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
