Lenovo Global Technology ThinkEdge SE350 V2 SPECpower_ssj2008 = 7,624 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 25, 2024
Hardware Availability: Dec-2023 Software Availability: Jun-2022 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 136 24.3
Calibration 2 136 24.4
Calibration 3 136 24.1
100% 136 23.6
90% 129 23.6
80% 111 23.5
70% 101 23.2
60% 93.2 23.8
50% 86.4 24.3
40% 81.1 24.4
30% 74.6 24.1
20% 69.9 23.9
10% 64.7 24.1
Active Idle 51.2 24.5

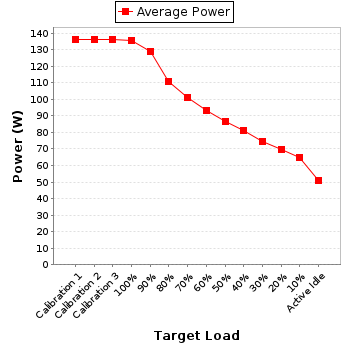

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.675 1.0 0.921 136 0.3%
Calibration 2 220 300.0 0.675 1.0 0.921 136 0.3%
Calibration 3 220 300.0 0.674 1.0 0.921 136 0.3%
100% 220 300.0 0.672 1.0 0.921 136 0.3%
90% 219 300.0 0.643 1.0 0.917 129 0.3%
80% 219 300.0 0.559 1.0 0.905 111 0.3%
70% 219 300.0 0.514 1.0 0.897 101 0.3%
60% 219 300.0 0.477 1.0 0.890 93.2 0.4%
50% 219 300.0 0.445 1.0 0.885 86.4 0.4%
40% 220 300.0 0.421 1.0 0.878 81.1 0.4%
30% 220 300.0 0.391 1.0 0.867 74.6 0.4%
20% 220 300.0 0.371 1.0 0.858 69.9 0.4%
10% 220 300.0 0.348 1.0 0.845 64.7 0.4%
Active Idle 220 300.0 0.290 0.5 0.803 51.2 0.4%
Power details for pwr1
