Hewlett Packard Enterprise ProLiant ML350 Gen11 SPECpower_ssj2008 = 15,651 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 10, 2023
Hardware Availability: Feb-2024 Software Availability: Oct-2023 Publication: Feb 2, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 13,338,557 629 21,216
90% 90.0% 12,053,135 595 20,247
80% 80.1% 10,721,588 553 19,384
70% 70.0% 9,366,936 504 18,604
60% 60.0% 8,030,918 462 17,393
50% 50.0% 6,698,305 421 15,892
40% 40.0% 5,355,450 382 14,016
30% 30.0% 4,017,544 346 11,623
20% 20.0% 2,677,303 309 8,676
10% 10.0% 1,336,499 270 4,956
Active Idle 0 232 0
∑ssj_ops / ∑power = 15,651

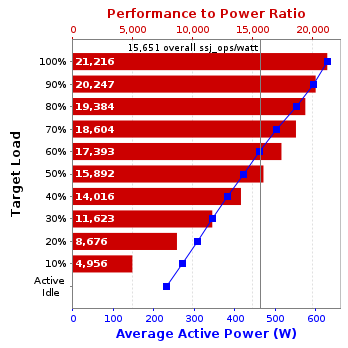

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen11
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8592+ Processor 1.90 GHz
CPU Characteristics: 64 core, 1.90 GHz, 320 MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-5600B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (P03178-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet Network Adapter I350-T4 for OCP 3.0
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 (Build 20348.1129)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201, mixed mode)
JVM Command-line Options: -server -Xmn1400m -Xms1600m -Xmx1600m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE [0,1,2,3] /AFFINITY [0x3,0xC - 0x3000000000000000,0xC000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: U54 v2.12 (12/13/2023)
Management Firmware Version: 1.56 pass 03 Dec 18 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018421, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08 (build 25.251-b08, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K308556
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-HF8LX-60-1
Date of Calibration: 20-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 629 21.8
90% 595 21.8
80% 553 23.2
70% 504 21.6
60% 462 21.9
50% 421 22.3
40% 382 21.6
30% 346 22.3
20% 309 22.7
10% 270 22.1
Active Idle 232 22.9
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.6 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     13,597,938
Calibration 2     13,394,721
Calibration 3     13,383,720
ssj_ops@calibrated=13,389,220
100% 99.6% 13,389,220 13,338,557
90% 90.0% 12,050,298 12,053,135
80% 80.1% 10,711,376 10,721,588
70% 70.0% 9,372,454 9,366,936
60% 60.0% 8,033,532 8,030,918
50% 50.0% 6,694,610 6,698,305
40% 40.0% 5,355,688 5,355,450
30% 30.0% 4,016,766 4,017,544
20% 20.0% 2,677,844 2,677,303
10% 10.0% 1,338,922 1,336,499
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
