SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid S44NL-1U | SPECpower_ssj2008 = 30,850 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Jan 8, 2024 |
| Hardware Availability: | Aug-2023 | Software Availability: | Oct-2023 | Publication: | Feb 7, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

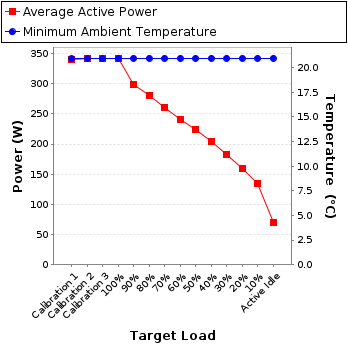

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 341 | 20.9 |
| Calibration 2 | 342 | 20.9 |
| Calibration 3 | 342 | 20.9 |
| 100% | 342 | 20.9 |
| 90% | 299 | 20.9 |
| 80% | 280 | 20.9 |
| 70% | 260 | 20.9 |
| 60% | 241 | 20.9 |
| 50% | 224 | 20.9 |
| 40% | 204 | 20.9 |
| 30% | 183 | 20.9 |
| 20% | 160 | 20.9 |
| 10% | 135 | 20.9 |
| Active Idle | 70.4 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91MC16750 |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | SGS |
| Accredited by: | Tai Yi Electronics & Surveillance Co, Ltd. Calibration Laboratory,Taiwan |
| Calibration Label: | ECR2317157 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 1.57 | 2.0 | 0.981 | 341 | 0.4% |
| Calibration 2 | 221 | 300.0 | 1.58 | 2.0 | 0.981 | 342 | 0.4% |
| Calibration 3 | 221 | 300.0 | 1.58 | 2.0 | 0.981 | 342 | 0.4% |
| 100% | 221 | 300.0 | 1.58 | 2.0 | 0.981 | 342 | 0.4% |
| 90% | 221 | 300.0 | 1.39 | 2.0 | 0.976 | 299 | 0.4% |
| 80% | 221 | 300.0 | 1.30 | 2.0 | 0.973 | 280 | 0.4% |
| 70% | 221 | 300.0 | 1.21 | 2.0 | 0.969 | 260 | 0.4% |
| 60% | 221 | 300.0 | 1.13 | 2.0 | 0.965 | 241 | 0.5% |
| 50% | 221 | 300.0 | 1.06 | 2.0 | 0.961 | 224 | 0.5% |
| 40% | 221 | 300.0 | 0.970 | 2.0 | 0.954 | 204 | 0.5% |
| 30% | 221 | 300.0 | 0.875 | 1.0 | 0.946 | 183 | 0.4% |
| 20% | 221 | 300.0 | 0.773 | 1.0 | 0.934 | 160 | 0.4% |
| 10% | 221 | 300.0 | 0.666 | 1.0 | 0.916 | 135 | 0.5% |
| Active Idle | 221 | 300.0 | 0.400 | 1.0 | 0.796 | 70.4 | 0.7% |
