Lenovo Global Technology Wentian WR5220 G3 ssj_ops@100% = 15,218,015
ssj_ops@100% per JVM = 126,817
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 25, 2023
Hardware Availability: Oct-2023 Software Availability: Aug-2021 Publication: Feb 2, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,085,826
Calibration 2     15,263,385
Calibration 3     15,257,228
ssj_ops@calibrated=15,260,306
100% 99.7% 15,260,306 15,218,015
90% 90.2% 13,734,276 13,771,486
80% 80.1% 12,208,245 12,226,533
70% 69.7% 10,682,215 10,632,921
60% 60.0% 9,156,184 9,163,207
50% 50.0% 7,630,153 7,631,879
40% 40.0% 6,104,123 6,099,507
30% 30.0% 4,578,092 4,570,701
20% 20.0% 3,052,061 3,048,852
10% 10.0% 1,526,031 1,527,430
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Wentian WR5220 G3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-RD0-1010-XT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: Lenovo P/N:4N67A12970
Disk Drive: 1 x 480GB M.2 SSD (P/N:4XB7A85918)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter (P/N:4XC7A08235)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: 1809 (OS Build 17763.2114)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 20.14-b01, mixed mode),version 1.6.0_43
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=6 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: T8E124X-1.02
Management Firmware Version: 6.35.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-G0TH04SAF1T.001 124,655
WIN-G0TH04SAF1T.002 127,354
WIN-G0TH04SAF1T.003 126,308
WIN-G0TH04SAF1T.004 128,454
WIN-G0TH04SAF1T.005 127,170
WIN-G0TH04SAF1T.006 128,268
WIN-G0TH04SAF1T.007 127,161
WIN-G0TH04SAF1T.008 127,645
WIN-G0TH04SAF1T.009 125,496
WIN-G0TH04SAF1T.010 127,227
WIN-G0TH04SAF1T.011 126,680
WIN-G0TH04SAF1T.012 125,698
WIN-G0TH04SAF1T.013 128,005
WIN-G0TH04SAF1T.014 127,300
WIN-G0TH04SAF1T.015 125,458
WIN-G0TH04SAF1T.016 128,023
WIN-G0TH04SAF1T.017 124,375
WIN-G0TH04SAF1T.018 126,389
WIN-G0TH04SAF1T.019 126,652
WIN-G0TH04SAF1T.020 126,685
WIN-G0TH04SAF1T.021 128,113
WIN-G0TH04SAF1T.022 125,757
WIN-G0TH04SAF1T.023 126,687
WIN-G0TH04SAF1T.024 127,666
WIN-G0TH04SAF1T.025 128,577
WIN-G0TH04SAF1T.026 127,363
WIN-G0TH04SAF1T.027 126,720
WIN-G0TH04SAF1T.028 128,362
WIN-G0TH04SAF1T.029 126,729
WIN-G0TH04SAF1T.030 123,390
WIN-G0TH04SAF1T.031 126,922
WIN-G0TH04SAF1T.032 124,641
WIN-G0TH04SAF1T.033 125,525
WIN-G0TH04SAF1T.034 126,646
WIN-G0TH04SAF1T.035 125,375
WIN-G0TH04SAF1T.036 126,530
WIN-G0TH04SAF1T.037 129,800
WIN-G0TH04SAF1T.038 124,724
WIN-G0TH04SAF1T.039 126,664
WIN-G0TH04SAF1T.040 128,028
WIN-G0TH04SAF1T.041 127,283
WIN-G0TH04SAF1T.042 123,287
WIN-G0TH04SAF1T.043 126,909
WIN-G0TH04SAF1T.044 127,688
WIN-G0TH04SAF1T.045 128,203
WIN-G0TH04SAF1T.046 126,019
WIN-G0TH04SAF1T.047 125,482
WIN-G0TH04SAF1T.048 127,115
WIN-G0TH04SAF1T.049 125,529
WIN-G0TH04SAF1T.050 125,242
WIN-G0TH04SAF1T.051 128,057
WIN-G0TH04SAF1T.052 125,980
WIN-G0TH04SAF1T.053 127,956
WIN-G0TH04SAF1T.054 123,846
WIN-G0TH04SAF1T.055 127,502
WIN-G0TH04SAF1T.056 127,829
WIN-G0TH04SAF1T.057 124,853
WIN-G0TH04SAF1T.058 126,129
WIN-G0TH04SAF1T.059 128,438
WIN-G0TH04SAF1T.060 126,866
WIN-G0TH04SAF1T.061 128,006
WIN-G0TH04SAF1T.062 124,839
WIN-G0TH04SAF1T.063 127,396
WIN-G0TH04SAF1T.064 126,198
WIN-G0TH04SAF1T.065 128,233
WIN-G0TH04SAF1T.066 128,462
WIN-G0TH04SAF1T.067 126,648
WIN-G0TH04SAF1T.068 128,154
WIN-G0TH04SAF1T.069 128,730
WIN-G0TH04SAF1T.070 127,962
WIN-G0TH04SAF1T.071 126,707
WIN-G0TH04SAF1T.072 126,741
WIN-G0TH04SAF1T.073 126,802
WIN-G0TH04SAF1T.074 126,634
WIN-G0TH04SAF1T.075 125,716
WIN-G0TH04SAF1T.076 127,695
WIN-G0TH04SAF1T.077 126,496
WIN-G0TH04SAF1T.078 127,914
WIN-G0TH04SAF1T.079 126,348
WIN-G0TH04SAF1T.080 127,902
WIN-G0TH04SAF1T.081 127,660
WIN-G0TH04SAF1T.082 128,631
WIN-G0TH04SAF1T.083 127,066
WIN-G0TH04SAF1T.084 126,646
WIN-G0TH04SAF1T.085 128,546
WIN-G0TH04SAF1T.086 127,067
WIN-G0TH04SAF1T.087 127,685
WIN-G0TH04SAF1T.088 127,739
WIN-G0TH04SAF1T.089 126,862
WIN-G0TH04SAF1T.090 124,853
WIN-G0TH04SAF1T.091 126,991
WIN-G0TH04SAF1T.092 126,964
WIN-G0TH04SAF1T.093 128,045
WIN-G0TH04SAF1T.094 124,527
WIN-G0TH04SAF1T.095 126,782
WIN-G0TH04SAF1T.096 127,081
WIN-G0TH04SAF1T.097 128,870
WIN-G0TH04SAF1T.098 127,876
WIN-G0TH04SAF1T.099 125,471
WIN-G0TH04SAF1T.100 125,583
WIN-G0TH04SAF1T.101 128,958
WIN-G0TH04SAF1T.102 125,794
WIN-G0TH04SAF1T.103 127,187
WIN-G0TH04SAF1T.104 127,837
WIN-G0TH04SAF1T.105 126,591
WIN-G0TH04SAF1T.106 124,668
WIN-G0TH04SAF1T.107 126,874
WIN-G0TH04SAF1T.108 127,508
WIN-G0TH04SAF1T.109 124,506
WIN-G0TH04SAF1T.110 126,437
WIN-G0TH04SAF1T.111 127,642
WIN-G0TH04SAF1T.112 123,454
WIN-G0TH04SAF1T.113 128,116
WIN-G0TH04SAF1T.114 127,207
WIN-G0TH04SAF1T.115 128,595
WIN-G0TH04SAF1T.116 128,090
WIN-G0TH04SAF1T.117 126,085
WIN-G0TH04SAF1T.118 126,245
WIN-G0TH04SAF1T.119 127,094
WIN-G0TH04SAF1T.120 125,160
ssj_ops@100% 15,218,015
ssj_ops@100% per JVM 126,817

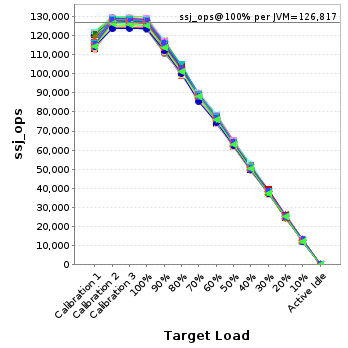

Graph of per-instance results
JVM 'WIN-G0TH04SAF1T.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,311
Calibration 2     124,367
Calibration 3     124,562
ssj_ops@calibrated=124,464
100% 100.2% 124,464 124,655
90% 89.6% 112,018 111,501
80% 79.8% 99,572 99,313
70% 70.4% 87,125 87,630
60% 59.5% 74,679 74,059
50% 49.8% 62,232 62,021
40% 40.1% 49,786 49,891
30% 30.1% 37,339 37,436
20% 20.4% 24,893 25,374
10% 10.0% 12,446 12,422
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,773
Calibration 2     128,385
Calibration 3     128,336
ssj_ops@calibrated=128,360
100% 99.2% 128,360 127,354
90% 90.0% 115,524 115,578
80% 80.0% 102,688 102,712
70% 69.9% 89,852 89,752
60% 59.6% 77,016 76,525
50% 49.8% 64,180 63,863
40% 40.1% 51,344 51,434
30% 30.2% 38,508 38,750
20% 20.1% 25,672 25,841
10% 9.6% 12,836 12,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,764
Calibration 2     127,185
Calibration 3     127,309
ssj_ops@calibrated=127,247
100% 99.3% 127,247 126,308
90% 89.7% 114,522 114,183
80% 80.4% 101,798 102,350
70% 69.6% 89,073 88,531
60% 60.1% 76,348 76,500
50% 50.5% 63,624 64,239
40% 40.3% 50,899 51,327
30% 30.0% 38,174 38,170
20% 19.8% 25,449 25,197
10% 10.3% 12,725 13,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,034
Calibration 2     128,461
Calibration 3     128,609
ssj_ops@calibrated=128,535
100% 99.9% 128,535 128,454
90% 91.3% 115,682 117,302
80% 79.7% 102,828 102,490
70% 69.2% 89,975 88,898
60% 60.0% 77,121 77,086
50% 50.4% 64,268 64,826
40% 40.6% 51,414 52,196
30% 30.0% 38,561 38,585
20% 19.8% 25,707 25,482
10% 10.2% 12,854 13,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,206
Calibration 2     128,126
Calibration 3     128,348
ssj_ops@calibrated=128,237
100% 99.2% 128,237 127,170
90% 91.6% 115,414 117,426
80% 80.0% 102,590 102,575
70% 70.1% 89,766 89,927
60% 60.0% 76,942 76,931
50% 49.8% 64,119 63,802
40% 39.9% 51,295 51,123
30% 29.7% 38,471 38,051
20% 20.1% 25,647 25,741
10% 9.7% 12,824 12,422
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,657
Calibration 2     128,367
Calibration 3     128,492
ssj_ops@calibrated=128,430
100% 99.9% 128,430 128,268
90% 89.7% 115,587 115,258
80% 79.6% 102,744 102,210
70% 69.5% 89,901 89,241
60% 60.0% 77,058 77,077
50% 50.2% 64,215 64,464
40% 40.1% 51,372 51,522
30% 29.6% 38,529 38,054
20% 20.0% 25,686 25,640
10% 10.0% 12,843 12,798
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,613
Calibration 2     127,306
Calibration 3     127,407
ssj_ops@calibrated=127,357
100% 99.8% 127,357 127,161
90% 90.6% 114,621 115,339
80% 79.7% 101,885 101,512
70% 70.1% 89,150 89,223
60% 59.9% 76,414 76,340
50% 50.2% 63,678 63,976
40% 40.0% 50,943 50,904
30% 30.2% 38,207 38,499
20% 19.6% 25,471 24,991
10% 10.0% 12,736 12,714
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,901
Calibration 2     127,785
Calibration 3     127,723
ssj_ops@calibrated=127,754
100% 99.9% 127,754 127,645
90% 90.4% 114,979 115,506
80% 79.6% 102,203 101,661
70% 69.2% 89,428 88,429
60% 59.8% 76,653 76,372
50% 50.2% 63,877 64,174
40% 40.0% 51,102 51,070
30% 30.4% 38,326 38,820
20% 19.9% 25,551 25,468
10% 10.1% 12,775 12,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,970
Calibration 2     126,182
Calibration 3     125,493
ssj_ops@calibrated=125,838
100% 99.7% 125,838 125,496
90% 90.6% 113,254 114,010
80% 79.8% 100,670 100,376
70% 70.2% 88,086 88,282
60% 60.3% 75,503 75,885
50% 50.5% 62,919 63,597
40% 40.5% 50,335 50,986
30% 29.5% 37,751 37,067
20% 20.2% 25,168 25,457
10% 9.9% 12,584 12,509
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,089
Calibration 2     127,776
Calibration 3     127,761
ssj_ops@calibrated=127,768
100% 99.6% 127,768 127,227
90% 89.8% 114,991 114,676
80% 79.8% 102,215 101,977
70% 69.8% 89,438 89,134
60% 60.3% 76,661 77,051
50% 50.5% 63,884 64,478
40% 40.3% 51,107 51,454
30% 29.9% 38,330 38,178
20% 19.9% 25,554 25,439
10% 9.9% 12,777 12,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,285
Calibration 2     126,746
Calibration 3     126,794
ssj_ops@calibrated=126,770
100% 99.9% 126,770 126,680
90% 89.6% 114,093 113,530
80% 80.1% 101,416 101,482
70% 69.8% 88,739 88,505
60% 59.8% 76,062 75,824
50% 50.5% 63,385 63,992
40% 40.4% 50,708 51,246
30% 30.0% 38,031 38,017
20% 20.2% 25,354 25,591
10% 10.1% 12,677 12,861
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,083
Calibration 2     126,328
Calibration 3     126,107
ssj_ops@calibrated=126,218
100% 99.6% 126,218 125,698
90% 91.0% 113,596 114,816
80% 80.0% 100,974 100,932
70% 70.1% 88,352 88,419
60% 59.3% 75,731 74,840
50% 50.7% 63,109 63,934
40% 39.6% 50,487 50,034
30% 29.5% 37,865 37,276
20% 19.8% 25,244 25,053
10% 10.3% 12,622 12,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,603
Calibration 2     128,215
Calibration 3     128,257
ssj_ops@calibrated=128,236
100% 99.8% 128,236 128,005
90% 90.9% 115,413 116,599
80% 79.2% 102,589 101,520
70% 69.8% 89,765 89,552
60% 60.4% 76,942 77,407
50% 50.1% 64,118 64,185
40% 39.7% 51,294 50,890
30% 29.5% 38,471 37,827
20% 20.5% 25,647 26,340
10% 10.3% 12,824 13,148
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,740
Calibration 2     127,297
Calibration 3     127,230
ssj_ops@calibrated=127,264
100% 100.0% 127,264 127,300
90% 90.7% 114,537 115,421
80% 80.0% 101,811 101,832
70% 69.3% 89,085 88,171
60% 60.1% 76,358 76,472
50% 49.8% 63,632 63,435
40% 39.8% 50,905 50,697
30% 30.4% 38,179 38,662
20% 20.0% 25,453 25,425
10% 10.2% 12,726 12,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,143
Calibration 2     125,425
Calibration 3     125,412
ssj_ops@calibrated=125,419
100% 100.0% 125,419 125,458
90% 90.3% 112,877 113,269
80% 80.3% 100,335 100,713
70% 69.8% 87,793 87,486
60% 59.7% 75,251 74,866
50% 50.2% 62,709 62,992
40% 39.9% 50,168 50,033
30% 29.7% 37,626 37,282
20% 19.6% 25,084 24,638
10% 10.3% 12,542 12,856
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,919
Calibration 2     128,808
Calibration 3     128,048
ssj_ops@calibrated=128,428
100% 99.7% 128,428 128,023
90% 90.9% 115,585 116,788
80% 79.7% 102,742 102,299
70% 69.8% 89,900 89,596
60% 60.5% 77,057 77,651
50% 50.2% 64,214 64,448
40% 39.6% 51,371 50,830
30% 29.8% 38,528 38,316
20% 20.1% 25,686 25,773
10% 10.3% 12,843 13,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,172
Calibration 2     124,602
Calibration 3     124,630
ssj_ops@calibrated=124,616
100% 99.8% 124,616 124,375
90% 89.9% 112,154 111,980
80% 80.0% 99,693 99,704
70% 70.4% 87,231 87,735
60% 59.6% 74,770 74,229
50% 49.9% 62,308 62,121
40% 40.2% 49,846 50,068
30% 30.0% 37,385 37,352
20% 20.1% 24,923 25,016
10% 10.0% 12,462 12,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,195
Calibration 2     126,156
Calibration 3     126,275
ssj_ops@calibrated=126,215
100% 100.1% 126,215 126,389
90% 90.7% 113,594 114,531
80% 80.3% 100,972 101,301
70% 70.2% 88,351 88,546
60% 59.8% 75,729 75,531
50% 49.9% 63,108 63,030
40% 40.3% 50,486 50,908
30% 30.4% 37,865 38,324
20% 19.7% 25,243 24,874
10% 10.1% 12,622 12,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,216
Calibration 2     127,064
Calibration 3     126,608
ssj_ops@calibrated=126,836
100% 99.9% 126,836 126,652
90% 91.0% 114,153 115,475
80% 79.8% 101,469 101,159
70% 69.9% 88,785 88,710
60% 59.8% 76,102 75,878
50% 50.1% 63,418 63,496
40% 40.2% 50,734 51,003
30% 29.9% 38,051 37,960
20% 20.1% 25,367 25,475
10% 10.0% 12,684 12,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,520
Calibration 2     127,442
Calibration 3     128,077
ssj_ops@calibrated=127,759
100% 99.2% 127,759 126,685
90% 89.4% 114,983 114,225
80% 79.8% 102,207 102,001
70% 69.9% 89,431 89,262
60% 60.4% 76,656 77,212
50% 49.3% 63,880 62,951
40% 40.0% 51,104 51,070
30% 30.2% 38,328 38,566
20% 19.9% 25,552 25,470
10% 9.7% 12,776 12,415
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,635
Calibration 2     128,375
Calibration 3     128,743
ssj_ops@calibrated=128,559
100% 99.7% 128,559 128,113
90% 90.4% 115,703 116,191
80% 79.7% 102,847 102,511
70% 69.6% 89,991 89,458
60% 60.2% 77,135 77,389
50% 49.9% 64,280 64,177
40% 39.2% 51,424 50,332
30% 30.0% 38,568 38,594
20% 20.0% 25,712 25,689
10% 10.1% 12,856 13,048
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,302
Calibration 2     125,541
Calibration 3     125,559
ssj_ops@calibrated=125,550
100% 100.2% 125,550 125,757
90% 90.5% 112,995 113,639
80% 80.0% 100,440 100,404
70% 70.2% 87,885 88,114
60% 60.6% 75,330 76,080
50% 50.0% 62,775 62,745
40% 40.1% 50,220 50,366
30% 30.0% 37,665 37,662
20% 20.2% 25,110 25,298
10% 10.1% 12,555 12,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,231
Calibration 2     126,811
Calibration 3     126,727
ssj_ops@calibrated=126,769
100% 99.9% 126,769 126,687
90% 90.5% 114,092 114,675
80% 80.2% 101,415 101,674
70% 69.6% 88,738 88,282
60% 59.3% 76,061 75,237
50% 49.6% 63,384 62,925
40% 40.4% 50,708 51,208
30% 30.3% 38,031 38,403
20% 19.4% 25,354 24,577
10% 9.9% 12,677 12,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,077
Calibration 2     128,486
Calibration 3     128,350
ssj_ops@calibrated=128,418
100% 99.4% 128,418 127,666
90% 90.6% 115,576 116,324
80% 79.7% 102,734 102,369
70% 69.7% 89,893 89,494
60% 59.5% 77,051 76,346
50% 50.3% 64,209 64,589
40% 39.6% 51,367 50,819
30% 29.9% 38,525 38,340
20% 20.0% 25,684 25,726
10% 9.8% 12,842 12,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,827
Calibration 2     128,504
Calibration 3     128,300
ssj_ops@calibrated=128,402
100% 100.1% 128,402 128,577
90% 90.1% 115,562 115,712
80% 79.3% 102,722 101,763
70% 70.0% 89,881 89,850
60% 59.7% 77,041 76,639
50% 49.8% 64,201 63,931
40% 39.8% 51,361 51,156
30% 30.2% 38,521 38,743
20% 19.9% 25,680 25,534
10% 10.0% 12,840 12,810
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,616
Calibration 2     127,337
Calibration 3     127,288
ssj_ops@calibrated=127,313
100% 100.0% 127,313 127,363
90% 89.7% 114,581 114,205
80% 79.6% 101,850 101,346
70% 69.2% 89,119 88,059
60% 59.5% 76,388 75,696
50% 49.3% 63,656 62,825
40% 40.5% 50,925 51,577
30% 30.1% 38,194 38,328
20% 20.0% 25,463 25,457
10% 10.0% 12,731 12,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,746
Calibration 2     127,094
Calibration 3     127,164
ssj_ops@calibrated=127,129
100% 99.7% 127,129 126,720
90% 90.6% 114,416 115,235
80% 79.0% 101,703 100,407
70% 69.9% 88,990 88,814
60% 60.3% 76,277 76,697
50% 50.4% 63,565 64,064
40% 39.9% 50,852 50,776
30% 29.8% 38,139 37,897
20% 20.1% 25,426 25,549
10% 10.3% 12,713 13,059
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,920
Calibration 2     128,586
Calibration 3     128,725
ssj_ops@calibrated=128,655
100% 99.8% 128,655 128,362
90% 89.6% 115,790 115,302
80% 79.8% 102,924 102,648
70% 69.3% 90,059 89,133
60% 59.7% 77,193 76,838
50% 50.3% 64,328 64,711
40% 40.5% 51,462 52,152
30% 29.7% 38,597 38,217
20% 20.2% 25,731 25,956
10% 10.0% 12,866 12,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,976
Calibration 2     127,220
Calibration 3     126,766
ssj_ops@calibrated=126,993
100% 99.8% 126,993 126,729
90% 89.5% 114,294 113,655
80% 80.2% 101,594 101,876
70% 70.1% 88,895 88,985
60% 60.7% 76,196 77,041
50% 49.7% 63,496 63,175
40% 39.4% 50,797 50,073
30% 29.8% 38,098 37,844
20% 20.2% 25,399 25,614
10% 10.0% 12,699 12,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,964
Calibration 2     124,446
Calibration 3     124,151
ssj_ops@calibrated=124,298
100% 99.3% 124,298 123,390
90% 89.6% 111,869 111,403
80% 79.7% 99,439 99,111
70% 70.2% 87,009 87,312
60% 59.0% 74,579 73,369
50% 50.0% 62,149 62,178
40% 40.2% 49,719 49,916
30% 30.3% 37,290 37,635
20% 19.8% 24,860 24,572
10% 10.2% 12,430 12,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,578
Calibration 2     126,808
Calibration 3     126,652
ssj_ops@calibrated=126,730
100% 100.2% 126,730 126,922
90% 90.8% 114,057 115,053
80% 80.1% 101,384 101,479
70% 70.5% 88,711 89,296
60% 60.1% 76,038 76,154
50% 50.5% 63,365 63,942
40% 39.7% 50,692 50,312
30% 29.7% 38,019 37,639
20% 20.3% 25,346 25,785
10% 10.0% 12,673 12,727
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,999
Calibration 2     126,094
Calibration 3     126,048
ssj_ops@calibrated=126,071
100% 98.9% 126,071 124,641
90% 90.1% 113,464 113,593
80% 79.1% 100,857 99,663
70% 69.8% 88,250 88,050
60% 60.1% 75,643 75,774
50% 49.8% 63,035 62,727
40% 40.4% 50,428 50,944
30% 29.5% 37,821 37,234
20% 20.3% 25,214 25,578
10% 10.4% 12,607 13,059
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,906
Calibration 2     125,634
Calibration 3     125,518
ssj_ops@calibrated=125,576
100% 100.0% 125,576 125,525
90% 90.6% 113,018 113,797
80% 79.6% 100,461 100,020
70% 70.1% 87,903 87,972
60% 60.2% 75,346 75,552
50% 50.5% 62,788 63,409
40% 39.8% 50,230 49,963
30% 29.5% 37,673 37,099
20% 20.1% 25,115 25,271
10% 9.8% 12,558 12,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,562
Calibration 2     127,615
Calibration 3     127,224
ssj_ops@calibrated=127,419
100% 99.4% 127,419 126,646
90% 89.7% 114,677 114,315
80% 80.1% 101,935 102,040
70% 69.4% 89,194 88,456
60% 60.1% 76,452 76,613
50% 49.7% 63,710 63,322
40% 39.8% 50,968 50,650
30% 30.0% 38,226 38,258
20% 19.5% 25,484 24,845
10% 9.8% 12,742 12,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,174
Calibration 2     125,621
Calibration 3     125,552
ssj_ops@calibrated=125,586
100% 99.8% 125,586 125,375
90% 90.6% 113,028 113,735
80% 80.4% 100,469 100,966
70% 70.0% 87,910 87,878
60% 59.8% 75,352 75,038
50% 50.4% 62,793 63,297
40% 39.5% 50,235 49,556
30% 29.5% 37,676 37,080
20% 19.9% 25,117 25,032
10% 10.0% 12,559 12,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,154
Calibration 2     126,942
Calibration 3     126,841
ssj_ops@calibrated=126,892
100% 99.7% 126,892 126,530
90% 90.6% 114,203 114,988
80% 79.4% 101,513 100,750
70% 69.6% 88,824 88,337
60% 59.9% 76,135 75,955
50% 49.6% 63,446 62,931
40% 40.0% 50,757 50,803
30% 29.6% 38,068 37,603
20% 20.2% 25,378 25,627
10% 9.7% 12,689 12,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,061
Calibration 2     129,888
Calibration 3     130,016
ssj_ops@calibrated=129,952
100% 99.9% 129,952 129,800
90% 89.8% 116,957 116,712
80% 79.2% 103,962 102,979
70% 69.6% 90,966 90,416
60% 60.4% 77,971 78,456
50% 49.9% 64,976 64,785
40% 40.3% 51,981 52,428
30% 29.6% 38,986 38,430
20% 20.0% 25,990 25,952
10% 9.8% 12,995 12,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,480
Calibration 2     124,682
Calibration 3     124,914
ssj_ops@calibrated=124,798
100% 99.9% 124,798 124,724
90% 89.8% 112,318 112,057
80% 79.9% 99,838 99,678
70% 69.8% 87,359 87,129
60% 59.8% 74,879 74,634
50% 50.2% 62,399 62,650
40% 39.7% 49,919 49,584
30% 29.7% 37,439 37,022
20% 20.1% 24,960 25,077
10% 10.1% 12,480 12,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,368
Calibration 2     126,656
Calibration 3     126,741
ssj_ops@calibrated=126,699
100% 100.0% 126,699 126,664
90% 89.7% 114,029 113,626
80% 80.2% 101,359 101,595
70% 69.6% 88,689 88,182
60% 59.9% 76,019 75,835
50% 49.8% 63,349 63,147
40% 40.2% 50,680 50,993
30% 30.2% 38,010 38,306
20% 19.4% 25,340 24,553
10% 9.9% 12,670 12,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,918
Calibration 2     128,979
Calibration 3     128,786
ssj_ops@calibrated=128,882
100% 99.3% 128,882 128,028
90% 90.2% 115,994 116,306
80% 79.4% 103,106 102,339
70% 69.6% 90,218 89,643
60% 60.9% 77,329 78,440
50% 50.1% 64,441 64,582
40% 39.9% 51,553 51,372
30% 30.6% 38,665 39,450
20% 20.0% 25,776 25,747
10% 10.1% 12,888 13,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,440
Calibration 2     128,000
Calibration 3     127,526
ssj_ops@calibrated=127,763
100% 99.6% 127,763 127,283
90% 90.2% 114,986 115,252
80% 80.0% 102,210 102,185
70% 69.8% 89,434 89,175
60% 59.7% 76,658 76,251
50% 50.3% 63,881 64,227
40% 40.0% 51,105 51,068
30% 29.9% 38,329 38,185
20% 20.0% 25,553 25,549
10% 10.4% 12,776 13,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,586
Calibration 2     123,831
Calibration 3     124,030
ssj_ops@calibrated=123,931
100% 99.5% 123,931 123,287
90% 89.1% 111,538 110,422
80% 80.6% 99,145 99,857
70% 70.7% 86,752 87,651
60% 60.1% 74,358 74,495
50% 50.7% 61,965 62,893
40% 40.1% 49,572 49,741
30% 30.2% 37,179 37,456
20% 19.8% 24,786 24,558
10% 10.2% 12,393 12,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,579
Calibration 2     127,070
Calibration 3     127,061
ssj_ops@calibrated=127,066
100% 99.9% 127,066 126,909
90% 91.0% 114,359 115,584
80% 79.5% 101,653 101,076
70% 69.7% 88,946 88,550
60% 60.0% 76,239 76,293
50% 50.1% 63,533 63,626
40% 40.0% 50,826 50,888
30% 30.0% 38,120 38,180
20% 20.4% 25,413 25,935
10% 10.2% 12,707 12,976
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,175
Calibration 2     127,733
Calibration 3     127,963
ssj_ops@calibrated=127,848
100% 99.9% 127,848 127,688
90% 89.4% 115,063 114,320
80% 79.8% 102,278 101,987
70% 69.7% 89,494 89,048
60% 60.3% 76,709 77,050
50% 50.0% 63,924 63,873
40% 40.1% 51,139 51,286
30% 30.3% 38,354 38,686
20% 20.1% 25,570 25,723
10% 10.1% 12,785 12,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

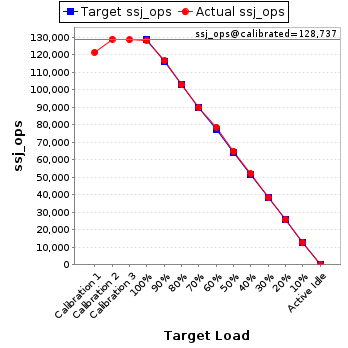

JVM 'WIN-G0TH04SAF1T.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,369
Calibration 2     128,872
Calibration 3     128,602
ssj_ops@calibrated=128,737
100% 99.6% 128,737 128,203
90% 90.5% 115,863 116,525
80% 79.9% 102,990 102,891
70% 69.8% 90,116 89,915
60% 61.1% 77,242 78,665
50% 50.4% 64,368 64,855
40% 40.4% 51,495 52,013
30% 29.8% 38,621 38,385
20% 19.9% 25,747 25,629
10% 9.8% 12,874 12,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,131
Calibration 2     126,541
Calibration 3     126,721
ssj_ops@calibrated=126,631
100% 99.5% 126,631 126,019
90% 89.8% 113,968 113,756
80% 79.7% 101,305 100,926
70% 69.8% 88,642 88,397
60% 60.3% 75,979 76,345
50% 50.7% 63,316 64,184
40% 39.8% 50,653 50,351
30% 29.9% 37,989 37,818
20% 19.7% 25,326 24,989
10% 9.9% 12,663 12,502
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,351
Calibration 2     125,624
Calibration 3     125,428
ssj_ops@calibrated=125,526
100% 100.0% 125,526 125,482
90% 89.7% 112,974 112,614
80% 79.7% 100,421 100,078
70% 70.3% 87,868 88,194
60% 60.4% 75,316 75,833
50% 50.3% 62,763 63,139
40% 40.0% 50,210 50,258
30% 29.8% 37,658 37,380
20% 19.7% 25,105 24,776
10% 9.9% 12,553 12,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,324
Calibration 2     127,495
Calibration 3     126,922
ssj_ops@calibrated=127,208
100% 99.9% 127,208 127,115
90% 90.4% 114,487 115,019
80% 79.8% 101,767 101,568
70% 70.1% 89,046 89,142
60% 60.9% 76,325 77,469
50% 50.2% 63,604 63,850
40% 39.8% 50,883 50,579
30% 30.2% 38,162 38,391
20% 20.3% 25,442 25,816
10% 9.9% 12,721 12,577
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,952
Calibration 2     125,236
Calibration 3     125,315
ssj_ops@calibrated=125,275
100% 100.2% 125,275 125,529
90% 90.1% 112,748 112,923
80% 80.0% 100,220 100,214
70% 69.5% 87,693 87,128
60% 60.0% 75,165 75,161
50% 49.8% 62,638 62,430
40% 39.9% 50,110 50,043
30% 30.4% 37,583 38,132
20% 20.5% 25,055 25,694
10% 10.1% 12,528 12,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,604
Calibration 2     126,515
Calibration 3     126,206
ssj_ops@calibrated=126,360
100% 99.1% 126,360 125,242
90% 89.4% 113,724 112,960
80% 80.2% 101,088 101,400
70% 69.6% 88,452 87,997
60% 60.4% 75,816 76,286
50% 50.4% 63,180 63,720
40% 39.7% 50,544 50,167
30% 30.3% 37,908 38,275
20% 19.1% 25,272 24,170
10% 10.0% 12,636 12,648
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,268
Calibration 2     128,290
Calibration 3     127,886
ssj_ops@calibrated=128,088
100% 100.0% 128,088 128,057
90% 89.9% 115,279 115,123
80% 79.9% 102,470 102,401
70% 69.9% 89,662 89,474
60% 59.2% 76,853 75,817
50% 49.5% 64,044 63,377
40% 40.1% 51,235 51,416
30% 29.7% 38,426 38,043
20% 20.0% 25,618 25,639
10% 9.8% 12,809 12,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,811
Calibration 2     127,108
Calibration 3     127,134
ssj_ops@calibrated=127,121
100% 99.1% 127,121 125,980
90% 89.8% 114,409 114,102
80% 80.2% 101,697 101,909
70% 69.9% 88,985 88,899
60% 60.3% 76,273 76,625
50% 50.1% 63,560 63,641
40% 39.9% 50,848 50,783
30% 29.5% 38,136 37,462
20% 20.2% 25,424 25,664
10% 10.1% 12,712 12,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,869
Calibration 2     128,457
Calibration 3     128,484
ssj_ops@calibrated=128,470
100% 99.6% 128,470 127,956
90% 90.2% 115,623 115,863
80% 79.8% 102,776 102,583
70% 69.8% 89,929 89,690
60% 60.8% 77,082 78,109
50% 50.0% 64,235 64,200
40% 39.5% 51,388 50,773
30% 30.5% 38,541 39,197
20% 19.8% 25,694 25,488
10% 10.0% 12,847 12,835
Active Idle   0 0

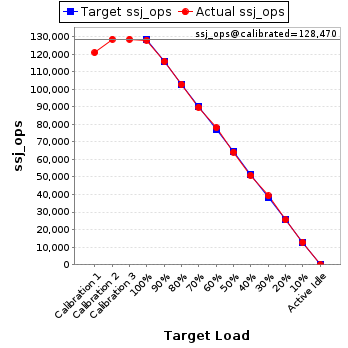

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,468
Calibration 2     124,489
Calibration 3     124,603
ssj_ops@calibrated=124,546
100% 99.4% 124,546 123,846
90% 90.6% 112,091 112,845
80% 80.0% 99,636 99,647
70% 70.7% 87,182 88,002
60% 59.9% 74,727 74,602
50% 49.7% 62,273 61,918
40% 39.6% 49,818 49,285
30% 29.9% 37,364 37,300
20% 20.8% 24,909 25,857
10% 9.8% 12,455 12,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,295
Calibration 2     127,648
Calibration 3     127,865
ssj_ops@calibrated=127,757
100% 99.8% 127,757 127,502
90% 91.2% 114,981 116,564
80% 79.8% 102,205 101,972
70% 70.0% 89,430 89,465
60% 60.1% 76,654 76,753
50% 50.3% 63,878 64,305
40% 39.4% 51,103 50,356
30% 29.7% 38,327 37,966
20% 19.5% 25,551 24,922
10% 10.1% 12,776 12,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,161
Calibration 2     128,868
Calibration 3     128,766
ssj_ops@calibrated=128,817
100% 99.2% 128,817 127,829
90% 90.1% 115,935 116,038
80% 79.8% 103,054 102,754
70% 69.7% 90,172 89,808
60% 59.1% 77,290 76,146
50% 49.4% 64,409 63,633
40% 39.9% 51,527 51,384
30% 29.3% 38,645 37,801
20% 19.8% 25,763 25,479
10% 9.8% 12,882 12,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,751
Calibration 2     124,983
Calibration 3     124,894
ssj_ops@calibrated=124,938
100% 99.9% 124,938 124,853
90% 90.2% 112,444 112,643
80% 80.7% 99,951 100,815
70% 69.9% 87,457 87,309
60% 60.3% 74,963 75,310
50% 50.0% 62,469 62,409
40% 39.8% 49,975 49,737
30% 30.3% 37,481 37,814
20% 20.2% 24,988 25,256
10% 10.0% 12,494 12,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,797
Calibration 2     126,087
Calibration 3     126,164
ssj_ops@calibrated=126,126
100% 100.0% 126,126 126,129
90% 90.9% 113,513 114,673
80% 80.0% 100,900 100,863
70% 70.1% 88,288 88,377
60% 59.2% 75,675 74,671
50% 49.8% 63,063 62,862
40% 39.6% 50,450 49,884
30% 30.4% 37,838 38,388
20% 20.4% 25,225 25,694
10% 10.1% 12,613 12,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,334
Calibration 2     128,617
Calibration 3     128,686
ssj_ops@calibrated=128,651
100% 99.8% 128,651 128,438
90% 90.1% 115,786 115,868
80% 79.9% 102,921 102,752
70% 69.6% 90,056 89,499
60% 59.1% 77,191 75,984
50% 50.0% 64,326 64,386
40% 40.1% 51,461 51,616
30% 29.6% 38,595 38,121
20% 19.9% 25,730 25,632
10% 10.2% 12,865 13,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,751
Calibration 2     127,046
Calibration 3     127,081
ssj_ops@calibrated=127,064
100% 99.8% 127,064 126,866
90% 89.4% 114,357 113,657
80% 80.0% 101,651 101,648
70% 69.8% 88,945 88,639
60% 60.7% 76,238 77,081
50% 50.0% 63,532 63,522
40% 40.7% 50,825 51,668
30% 30.1% 38,119 38,260
20% 20.5% 25,413 26,086
10% 10.2% 12,706 12,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,560
Calibration 2     128,173
Calibration 3     128,091
ssj_ops@calibrated=128,132
100% 99.9% 128,132 128,006
90% 90.2% 115,319 115,518
80% 79.6% 102,506 102,044
70% 69.4% 89,693 88,960
60% 60.7% 76,879 77,736
50% 50.4% 64,066 64,603
40% 39.9% 51,253 51,062
30% 30.0% 38,440 38,441
20% 19.3% 25,626 24,785
10% 9.9% 12,813 12,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,069
Calibration 2     125,905
Calibration 3     125,913
ssj_ops@calibrated=125,909
100% 99.2% 125,909 124,839
90% 89.8% 113,318 113,049
80% 80.5% 100,727 101,375
70% 69.6% 88,136 87,651
60% 60.4% 75,545 76,105
50% 50.2% 62,954 63,227
40% 40.1% 50,364 50,510
30% 30.4% 37,773 38,222
20% 20.0% 25,182 25,133
10% 10.0% 12,591 12,535
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,610
Calibration 2     127,648
Calibration 3     127,542
ssj_ops@calibrated=127,595
100% 99.8% 127,595 127,396
90% 91.3% 114,835 116,497
80% 80.4% 102,076 102,551
70% 69.6% 89,316 88,793
60% 60.0% 76,557 76,590
50% 49.8% 63,797 63,520
40% 39.5% 51,038 50,444
30% 29.9% 38,278 38,140
20% 19.7% 25,519 25,169
10% 10.1% 12,759 12,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,114
Calibration 2     126,641
Calibration 3     126,519
ssj_ops@calibrated=126,580
100% 99.7% 126,580 126,198
90% 90.5% 113,922 114,603
80% 81.0% 101,264 102,475
70% 69.5% 88,606 87,936
60% 60.1% 75,948 76,107
50% 49.7% 63,290 62,887
40% 40.0% 50,632 50,597
30% 30.0% 37,974 37,985
20% 20.1% 25,316 25,431
10% 10.4% 12,658 13,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,830
Calibration 2     128,392
Calibration 3     128,299
ssj_ops@calibrated=128,346
100% 99.9% 128,346 128,233
90% 90.8% 115,511 116,500
80% 79.7% 102,677 102,353
70% 69.2% 89,842 88,860
60% 59.9% 77,007 76,858
50% 50.1% 64,173 64,270
40% 40.3% 51,338 51,753
30% 30.3% 38,504 38,950
20% 20.1% 25,669 25,744
10% 9.6% 12,835 12,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,956
Calibration 2     129,298
Calibration 3     129,094
ssj_ops@calibrated=129,196
100% 99.4% 129,196 128,462
90% 90.5% 116,276 116,888
80% 79.8% 103,357 103,140
70% 69.6% 90,437 89,885
60% 60.5% 77,517 78,226
50% 50.2% 64,598 64,906
40% 40.1% 51,678 51,785
30% 29.9% 38,759 38,580
20% 20.0% 25,839 25,782
10% 10.2% 12,920 13,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,995
Calibration 2     126,744
Calibration 3     126,757
ssj_ops@calibrated=126,750
100% 99.9% 126,750 126,648
90% 90.0% 114,075 114,072
80% 80.0% 101,400 101,402
70% 69.6% 88,725 88,178
60% 59.8% 76,050 75,849
50% 49.9% 63,375 63,255
40% 39.8% 50,700 50,459
30% 30.2% 38,025 38,321
20% 20.2% 25,350 25,615
10% 9.9% 12,675 12,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,969
Calibration 2     129,533
Calibration 3     129,272
ssj_ops@calibrated=129,403
100% 99.0% 129,403 128,154
90% 90.9% 116,462 117,669
80% 80.4% 103,522 104,055
70% 69.7% 90,582 90,144
60% 60.9% 77,642 78,754
50% 49.8% 64,701 64,507
40% 41.4% 51,761 53,586
30% 29.9% 38,821 38,629
20% 20.2% 25,881 26,165
10% 9.9% 12,940 12,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,401
Calibration 2     128,727
Calibration 3     128,095
ssj_ops@calibrated=128,411
100% 100.2% 128,411 128,730
90% 90.2% 115,570 115,853
80% 80.6% 102,729 103,562
70% 69.5% 89,888 89,273
60% 59.7% 77,047 76,721
50% 49.6% 64,206 63,750
40% 39.9% 51,364 51,290
30% 29.9% 38,523 38,441
20% 19.3% 25,682 24,782
10% 10.0% 12,841 12,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,973
Calibration 2     128,040
Calibration 3     127,892
ssj_ops@calibrated=127,966
100% 100.0% 127,966 127,962
90% 89.2% 115,169 114,202
80% 80.5% 102,373 102,977
70% 69.6% 89,576 89,089
60% 60.5% 76,780 77,385
50% 50.5% 63,983 64,594
40% 40.5% 51,186 51,805
30% 30.0% 38,390 38,347
20% 20.0% 25,593 25,654
10% 10.1% 12,797 12,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,533
Calibration 2     126,570
Calibration 3     126,740
ssj_ops@calibrated=126,655
100% 100.0% 126,655 126,707
90% 90.1% 113,989 114,142
80% 80.7% 101,324 102,221
70% 69.7% 88,658 88,330
60% 59.9% 75,993 75,825
50% 49.4% 63,327 62,590
40% 39.8% 50,662 50,409
30% 30.2% 37,996 38,209
20% 19.9% 25,331 25,163
10% 10.0% 12,665 12,630
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,956
Calibration 2     127,428
Calibration 3     127,257
ssj_ops@calibrated=127,343
100% 99.5% 127,343 126,741
90% 90.2% 114,609 114,810
80% 80.3% 101,874 102,313
70% 69.4% 89,140 88,364
60% 59.6% 76,406 75,841
50% 50.3% 63,671 64,044
40% 40.4% 50,937 51,448
30% 29.9% 38,203 38,043
20% 20.0% 25,469 25,522
10% 10.0% 12,734 12,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,571
Calibration 2     127,795
Calibration 3     127,720
ssj_ops@calibrated=127,758
100% 99.3% 127,758 126,802
90% 90.5% 114,982 115,644
80% 80.7% 102,206 103,048
70% 69.4% 89,430 88,727
60% 59.2% 76,655 75,582
50% 49.3% 63,879 62,923
40% 40.1% 51,103 51,185
30% 30.0% 38,327 38,321
20% 19.9% 25,552 25,378
10% 10.0% 12,776 12,726
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,223
Calibration 2     127,406
Calibration 3     127,264
ssj_ops@calibrated=127,335
100% 99.4% 127,335 126,634
90% 90.1% 114,601 114,785
80% 79.8% 101,868 101,573
70% 69.4% 89,134 88,383
60% 60.3% 76,401 76,750
50% 50.8% 63,667 64,690
40% 40.2% 50,934 51,154
30% 29.5% 38,200 37,608
20% 20.3% 25,467 25,789
10% 10.3% 12,733 13,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,248
Calibration 2     126,326
Calibration 3     126,228
ssj_ops@calibrated=126,277
100% 99.6% 126,277 125,716
90% 90.4% 113,649 114,133
80% 79.9% 101,022 100,846
70% 69.7% 88,394 88,061
60% 60.7% 75,766 76,598
50% 49.2% 63,139 62,131
40% 39.7% 50,511 50,160
30% 29.9% 37,883 37,817
20% 19.5% 25,255 24,684
10% 9.8% 12,628 12,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,871
Calibration 2     128,087
Calibration 3     128,359
ssj_ops@calibrated=128,223
100% 99.6% 128,223 127,695
90% 90.3% 115,401 115,817
80% 80.5% 102,579 103,268
70% 69.3% 89,756 88,847
60% 60.2% 76,934 77,247
50% 49.3% 64,112 63,276
40% 39.7% 51,289 50,844
30% 29.7% 38,467 38,089
20% 19.8% 25,645 25,378
10% 9.8% 12,822 12,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,936
Calibration 2     126,645
Calibration 3     126,543
ssj_ops@calibrated=126,594
100% 99.9% 126,594 126,496
90% 90.3% 113,935 114,259
80% 80.4% 101,275 101,728
70% 69.2% 88,616 87,625
60% 60.5% 75,956 76,628
50% 49.3% 63,297 62,443
40% 39.9% 50,638 50,565
30% 30.0% 37,978 37,932
20% 19.6% 25,319 24,818
10% 10.1% 12,659 12,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,313
Calibration 2     128,687
Calibration 3     128,374
ssj_ops@calibrated=128,531
100% 99.5% 128,531 127,914
90% 91.1% 115,678 117,033
80% 80.2% 102,825 103,138
70% 69.4% 89,971 89,139
60% 59.6% 77,118 76,552
50% 49.6% 64,265 63,793
40% 39.3% 51,412 50,567
30% 29.9% 38,559 38,471
20% 19.7% 25,706 25,368
10% 9.8% 12,853 12,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,480
Calibration 2     126,536
Calibration 3     126,539
ssj_ops@calibrated=126,538
100% 99.8% 126,538 126,348
90% 91.3% 113,884 115,544
80% 80.7% 101,230 102,121
70% 69.8% 88,577 88,350
60% 59.0% 75,923 74,612
50% 50.0% 63,269 63,233
40% 39.5% 50,615 50,014
30% 29.9% 37,961 37,838
20% 19.9% 25,308 25,141
10% 10.1% 12,654 12,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,163
Calibration 2     128,611
Calibration 3     128,113
ssj_ops@calibrated=128,362
100% 99.6% 128,362 127,902
90% 91.3% 115,526 117,228
80% 81.5% 102,690 104,551
70% 69.4% 89,853 89,048
60% 60.1% 77,017 77,172
50% 50.4% 64,181 64,704
40% 39.6% 51,345 50,891
30% 29.9% 38,509 38,385
20% 20.2% 25,672 25,875
10% 10.0% 12,836 12,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,798
Calibration 2     127,976
Calibration 3     127,846
ssj_ops@calibrated=127,911
100% 99.8% 127,911 127,660
90% 90.3% 115,120 115,563
80% 81.0% 102,329 103,638
70% 69.9% 89,538 89,400
60% 59.2% 76,747 75,713
50% 50.5% 63,956 64,567
40% 39.5% 51,164 50,562
30% 29.9% 38,373 38,303
20% 20.1% 25,582 25,686
10% 9.9% 12,791 12,636
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,059
Calibration 2     129,251
Calibration 3     128,808
ssj_ops@calibrated=129,030
100% 99.7% 129,030 128,631
90% 90.0% 116,127 116,115
80% 79.9% 103,224 103,142
70% 69.1% 90,321 89,139
60% 60.4% 77,418 77,967
50% 50.2% 64,515 64,813
40% 40.1% 51,612 51,786
30% 29.9% 38,709 38,536
20% 19.8% 25,806 25,499
10% 10.1% 12,903 12,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,953
Calibration 2     127,882
Calibration 3     127,278
ssj_ops@calibrated=127,580
100% 99.6% 127,580 127,066
90% 90.1% 114,822 114,992
80% 79.8% 102,064 101,756
70% 69.5% 89,306 88,666
60% 60.4% 76,548 77,091
50% 49.9% 63,790 63,615
40% 40.3% 51,032 51,434
30% 29.7% 38,274 37,859
20% 20.0% 25,516 25,499
10% 10.0% 12,758 12,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,280
Calibration 2     125,553
Calibration 3     128,890
ssj_ops@calibrated=127,221
100% 99.5% 127,221 126,646
90% 90.0% 114,499 114,482
80% 80.1% 101,777 101,941
70% 69.8% 89,055 88,781
60% 59.8% 76,333 76,043
50% 50.2% 63,611 63,804
40% 40.0% 50,889 50,895
30% 29.4% 38,166 37,425
20% 19.3% 25,444 24,491
10% 10.2% 12,722 13,028
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,775
Calibration 2     129,069
Calibration 3     128,440
ssj_ops@calibrated=128,755
100% 99.8% 128,755 128,546
90% 90.5% 115,879 116,523
80% 80.5% 103,004 103,625
70% 69.5% 90,128 89,430
60% 60.4% 77,253 77,728
50% 49.4% 64,377 63,586
40% 40.3% 51,502 51,943
30% 30.3% 38,626 39,027
20% 19.9% 25,751 25,620
10% 9.9% 12,875 12,709
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,653
Calibration 2     127,088
Calibration 3     126,892
ssj_ops@calibrated=126,990
100% 100.1% 126,990 127,067
90% 90.5% 114,291 114,920
80% 80.1% 101,592 101,761
70% 69.8% 88,893 88,636
60% 59.2% 76,194 75,162
50% 49.6% 63,495 63,014
40% 40.1% 50,796 50,897
30% 29.6% 38,097 37,588
20% 20.2% 25,398 25,670
10% 10.0% 12,699 12,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,242
Calibration 2     127,752
Calibration 3     127,581
ssj_ops@calibrated=127,666
100% 100.0% 127,666 127,685
90% 89.4% 114,900 114,183
80% 79.8% 102,133 101,826
70% 69.2% 89,366 88,364
60% 59.9% 76,600 76,523
50% 50.0% 63,833 63,800
40% 40.1% 51,067 51,240
30% 30.1% 38,300 38,470
20% 20.1% 25,533 25,685
10% 9.7% 12,767 12,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,819
Calibration 2     127,537
Calibration 3     127,655
ssj_ops@calibrated=127,596
100% 100.1% 127,596 127,739
90% 89.9% 114,837 114,763
80% 80.5% 102,077 102,749
70% 69.6% 89,317 88,843
60% 60.1% 76,558 76,691
50% 50.3% 63,798 64,119
40% 40.1% 51,038 51,142
30% 30.1% 38,279 38,431
20% 20.4% 25,519 26,054
10% 10.0% 12,760 12,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,614
Calibration 2     128,128
Calibration 3     127,782
ssj_ops@calibrated=127,955
100% 99.1% 127,955 126,862
90% 89.6% 115,159 114,627
80% 80.4% 102,364 102,907
70% 68.8% 89,568 88,068
60% 59.3% 76,773 75,932
50% 50.4% 63,977 64,481
40% 39.3% 51,182 50,299
30% 30.2% 38,386 38,674
20% 19.7% 25,591 25,256
10% 9.8% 12,795 12,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,039
Calibration 2     125,511
Calibration 3     125,317
ssj_ops@calibrated=125,414
100% 99.6% 125,414 124,853
90% 90.3% 112,872 113,195
80% 80.7% 100,331 101,228
70% 69.6% 87,790 87,253
60% 59.8% 75,248 75,034
50% 50.1% 62,707 62,811
40% 39.9% 50,165 50,082
30% 30.1% 37,624 37,798
20% 20.1% 25,083 25,212
10% 10.0% 12,541 12,563
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,416
Calibration 2     127,324
Calibration 3     127,274
ssj_ops@calibrated=127,299
100% 99.8% 127,299 126,991
90% 91.2% 114,569 116,116
80% 80.2% 101,839 102,046
70% 69.9% 89,109 88,972
60% 59.3% 76,379 75,551
50% 50.4% 63,649 64,117
40% 39.8% 50,920 50,677
30% 30.3% 38,190 38,549
20% 20.2% 25,460 25,702
10% 10.4% 12,730 13,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,919
Calibration 2     127,117
Calibration 3     126,626
ssj_ops@calibrated=126,871
100% 100.1% 126,871 126,964
90% 90.6% 114,184 115,001
80% 80.2% 101,497 101,781
70% 69.9% 88,810 88,663
60% 59.6% 76,123 75,664
50% 50.2% 63,436 63,686
40% 39.6% 50,748 50,268
30% 30.0% 38,061 38,031
20% 20.1% 25,374 25,541
10% 9.7% 12,687 12,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,793
Calibration 2     128,192
Calibration 3     128,014
ssj_ops@calibrated=128,103
100% 100.0% 128,103 128,045
90% 91.2% 115,293 116,835
80% 80.8% 102,483 103,559
70% 69.4% 89,672 88,941
60% 60.4% 76,862 77,402
50% 49.5% 64,052 63,411
40% 40.2% 51,241 51,468
30% 29.7% 38,431 38,099
20% 20.0% 25,621 25,590
10% 9.9% 12,810 12,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,594
Calibration 2     124,693
Calibration 3     124,404
ssj_ops@calibrated=124,549
100% 100.0% 124,549 124,527
90% 89.3% 112,094 111,161
80% 80.7% 99,639 100,457
70% 69.6% 87,184 86,721
60% 60.6% 74,729 75,493
50% 49.5% 62,274 61,632
40% 39.7% 49,819 49,471
30% 30.1% 37,365 37,481
20% 19.6% 24,910 24,352
10% 10.0% 12,455 12,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,221
Calibration 2     126,536
Calibration 3     126,943
ssj_ops@calibrated=126,740
100% 100.0% 126,740 126,782
90% 88.7% 114,066 112,369
80% 80.9% 101,392 102,569
70% 70.1% 88,718 88,879
60% 60.3% 76,044 76,460
50% 49.5% 63,370 62,765
40% 40.1% 50,696 50,800
30% 29.7% 38,022 37,698
20% 19.7% 25,348 25,022
10% 9.7% 12,674 12,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,901
Calibration 2     126,899
Calibration 3     127,144
ssj_ops@calibrated=127,021
100% 100.0% 127,021 127,081
90% 90.7% 114,319 115,243
80% 80.3% 101,617 102,028
70% 69.7% 88,915 88,573
60% 60.3% 76,213 76,643
50% 49.8% 63,511 63,196
40% 40.1% 50,809 50,875
30% 30.1% 38,106 38,278
20% 19.9% 25,404 25,241
10% 10.1% 12,702 12,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,797
Calibration 2     128,513
Calibration 3     129,379
ssj_ops@calibrated=128,946
100% 99.9% 128,946 128,870
90% 89.5% 116,051 115,398
80% 79.9% 103,157 103,018
70% 69.2% 90,262 89,242
60% 60.4% 77,368 77,892
50% 50.2% 64,473 64,773
40% 40.1% 51,578 51,652
30% 30.0% 38,684 38,698
20% 20.1% 25,789 25,938
10% 9.7% 12,895 12,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,747
Calibration 2     128,435
Calibration 3     128,369
ssj_ops@calibrated=128,402
100% 99.6% 128,402 127,876
90% 90.6% 115,562 116,314
80% 80.5% 102,721 103,426
70% 69.1% 89,881 88,767
60% 59.9% 77,041 76,875
50% 49.6% 64,201 63,699
40% 39.6% 51,361 50,791
30% 29.7% 38,521 38,133
20% 20.5% 25,680 26,363
10% 10.1% 12,840 12,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,779
Calibration 2     125,275
Calibration 3     125,105
ssj_ops@calibrated=125,190
100% 100.2% 125,190 125,471
90% 89.7% 112,671 112,245
80% 80.3% 100,152 100,548
70% 69.8% 87,633 87,405
60% 59.6% 75,114 74,630
50% 50.3% 62,595 62,958
40% 39.8% 50,076 49,831
30% 30.0% 37,557 37,570
20% 20.3% 25,038 25,381
10% 9.9% 12,519 12,372
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,569
Calibration 2     126,155
Calibration 3     126,095
ssj_ops@calibrated=126,125
100% 99.6% 126,125 125,583
90% 90.8% 113,513 114,465
80% 79.0% 100,900 99,642
70% 70.0% 88,288 88,349
60% 60.4% 75,675 76,164
50% 50.3% 63,063 63,447
40% 40.0% 50,450 50,417
30% 29.9% 37,838 37,757
20% 19.9% 25,225 25,124
10% 9.8% 12,613 12,390
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,960
Calibration 2     128,944
Calibration 3     129,183
ssj_ops@calibrated=129,064
100% 99.9% 129,064 128,958
90% 90.7% 116,157 117,085
80% 80.2% 103,251 103,489
70% 69.4% 90,345 89,611
60% 60.5% 77,438 78,118
50% 50.2% 64,532 64,831
40% 39.8% 51,625 51,416
30% 29.3% 38,719 37,846
20% 20.0% 25,813 25,751
10% 10.3% 12,906 13,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,749
Calibration 2     126,107
Calibration 3     126,240
ssj_ops@calibrated=126,173
100% 99.7% 126,173 125,794
90% 90.5% 113,556 114,243
80% 80.4% 100,939 101,418
70% 68.9% 88,321 86,873
60% 60.6% 75,704 76,499
50% 49.4% 63,087 62,378
40% 40.3% 50,469 50,825
30% 29.8% 37,852 37,652
20% 20.2% 25,235 25,542
10% 10.0% 12,617 12,557
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,935
Calibration 2     127,710
Calibration 3     127,770
ssj_ops@calibrated=127,740
100% 99.6% 127,740 127,187
90% 91.0% 114,966 116,255
80% 80.4% 102,192 102,675
70% 69.4% 89,418 88,596
60% 59.6% 76,644 76,147
50% 50.6% 63,870 64,582
40% 39.9% 51,096 50,924
30% 30.1% 38,322 38,511
20% 20.2% 25,548 25,828
10% 10.2% 12,774 13,057
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,845
Calibration 2     128,551
Calibration 3     127,844
ssj_ops@calibrated=128,197
100% 99.7% 128,197 127,837
90% 90.8% 115,378 116,412
80% 80.7% 102,558 103,434
70% 69.5% 89,738 89,058
60% 60.5% 76,918 77,575
50% 50.1% 64,099 64,197
40% 39.9% 51,279 51,134
30% 29.9% 38,459 38,380
20% 19.6% 25,639 25,178
10% 9.8% 12,820 12,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,590
Calibration 2     126,926
Calibration 3     126,774
ssj_ops@calibrated=126,850
100% 99.8% 126,850 126,591
90% 89.5% 114,165 113,482
80% 79.6% 101,480 101,029
70% 69.2% 88,795 87,741
60% 60.4% 76,110 76,566
50% 50.6% 63,425 64,190
40% 40.1% 50,740 50,860
30% 30.0% 38,055 38,093
20% 20.0% 25,370 25,313
10% 10.2% 12,685 12,919
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,218
Calibration 2     125,782
Calibration 3     125,895
ssj_ops@calibrated=125,839
100% 99.1% 125,839 124,668
90% 90.9% 113,255 114,357
80% 80.2% 100,671 100,892
70% 69.6% 88,087 87,545
60% 60.4% 75,503 75,958
50% 49.5% 62,919 62,299
40% 39.6% 50,335 49,859
30% 29.8% 37,752 37,510
20% 20.0% 25,168 25,141
10% 10.1% 12,584 12,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,144
Calibration 2     127,133
Calibration 3     127,129
ssj_ops@calibrated=127,131
100% 99.8% 127,131 126,874
90% 90.5% 114,418 115,037
80% 81.0% 101,705 103,031
70% 69.4% 88,992 88,231
60% 60.5% 76,279 76,894
50% 50.0% 63,565 63,552
40% 40.0% 50,852 50,814
30% 30.3% 38,139 38,515
20% 19.6% 25,426 24,913
10% 10.1% 12,713 12,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,192
Calibration 2     127,529
Calibration 3     127,291
ssj_ops@calibrated=127,410
100% 100.1% 127,410 127,508
90% 89.6% 114,669 114,150
80% 80.8% 101,928 102,922
70% 69.7% 89,187 88,860
60% 60.9% 76,446 77,559
50% 49.9% 63,705 63,560
40% 40.0% 50,964 51,023
30% 30.2% 38,223 38,488
20% 20.2% 25,482 25,701
10% 10.2% 12,741 12,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,909
Calibration 2     124,625
Calibration 3     124,499
ssj_ops@calibrated=124,562
100% 100.0% 124,562 124,506
90% 89.5% 112,106 111,422
80% 79.8% 99,650 99,386
70% 69.9% 87,193 87,063
60% 59.3% 74,737 73,921
50% 49.6% 62,281 61,811
40% 40.0% 49,825 49,785
30% 29.7% 37,369 36,963
20% 20.5% 24,912 25,586
10% 10.0% 12,456 12,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,951
Calibration 2     127,153
Calibration 3     127,136
ssj_ops@calibrated=127,145
100% 99.4% 127,145 126,437
90% 90.1% 114,430 114,581
80% 81.2% 101,716 103,254
70% 69.9% 89,001 88,814
60% 60.2% 76,287 76,522
50% 50.1% 63,572 63,708
40% 40.5% 50,858 51,441
30% 30.7% 38,143 39,034
20% 19.7% 25,429 25,107
10% 10.1% 12,714 12,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,038
Calibration 2     128,437
Calibration 3     128,389
ssj_ops@calibrated=128,413
100% 99.4% 128,413 127,642
90% 89.5% 115,572 114,878
80% 80.6% 102,730 103,550
70% 69.4% 89,889 89,072
60% 60.6% 77,048 77,859
50% 49.9% 64,207 64,126
40% 39.2% 51,365 50,295
30% 30.6% 38,524 39,341
20% 20.1% 25,683 25,828
10% 9.9% 12,841 12,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,099
Calibration 2     123,850
Calibration 3     123,910
ssj_ops@calibrated=123,880
100% 99.7% 123,880 123,454
90% 90.3% 111,492 111,905
80% 80.9% 99,104 100,213
70% 69.1% 86,716 85,619
60% 60.1% 74,328 74,499
50% 50.4% 61,940 62,436
40% 40.4% 49,552 50,039
30% 30.0% 37,164 37,206
20% 20.4% 24,776 25,330
10% 9.8% 12,388 12,139
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,600
Calibration 2     128,001
Calibration 3     128,055
ssj_ops@calibrated=128,028
100% 100.1% 128,028 128,116
90% 89.6% 115,225 114,663
80% 81.1% 102,422 103,855
70% 69.1% 89,619 88,501
60% 60.4% 76,817 77,275
50% 50.0% 64,014 63,965
40% 40.4% 51,211 51,784
30% 29.5% 38,408 37,744
20% 19.9% 25,606 25,419
10% 9.8% 12,803 12,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,805
Calibration 2     127,530
Calibration 3     127,558
ssj_ops@calibrated=127,544
100% 99.7% 127,544 127,207
90% 90.8% 114,790 115,783
80% 79.8% 102,035 101,817
70% 69.6% 89,281 88,801
60% 59.6% 76,527 76,046
50% 50.1% 63,772 63,925
40% 40.2% 51,018 51,217
30% 29.6% 38,263 37,803
20% 19.8% 25,509 25,273
10% 9.9% 12,754 12,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,336
Calibration 2     128,870
Calibration 3     128,696
ssj_ops@calibrated=128,783
100% 99.9% 128,783 128,595
90% 90.0% 115,905 115,942
80% 79.7% 103,027 102,624
70% 69.5% 90,148 89,506
60% 59.8% 77,270 77,019
50% 49.2% 64,392 63,338
40% 39.3% 51,513 50,649
30% 29.8% 38,635 38,359
20% 20.2% 25,757 25,999
10% 9.9% 12,878 12,730
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,867
Calibration 2     128,464
Calibration 3     128,403
ssj_ops@calibrated=128,433
100% 99.7% 128,433 128,090
90% 90.3% 115,590 115,932
80% 81.6% 102,747 104,768
70% 69.4% 89,903 89,178
60% 60.4% 77,060 77,550
50% 50.0% 64,217 64,153
40% 39.6% 51,373 50,865
30% 29.9% 38,530 38,350
20% 19.5% 25,687 25,016
10% 9.9% 12,843 12,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,896
Calibration 2     127,072
Calibration 3     127,116
ssj_ops@calibrated=127,094
100% 99.2% 127,094 126,085
90% 90.3% 114,384 114,751
80% 80.4% 101,675 102,142
70% 69.5% 88,966 88,283
60% 59.8% 76,256 76,001
50% 50.0% 63,547 63,590
40% 40.3% 50,837 51,225
30% 29.4% 38,128 37,425
20% 20.2% 25,419 25,645
10% 10.3% 12,709 13,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,534
Calibration 2     126,815
Calibration 3     126,580
ssj_ops@calibrated=126,698
100% 99.6% 126,698 126,245
90% 89.9% 114,028 113,897
80% 80.8% 101,358 102,382
70% 69.6% 88,688 88,150
60% 60.3% 76,019 76,446
50% 50.0% 63,349 63,408
40% 39.9% 50,679 50,603
30% 30.1% 38,009 38,161
20% 20.1% 25,340 25,454
10% 10.1% 12,670 12,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,256
Calibration 2     127,906
Calibration 3     127,495
ssj_ops@calibrated=127,701
100% 99.5% 127,701 127,094
90% 90.7% 114,931 115,768
80% 80.6% 102,160 102,885
70% 69.1% 89,390 88,244
60% 60.0% 76,620 76,684
50% 50.3% 63,850 64,239
40% 39.5% 51,080 50,504
30% 30.1% 38,310 38,487
20% 19.6% 25,540 25,044
10% 10.3% 12,770 13,185
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-G0TH04SAF1T.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,456
Calibration 2     126,049
Calibration 3     125,931
ssj_ops@calibrated=125,990
100% 99.3% 125,990 125,160
90% 90.1% 113,391 113,502
80% 80.3% 100,792 101,118
70% 70.0% 88,193 88,195
60% 60.2% 75,594 75,810
50% 49.8% 62,995 62,765
40% 39.9% 50,396 50,227
30% 29.7% 37,797 37,444
20% 20.0% 25,198 25,201
10% 9.7% 12,599 12,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
