xFusion Digital Technologies Co., Ltd FusionServer 1288H V7 SPECpower_ssj2008 = 16,437 overall ssj_ops/watt
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Dec 1, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Jan 12, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.2% 14,711,886 817 17,998
90% 89.9% 13,198,610 720 18,335
80% 80.1% 11,760,732 569 20,683
70% 70.0% 10,279,496 503 20,456
60% 60.0% 8,810,923 453 19,464
50% 50.0% 7,342,558 409 17,947
40% 40.0% 5,872,961 368 15,978
30% 30.0% 4,397,186 328 13,391
20% 20.0% 2,933,315 291 10,065
10% 10.0% 1,463,566 252 5,800
Active Idle 0 204 0
∑ssj_ops / ∑power = 16,437

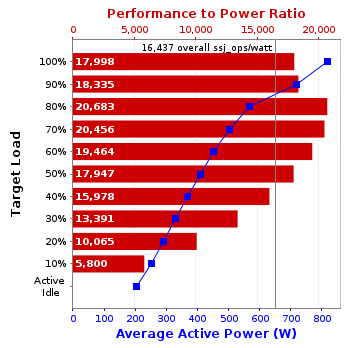

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 1288H V7
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: schedutil
Operating System (OS): Ubuntu 22.04.1 LTS
OS Version: Linux 5.15.0-25-generic x86_64
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.20+9-LTS-256, mixed mode)
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { taskset -C physicalCoreId, physicalCoreId + 120 }
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 01.01.00.05
Management Firmware Version: 3.07.00.29
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 1288Hv5
CPU Description: 2 x E5-2637 V4
Memory amount (GB): 48
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.20+9-LTS-256, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Inc.
Model: WT210
Serial Number: 91M412343
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 1GA23009139-0009
Date of Calibration: 31-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: PCSensor.com
Model: USB9097 + DS18B20
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 817 20.6
90% 720 20.8
80% 569 20.6
70% 503 20.6
60% 453 20.9
50% 409 20.9
40% 368 21.2
30% 328 20.8
20% 291 20.8
10% 252 20.8
Active Idle 204 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 20.6 101
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,770,267
Calibration 2     14,676,544
Calibration 3     14,683,436
ssj_ops@calibrated=14,679,990
100% 100.2% 14,679,990 14,711,886
90% 89.9% 13,211,991 13,198,610
80% 80.1% 11,743,992 11,760,732
70% 70.0% 10,275,993 10,279,496
60% 60.0% 8,807,994 8,810,923
50% 50.0% 7,339,995 7,342,558
40% 40.0% 5,871,996 5,872,961
30% 30.0% 4,403,997 4,397,186
20% 20.0% 2,935,998 2,933,315
10% 10.0% 1,467,999 1,463,566
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
