Supermicro SuperServer SYS-521E-WR SPECpower_ssj2008 = 13,134 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Nov 18, 2023
Hardware Availability: Dec-2023 Software Availability: Dec-2023 Publication: Jan 16, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 560 21.2
Calibration 2 563 22.2
Calibration 3 570 22.7
100% 564 22.9
90% 485 22.8
80% 416 22.6
70% 371 22.4
60% 332 22.1
50% 295 22.0
40% 264 21.8
30% 231 21.7
20% 214 21.6
10% 175 21.5
Active Idle 145 21.4

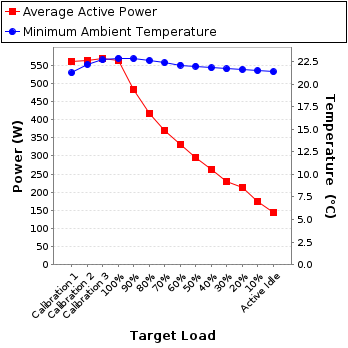

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 2.48 5.0 0.994 560 0.4%
Calibration 2 227 300.0 2.50 5.0 0.994 563 0.4%
Calibration 3 227 300.0 2.52 5.0 0.995 570 0.4%
100% 227 300.0 2.50 5.0 0.994 564 0.4%
90% 227 300.0 2.15 5.0 0.991 485 0.4%
80% 228 300.0 1.85 5.0 0.988 416 0.5%
70% 228 300.0 1.66 5.0 0.986 371 0.5%
60% 228 300.0 1.48 5.0 0.983 332 0.6%
50% 228 300.0 1.32 2.0 0.980 295 0.3%
40% 229 300.0 1.18 2.0 0.978 264 0.4%
30% 229 300.0 1.03 1.0 0.982 231 0.3%
20% 229 300.0 0.956 1.0 0.979 214 0.3%
10% 229 300.0 0.788 1.0 0.968 175 0.3%
Active Idle 229 300.0 0.666 1.0 0.951 145 0.4%
Power details for pwr1
