Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 6,157 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Sep 7, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 109 24.2
Calibration 2 111 24.3
Calibration 3 112 24.3
100% 111 24.4
90% 109 24.4
80% 107 24.4
70% 104 24.5
60% 102 24.4
50% 96.2 24.4
40% 93.1 24.3
30% 90.2 24.2
20% 87.6 24.1
10% 84.4 24.1
Active Idle 67.0 24.0
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 0.652 1.0 0.794 109 0.4%
Calibration 2 211 300.0 0.660 1.0 0.797 111 0.4%
Calibration 3 211 300.0 0.662 1.0 0.798 112 0.4%
100% 211 300.0 0.660 1.0 0.797 111 0.4%
90% 211 300.0 0.651 1.0 0.793 109 0.4%
80% 212 300.0 0.639 1.0 0.789 107 0.4%
70% 212 300.0 0.627 1.0 0.787 104 0.4%
60% 212 300.0 0.614 1.0 0.781 102 0.4%
50% 212 300.0 0.590 1.0 0.770 96.2 0.4%
40% 212 300.0 0.578 1.0 0.762 93.1 0.4%
30% 212 300.0 0.566 1.0 0.753 90.2 0.4%
20% 212 300.0 0.555 0.5 0.745 87.6 0.3%
10% 212 300.0 0.544 0.5 0.734 84.4 0.4%
Active Idle 212 300.0 0.477 0.5 0.664 67.0 0.4%

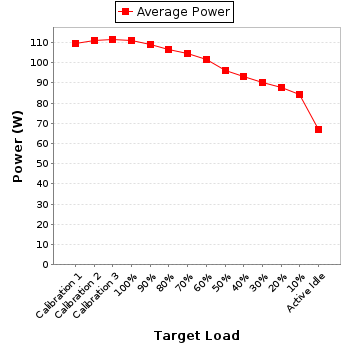

Power details for pwr1
