Supermicro AS-1015SV-WTNRT ssj_ops@100% = 3,178,348
ssj_ops@100% per JVM = 264,862
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Sep 11, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,263,669
Calibration 2     3,206,304
Calibration 3     3,196,695
ssj_ops@calibrated=3,201,500
100% 99.3% 3,201,500 3,178,348
90% 90.0% 2,881,350 2,880,569
80% 80.0% 2,561,200 2,560,374
70% 70.0% 2,241,050 2,241,368
60% 60.1% 1,920,900 1,922,592
50% 49.9% 1,600,750 1,598,025
40% 40.0% 1,280,600 1,279,680
30% 30.1% 960,450 962,092
20% 20.0% 640,300 641,533
10% 10.0% 320,150 320,083
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-1015SV-WTNRT
Form Factor: 1U
CPU Name: AMD EPYC 8224PN
CPU Characteristics: 24-Core, 2.05 GHz, 64MB L3 Cache
CPU Frequency (MHz): 2050
CPU(s) Enabled: 24 cores, 1 chip, 24 cores/chip
Hardware Threads: 48 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 768 KB I + 768 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 860
Power Supply Details: PWS-861A-1R
Disk Drive: 1 x 1TB Samsung SSD 980 PRO
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE[0] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000 ]
JVM Instances: 12
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.01.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
Fan Mode: Standard Speed
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-NLANLN8CQ1G.001 270,560
WIN-NLANLN8CQ1G.002 264,094
WIN-NLANLN8CQ1G.003 261,339
WIN-NLANLN8CQ1G.004 265,841
WIN-NLANLN8CQ1G.005 260,935
WIN-NLANLN8CQ1G.006 263,859
WIN-NLANLN8CQ1G.007 267,817
WIN-NLANLN8CQ1G.008 256,752
WIN-NLANLN8CQ1G.009 268,230
WIN-NLANLN8CQ1G.010 261,262
WIN-NLANLN8CQ1G.011 268,135
WIN-NLANLN8CQ1G.012 269,525
ssj_ops@100% 3,178,348
ssj_ops@100% per JVM 264,862
Graph of per-instance results
JVM 'WIN-NLANLN8CQ1G.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     273,130
Calibration 2     271,753
Calibration 3     272,556
ssj_ops@calibrated=272,154
100% 99.4% 272,154 270,560
90% 89.5% 244,939 243,534
80% 79.6% 217,723 216,753
70% 70.4% 190,508 191,689
60% 60.0% 163,293 163,160
50% 50.1% 136,077 136,341
40% 39.9% 108,862 108,681
30% 29.9% 81,646 81,247
20% 19.9% 54,431 54,070
10% 9.9% 27,215 26,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     271,067
Calibration 2     267,723
Calibration 3     264,619
ssj_ops@calibrated=266,171
100% 99.2% 266,171 264,094
90% 90.2% 239,554 240,103
80% 80.0% 212,937 212,983
70% 69.8% 186,320 185,756
60% 60.3% 159,703 160,472
50% 49.4% 133,085 131,397
40% 39.5% 106,468 105,174
30% 30.1% 79,851 80,067
20% 20.1% 53,234 53,452
10% 10.2% 26,617 27,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     271,441
Calibration 2     264,391
Calibration 3     264,974
ssj_ops@calibrated=264,683
100% 98.7% 264,683 261,339
90% 89.9% 238,214 238,078
80% 79.7% 211,746 210,976
70% 70.4% 185,278 186,292
60% 59.9% 158,810 158,627
50% 49.7% 132,341 131,478
40% 39.9% 105,873 105,519
30% 29.8% 79,405 78,799
20% 20.2% 52,937 53,366
10% 10.3% 26,468 27,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     275,160
Calibration 2     268,010
Calibration 3     267,174
ssj_ops@calibrated=267,592
100% 99.3% 267,592 265,841
90% 90.1% 240,833 241,022
80% 80.3% 214,074 214,810
70% 69.6% 187,314 186,306
60% 60.1% 160,555 160,922
50% 50.1% 133,796 134,106
40% 40.4% 107,037 108,052
30% 30.1% 80,278 80,619
20% 20.2% 53,518 54,169
10% 10.0% 26,759 26,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     270,925
Calibration 2     263,281
Calibration 3     263,642
ssj_ops@calibrated=263,462
100% 99.0% 263,462 260,935
90% 89.6% 237,115 236,026
80% 79.5% 210,769 209,455
70% 69.8% 184,423 183,906
60% 60.2% 158,077 158,680
50% 49.6% 131,731 130,743
40% 39.9% 105,385 105,072
30% 30.0% 79,038 79,083
20% 19.8% 52,692 52,103
10% 10.0% 26,346 26,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

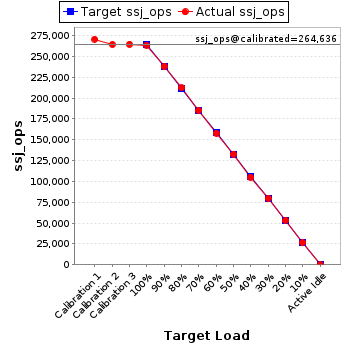

JVM 'WIN-NLANLN8CQ1G.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     270,787
Calibration 2     264,364
Calibration 3     264,907
ssj_ops@calibrated=264,636
100% 99.7% 264,636 263,859
90% 90.1% 238,172 238,337
80% 80.2% 211,708 212,288
70% 70.1% 185,245 185,422
60% 59.7% 158,781 157,995
50% 50.2% 132,318 132,837
40% 39.8% 105,854 105,224
30% 30.2% 79,391 79,913
20% 20.2% 52,927 53,491
10% 10.0% 26,464 26,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

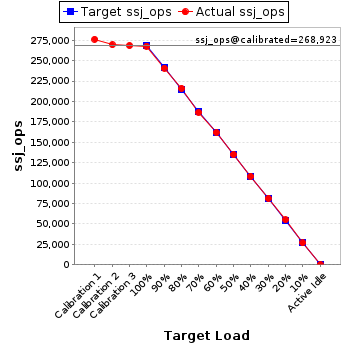

JVM 'WIN-NLANLN8CQ1G.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     276,198
Calibration 2     269,370
Calibration 3     268,476
ssj_ops@calibrated=268,923
100% 99.6% 268,923 267,817
90% 89.6% 242,030 240,867
80% 80.4% 215,138 216,090
70% 69.4% 188,246 186,607
60% 60.3% 161,354 162,078
50% 50.2% 134,461 134,890
40% 40.3% 107,569 108,243
30% 30.2% 80,677 81,296
20% 20.4% 53,785 54,935
10% 9.9% 26,892 26,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     261,915
Calibration 2     260,844
Calibration 3     258,272
ssj_ops@calibrated=259,558
100% 98.9% 259,558 256,752
90% 90.4% 233,603 234,605
80% 80.2% 207,647 208,100
70% 70.0% 181,691 181,758
60% 60.2% 155,735 156,268
50% 50.2% 129,779 130,404
40% 40.1% 103,823 104,091
30% 30.2% 77,868 78,373
20% 20.0% 51,912 51,928
10% 9.8% 25,956 25,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

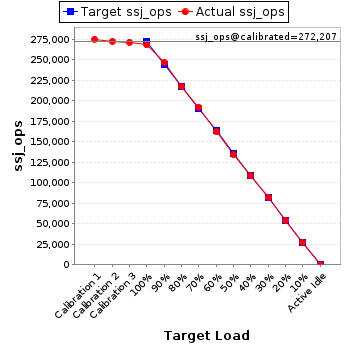

JVM 'WIN-NLANLN8CQ1G.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     275,242
Calibration 2     272,774
Calibration 3     271,640
ssj_ops@calibrated=272,207
100% 98.5% 272,207 268,230
90% 90.6% 244,986 246,716
80% 79.9% 217,766 217,610
70% 70.7% 190,545 192,322
60% 59.7% 163,324 162,496
50% 49.5% 136,103 134,727
40% 39.8% 108,883 108,339
30% 30.2% 81,662 82,201
20% 19.8% 54,441 53,949
10% 10.1% 27,221 27,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     270,440
Calibration 2     262,434
Calibration 3     262,204
ssj_ops@calibrated=262,319
100% 99.6% 262,319 261,262
90% 89.7% 236,087 235,338
80% 80.5% 209,855 211,061
70% 69.8% 183,623 183,096
60% 60.3% 157,391 158,126
50% 50.0% 131,160 131,047
40% 40.3% 104,928 105,608
30% 30.2% 78,696 79,304
20% 19.9% 52,464 52,079
10% 10.1% 26,232 26,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     273,781
Calibration 2     268,839
Calibration 3     268,574
ssj_ops@calibrated=268,706
100% 99.8% 268,706 268,135
90% 90.0% 241,836 241,894
80% 79.4% 214,965 213,220
70% 70.6% 188,094 189,617
60% 59.6% 161,224 160,188
50% 50.0% 134,353 134,317
40% 39.8% 107,483 106,972
30% 29.8% 80,612 80,208
20% 20.1% 53,741 53,887
10% 10.0% 26,871 26,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     273,583
Calibration 2     272,521
Calibration 3     269,658
ssj_ops@calibrated=271,090
100% 99.4% 271,090 269,525
90% 90.0% 243,981 244,049
80% 80.1% 216,872 217,027
70% 69.6% 189,763 188,598
60% 60.3% 162,654 163,581
50% 50.1% 135,545 135,738
40% 40.1% 108,436 108,705
30% 29.9% 81,327 80,983
20% 20.0% 54,218 54,103
10% 9.8% 27,109 26,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
