Supermicro AS-1115SV-WTNRT SPECpower_ssj2008 = 22,287 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 17, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 234 27.9
Calibration 2 237 28.4
Calibration 3 236 28.9
100% 236 29.4
90% 222 29.7
80% 208 29.9
70% 191 30.0
60% 163 29.9
50% 152 29.8
40% 142 29.6
30% 132 29.3
20% 120 29.1
10% 106 28.8
Active Idle 74.7 28.5

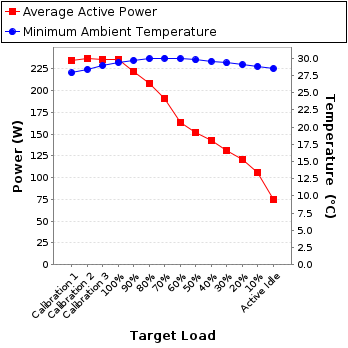

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 1.19 2.0 0.927 234 0.3%
Calibration 2 212 300.0 1.20 2.0 0.928 237 0.3%
Calibration 3 213 300.0 1.19 2.0 0.928 236 0.3%
100% 213 300.0 1.20 2.0 0.928 236 0.3%
90% 213 300.0 1.13 2.0 0.922 222 0.3%
80% 213 300.0 1.07 2.0 0.912 208 0.3%
70% 213 300.0 0.998 2.0 0.899 191 0.3%
60% 213 300.0 0.875 2.0 0.877 163 0.4%
50% 213 300.0 0.828 2.0 0.866 152 0.4%
40% 212 300.0 0.789 2.0 0.853 142 0.4%
30% 212 300.0 0.744 1.0 0.835 132 0.3%
20% 212 300.0 0.696 1.0 0.815 120 0.3%
10% 212 300.0 0.636 1.0 0.789 106 0.4%
Active Idle 212 300.0 0.508 1.0 0.694 74.7 0.5%
Power details for pwr1
