Supermicro AS-1015SV-WTNRT ssj_ops@100% = 4,363,653
ssj_ops@100% per JVM = 272,728
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 17, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,468,592
Calibration 2     4,391,852
Calibration 3     4,383,882
ssj_ops@calibrated=4,387,867
100% 99.4% 4,387,867 4,363,653
90% 90.0% 3,949,080 3,950,884
80% 79.9% 3,510,293 3,505,247
70% 69.9% 3,071,507 3,065,810
60% 59.9% 2,632,720 2,628,855
50% 50.0% 2,193,933 2,192,338
40% 39.9% 1,755,147 1,752,188
30% 30.1% 1,316,360 1,319,735
20% 20.0% 877,573 875,450
10% 10.0% 438,787 437,286
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-1015SV-WTNRT
Form Factor: 1U
CPU Name: AMD EPYC 8324P
CPU Characteristics: 32-Core, 2.65 GHz, 128MB L3 Cache
CPU Frequency (MHz): 2650
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 1 MB I + 1 MB D on chip per core
Secondary Cache: 32 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 860
Power Supply Details: PWS-861A-1R
Disk Drive: 1 x 1TB Samsung SSD 980 PRO
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE[0] /AFFINITY [ [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000, 0xF000000000000, 0xF0000000000000, 0xF00000000000000, 0xF000000000000000 ]
JVM Instances: 16
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.01.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
Fan Mode: Standard Speed
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-NLANLN8CQ1G.001 272,969
WIN-NLANLN8CQ1G.002 272,096
WIN-NLANLN8CQ1G.003 273,726
WIN-NLANLN8CQ1G.004 269,011
WIN-NLANLN8CQ1G.005 272,151
WIN-NLANLN8CQ1G.006 276,494
WIN-NLANLN8CQ1G.007 269,843
WIN-NLANLN8CQ1G.008 276,386
WIN-NLANLN8CQ1G.009 269,674
WIN-NLANLN8CQ1G.010 273,667
WIN-NLANLN8CQ1G.011 275,121
WIN-NLANLN8CQ1G.012 275,502
WIN-NLANLN8CQ1G.013 278,204
WIN-NLANLN8CQ1G.014 265,164
WIN-NLANLN8CQ1G.015 269,328
WIN-NLANLN8CQ1G.016 274,317
ssj_ops@100% 4,363,653
ssj_ops@100% per JVM 272,728

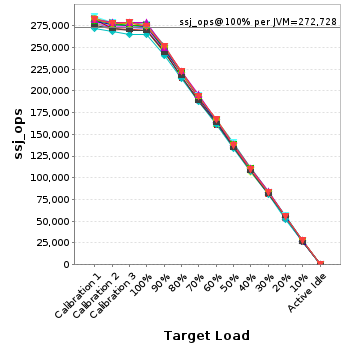

Graph of per-instance results
JVM 'WIN-NLANLN8CQ1G.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     276,382
Calibration 2     274,841
Calibration 3     273,409
ssj_ops@calibrated=274,125
100% 99.6% 274,125 272,969
90% 90.5% 246,712 248,200
80% 80.0% 219,300 219,178
70% 70.5% 191,887 193,187
60% 60.2% 164,475 165,055
50% 50.0% 137,062 137,171
40% 40.2% 109,650 110,109
30% 30.0% 82,237 82,123
20% 19.9% 54,825 54,428
10% 10.1% 27,412 27,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     276,568
Calibration 2     272,292
Calibration 3     273,162
ssj_ops@calibrated=272,727
100% 99.8% 272,727 272,096
90% 89.9% 245,454 245,062
80% 80.0% 218,182 218,283
70% 69.3% 190,909 188,983
60% 59.9% 163,636 163,457
50% 49.8% 136,364 135,776
40% 40.0% 109,091 109,128
30% 30.1% 81,818 82,207
20% 19.7% 54,545 53,628
10% 10.0% 27,273 27,168
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

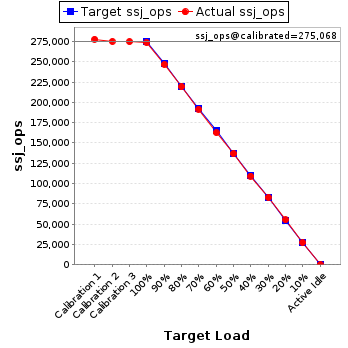

JVM 'WIN-NLANLN8CQ1G.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     277,919
Calibration 2     275,217
Calibration 3     274,919
ssj_ops@calibrated=275,068
100% 99.5% 275,068 273,726
90% 89.7% 247,561 246,725
80% 79.7% 220,054 219,355
70% 69.7% 192,548 191,763
60% 59.1% 165,041 162,680
50% 49.7% 137,534 136,669
40% 39.7% 110,027 109,265
30% 30.1% 82,520 82,898
20% 20.1% 55,014 55,183
10% 10.0% 27,507 27,372
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     276,358
Calibration 2     270,295
Calibration 3     270,303
ssj_ops@calibrated=270,299
100% 99.5% 270,299 269,011
90% 89.7% 243,269 242,471
80% 80.8% 216,239 218,413
70% 69.9% 189,209 189,038
60% 60.4% 162,179 163,211
50% 50.3% 135,149 136,023
40% 39.3% 108,119 106,328
30% 30.1% 81,090 81,355
20% 19.9% 54,060 53,857
10% 9.8% 27,030 26,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

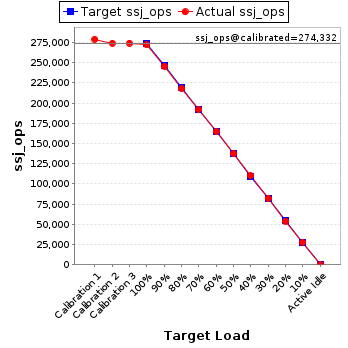

JVM 'WIN-NLANLN8CQ1G.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     279,095
Calibration 2     274,226
Calibration 3     274,438
ssj_ops@calibrated=274,332
100% 99.2% 274,332 272,151
90% 89.6% 246,899 245,823
80% 79.4% 219,465 217,952
70% 70.1% 192,032 192,238
60% 60.1% 164,599 164,865
50% 50.0% 137,166 137,216
40% 40.1% 109,733 110,100
30% 30.0% 82,300 82,189
20% 19.7% 54,866 54,061
10% 10.1% 27,433 27,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     285,616
Calibration 2     278,938
Calibration 3     278,061
ssj_ops@calibrated=278,500
100% 99.3% 278,500 276,494
90% 89.8% 250,650 250,112
80% 79.3% 222,800 220,981
70% 69.9% 194,950 194,762
60% 59.4% 167,100 165,519
50% 50.3% 139,250 140,007
40% 39.7% 111,400 110,519
30% 29.7% 83,550 82,840
20% 20.4% 55,700 56,774
10% 10.1% 27,850 28,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     277,423
Calibration 2     269,854
Calibration 3     270,689
ssj_ops@calibrated=270,271
100% 99.8% 270,271 269,843
90% 90.4% 243,244 244,388
80% 80.4% 216,217 217,330
70% 70.4% 189,190 190,183
60% 60.1% 162,163 162,330
50% 50.1% 135,136 135,494
40% 40.6% 108,109 109,728
30% 30.4% 81,081 82,132
20% 20.1% 54,054 54,285
10% 10.0% 27,027 27,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     283,637
Calibration 2     278,266
Calibration 3     278,082
ssj_ops@calibrated=278,174
100% 99.4% 278,174 276,386
90% 90.5% 250,357 251,849
80% 79.3% 222,539 220,650
70% 69.6% 194,722 193,524
60% 60.1% 166,904 167,202
50% 50.0% 139,087 139,098
40% 40.3% 111,270 112,187
30% 30.2% 83,452 83,913
20% 20.1% 55,635 55,900
10% 10.1% 27,817 28,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     281,858
Calibration 2     271,659
Calibration 3     270,925
ssj_ops@calibrated=271,292
100% 99.4% 271,292 269,674
90% 90.3% 244,163 245,034
80% 79.6% 217,034 215,861
70% 69.9% 189,904 189,688
60% 59.6% 162,775 161,736
50% 50.2% 135,646 136,064
40% 39.8% 108,517 107,849
30% 30.2% 81,388 81,815
20% 19.9% 54,258 53,945
10% 9.9% 27,129 26,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     279,935
Calibration 2     275,779
Calibration 3     275,202
ssj_ops@calibrated=275,490
100% 99.3% 275,490 273,667
90% 90.0% 247,941 247,888
80% 80.0% 220,392 220,399
70% 69.7% 192,843 192,056
60% 59.4% 165,294 163,598
50% 49.8% 137,745 137,154
40% 40.2% 110,196 110,833
30% 30.0% 82,647 82,780
20% 19.8% 55,098 54,625
10% 9.8% 27,549 26,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     280,841
Calibration 2     277,122
Calibration 3     275,662
ssj_ops@calibrated=276,392
100% 99.5% 276,392 275,121
90% 89.9% 248,752 248,345
80% 80.6% 221,113 222,805
70% 69.9% 193,474 193,295
60% 60.0% 165,835 165,707
50% 50.0% 138,196 138,304
40% 39.9% 110,557 110,200
30% 30.1% 82,917 83,206
20% 20.2% 55,278 55,765
10% 10.0% 27,639 27,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     282,725
Calibration 2     277,064
Calibration 3     277,472
ssj_ops@calibrated=277,268
100% 99.4% 277,268 275,502
90% 90.3% 249,541 250,434
80% 79.2% 221,814 219,555
70% 69.7% 194,088 193,314
60% 60.3% 166,361 167,080
50% 50.0% 138,634 138,628
40% 39.8% 110,907 110,307
30% 30.1% 83,180 83,443
20% 19.6% 55,454 54,330
10% 9.9% 27,727 27,455
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

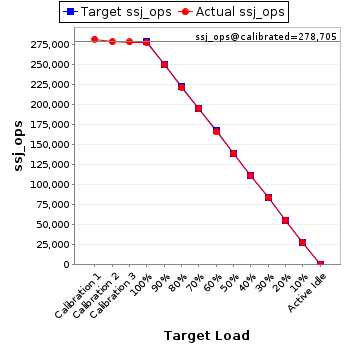

JVM 'WIN-NLANLN8CQ1G.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     281,944
Calibration 2     278,919
Calibration 3     278,492
ssj_ops@calibrated=278,705
100% 99.8% 278,705 278,204
90% 89.7% 250,835 250,070
80% 79.7% 222,964 222,078
70% 70.1% 195,094 195,298
60% 59.5% 167,223 165,955
50% 49.8% 139,353 138,810
40% 39.8% 111,482 110,967
30% 30.0% 83,612 83,708
20% 19.9% 55,741 55,545
10% 9.9% 27,871 27,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     272,097
Calibration 2     268,576
Calibration 3     265,325
ssj_ops@calibrated=266,951
100% 99.3% 266,951 265,164
90% 89.9% 240,255 240,073
80% 80.2% 213,560 214,133
70% 70.1% 186,865 187,206
60% 60.2% 160,170 160,713
50% 50.2% 133,475 134,066
40% 40.1% 106,780 107,045
30% 30.3% 80,085 80,781
20% 19.7% 53,390 52,513
10% 10.0% 26,695 26,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     274,696
Calibration 2     271,643
Calibration 3     269,669
ssj_ops@calibrated=270,656
100% 99.5% 270,656 269,328
90% 90.1% 243,590 243,763
80% 80.0% 216,525 216,526
70% 69.6% 189,459 188,242
60% 60.3% 162,394 163,138
50% 49.7% 135,328 134,622
40% 39.9% 108,262 107,951
30% 29.9% 81,197 81,016
20% 20.5% 54,131 55,419
10% 9.8% 27,066 26,415
Active Idle   0 0

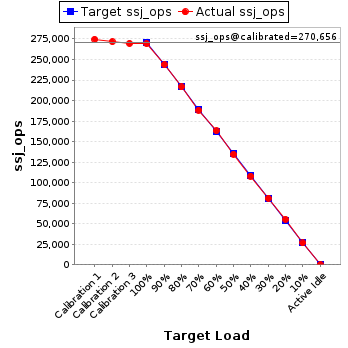

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     281,499
Calibration 2     277,162
Calibration 3     278,072
ssj_ops@calibrated=277,617
100% 98.8% 277,617 274,317
90% 90.3% 249,856 250,645
80% 79.9% 222,094 221,748
70% 69.5% 194,332 193,035
60% 60.0% 166,570 166,608
50% 49.4% 138,809 137,238
40% 39.5% 111,047 109,671
30% 30.0% 83,285 83,327
20% 19.9% 55,523 55,193
10% 10.1% 27,762 27,903
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
