Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 16,711 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Aug 17, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 174 25.7
Calibration 2 176 25.8
Calibration 3 176 26.2
100% 176 26.6
90% 170 26.8
80% 163 27.1
70% 154 27.2
60% 139 27.2
50% 130 27.1
40% 122 27.1
30% 115 26.9
20% 106 26.8
10% 96.9 26.6
Active Idle 69.1 26.5

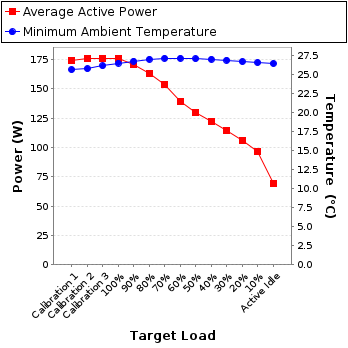

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: TESCOM
Accredited by: 12-May-2023
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 0.875 2.0 0.938 174 0.3%
Calibration 2 212 300.0 0.883 2.0 0.939 176 0.3%
Calibration 3 212 300.0 0.883 2.0 0.939 176 0.3%
100% 212 300.0 0.884 2.0 0.939 176 0.3%
90% 212 300.0 0.857 2.0 0.937 170 0.3%
80% 212 300.0 0.824 2.0 0.934 163 0.4%
70% 212 300.0 0.781 2.0 0.930 154 0.4%
60% 212 300.0 0.713 2.0 0.919 139 0.4%
50% 212 300.0 0.675 2.0 0.909 130 0.4%
40% 212 300.0 0.641 2.0 0.901 122 0.4%
30% 212 300.0 0.606 1.0 0.894 115 0.3%
20% 212 300.0 0.564 1.0 0.886 106 0.3%
10% 212 300.0 0.521 1.0 0.877 96.9 0.4%
Active Idle 212 300.0 0.400 1.0 0.815 69.1 0.4%

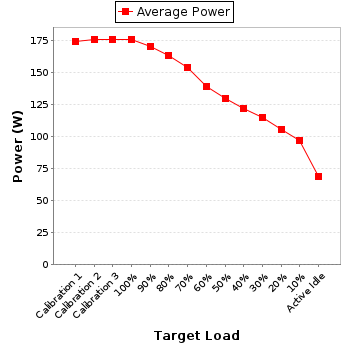

Power details for pwr1
