SPECpower_ssj2008 JVM Instance 'localhost.101' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.101' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 204,868
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

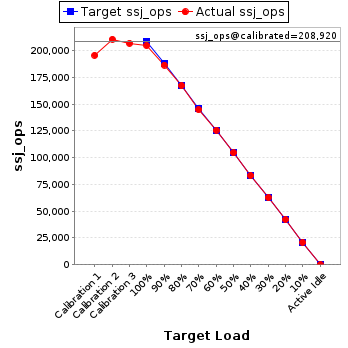

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			195,793
Calibration 2			210,766
Calibration 3			207,075
ssj_ops@calibrated=208,920
100%	98.1%	208,920	204,868
90%	89.3%	188,028	186,660
80%	80.1%	167,136	167,332
70%	69.4%	146,244	144,924
60%	60.2%	125,352	125,781
50%	50.0%	104,460	104,519
40%	39.8%	83,568	83,165
30%	30.0%	62,676	62,700
20%	20.2%	41,784	42,223
10%	10.0%	20,892	20,942
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,239,783	1,986
		Payment	14,239,789
		Order Status	1,423,980
		Delivery	1,423,981
		Stock Level	1,423,979
		Customer Report	14,239,790
Calibration 2		New Order	15,328,904	1,986
		Payment	15,328,894
		Order Status	1,532,890
		Delivery	1,532,891
		Stock Level	1,532,889
		Customer Report	15,328,895
Calibration 3		New Order	15,059,979	1,986
		Payment	15,059,986
		Order Status	1,505,999
		Delivery	1,505,998
		Stock Level	1,505,999
		Customer Report	15,059,981
100%	98.1%	New Order	14,899,519	1,986
		Payment	14,899,523
		Order Status	1,489,951
		Delivery	1,489,951
		Stock Level	1,489,952
		Customer Report	14,899,521
90%	89.3%	New Order	13,575,338	1,986
		Payment	13,575,344
		Order Status	1,357,534
		Delivery	1,357,534
		Stock Level	1,357,534
		Customer Report	13,575,338
80%	80.1%	New Order	12,169,589	1,986
		Payment	12,169,579
		Order Status	1,216,959
		Delivery	1,216,958
		Stock Level	1,216,958
		Customer Report	12,169,583
70%	69.4%	New Order	10,540,431	1,986
		Payment	10,540,430
		Order Status	1,054,042
		Delivery	1,054,042
		Stock Level	1,054,044
		Customer Report	10,540,427
60%	60.2%	New Order	9,147,719	1,986
		Payment	9,147,723
		Order Status	914,771
		Delivery	914,775
		Stock Level	914,773
		Customer Report	9,147,722
50%	50.0%	New Order	7,601,358	1,986
		Payment	7,601,363
		Order Status	760,135
		Delivery	760,136
		Stock Level	760,134
		Customer Report	7,601,363
40%	39.8%	New Order	6,048,522	1,986
		Payment	6,048,526
		Order Status	604,853
		Delivery	604,852
		Stock Level	604,853
		Customer Report	6,048,514
30%	30.0%	New Order	4,560,034	1,986
		Payment	4,560,038
		Order Status	456,004
		Delivery	456,004
		Stock Level	456,002
		Customer Report	4,560,033
20%	20.2%	New Order	3,070,734	1,986
		Payment	3,070,740
		Order Status	307,073
		Delivery	307,075
		Stock Level	307,075
		Customer Report	3,070,735
10%	10.0%	New Order	1,523,073	1,986
		Payment	1,523,073
		Order Status	152,308
		Delivery	152,305
		Stock Level	152,309
		Customer Report	1,523,066
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
