Supermicro GIGABYTE R152-P31 SPECpower_ssj2008 = 10,427 overall ssj_ops/watt
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 20, 2023
Hardware Availability: Sep-2022 Software Availability: Jan-2022 Publication: Jun 9, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 262 23.2
Calibration 2 268 23.2
Calibration 3 269 23.3
100% 268 23.5
90% 235 23.8
80% 217 24.1
70% 200 24.4
60% 185 24.8
50% 170 25.1
40% 154 25.3
30% 140 25.4
20% 126 25.2
10% 113 24.9
Active Idle 79.0 24.6

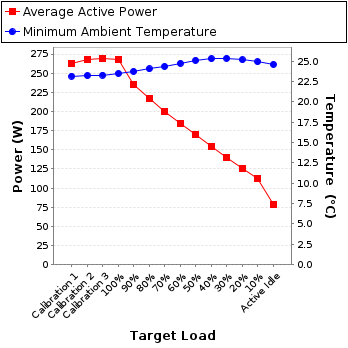

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2XM03068V
Connectivity: USB2
Input Connection: Default
Metrology Institute: NIST
Accredited by: TESCOM
Calibration Label: T114528
Date of Calibration: 12-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 1.31 5.0 0.941 262 0.4%
Calibration 2 212 300.0 1.34 5.0 0.944 268 0.4%
Calibration 3 212 300.0 1.35 5.0 0.944 269 0.4%
100% 212 300.0 1.34 5.0 0.943 268 0.4%
90% 212 300.0 1.19 5.0 0.934 235 0.5%
80% 212 300.0 1.10 2.0 0.927 217 0.3%
70% 212 300.0 1.03 2.0 0.919 200 0.3%
60% 212 300.0 0.958 2.0 0.910 185 0.3%
50% 211 300.0 0.894 2.0 0.901 170 0.4%
40% 211 300.0 0.824 2.0 0.888 154 0.4%
30% 211 300.0 0.756 2.0 0.875 140 0.4%
20% 212 300.0 0.691 2.0 0.862 126 0.4%
10% 212 300.0 0.629 2.0 0.847 113 0.5%
Active Idle 212 300.0 0.477 1.0 0.783 79.0 0.4%

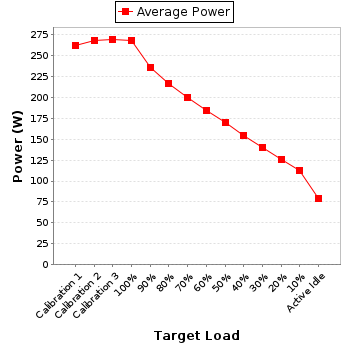

Power details for pwr1
