Dell Inc. PowerEdge XR11 (Intel Xeon Gold 6338N, 2.20 GHz) | SPECpower_ssj2008 = 6,466 overall ssj_ops/watt | ||||
Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 13, 2023 |
Hardware Availability: | Jun-2021 | Software Availability: | May-2022 | Publication: | May 11, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

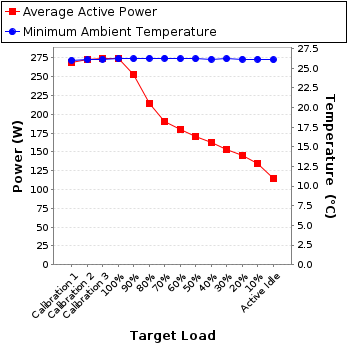

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 269 | 26.0 |
Calibration 2 | 273 | 26.1 |
Calibration 3 | 274 | 26.1 |
100% | 274 | 26.2 |
90% | 253 | 26.2 |
80% | 214 | 26.2 |
70% | 191 | 26.2 |
60% | 180 | 26.2 |
50% | 171 | 26.2 |
40% | 162 | 26.1 |
30% | 153 | 26.2 |
20% | 145 | 26.1 |
10% | 135 | 26.1 |
Active Idle | 114 | 26.1 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91K308530 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TesCom |
Calibration Label: | T75067 |
Date of Calibration: | 25-Oct-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.10.0-82175bac-20220817 |
Setup Description: | Connected to power supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 202 | 300.0 | 1.36 | 2.0 | 0.975 | 269 | 0.4% |
Calibration 2 | 202 | 300.0 | 1.39 | 2.0 | 0.976 | 273 | 0.4% |
Calibration 3 | 202 | 300.0 | 1.39 | 2.0 | 0.976 | 274 | 0.4% |
100% | 202 | 300.0 | 1.39 | 2.0 | 0.976 | 274 | 0.4% |
90% | 202 | 300.0 | 1.29 | 2.0 | 0.969 | 253 | 0.4% |
80% | 202 | 300.0 | 1.12 | 2.0 | 0.952 | 214 | 0.5% |
70% | 202 | 300.0 | 0.997 | 2.0 | 0.944 | 191 | 0.5% |
60% | 203 | 300.0 | 0.943 | 2.0 | 0.942 | 180 | 0.6% |
50% | 203 | 300.0 | 0.893 | 2.0 | 0.942 | 171 | 0.6% |
40% | 203 | 300.0 | 0.851 | 1.0 | 0.940 | 162 | 0.4% |
30% | 203 | 300.0 | 0.808 | 1.0 | 0.937 | 153 | 0.4% |
20% | 203 | 300.0 | 0.766 | 1.0 | 0.934 | 145 | 0.4% |
10% | 203 | 300.0 | 0.719 | 1.0 | 0.927 | 135 | 0.5% |
Active Idle | 203 | 300.0 | 0.621 | 1.0 | 0.910 | 114 | 0.5% |
