SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380a Gen11 | SPECpower_ssj2008 = 12,745 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 20, 2023 |
| Hardware Availability: | Mar-2023 | Software Availability: | Mar-2023 | Publication: | May 3, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

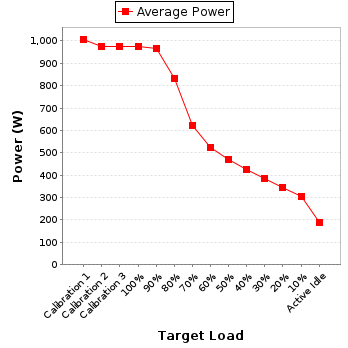

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,008 | 24.2 |
| Calibration 2 | 975 | 24.2 |
| Calibration 3 | 973 | 24.5 |
| 100% | 977 | 24.6 |
| 90% | 967 | 24.8 |
| 80% | 833 | 24.8 |
| 70% | 620 | 24.9 |
| 60% | 525 | 24.8 |
| 50% | 472 | 24.8 |
| 40% | 427 | 24.6 |
| 30% | 385 | 24.6 |
| 20% | 346 | 24.4 |
| 10% | 305 | 24.4 |
| Active Idle | 190 | 24.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QG23050V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GR9ET-60-1 |
| Date of Calibration: | 17-May-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 4.81 | 5.0 | 0.992 | 1,008 | 0.3% |
| Calibration 2 | 211 | 300.0 | 4.65 | 5.0 | 0.993 | 975 | 0.3% |
| Calibration 3 | 211 | 300.0 | 4.64 | 5.0 | 0.993 | 973 | 0.3% |
| 100% | 211 | 300.0 | 4.66 | 5.0 | 0.993 | 977 | 0.3% |
| 90% | 211 | 300.0 | 4.63 | 5.0 | 0.990 | 967 | 0.3% |
| 80% | 211 | 300.0 | 3.98 | 5.0 | 0.993 | 833 | 0.3% |
| 70% | 211 | 300.0 | 2.99 | 5.0 | 0.988 | 620 | 0.4% |
| 60% | 212 | 300.0 | 2.51 | 5.0 | 0.989 | 525 | 0.4% |
| 50% | 211 | 300.0 | 2.26 | 5.0 | 0.988 | 472 | 0.5% |
| 40% | 212 | 300.0 | 2.05 | 2.0 | 0.985 | 427 | 0.3% |
| 30% | 212 | 300.0 | 1.85 | 2.0 | 0.983 | 385 | 0.3% |
| 20% | 212 | 300.0 | 1.67 | 2.0 | 0.981 | 346 | 0.3% |
| 10% | 211 | 300.0 | 1.48 | 2.0 | 0.979 | 305 | 0.3% |
| Active Idle | 211 | 300.0 | 0.946 | 2.0 | 0.952 | 190 | 0.5% |
