SPECpower_ssj2008

Dell Inc. PowerEdge XR8620T (Intel Xeon Gold 6421N, 1.80 GHz)			SPECpower_ssj2008 = 9,994 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Multi Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Mar 11, 2023
Hardware Availability:	May-2023	Software Availability:	Aug-2022	Publication:	Mar 29, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
2	2	64	128	256	2	64

Shared Hardware
Enclosure:	XR8000
Form Factor:	2U
Power Supply Quantity and Rating (W):	2 x 1400
Power Supply Details:	1400W, Dell p/n K3RY3
Network Switch:	None
Network Switch Details:	None
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	None

Hardware per Node
Hardware Vendor:	Dell Inc.
Model:	PowerEdge XR8620T (Intel Xeon Gold 6421N, 1.80 GHz)
Form Factor:	2U
CPU Name:	Intel Xeon Gold 6421N
CPU Characteristics:	32-Core, 1.80GHz, 60MB L3 Cache
CPU Frequency (MHz):	1800
CPU(s) Enabled:	32 cores, 1 chip, 32 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16 GB
Memory Details:	16GB 1Rx8 PC5-4800B-UA0. Slots A1-8 populated.
Power Supply Quantity and Rating (W):	2 x 1400
Power Supply Details:	1400W, Dell p/n K3RY3
Disk Drive:	1 x 480 GB SATA M.2 stick, Dell p/n 08M01
Disk Controller:	BOSS controller card, Dell p/n DHFTR
# and type of Network Interface Cards (NICs) Installed:	Onboard 1 x Dual Port Intel E810
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Power saver power plan enabled in OS
Operating System (OS):	Microsoft Windows Server 2022 Standard 21H2
OS Version:	20348.1487
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
JVM Command-line Options:	-server -Xms3328m -Xmx3584m -Xmn3584m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000]
JVM Instances:	32
JVM Initial Heap (MB):	3584
JVM Maximum Heap (MB):	3584
JVM Address Bits:	64
Boot Firmware Version:	1.0.0
Management Firmware Version:	6.10.43.00 (Build A00)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	N/A

none

Each JVM instance was bound to 2 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains Intel microcode version 000000009001002b for the Intel Xeon 6421N processor

Software
Operating System (OS):	Windows Server 2022 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91JB09482
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T97126
Date of Calibration:	25-Oct-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	6.5.1.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

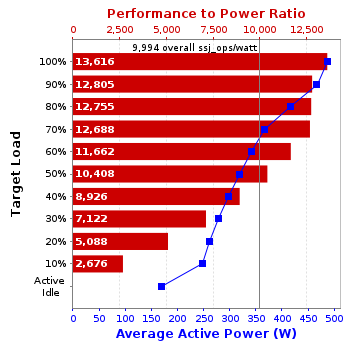

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	487	22.8
90%	467	22.8
80%	416	22.8
70%	366	22.8
60%	342	22.8
50%	319	22.8
40%	298	22.8
30%	280	22.7
20%	262	22.7
10%	248	22.7
Active Idle	170	22.7

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	22.7	255

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
