SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX2550 M7 | SPECpower_ssj2008 = 13,055 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Feb 1, 2023 |
| Hardware Availability: | Mar-2023 | Software Availability: | Aug-2022 | Publication: | Feb 15, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

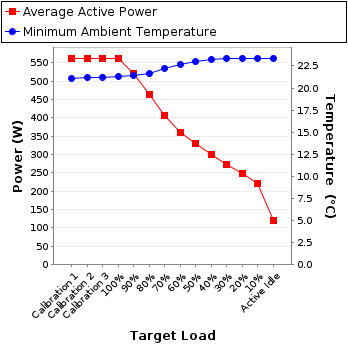

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 562 | 21.1 |
| Calibration 2 | 562 | 21.2 |
| Calibration 3 | 563 | 21.2 |
| 100% | 563 | 21.3 |
| 90% | 520 | 21.4 |
| 80% | 463 | 21.6 |
| 70% | 406 | 22.2 |
| 60% | 362 | 22.7 |
| 50% | 329 | 23.0 |
| 40% | 300 | 23.2 |
| 30% | 273 | 23.4 |
| 20% | 249 | 23.4 |
| 10% | 222 | 23.4 |
| Active Idle | 120 | 23.4 |

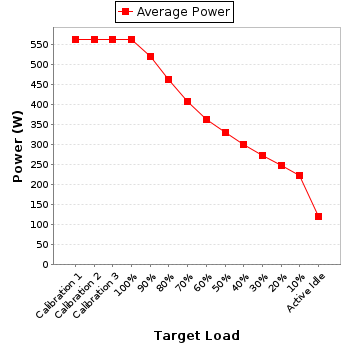

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | CF223000537 |
| Date of Calibration: | 14-Mar-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 3.02 | 5.0 | 0.920 | 562 | 0.3% |
| Calibration 2 | 202 | 300.0 | 3.03 | 5.0 | 0.921 | 562 | 0.3% |
| Calibration 3 | 202 | 300.0 | 3.03 | 5.0 | 0.921 | 563 | 0.3% |
| 100% | 202 | 300.0 | 3.03 | 5.0 | 0.921 | 563 | 0.3% |
| 90% | 202 | 300.0 | 2.82 | 5.0 | 0.911 | 520 | 0.3% |
| 80% | 202 | 300.0 | 2.55 | 5.0 | 0.898 | 463 | 0.3% |
| 70% | 203 | 300.0 | 2.27 | 5.0 | 0.884 | 406 | 0.3% |
| 60% | 203 | 300.0 | 2.04 | 5.0 | 0.874 | 362 | 0.4% |
| 50% | 203 | 300.0 | 1.87 | 5.0 | 0.867 | 329 | 0.4% |
| 40% | 203 | 300.0 | 1.72 | 5.0 | 0.857 | 300 | 0.4% |
| 30% | 203 | 300.0 | 1.59 | 5.0 | 0.847 | 273 | 0.4% |
| 20% | 203 | 300.0 | 1.46 | 2.0 | 0.837 | 249 | 0.3% |
| 10% | 203 | 300.0 | 1.33 | 2.0 | 0.825 | 222 | 0.3% |
| Active Idle | 203 | 300.0 | 0.812 | 2.0 | 0.730 | 120 | 0.4% |
