SPECpower_ssj2008

Lenovo Global Technology Think System SR655 V3			SPECpower_ssj2008 = 27,142 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	Feb 1, 2023
Hardware Availability:	Apr-2023	Software Availability:	Jan-2023	Publication:	Feb 15, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR655 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9654 2.40GHz
CPU Characteristics:	96-Core, 2.40GHz, 384MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	96 cores, 1 chip, 96 cores/chip
Hardware Threads:	192 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 12 populated
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:4P57A82019
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem Ethernet 1GbE 4-Port Adapter
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1487)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-11] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	48
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	KAE105L
Management Firmware Version:	KAX311A
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5022291

none

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 1111100A00000000 for the AMD EPYC 9654 processor

Software
Operating System (OS):	Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.2268)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3SH31009E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label:	J202210116758A-0004
Date of Calibration:	19-Oct-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

SPECpower_ssj.props input.load_level.number_warehouses set to 192 due to a known inconsistency in processor reporting with this Java version.

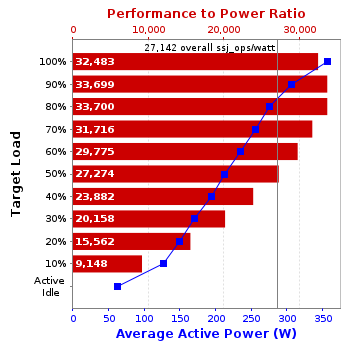

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	356	22.2
90%	307	22.4
80%	275	22.4
70%	256	22.4
60%	234	22.4
50%	213	22.4
40%	194	22.4
30%	170	22.2
20%	150	22.0
10%	126	21.9
Active Idle	62.8	22.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.9	43

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
