SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 | SPECpower_ssj2008 = 16,653 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Dec 7, 2022 |
| Hardware Availability: | Jan-2023 | Software Availability: | Aug-2022 | Publication: | Jan 10, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 831 | 25.6 |
| Calibration 2 | 834 | 25.4 |
| Calibration 3 | 836 | 25.4 |
| 100% | 836 | 25.3 |
| 90% | 678 | 25.2 |
| 80% | 571 | 25.4 |
| 70% | 426 | 25.5 |
| 60% | 390 | 25.5 |
| 50% | 358 | 25.3 |
| 40% | 327 | 25.2 |
| 30% | 295 | 25.1 |
| 20% | 269 | 25.1 |
| 10% | 231 | 25.1 |
| Active Idle | 147 | 25.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M838229 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 1GA22006887-0003 |
| Date of Calibration: | 18-Jul-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | PCSensor.com |
| Model: | USB9097 + DS18B20 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |

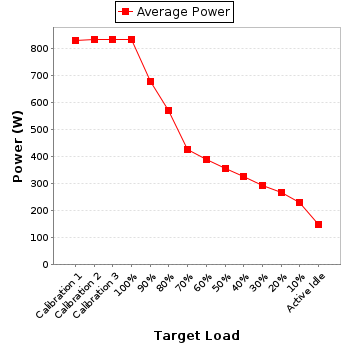

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 224 | 300.0 | 3.75 | 5.0 | 0.989 | 831 | 0.4% |
| Calibration 2 | 226 | 300.0 | 3.74 | 5.0 | 0.989 | 834 | 0.4% |
| Calibration 3 | 226 | 300.0 | 3.74 | 5.0 | 0.989 | 836 | 0.4% |
| 100% | 226 | 300.0 | 3.74 | 5.0 | 0.989 | 836 | 0.4% |
| 90% | 226 | 300.0 | 3.06 | 5.0 | 0.985 | 678 | 0.4% |
| 80% | 226 | 300.0 | 2.61 | 5.0 | 0.980 | 571 | 0.5% |
| 70% | 226 | 300.0 | 1.94 | 2.0 | 0.973 | 426 | 0.3% |
| 60% | 227 | 300.0 | 1.77 | 2.0 | 0.971 | 390 | 0.4% |
| 50% | 228 | 300.0 | 1.62 | 2.0 | 0.968 | 358 | 0.4% |
| 40% | 228 | 300.0 | 1.49 | 2.0 | 0.964 | 327 | 0.4% |
| 30% | 229 | 300.0 | 1.35 | 2.0 | 0.958 | 295 | 0.4% |
| 20% | 230 | 300.0 | 1.23 | 2.0 | 0.954 | 269 | 0.4% |
| 10% | 229 | 300.0 | 1.06 | 2.0 | 0.947 | 231 | 0.5% |
| Active Idle | 229 | 300.0 | 0.777 | 2.0 | 0.829 | 147 | 0.7% |
