SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen11 | SPECpower_ssj2008 = 12,609 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Dec 2, 2022 |
| Hardware Availability: | Jan-2023 | Software Availability: | Jan-2023 | Publication: | Feb 9, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

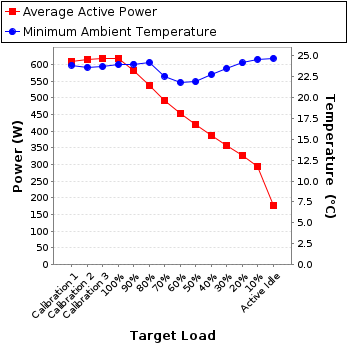

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 610 | 23.9 |
| Calibration 2 | 615 | 23.6 |
| Calibration 3 | 618 | 23.7 |
| 100% | 616 | 23.9 |
| 90% | 582 | 24.0 |
| 80% | 535 | 24.2 |
| 70% | 491 | 22.6 |
| 60% | 452 | 21.8 |
| 50% | 419 | 21.9 |
| 40% | 388 | 22.8 |
| 30% | 358 | 23.5 |
| 20% | 327 | 24.1 |
| 10% | 294 | 24.6 |
| Active Idle | 179 | 24.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22004V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-40-1 |
| Date of Calibration: | 13-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.91 | 5.0 | 0.994 | 610 | 0.4% |
| Calibration 2 | 211 | 300.0 | 2.94 | 5.0 | 0.994 | 615 | 0.4% |
| Calibration 3 | 210 | 300.0 | 2.96 | 5.0 | 0.994 | 618 | 0.4% |
| 100% | 210 | 300.0 | 2.95 | 5.0 | 0.994 | 616 | 0.4% |
| 90% | 211 | 300.0 | 2.78 | 5.0 | 0.993 | 582 | 0.4% |
| 80% | 211 | 300.0 | 2.56 | 5.0 | 0.992 | 535 | 0.4% |
| 70% | 210 | 300.0 | 2.36 | 5.0 | 0.988 | 491 | 0.4% |
| 60% | 210 | 300.0 | 2.18 | 5.0 | 0.985 | 452 | 0.5% |
| 50% | 210 | 300.0 | 2.03 | 5.0 | 0.981 | 419 | 0.5% |
| 40% | 210 | 300.0 | 1.89 | 5.0 | 0.977 | 388 | 0.5% |
| 30% | 210 | 300.0 | 1.74 | 5.0 | 0.976 | 358 | 0.6% |
| 20% | 210 | 300.0 | 1.60 | 2.0 | 0.973 | 327 | 0.3% |
| 10% | 210 | 300.0 | 1.44 | 2.0 | 0.969 | 294 | 0.4% |
| Active Idle | 210 | 300.0 | 0.926 | 2.0 | 0.919 | 179 | 0.5% |
