Hewlett Packard Enterprise ProLiant DL325 Gen11 SPECpower_ssj2008 = 23,299 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 19, 2022
Hardware Availability: Dec-2022 Software Availability: Dec-2022 Publication: Nov 10, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 11,837,369 416 28,441
90% 88.8% 10,561,153 386 27,329
80% 79.8% 9,492,891 355 26,778
70% 69.8% 8,302,508 319 26,026
60% 60.0% 7,138,901 266 26,866
50% 49.9% 5,938,052 241 24,646
40% 40.0% 4,757,258 220 21,670
30% 30.0% 3,563,493 197 18,059
20% 20.1% 2,383,863 174 13,674
10% 10.0% 1,188,411 148 8,013
Active Idle 0 74.5 0
∑ssj_ops / ∑power = 23,299
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen11
Form Factor: 1U
CPU Name: AMD EPYC 9654P 2.40 GHz
CPU Characteristics: 96-Core, 2.40 GHz, 384MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 96 cores, 1 chip, 96 cores/chip
Hardware Threads: 192 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15+8-LTS-149, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 96, physicalCoreId + 97 }
JVM Instances: 48
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: A56 v1.10 (10/14/2022)
Management Firmware Version: 1.10 Oct 09 2022
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360p Gen8
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_341-b10
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-GU3Q4-120-1
Date of Calibration: 14-Jun-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 416 25.5
90% 386 25.7
80% 355 25.8
70% 319 25.4
60% 266 25.6
50% 241 25.8
40% 220 25.6
30% 197 25.9
20% 174 26.2
10% 148 26.2
Active Idle 74.5 26.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.4 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,155,527
Calibration 2     11,889,326
Calibration 3     11,888,323
ssj_ops@calibrated=11,888,824
100% 99.6% 11,888,824 11,837,369
90% 88.8% 10,699,942 10,561,153
80% 79.8% 9,511,059 9,492,891
70% 69.8% 8,322,177 8,302,508
60% 60.0% 7,133,294 7,138,901
50% 49.9% 5,944,412 5,938,052
40% 40.0% 4,755,530 4,757,258
30% 30.0% 3,566,647 3,563,493
20% 20.1% 2,377,765 2,383,863
10% 10.0% 1,188,882 1,188,411
Active Idle   0 0

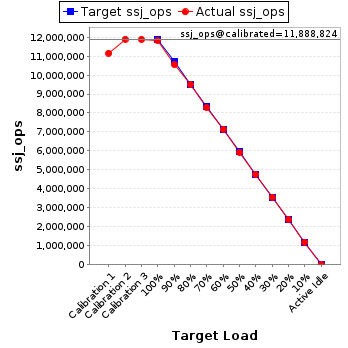

Graph of results
See the Host Performance Report for additional details.
