Hewlett Packard Enterprise ProLiant DL345 Gen11 | SPECpower_ssj2008 = 25,537 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 20, 2022 |
Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

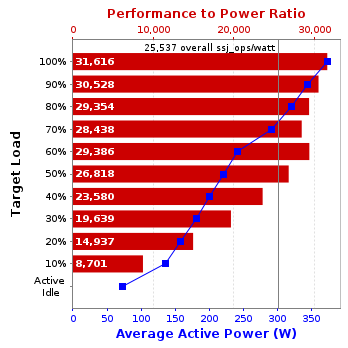

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.7% | 11,804,168 | 373 | 31,616 |
90% | 89.0% | 10,532,898 | 345 | 30,528 |
80% | 79.7% | 9,433,502 | 321 | 29,354 |
70% | 70.0% | 8,280,679 | 291 | 28,438 |
60% | 60.0% | 7,100,647 | 242 | 29,386 |
50% | 49.9% | 5,908,875 | 220 | 26,818 |
40% | 40.1% | 4,739,762 | 201 | 23,580 |
30% | 30.0% | 3,551,252 | 181 | 19,639 |
20% | 20.0% | 2,367,884 | 159 | 14,937 |
10% | 10.0% | 1,183,978 | 136 | 8,701 |
Active Idle | 0 | 72.2 | 0 | |
∑ssj_ops / ∑power = | 25,537 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL345 Gen11 |
Form Factor: | 2U |
CPU Name: | AMD EPYC 9654P 2.40 GHz |
CPU Characteristics: | 96-Core, 2.40 GHz, 384MB L3 Cache |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 96 cores, 1 chip, 96 cores/chip |
Hardware Threads: | 192 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 384 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 16 GB 1Rx8 PC5-4800B-R; all DIMM slots populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21) |
Disk Drive: | 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21) |
Disk Controller: | Embedded SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE 1GbE 4p BASE-T I350-T4 OCP3 Adapter (P08449-B21) |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 15 SP4 |
OS Version: | 5.14.21-150400.22-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15+8-LTS-149, mixed mode) |
JVM Command-line Options: | -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes |
JVM Affinity: | for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 96, physicalCoreId + 97 } |
JVM Instances: | 48 |
JVM Initial Heap (MB): | 1995 |
JVM Maximum Heap (MB): | 1995 |
JVM Address Bits: | 64 |
Boot Firmware Version: | A56 v1.10 (10/14/2022) |
Management Firmware Version: | 1.10 Oct 09 2022 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15 |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL360 Gen9 |
CPU Description: | 2 x Intel Xeon E5-2660 v3 |
Memory amount (GB): | 128 |
Software | |
---|---|
Operating System (OS): | Micorsoft Windows Server 2012 R2 Standard (Version 6.3.9600, Build 9600) |
JVM Vendor: | Oracle Corporation |
JVM Version: | 1.8.0_91-b15 (build 25.91-b15, mixed mode) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-GT25H-40-1 |
Date of Calibration: | 20-May-2022 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 373 | 23.1 |
90% | 345 | 23.5 |
80% | 321 | 22.9 |
70% | 291 | 23.1 |
60% | 242 | 23.7 |
50% | 220 | 23.7 |
40% | 201 | 23.8 |
30% | 181 | 23.9 |
20% | 159 | 22.9 |
10% | 136 | 22.9 |
Active Idle | 72.2 | 23.5 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 22.9 | 132 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 11,140,800 | ||
Calibration 2 | 11,839,590 | ||
Calibration 3 | 11,829,331 | ||
ssj_ops@calibrated=11,834,461 | |||
100% | 99.7% | 11,834,461 | 11,804,168 |
90% | 89.0% | 10,651,015 | 10,532,898 |
80% | 79.7% | 9,467,569 | 9,433,502 |
70% | 70.0% | 8,284,122 | 8,280,679 |
60% | 60.0% | 7,100,676 | 7,100,647 |
50% | 49.9% | 5,917,230 | 5,908,875 |
40% | 40.1% | 4,733,784 | 4,739,762 |
30% | 30.0% | 3,550,338 | 3,551,252 |
20% | 20.0% | 2,366,892 | 2,367,884 |
10% | 10.0% | 1,183,446 | 1,183,978 |
Active Idle | 0 | 0 |
