Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,377,098
ssj_ops@100% per JVM = 84,017
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,383,188
Calibration 2     5,401,312
Calibration 3     5,396,126
ssj_ops@calibrated=5,398,719
100% 99.6% 5,398,719 5,377,098
90% 89.8% 4,858,847 4,848,960
80% 79.7% 4,318,975 4,303,818
70% 70.1% 3,779,103 3,781,832
60% 59.9% 3,239,231 3,234,690
50% 50.0% 2,699,360 2,699,105
40% 39.9% 2,159,488 2,154,373
30% 30.0% 1,619,616 1,622,061
20% 19.9% 1,079,744 1,076,126
10% 10.1% 539,872 542,602
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node9.001 88,071
linux-node9.002 78,946
linux-node9.003 84,262
linux-node9.004 78,965
linux-node9.005 78,913
linux-node9.006 79,802
linux-node9.007 79,920
linux-node9.008 81,808
linux-node9.009 80,556
linux-node9.010 83,600
linux-node9.011 79,451
linux-node9.012 89,640
linux-node9.013 84,466
linux-node9.014 86,483
linux-node9.015 87,161
linux-node9.016 77,732
linux-node9.017 88,307
linux-node9.018 85,409
linux-node9.019 79,973
linux-node9.020 80,471
linux-node9.021 84,306
linux-node9.022 80,220
linux-node9.023 86,664
linux-node9.024 88,808
linux-node9.025 79,471
linux-node9.026 80,002
linux-node9.027 88,485
linux-node9.028 88,915
linux-node9.029 88,036
linux-node9.030 79,053
linux-node9.031 87,803
linux-node9.032 86,298
linux-node9.033 86,642
linux-node9.034 86,820
linux-node9.035 88,236
linux-node9.036 88,739
linux-node9.037 85,012
linux-node9.038 82,757
linux-node9.039 76,985
linux-node9.040 90,128
linux-node9.041 79,979
linux-node9.042 81,123
linux-node9.043 79,868
linux-node9.044 80,138
linux-node9.045 79,195
linux-node9.046 88,316
linux-node9.047 79,752
linux-node9.048 85,472
linux-node9.049 89,189
linux-node9.050 82,241
linux-node9.051 87,253
linux-node9.052 88,342
linux-node9.053 88,817
linux-node9.054 88,530
linux-node9.055 83,630
linux-node9.056 80,884
linux-node9.057 90,341
linux-node9.058 79,093
linux-node9.059 83,694
linux-node9.060 79,749
linux-node9.061 88,103
linux-node9.062 85,838
linux-node9.063 84,978
linux-node9.064 85,259
ssj_ops@100% 5,377,098
ssj_ops@100% per JVM 84,017

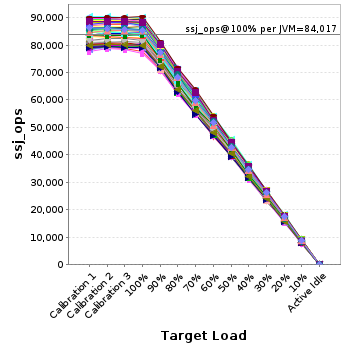

Graph of per-instance results
JVM 'linux-node9.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,233
Calibration 2     87,626
Calibration 3     87,573
ssj_ops@calibrated=87,600
100% 100.5% 87,600 88,071
90% 90.2% 78,840 79,001
80% 80.2% 70,080 70,295
70% 69.5% 61,320 60,911
60% 60.3% 52,560 52,790
50% 50.6% 43,800 44,366
40% 39.6% 35,040 34,690
30% 30.5% 26,280 26,716
20% 19.8% 17,520 17,314
10% 10.4% 8,760 9,112
Active Idle   0 0
Graph of results
JVM 'linux-node9.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,479
Calibration 2     79,445
Calibration 3     79,199
ssj_ops@calibrated=79,322
100% 99.5% 79,322 78,946
90% 89.9% 71,390 71,348
80% 79.4% 63,458 63,015
70% 71.3% 55,526 56,546
60% 59.9% 47,593 47,548
50% 50.0% 39,661 39,653
40% 40.0% 31,729 31,749
30% 30.2% 23,797 23,957
20% 20.1% 15,864 15,944
10% 10.2% 7,932 8,084
Active Idle   0 0
Graph of results
JVM 'linux-node9.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,107
Calibration 2     84,051
Calibration 3     84,137
ssj_ops@calibrated=84,094
100% 100.2% 84,094 84,262
90% 89.2% 75,684 75,016
80% 79.5% 67,275 66,846
70% 71.2% 58,866 59,850
60% 59.9% 50,456 50,383
50% 49.8% 42,047 41,851
40% 39.7% 33,637 33,356
30% 29.8% 25,228 25,087
20% 19.6% 16,819 16,523
10% 10.0% 8,409 8,446
Active Idle   0 0
Graph of results
JVM 'linux-node9.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,487
Calibration 2     80,328
Calibration 3     80,386
ssj_ops@calibrated=80,357
100% 98.3% 80,357 78,965
90% 90.6% 72,322 72,803
80% 79.6% 64,286 63,958
70% 70.2% 56,250 56,379
60% 60.7% 48,214 48,774
50% 50.2% 40,179 40,326
40% 39.6% 32,143 31,819
30% 30.0% 24,107 24,120
20% 19.9% 16,071 16,021
10% 10.1% 8,036 8,150
Active Idle   0 0
Graph of results
JVM 'linux-node9.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,431
Calibration 2     79,333
Calibration 3     79,173
ssj_ops@calibrated=79,253
100% 99.6% 79,253 78,913
90% 89.4% 71,328 70,888
80% 78.6% 63,402 62,254
70% 69.4% 55,477 55,028
60% 59.1% 47,552 46,844
50% 49.6% 39,626 39,311
40% 39.5% 31,701 31,333
30% 30.0% 23,776 23,761
20% 20.0% 15,851 15,833
10% 10.3% 7,925 8,129
Active Idle   0 0
Graph of results
JVM 'linux-node9.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,604
Calibration 2     80,067
Calibration 3     80,291
ssj_ops@calibrated=80,179
100% 99.5% 80,179 79,802
90% 90.3% 72,161 72,383
80% 79.8% 64,143 64,000
70% 70.2% 56,125 56,269
60% 59.2% 48,107 47,478
50% 49.2% 40,090 39,468
40% 40.9% 32,072 32,811
30% 30.3% 24,054 24,325
20% 20.4% 16,036 16,380
10% 10.3% 8,018 8,242
Active Idle   0 0
Graph of results
JVM 'linux-node9.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,449
Calibration 2     80,133
Calibration 3     80,076
ssj_ops@calibrated=80,105
100% 99.8% 80,105 79,920
90% 89.7% 72,094 71,863
80% 79.9% 64,084 63,999
70% 70.9% 56,073 56,828
60% 59.7% 48,063 47,802
50% 50.1% 40,052 40,164
40% 39.9% 32,042 31,979
30% 30.3% 24,031 24,296
20% 19.6% 16,021 15,703
10% 10.1% 8,010 8,118
Active Idle   0 0
Graph of results
JVM 'linux-node9.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,578
Calibration 2     82,335
Calibration 3     82,330
ssj_ops@calibrated=82,333
100% 99.4% 82,333 81,808
90% 90.0% 74,099 74,091
80% 79.6% 65,866 65,540
70% 69.9% 57,633 57,551
60% 60.2% 49,400 49,605
50% 49.5% 41,166 40,742
40% 39.1% 32,933 32,218
30% 30.1% 24,700 24,802
20% 20.0% 16,467 16,428
10% 10.2% 8,233 8,384
Active Idle   0 0
Graph of results

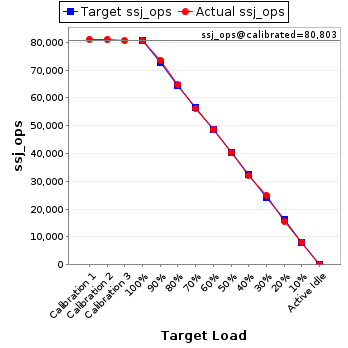

JVM 'linux-node9.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,113
Calibration 2     80,999
Calibration 3     80,607
ssj_ops@calibrated=80,803
100% 99.7% 80,803 80,556
90% 91.1% 72,723 73,578
80% 80.0% 64,643 64,664
70% 69.7% 56,562 56,289
60% 60.2% 48,482 48,630
50% 49.8% 40,402 40,231
40% 39.7% 32,321 32,073
30% 30.8% 24,241 24,921
20% 19.3% 16,161 15,613
10% 9.9% 8,080 8,021
Active Idle   0 0
Graph of results
JVM 'linux-node9.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,508
Calibration 2     84,147
Calibration 3     84,155
ssj_ops@calibrated=84,151
100% 99.3% 84,151 83,600
90% 89.4% 75,736 75,240
80% 79.5% 67,321 66,891
70% 70.4% 58,906 59,266
60% 60.0% 50,491 50,478
50% 49.9% 42,076 41,986
40% 40.9% 33,660 34,394
30% 30.5% 25,245 25,660
20% 20.5% 16,830 17,212
10% 9.7% 8,415 8,204
Active Idle   0 0
Graph of results

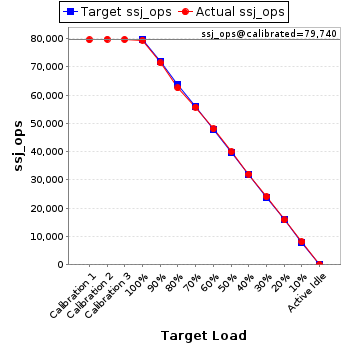

JVM 'linux-node9.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,571
Calibration 2     79,794
Calibration 3     79,686
ssj_ops@calibrated=79,740
100% 99.6% 79,740 79,451
90% 89.6% 71,766 71,409
80% 78.5% 63,792 62,568
70% 70.0% 55,818 55,790
60% 60.2% 47,844 48,035
50% 50.1% 39,870 39,955
40% 40.2% 31,896 32,069
30% 30.1% 23,922 24,022
20% 19.8% 15,948 15,819
10% 10.1% 7,974 8,054
Active Idle   0 0
Graph of results
JVM 'linux-node9.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,121
Calibration 2     89,535
Calibration 3     89,487
ssj_ops@calibrated=89,511
100% 100.1% 89,511 89,640
90% 90.1% 80,560 80,671
80% 79.6% 71,609 71,244
70% 70.3% 62,658 62,907
60% 60.4% 53,707 54,108
50% 49.0% 44,755 43,849
40% 40.6% 35,804 36,336
30% 29.2% 26,853 26,154
20% 19.7% 17,902 17,591
10% 10.2% 8,951 9,108
Active Idle   0 0
Graph of results
JVM 'linux-node9.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,335
Calibration 2     84,539
Calibration 3     84,490
ssj_ops@calibrated=84,514
100% 99.9% 84,514 84,466
90% 89.7% 76,063 75,770
80% 80.0% 67,611 67,625
70% 69.6% 59,160 58,791
60% 60.4% 50,709 51,085
50% 49.8% 42,257 42,118
40% 39.6% 33,806 33,477
30% 30.1% 25,354 25,429
20% 20.0% 16,903 16,871
10% 10.3% 8,451 8,686
Active Idle   0 0
Graph of results
JVM 'linux-node9.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,930
Calibration 2     86,440
Calibration 3     86,311
ssj_ops@calibrated=86,376
100% 100.1% 86,376 86,483
90% 90.2% 77,738 77,917
80% 80.2% 69,101 69,282
70% 69.9% 60,463 60,415
60% 59.9% 51,825 51,746
50% 49.8% 43,188 43,053
40% 39.4% 34,550 34,054
30% 30.5% 25,913 26,371
20% 19.3% 17,275 16,632
10% 10.1% 8,638 8,721
Active Idle   0 0
Graph of results
JVM 'linux-node9.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,092
Calibration 2     87,940
Calibration 3     87,907
ssj_ops@calibrated=87,924
100% 99.1% 87,924 87,161
90% 89.4% 79,131 78,579
80% 80.4% 70,339 70,692
70% 69.8% 61,547 61,403
60% 59.4% 52,754 52,248
50% 49.5% 43,962 43,510
40% 39.6% 35,169 34,782
30% 29.6% 26,377 25,986
20% 20.4% 17,585 17,901
10% 10.4% 8,792 9,149
Active Idle   0 0
Graph of results
JVM 'linux-node9.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,012
Calibration 2     78,961
Calibration 3     78,706
ssj_ops@calibrated=78,834
100% 98.6% 78,834 77,732
90% 89.5% 70,950 70,576
80% 79.4% 63,067 62,624
70% 69.9% 55,183 55,094
60% 59.3% 47,300 46,754
50% 50.2% 39,417 39,536
40% 40.1% 31,533 31,582
30% 29.5% 23,650 23,276
20% 20.0% 15,767 15,761
10% 10.1% 7,883 7,958
Active Idle   0 0
Graph of results
JVM 'linux-node9.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,294
Calibration 2     89,284
Calibration 3     88,981
ssj_ops@calibrated=89,132
100% 99.1% 89,132 88,307
90% 89.4% 80,219 79,645
80% 79.4% 71,306 70,744
70% 70.4% 62,393 62,715
60% 60.2% 53,479 53,631
50% 50.3% 44,566 44,833
40% 39.8% 35,653 35,457
30% 30.5% 26,740 27,187
20% 20.2% 17,826 17,969
10% 9.8% 8,913 8,700
Active Idle   0 0
Graph of results
JVM 'linux-node9.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,386
Calibration 2     85,619
Calibration 3     85,500
ssj_ops@calibrated=85,559
100% 99.8% 85,559 85,409
90% 89.5% 77,003 76,541
80% 79.7% 68,447 68,161
70% 71.0% 59,891 60,716
60% 59.3% 51,336 50,761
50% 49.4% 42,780 42,301
40% 39.3% 34,224 33,639
30% 29.9% 25,668 25,597
20% 20.0% 17,112 17,090
10% 9.8% 8,556 8,345
Active Idle   0 0
Graph of results
JVM 'linux-node9.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,521
Calibration 2     80,544
Calibration 3     80,174
ssj_ops@calibrated=80,359
100% 99.5% 80,359 79,973
90% 90.8% 72,323 72,967
80% 79.5% 64,287 63,907
70% 69.3% 56,251 55,691
60% 59.0% 48,215 47,398
50% 50.0% 40,179 40,155
40% 40.2% 32,144 32,288
30% 30.0% 24,108 24,111
20% 19.6% 16,072 15,733
10% 9.8% 8,036 7,842
Active Idle   0 0
Graph of results
JVM 'linux-node9.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,797
Calibration 2     80,294
Calibration 3     80,287
ssj_ops@calibrated=80,291
100% 100.2% 80,291 80,471
90% 89.8% 72,262 72,092
80% 79.8% 64,232 64,106
70% 70.4% 56,203 56,493
60% 60.2% 48,174 48,332
50% 49.9% 40,145 40,041
40% 40.3% 32,116 32,375
30% 30.3% 24,087 24,289
20% 19.3% 16,058 15,512
10% 10.1% 8,029 8,090
Active Idle   0 0
Graph of results
JVM 'linux-node9.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,672
Calibration 2     84,731
Calibration 3     84,562
ssj_ops@calibrated=84,646
100% 99.6% 84,646 84,306
90% 89.7% 76,181 75,958
80% 79.9% 67,717 67,592
70% 69.7% 59,252 59,034
60% 60.1% 50,788 50,912
50% 49.1% 42,323 41,588
40% 40.1% 33,858 33,952
30% 29.9% 25,394 25,301
20% 20.3% 16,929 17,177
10% 10.1% 8,465 8,544
Active Idle   0 0
Graph of results
JVM 'linux-node9.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,986
Calibration 2     81,002
Calibration 3     81,116
ssj_ops@calibrated=81,059
100% 99.0% 81,059 80,220
90% 88.7% 72,953 71,859
80% 79.8% 64,847 64,649
70% 69.7% 56,741 56,512
60% 60.1% 48,635 48,687
50% 51.0% 40,529 41,319
40% 39.9% 32,423 32,309
30% 29.7% 24,318 24,065
20% 19.9% 16,212 16,108
10% 10.1% 8,106 8,154
Active Idle   0 0
Graph of results
JVM 'linux-node9.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,592
Calibration 2     86,421
Calibration 3     86,474
ssj_ops@calibrated=86,447
100% 100.2% 86,447 86,664
90% 89.9% 77,803 77,684
80% 80.1% 69,158 69,286
70% 70.6% 60,513 61,048
60% 59.7% 51,868 51,609
50% 50.8% 43,224 43,943
40% 40.2% 34,579 34,715
30% 30.0% 25,934 25,939
20% 20.1% 17,289 17,341
10% 10.5% 8,645 9,092
Active Idle   0 0
Graph of results
JVM 'linux-node9.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,118
Calibration 2     88,874
Calibration 3     88,890
ssj_ops@calibrated=88,882
100% 99.9% 88,882 88,808
90% 90.0% 79,994 79,987
80% 80.1% 71,105 71,167
70% 70.1% 62,217 62,306
60% 59.7% 53,329 53,105
50% 51.0% 44,441 45,320
40% 39.3% 35,553 34,894
30% 30.0% 26,665 26,624
20% 19.7% 17,776 17,554
10% 9.7% 8,888 8,646
Active Idle   0 0
Graph of results
JVM 'linux-node9.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,995
Calibration 2     79,600
Calibration 3     79,861
ssj_ops@calibrated=79,730
100% 99.7% 79,730 79,471
90% 89.4% 71,757 71,268
80% 79.3% 63,784 63,207
70% 70.4% 55,811 56,144
60% 59.4% 47,838 47,368
50% 49.0% 39,865 39,107
40% 39.8% 31,892 31,731
30% 29.0% 23,919 23,158
20% 20.0% 15,946 15,944
10% 9.9% 7,973 7,875
Active Idle   0 0
Graph of results
JVM 'linux-node9.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,292
Calibration 2     80,281
Calibration 3     80,147
ssj_ops@calibrated=80,214
100% 99.7% 80,214 80,002
90% 90.4% 72,193 72,525
80% 79.6% 64,171 63,870
70% 71.7% 56,150 57,509
60% 59.7% 48,128 47,869
50% 49.7% 40,107 39,859
40% 40.0% 32,086 32,117
30% 30.6% 24,064 24,512
20% 20.1% 16,043 16,153
10% 9.8% 8,021 7,887
Active Idle   0 0
Graph of results
JVM 'linux-node9.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,773
Calibration 2     88,529
Calibration 3     88,611
ssj_ops@calibrated=88,570
100% 99.9% 88,570 88,485
90% 90.5% 79,713 80,198
80% 79.9% 70,856 70,785
70% 69.9% 61,999 61,909
60% 59.0% 53,142 52,293
50% 50.4% 44,285 44,680
40% 39.6% 35,428 35,069
30% 29.8% 26,571 26,431
20% 19.4% 17,714 17,145
10% 10.1% 8,857 8,987
Active Idle   0 0
Graph of results
JVM 'linux-node9.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,936
Calibration 2     88,768
Calibration 3     88,889
ssj_ops@calibrated=88,829
100% 100.1% 88,829 88,915
90% 90.7% 79,946 80,569
80% 80.7% 71,063 71,679
70% 69.3% 62,180 61,531
60% 59.5% 53,297 52,814
50% 49.9% 44,414 44,311
40% 41.0% 35,531 36,412
30% 30.1% 26,649 26,728
20% 20.1% 17,766 17,841
10% 10.0% 8,883 8,884
Active Idle   0 0
Graph of results
JVM 'linux-node9.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,946
Calibration 2     88,394
Calibration 3     88,215
ssj_ops@calibrated=88,305
100% 99.7% 88,305 88,036
90% 89.1% 79,474 78,657
80% 80.3% 70,644 70,934
70% 69.8% 61,813 61,629
60% 59.7% 52,983 52,704
50% 50.8% 44,152 44,851
40% 39.6% 35,322 34,977
30% 30.2% 26,491 26,703
20% 20.1% 17,661 17,726
10% 9.9% 8,830 8,729
Active Idle   0 0
Graph of results
JVM 'linux-node9.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,436
Calibration 2     79,306
Calibration 3     79,350
ssj_ops@calibrated=79,328
100% 99.7% 79,328 79,053
90% 89.9% 71,395 71,353
80% 79.6% 63,462 63,130
70% 70.3% 55,530 55,801
60% 60.2% 47,597 47,768
50% 49.6% 39,664 39,376
40% 39.9% 31,731 31,631
30% 30.3% 23,798 24,006
20% 19.5% 15,866 15,457
10% 10.2% 7,933 8,100
Active Idle   0 0
Graph of results

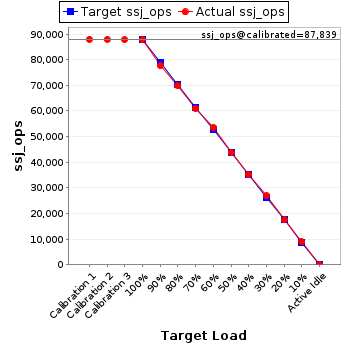

JVM 'linux-node9.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,992
Calibration 2     87,911
Calibration 3     87,767
ssj_ops@calibrated=87,839
100% 100.0% 87,839 87,803
90% 88.4% 79,055 77,623
80% 79.6% 70,271 69,886
70% 69.4% 61,487 60,972
60% 60.9% 52,703 53,472
50% 49.8% 43,919 43,710
40% 40.0% 35,136 35,136
30% 30.5% 26,352 26,820
20% 19.9% 17,568 17,470
10% 10.1% 8,784 8,850
Active Idle   0 0
Graph of results
JVM 'linux-node9.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,671
Calibration 2     86,663
Calibration 3     86,684
ssj_ops@calibrated=86,674
100% 99.6% 86,674 86,298
90% 89.7% 78,006 77,719
80% 80.1% 69,339 69,465
70% 70.3% 60,672 60,935
60% 59.6% 52,004 51,667
50% 51.3% 43,337 44,469
40% 40.0% 34,669 34,707
30% 30.2% 26,002 26,175
20% 20.0% 17,335 17,352
10% 10.1% 8,667 8,783
Active Idle   0 0
Graph of results
JVM 'linux-node9.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,463
Calibration 2     87,928
Calibration 3     87,920
ssj_ops@calibrated=87,924
100% 98.5% 87,924 86,642
90% 90.3% 79,131 79,407
80% 80.3% 70,339 70,622
70% 70.3% 61,547 61,786
60% 60.5% 52,754 53,215
50% 49.4% 43,962 43,411
40% 40.8% 35,169 35,886
30% 29.7% 26,377 26,125
20% 20.3% 17,585 17,892
10% 9.8% 8,792 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node9.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,657
Calibration 2     88,324
Calibration 3     88,139
ssj_ops@calibrated=88,232
100% 98.4% 88,232 86,820
90% 89.8% 79,408 79,252
80% 80.1% 70,585 70,654
70% 69.3% 61,762 61,163
60% 60.7% 52,939 53,568
50% 49.4% 44,116 43,592
40% 39.7% 35,293 35,065
30% 29.9% 26,469 26,362
20% 19.9% 17,646 17,528
10% 9.9% 8,823 8,777
Active Idle   0 0
Graph of results
JVM 'linux-node9.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,537
Calibration 2     88,528
Calibration 3     88,294
ssj_ops@calibrated=88,411
100% 99.8% 88,411 88,236
90% 89.8% 79,570 79,391
80% 79.2% 70,729 70,057
70% 68.7% 61,888 60,774
60% 61.1% 53,047 54,038
50% 49.7% 44,205 43,923
40% 39.7% 35,364 35,088
30% 30.2% 26,523 26,726
20% 20.5% 17,682 18,158
10% 10.0% 8,841 8,812
Active Idle   0 0
Graph of results
JVM 'linux-node9.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,585
Calibration 2     89,506
Calibration 3     89,234
ssj_ops@calibrated=89,370
100% 99.3% 89,370 88,739
90% 89.1% 80,433 79,631
80% 79.5% 71,496 71,061
70% 68.9% 62,559 61,561
60% 59.9% 53,622 53,530
50% 49.8% 44,685 44,465
40% 39.3% 35,748 35,164
30% 30.0% 26,811 26,828
20% 20.1% 17,874 17,979
10% 10.2% 8,937 9,100
Active Idle   0 0
Graph of results
JVM 'linux-node9.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,700
Calibration 2     84,994
Calibration 3     85,303
ssj_ops@calibrated=85,148
100% 99.8% 85,148 85,012
90% 89.4% 76,634 76,120
80% 80.3% 68,119 68,413
70% 68.7% 59,604 58,469
60% 59.3% 51,089 50,472
50% 50.2% 42,574 42,755
40% 39.4% 34,059 33,571
30% 30.0% 25,545 25,549
20% 19.6% 17,030 16,713
10% 10.1% 8,515 8,579
Active Idle   0 0
Graph of results
JVM 'linux-node9.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,113
Calibration 2     82,914
Calibration 3     82,812
ssj_ops@calibrated=82,863
100% 99.9% 82,863 82,757
90% 90.3% 74,577 74,809
80% 80.1% 66,290 66,336
70% 70.7% 58,004 58,557
60% 60.6% 49,718 50,216
50% 50.2% 41,431 41,638
40% 39.6% 33,145 32,784
30% 30.5% 24,859 25,302
20% 19.7% 16,573 16,355
10% 10.2% 8,286 8,487
Active Idle   0 0
Graph of results
JVM 'linux-node9.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,839
Calibration 2     78,626
Calibration 3     78,507
ssj_ops@calibrated=78,566
100% 98.0% 78,566 76,985
90% 90.2% 70,710 70,834
80% 79.5% 62,853 62,465
70% 69.5% 54,996 54,632
60% 59.7% 47,140 46,912
50% 50.0% 39,283 39,322
40% 39.5% 31,427 31,014
30% 29.8% 23,570 23,451
20% 19.6% 15,713 15,420
10% 10.0% 7,857 7,862
Active Idle   0 0
Graph of results
JVM 'linux-node9.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,456
Calibration 2     90,252
Calibration 3     90,082
ssj_ops@calibrated=90,167
100% 100.0% 90,167 90,128
90% 89.6% 81,151 80,767
80% 79.0% 72,134 71,205
70% 70.5% 63,117 63,590
60% 60.1% 54,100 54,158
50% 50.5% 45,084 45,569
40% 40.3% 36,067 36,345
30% 30.1% 27,050 27,184
20% 20.2% 18,033 18,206
10% 10.2% 9,017 9,211
Active Idle   0 0
Graph of results
JVM 'linux-node9.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,344
Calibration 2     79,752
Calibration 3     79,962
ssj_ops@calibrated=79,857
100% 100.2% 79,857 79,979
90% 88.9% 71,871 70,976
80% 79.8% 63,885 63,711
70% 69.4% 55,900 55,415
60% 59.9% 47,914 47,808
50% 50.3% 39,928 40,204
40% 40.2% 31,943 32,134
30% 29.3% 23,957 23,423
20% 20.1% 15,971 16,025
10% 9.9% 7,986 7,900
Active Idle   0 0
Graph of results
JVM 'linux-node9.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,510
Calibration 2     81,096
Calibration 3     81,202
ssj_ops@calibrated=81,149
100% 100.0% 81,149 81,123
90% 90.5% 73,034 73,453
80% 79.7% 64,919 64,678
70% 70.5% 56,804 57,242
60% 60.4% 48,689 49,023
50% 49.6% 40,574 40,278
40% 39.5% 32,460 32,024
30% 29.8% 24,345 24,215
20% 20.9% 16,230 16,938
10% 9.9% 8,115 8,041
Active Idle   0 0
Graph of results
JVM 'linux-node9.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,340
Calibration 2     80,683
Calibration 3     80,879
ssj_ops@calibrated=80,781
100% 98.9% 80,781 79,868
90% 89.2% 72,703 72,082
80% 79.6% 64,625 64,293
70% 69.9% 56,547 56,502
60% 59.7% 48,469 48,234
50% 49.3% 40,391 39,825
40% 39.3% 32,312 31,777
30% 30.1% 24,234 24,305
20% 20.0% 16,156 16,153
10% 10.0% 8,078 8,041
Active Idle   0 0
Graph of results
JVM 'linux-node9.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,535
Calibration 2     80,020
Calibration 3     79,993
ssj_ops@calibrated=80,006
100% 100.2% 80,006 80,138
90% 89.8% 72,006 71,857
80% 78.9% 64,005 63,087
70% 71.2% 56,004 56,933
60% 59.7% 48,004 47,757
50% 50.4% 40,003 40,312
40% 39.8% 32,002 31,860
30% 30.0% 24,002 24,019
20% 19.7% 16,001 15,749
10% 10.2% 8,001 8,127
Active Idle   0 0
Graph of results
JVM 'linux-node9.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,824
Calibration 2     79,587
Calibration 3     79,428
ssj_ops@calibrated=79,508
100% 99.6% 79,508 79,195
90% 91.2% 71,557 72,520
80% 79.4% 63,606 63,165
70% 70.5% 55,655 56,031
60% 59.0% 47,705 46,924
50% 49.8% 39,754 39,632
40% 39.4% 31,803 31,325
30% 30.3% 23,852 24,109
20% 20.2% 15,902 16,055
10% 9.9% 7,951 7,905
Active Idle   0 0
Graph of results
JVM 'linux-node9.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,363
Calibration 2     88,264
Calibration 3     87,905
ssj_ops@calibrated=88,084
100% 100.3% 88,084 88,316
90% 89.2% 79,276 78,582
80% 79.2% 70,468 69,759
70% 69.6% 61,659 61,275
60% 59.9% 52,851 52,731
50% 49.8% 44,042 43,890
40% 39.8% 35,234 35,096
30% 30.8% 26,425 27,090
20% 20.4% 17,617 17,956
10% 10.4% 8,808 9,142
Active Idle   0 0
Graph of results
JVM 'linux-node9.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,679
Calibration 2     79,733
Calibration 3     79,770
ssj_ops@calibrated=79,752
100% 100.0% 79,752 79,752
90% 90.8% 71,777 72,388
80% 80.1% 63,801 63,895
70% 70.9% 55,826 56,556
60% 59.6% 47,851 47,522
50% 49.9% 39,876 39,769
40% 40.7% 31,901 32,438
30% 29.7% 23,926 23,675
20% 19.5% 15,950 15,547
10% 10.0% 7,975 7,979
Active Idle   0 0
Graph of results
JVM 'linux-node9.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,953
Calibration 2     86,275
Calibration 3     86,060
ssj_ops@calibrated=86,167
100% 99.2% 86,167 85,472
90% 90.1% 77,550 77,612
80% 80.4% 68,934 69,245
70% 71.0% 60,317 61,190
60% 60.3% 51,700 51,919
50% 50.4% 43,084 43,454
40% 39.5% 34,467 34,046
30% 29.8% 25,850 25,654
20% 20.3% 17,233 17,508
10% 9.7% 8,617 8,350
Active Idle   0 0
Graph of results
JVM 'linux-node9.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,713
Calibration 2     89,621
Calibration 3     89,203
ssj_ops@calibrated=89,412
100% 99.8% 89,412 89,189
90% 89.4% 80,471 79,957
80% 79.4% 71,529 70,998
70% 70.7% 62,588 63,208
60% 59.6% 53,647 53,284
50% 50.0% 44,706 44,685
40% 40.0% 35,765 35,756
30% 30.0% 26,824 26,817
20% 20.1% 17,882 17,980
10% 9.9% 8,941 8,883
Active Idle   0 0
Graph of results
JVM 'linux-node9.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,339
Calibration 2     83,067
Calibration 3     82,882
ssj_ops@calibrated=82,975
100% 99.1% 82,975 82,241
90% 89.9% 74,677 74,577
80% 79.7% 66,380 66,107
70% 69.8% 58,082 57,913
60% 59.7% 49,785 49,564
50% 50.8% 41,487 42,136
40% 39.9% 33,190 33,070
30% 30.0% 24,892 24,853
20% 20.1% 16,595 16,668
10% 9.9% 8,297 8,225
Active Idle   0 0
Graph of results
JVM 'linux-node9.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,458
Calibration 2     88,250
Calibration 3     88,269
ssj_ops@calibrated=88,259
100% 98.9% 88,259 87,253
90% 88.2% 79,433 77,866
80% 80.5% 70,607 71,063
70% 70.3% 61,782 62,038
60% 60.5% 52,956 53,387
50% 49.9% 44,130 44,080
40% 39.7% 35,304 35,069
30% 30.1% 26,478 26,582
20% 19.8% 17,652 17,512
10% 9.9% 8,826 8,737
Active Idle   0 0
Graph of results
JVM 'linux-node9.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,506
Calibration 2     89,399
Calibration 3     89,119
ssj_ops@calibrated=89,259
100% 99.0% 89,259 88,342
90% 88.8% 80,333 79,280
80% 79.4% 71,407 70,899
70% 70.4% 62,481 62,820
60% 60.0% 53,555 53,551
50% 50.6% 44,629 45,141
40% 40.6% 35,704 36,214
30% 29.9% 26,778 26,697
20% 19.4% 17,852 17,312
10% 10.2% 8,926 9,141
Active Idle   0 0
Graph of results
JVM 'linux-node9.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,949
Calibration 2     88,894
Calibration 3     88,829
ssj_ops@calibrated=88,862
100% 99.9% 88,862 88,817
90% 89.8% 79,976 79,786
80% 79.4% 71,089 70,552
70% 70.7% 62,203 62,807
60% 59.7% 53,317 53,094
50% 49.1% 44,431 43,656
40% 39.9% 35,545 35,495
30% 30.2% 26,659 26,875
20% 20.2% 17,772 17,908
10% 9.9% 8,886 8,812
Active Idle   0 0
Graph of results
JVM 'linux-node9.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,582
Calibration 2     89,562
Calibration 3     89,179
ssj_ops@calibrated=89,371
100% 99.1% 89,371 88,530
90% 89.2% 80,434 79,724
80% 80.1% 71,497 71,598
70% 70.0% 62,559 62,582
60% 59.3% 53,622 53,004
50% 50.1% 44,685 44,739
40% 39.6% 35,748 35,360
30% 30.4% 26,811 27,166
20% 19.7% 17,874 17,602
10% 9.8% 8,937 8,733
Active Idle   0 0
Graph of results
JVM 'linux-node9.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,786
Calibration 2     84,045
Calibration 3     83,759
ssj_ops@calibrated=83,902
100% 99.7% 83,902 83,630
90% 90.3% 75,512 75,801
80% 79.1% 67,121 66,380
70% 69.7% 58,731 58,485
60% 59.6% 50,341 49,974
50% 51.3% 41,951 43,081
40% 39.5% 33,561 33,134
30% 29.4% 25,171 24,682
20% 20.1% 16,780 16,873
10% 9.7% 8,390 8,100
Active Idle   0 0
Graph of results
JVM 'linux-node9.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,588
Calibration 2     81,146
Calibration 3     81,008
ssj_ops@calibrated=81,077
100% 99.8% 81,077 80,884
90% 90.1% 72,969 73,043
80% 79.8% 64,861 64,711
70% 69.5% 56,754 56,377
60% 60.2% 48,646 48,786
50% 50.1% 40,538 40,595
40% 39.9% 32,431 32,354
30% 29.8% 24,323 24,127
20% 19.6% 16,215 15,880
10% 10.2% 8,108 8,300
Active Idle   0 0
Graph of results
JVM 'linux-node9.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,037
Calibration 2     90,187
Calibration 3     90,201
ssj_ops@calibrated=90,194
100% 100.2% 90,194 90,341
90% 90.0% 81,175 81,181
80% 79.5% 72,155 71,727
70% 70.8% 63,136 63,863
60% 60.2% 54,116 54,319
50% 49.2% 45,097 44,386
40% 39.9% 36,078 36,030
30% 29.8% 27,058 26,901
20% 19.8% 18,039 17,883
10% 10.2% 9,019 9,208
Active Idle   0 0
Graph of results
JVM 'linux-node9.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,104
Calibration 2     79,391
Calibration 3     79,224
ssj_ops@calibrated=79,307
100% 99.7% 79,307 79,093
90% 90.4% 71,376 71,685
80% 79.5% 63,446 63,014
70% 69.2% 55,515 54,848
60% 59.5% 47,584 47,180
50% 49.8% 39,654 39,459
40% 39.9% 31,723 31,681
30% 30.0% 23,792 23,812
20% 19.7% 15,861 15,644
10% 10.3% 7,931 8,150
Active Idle   0 0
Graph of results
JVM 'linux-node9.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,723
Calibration 2     83,518
Calibration 3     83,544
ssj_ops@calibrated=83,531
100% 100.2% 83,531 83,694
90% 89.5% 75,178 74,777
80% 79.1% 66,825 66,055
70% 68.6% 58,472 57,322
60% 60.6% 50,119 50,648
50% 50.0% 41,766 41,752
40% 39.4% 33,412 32,891
30% 29.6% 25,059 24,735
20% 20.0% 16,706 16,692
10% 10.3% 8,353 8,587
Active Idle   0 0
Graph of results
JVM 'linux-node9.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,796
Calibration 2     80,264
Calibration 3     80,043
ssj_ops@calibrated=80,154
100% 99.5% 80,154 79,749
90% 90.2% 72,138 72,308
80% 79.7% 64,123 63,871
70% 69.9% 56,107 56,004
60% 59.9% 48,092 47,985
50% 50.5% 40,077 40,515
40% 40.2% 32,061 32,239
30% 30.2% 24,046 24,210
20% 19.7% 16,031 15,795
10% 9.9% 8,015 7,917
Active Idle   0 0
Graph of results
JVM 'linux-node9.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,526
Calibration 2     88,558
Calibration 3     88,421
ssj_ops@calibrated=88,490
100% 99.6% 88,490 88,103
90% 90.6% 79,641 80,174
80% 79.5% 70,792 70,385
70% 70.9% 61,943 62,748
60% 59.5% 53,094 52,625
50% 50.4% 44,245 44,633
40% 40.3% 35,396 35,704
30% 30.0% 26,547 26,519
20% 19.9% 17,698 17,650
10% 9.7% 8,849 8,583
Active Idle   0 0
Graph of results
JVM 'linux-node9.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,859
Calibration 2     85,972
Calibration 3     85,986
ssj_ops@calibrated=85,979
100% 99.8% 85,979 85,838
90% 89.8% 77,381 77,229
80% 80.4% 68,783 69,146
70% 69.6% 60,185 59,865
60% 60.8% 51,588 52,261
50% 50.0% 42,990 42,963
40% 40.4% 34,392 34,734
30% 30.1% 25,794 25,893
20% 19.6% 17,196 16,810
10% 9.7% 8,598 8,367
Active Idle   0 0
Graph of results
JVM 'linux-node9.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,615
Calibration 2     85,173
Calibration 3     85,145
ssj_ops@calibrated=85,159
100% 99.8% 85,159 84,978
90% 90.1% 76,643 76,757
80% 80.1% 68,127 68,247
70% 69.6% 59,611 59,253
60% 59.5% 51,095 50,629
50% 50.0% 42,579 42,611
40% 40.1% 34,064 34,130
30% 29.9% 25,548 25,437
20% 20.0% 17,032 17,016
10% 10.5% 8,516 8,962
Active Idle   0 0
Graph of results
JVM 'linux-node9.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,250
Calibration 2     85,891
Calibration 3     85,803
ssj_ops@calibrated=85,847
100% 99.3% 85,847 85,259
90% 90.1% 77,262 77,354
80% 79.6% 68,677 68,355
70% 69.6% 60,093 59,759
60% 60.2% 51,508 51,674
50% 49.7% 42,923 42,653
40% 40.5% 34,339 34,762
30% 30.5% 25,754 26,211
20% 20.5% 17,169 17,599
10% 10.3% 8,585 8,854
Active Idle   0 0
Graph of results
