Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,397,304
ssj_ops@100% per JVM = 84,333
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,400,717
Calibration 2     5,416,390
Calibration 3     5,411,324
ssj_ops@calibrated=5,413,857
100% 99.7% 5,413,857 5,397,304
90% 89.9% 4,872,471 4,864,974
80% 79.8% 4,331,086 4,319,253
70% 70.0% 3,789,700 3,789,726
60% 60.0% 3,248,314 3,249,335
50% 49.9% 2,706,929 2,701,657
40% 40.1% 2,165,543 2,169,142
30% 30.1% 1,624,157 1,629,816
20% 20.0% 1,082,771 1,080,556
10% 10.0% 541,386 540,711
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node7.001 79,879
linux-node7.002 82,964
linux-node7.003 84,307
linux-node7.004 83,271
linux-node7.005 80,600
linux-node7.006 79,003
linux-node7.007 88,501
linux-node7.008 88,899
linux-node7.009 87,982
linux-node7.010 89,354
linux-node7.011 79,046
linux-node7.012 89,089
linux-node7.013 87,988
linux-node7.014 81,461
linux-node7.015 88,651
linux-node7.016 85,824
linux-node7.017 77,254
linux-node7.018 89,639
linux-node7.019 87,939
linux-node7.020 82,427
linux-node7.021 88,199
linux-node7.022 91,007
linux-node7.023 79,351
linux-node7.024 85,808
linux-node7.025 79,834
linux-node7.026 81,778
linux-node7.027 79,707
linux-node7.028 88,931
linux-node7.029 84,767
linux-node7.030 77,762
linux-node7.031 78,620
linux-node7.032 88,174
linux-node7.033 80,726
linux-node7.034 87,238
linux-node7.035 87,565
linux-node7.036 78,519
linux-node7.037 89,319
linux-node7.038 78,929
linux-node7.039 89,941
linux-node7.040 86,683
linux-node7.041 88,411
linux-node7.042 88,955
linux-node7.043 81,495
linux-node7.044 81,030
linux-node7.045 84,695
linux-node7.046 79,184
linux-node7.047 88,578
linux-node7.048 77,350
linux-node7.049 83,694
linux-node7.050 81,710
linux-node7.051 78,212
linux-node7.052 88,776
linux-node7.053 84,511
linux-node7.054 90,648
linux-node7.055 89,568
linux-node7.056 78,488
linux-node7.057 80,188
linux-node7.058 85,271
linux-node7.059 89,195
linux-node7.060 89,556
linux-node7.061 82,474
linux-node7.062 88,585
linux-node7.063 82,620
linux-node7.064 77,173
ssj_ops@100% 5,397,304
ssj_ops@100% per JVM 84,333

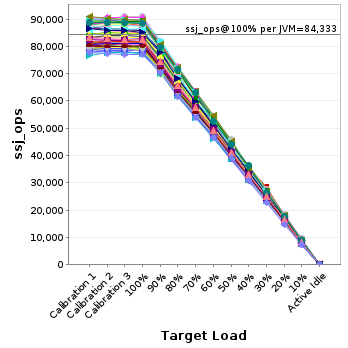

Graph of per-instance results
JVM 'linux-node7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,805
Calibration 2     79,967
Calibration 3     79,679
ssj_ops@calibrated=79,823
100% 100.1% 79,823 79,879
90% 89.2% 71,841 71,194
80% 78.9% 63,858 62,956
70% 69.3% 55,876 55,318
60% 60.3% 47,894 48,097
50% 49.2% 39,911 39,279
40% 39.9% 31,929 31,887
30% 30.1% 23,947 23,989
20% 19.8% 15,965 15,776
10% 9.8% 7,982 7,833
Active Idle   0 0
Graph of results
JVM 'linux-node7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,096
Calibration 2     83,644
Calibration 3     83,410
ssj_ops@calibrated=83,527
100% 99.3% 83,527 82,964
90% 90.7% 75,174 75,762
80% 79.1% 66,822 66,032
70% 71.0% 58,469 59,270
60% 60.1% 50,116 50,192
50% 50.0% 41,764 41,782
40% 40.1% 33,411 33,525
30% 29.9% 25,058 24,993
20% 19.4% 16,705 16,195
10% 10.0% 8,353 8,375
Active Idle   0 0
Graph of results
JVM 'linux-node7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,605
Calibration 2     83,825
Calibration 3     84,309
ssj_ops@calibrated=84,067
100% 100.3% 84,067 84,307
90% 89.6% 75,660 75,351
80% 79.6% 67,254 66,947
70% 69.8% 58,847 58,683
60% 59.6% 50,440 50,090
50% 49.4% 42,033 41,537
40% 40.2% 33,627 33,759
30% 30.1% 25,220 25,336
20% 20.5% 16,813 17,224
10% 10.2% 8,407 8,540
Active Idle   0 0
Graph of results
JVM 'linux-node7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,669
Calibration 2     83,612
Calibration 3     83,402
ssj_ops@calibrated=83,507
100% 99.7% 83,507 83,271
90% 88.7% 75,156 74,062
80% 79.5% 66,806 66,347
70% 69.5% 58,455 58,076
60% 60.0% 50,104 50,075
50% 49.9% 41,754 41,667
40% 41.4% 33,403 34,577
30% 29.9% 25,052 24,963
20% 19.7% 16,701 16,417
10% 10.3% 8,351 8,628
Active Idle   0 0
Graph of results
JVM 'linux-node7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,311
Calibration 2     80,978
Calibration 3     80,939
ssj_ops@calibrated=80,958
100% 99.6% 80,958 80,600
90% 89.9% 72,862 72,801
80% 79.7% 64,766 64,513
70% 70.3% 56,671 56,905
60% 60.0% 48,575 48,584
50% 50.1% 40,479 40,589
40% 40.2% 32,383 32,539
30% 30.1% 24,287 24,342
20% 19.8% 16,192 16,058
10% 9.9% 8,096 8,054
Active Idle   0 0
Graph of results
JVM 'linux-node7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,090
Calibration 2     79,599
Calibration 3     79,700
ssj_ops@calibrated=79,649
100% 99.2% 79,649 79,003
90% 89.9% 71,684 71,600
80% 79.4% 63,719 63,211
70% 70.2% 55,755 55,908
60% 59.6% 47,790 47,491
50% 49.9% 39,825 39,778
40% 40.5% 31,860 32,245
30% 30.0% 23,895 23,899
20% 20.6% 15,930 16,369
10% 10.3% 7,965 8,169
Active Idle   0 0
Graph of results
JVM 'linux-node7.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,422
Calibration 2     88,539
Calibration 3     88,581
ssj_ops@calibrated=88,560
100% 99.9% 88,560 88,501
90% 90.1% 79,704 79,751
80% 78.5% 70,848 69,511
70% 69.7% 61,992 61,743
60% 60.4% 53,136 53,475
50% 50.3% 44,280 44,569
40% 39.9% 35,424 35,335
30% 30.2% 26,568 26,746
20% 20.4% 17,712 18,063
10% 10.1% 8,856 8,917
Active Idle   0 0
Graph of results
JVM 'linux-node7.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,451
Calibration 2     89,038
Calibration 3     88,815
ssj_ops@calibrated=88,926
100% 100.0% 88,926 88,899
90% 89.2% 80,034 79,347
80% 80.9% 71,141 71,946
70% 69.3% 62,248 61,639
60% 60.8% 53,356 54,101
50% 49.8% 44,463 44,250
40% 40.4% 35,571 35,898
30% 30.4% 26,678 27,038
20% 19.9% 17,785 17,683
10% 10.1% 8,893 8,944
Active Idle   0 0
Graph of results
JVM 'linux-node7.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,358
Calibration 2     89,153
Calibration 3     88,972
ssj_ops@calibrated=89,063
100% 98.8% 89,063 87,982
90% 90.2% 80,156 80,331
80% 79.8% 71,250 71,035
70% 70.6% 62,344 62,865
60% 59.5% 53,438 53,004
50% 49.6% 44,531 44,201
40% 39.9% 35,625 35,545
30% 31.7% 26,719 28,225
20% 20.3% 17,813 18,052
10% 10.1% 8,906 8,975
Active Idle   0 0
Graph of results
JVM 'linux-node7.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,114
Calibration 2     89,350
Calibration 3     89,127
ssj_ops@calibrated=89,238
100% 100.1% 89,238 89,354
90% 90.5% 80,314 80,802
80% 78.2% 71,391 69,746
70% 70.5% 62,467 62,907
60% 58.9% 53,543 52,593
50% 50.3% 44,619 44,868
40% 40.1% 35,695 35,794
30% 30.0% 26,771 26,792
20% 19.7% 17,848 17,604
10% 9.8% 8,924 8,717
Active Idle   0 0
Graph of results
JVM 'linux-node7.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,610
Calibration 2     79,514
Calibration 3     79,430
ssj_ops@calibrated=79,472
100% 99.5% 79,472 79,046
90% 88.7% 71,525 70,509
80% 79.6% 63,578 63,227
70% 69.9% 55,630 55,542
60% 59.2% 47,683 47,025
50% 49.7% 39,736 39,504
40% 39.4% 31,789 31,301
30% 30.5% 23,842 24,254
20% 19.9% 15,894 15,829
10% 9.6% 7,947 7,646
Active Idle   0 0
Graph of results
JVM 'linux-node7.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,356
Calibration 2     89,706
Calibration 3     89,937
ssj_ops@calibrated=89,822
100% 99.2% 89,822 89,089
90% 90.6% 80,839 81,390
80% 79.6% 71,857 71,537
70% 69.5% 62,875 62,383
60% 60.2% 53,893 54,099
50% 49.8% 44,911 44,762
40% 40.5% 35,929 36,389
30% 30.8% 26,946 27,637
20% 19.9% 17,964 17,858
10% 9.7% 8,982 8,683
Active Idle   0 0
Graph of results
JVM 'linux-node7.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,098
Calibration 2     87,823
Calibration 3     87,811
ssj_ops@calibrated=87,817
100% 100.2% 87,817 87,988
90% 90.8% 79,035 79,742
80% 80.2% 70,254 70,427
70% 69.8% 61,472 61,335
60% 59.5% 52,690 52,242
50% 49.7% 43,909 43,662
40% 39.5% 35,127 34,728
30% 30.0% 26,345 26,360
20% 20.1% 17,563 17,667
10% 9.9% 8,782 8,733
Active Idle   0 0
Graph of results
JVM 'linux-node7.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,260
Calibration 2     81,305
Calibration 3     81,030
ssj_ops@calibrated=81,168
100% 100.4% 81,168 81,461
90% 89.2% 73,051 72,440
80% 80.0% 64,934 64,906
70% 70.8% 56,817 57,497
60% 59.4% 48,701 48,175
50% 49.3% 40,584 40,022
40% 40.2% 32,467 32,634
30% 30.1% 24,350 24,399
20% 19.7% 16,234 15,962
10% 10.2% 8,117 8,278
Active Idle   0 0
Graph of results
JVM 'linux-node7.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,992
Calibration 2     88,994
Calibration 3     88,584
ssj_ops@calibrated=88,789
100% 99.8% 88,789 88,651
90% 89.0% 79,910 79,004
80% 79.6% 71,031 70,681
70% 70.1% 62,152 62,200
60% 60.3% 53,273 53,556
50% 49.8% 44,394 44,228
40% 40.5% 35,515 35,943
30% 30.2% 26,637 26,804
20% 20.0% 17,758 17,715
10% 9.8% 8,879 8,693
Active Idle   0 0
Graph of results
JVM 'linux-node7.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,501
Calibration 2     86,545
Calibration 3     86,265
ssj_ops@calibrated=86,405
100% 99.3% 86,405 85,824
90% 90.2% 77,765 77,977
80% 80.3% 69,124 69,384
70% 69.3% 60,484 59,872
60% 60.2% 51,843 51,999
50% 50.5% 43,203 43,630
40% 40.2% 34,562 34,736
30% 29.5% 25,922 25,465
20% 20.0% 17,281 17,287
10% 9.7% 8,641 8,392
Active Idle   0 0
Graph of results
JVM 'linux-node7.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,343
Calibration 2     78,410
Calibration 3     78,149
ssj_ops@calibrated=78,280
100% 98.7% 78,280 77,254
90% 89.9% 70,452 70,341
80% 79.8% 62,624 62,436
70% 69.8% 54,796 54,602
60% 59.6% 46,968 46,661
50% 48.8% 39,140 38,238
40% 40.1% 31,312 31,424
30% 30.8% 23,484 24,080
20% 20.0% 15,656 15,666
10% 9.8% 7,828 7,704
Active Idle   0 0
Graph of results
JVM 'linux-node7.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,928
Calibration 2     89,980
Calibration 3     89,926
ssj_ops@calibrated=89,953
100% 99.7% 89,953 89,639
90% 89.4% 80,958 80,437
80% 79.6% 71,962 71,625
70% 69.8% 62,967 62,787
60% 60.5% 53,972 54,459
50% 49.9% 44,977 44,904
40% 39.9% 35,981 35,850
30% 29.4% 26,986 26,406
20% 19.4% 17,991 17,480
10% 9.9% 8,995 8,890
Active Idle   0 0
Graph of results
JVM 'linux-node7.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,473
Calibration 2     88,253
Calibration 3     88,200
ssj_ops@calibrated=88,227
100% 99.7% 88,227 87,939
90% 90.2% 79,404 79,541
80% 80.7% 70,581 71,170
70% 69.1% 61,759 60,953
60% 59.8% 52,936 52,752
50% 48.9% 44,113 43,154
40% 40.0% 35,291 35,282
30% 29.8% 26,468 26,332
20% 20.5% 17,645 18,084
10% 9.7% 8,823 8,558
Active Idle   0 0
Graph of results
JVM 'linux-node7.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,956
Calibration 2     82,506
Calibration 3     82,548
ssj_ops@calibrated=82,527
100% 99.9% 82,527 82,427
90% 89.3% 74,274 73,711
80% 79.9% 66,021 65,902
70% 70.0% 57,769 57,743
60% 59.6% 49,516 49,215
50% 50.2% 41,263 41,457
40% 39.4% 33,011 32,490
30% 29.8% 24,758 24,573
20% 20.3% 16,505 16,793
10% 10.0% 8,253 8,260
Active Idle   0 0
Graph of results
JVM 'linux-node7.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,574
Calibration 2     88,694
Calibration 3     88,683
ssj_ops@calibrated=88,689
100% 99.4% 88,689 88,199
90% 90.0% 79,820 79,856
80% 79.6% 70,951 70,600
70% 70.8% 62,082 62,772
60% 59.5% 53,213 52,746
50% 50.0% 44,344 44,366
40% 40.0% 35,475 35,500
30% 30.0% 26,607 26,646
20% 19.5% 17,738 17,325
10% 10.0% 8,869 8,904
Active Idle   0 0
Graph of results
JVM 'linux-node7.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,699
Calibration 2     90,412
Calibration 3     90,977
ssj_ops@calibrated=90,694
100% 100.3% 90,694 91,007
90% 90.2% 81,625 81,787
80% 79.5% 72,555 72,114
70% 70.1% 63,486 63,595
60% 59.5% 54,416 53,981
50% 50.5% 45,347 45,821
40% 39.3% 36,278 35,660
30% 30.2% 27,208 27,401
20% 20.4% 18,139 18,491
10% 10.4% 9,069 9,450
Active Idle   0 0
Graph of results
JVM 'linux-node7.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,901
Calibration 2     80,600
Calibration 3     80,841
ssj_ops@calibrated=80,721
100% 98.3% 80,721 79,351
90% 89.8% 72,649 72,482
80% 78.9% 64,577 63,690
70% 71.0% 56,505 57,279
60% 60.1% 48,433 48,502
50% 49.7% 40,360 40,148
40% 40.5% 32,288 32,673
30% 30.4% 24,216 24,556
20% 19.7% 16,144 15,862
10% 10.3% 8,072 8,296
Active Idle   0 0
Graph of results
JVM 'linux-node7.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,945
Calibration 2     86,577
Calibration 3     86,387
ssj_ops@calibrated=86,482
100% 99.2% 86,482 85,808
90% 90.3% 77,834 78,065
80% 79.5% 69,186 68,771
70% 70.1% 60,537 60,592
60% 59.9% 51,889 51,763
50% 49.8% 43,241 43,082
40% 40.1% 34,593 34,638
30% 30.4% 25,945 26,304
20% 20.0% 17,296 17,255
10% 10.4% 8,648 9,023
Active Idle   0 0
Graph of results

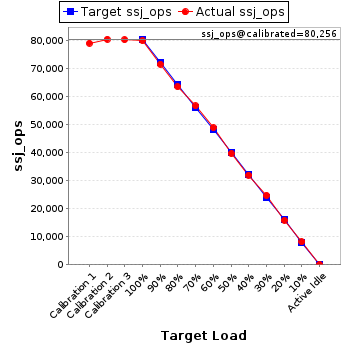

JVM 'linux-node7.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,979
Calibration 2     80,353
Calibration 3     80,159
ssj_ops@calibrated=80,256
100% 99.5% 80,256 79,834
90% 89.1% 72,230 71,483
80% 79.0% 64,205 63,423
70% 70.5% 56,179 56,587
60% 60.8% 48,154 48,782
50% 49.3% 40,128 39,590
40% 39.8% 32,102 31,944
30% 30.8% 24,077 24,705
20% 19.7% 16,051 15,821
10% 10.1% 8,026 8,116
Active Idle   0 0
Graph of results
JVM 'linux-node7.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,409
Calibration 2     81,817
Calibration 3     81,771
ssj_ops@calibrated=81,794
100% 100.0% 81,794 81,778
90% 89.9% 73,615 73,556
80% 79.4% 65,436 64,954
70% 69.9% 57,256 57,211
60% 60.8% 49,077 49,724
50% 50.8% 40,897 41,540
40% 39.7% 32,718 32,469
30% 30.2% 24,538 24,678
20% 20.0% 16,359 16,331
10% 9.8% 8,179 8,021
Active Idle   0 0
Graph of results

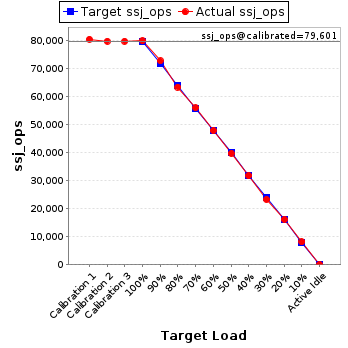

JVM 'linux-node7.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,287
Calibration 2     79,591
Calibration 3     79,611
ssj_ops@calibrated=79,601
100% 100.1% 79,601 79,707
90% 91.2% 71,641 72,609
80% 79.5% 63,681 63,274
70% 70.1% 55,721 55,817
60% 60.0% 47,761 47,779
50% 49.7% 39,800 39,601
40% 39.8% 31,840 31,672
30% 29.2% 23,880 23,237
20% 20.3% 15,920 16,123
10% 10.2% 7,960 8,095
Active Idle   0 0
Graph of results
JVM 'linux-node7.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,858
Calibration 2     88,915
Calibration 3     88,852
ssj_ops@calibrated=88,884
100% 100.1% 88,884 88,931
90% 89.3% 79,995 79,411
80% 80.1% 71,107 71,188
70% 70.1% 62,219 62,269
60% 59.7% 53,330 53,046
50% 50.5% 44,442 44,863
40% 40.2% 35,554 35,705
30% 30.1% 26,665 26,750
20% 20.2% 17,777 17,975
10% 10.1% 8,888 8,947
Active Idle   0 0
Graph of results

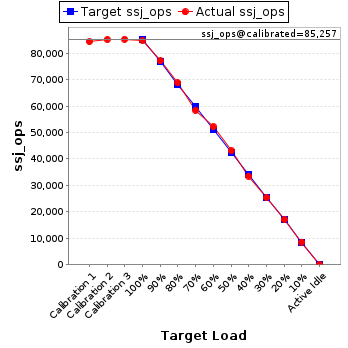

JVM 'linux-node7.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,369
Calibration 2     85,206
Calibration 3     85,308
ssj_ops@calibrated=85,257
100% 99.4% 85,257 84,767
90% 90.4% 76,732 77,093
80% 80.7% 68,206 68,785
70% 68.6% 59,680 58,462
60% 61.2% 51,154 52,164
50% 50.6% 42,629 43,110
40% 39.3% 34,103 33,534
30% 29.8% 25,577 25,447
20% 20.0% 17,051 17,090
10% 10.0% 8,526 8,567
Active Idle   0 0
Graph of results
JVM 'linux-node7.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,637
Calibration 2     78,299
Calibration 3     77,881
ssj_ops@calibrated=78,090
100% 99.6% 78,090 77,762
90% 90.8% 70,281 70,882
80% 79.6% 62,472 62,138
70% 69.9% 54,663 54,611
60% 59.5% 46,854 46,438
50% 49.1% 39,045 38,372
40% 39.2% 31,236 30,573
30% 30.9% 23,427 24,100
20% 20.2% 15,618 15,751
10% 10.0% 7,809 7,800
Active Idle   0 0
Graph of results
JVM 'linux-node7.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,427
Calibration 2     79,350
Calibration 3     79,220
ssj_ops@calibrated=79,285
100% 99.2% 79,285 78,620
90% 88.2% 71,356 69,962
80% 80.3% 63,428 63,631
70% 69.8% 55,499 55,325
60% 59.7% 47,571 47,312
50% 49.8% 39,642 39,490
40% 40.3% 31,714 31,915
30% 30.3% 23,785 23,985
20% 20.3% 15,857 16,104
10% 9.7% 7,928 7,698
Active Idle   0 0
Graph of results
JVM 'linux-node7.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,577
Calibration 2     88,013
Calibration 3     87,914
ssj_ops@calibrated=87,963
100% 100.2% 87,963 88,174
90% 91.0% 79,167 80,040
80% 80.5% 70,371 70,771
70% 69.2% 61,574 60,858
60% 61.0% 52,778 53,648
50% 50.3% 43,982 44,223
40% 40.0% 35,185 35,191
30% 29.9% 26,389 26,329
20% 19.7% 17,593 17,362
10% 10.1% 8,796 8,879
Active Idle   0 0
Graph of results
JVM 'linux-node7.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,869
Calibration 2     80,984
Calibration 3     80,827
ssj_ops@calibrated=80,905
100% 99.8% 80,905 80,726
90% 89.4% 72,815 72,300
80% 79.7% 64,724 64,498
70% 70.7% 56,634 57,204
60% 59.9% 48,543 48,462
50% 50.1% 40,453 40,559
40% 40.6% 32,362 32,861
30% 30.1% 24,272 24,340
20% 19.7% 16,181 15,937
10% 9.9% 8,091 8,041
Active Idle   0 0
Graph of results
JVM 'linux-node7.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,007
Calibration 2     87,819
Calibration 3     87,549
ssj_ops@calibrated=87,684
100% 99.5% 87,684 87,238
90% 89.9% 78,916 78,832
80% 80.3% 70,147 70,369
70% 68.8% 61,379 60,336
60% 61.0% 52,611 53,476
50% 49.6% 43,842 43,458
40% 40.9% 35,074 35,888
30% 29.3% 26,305 25,695
20% 20.5% 17,537 17,942
10% 9.6% 8,768 8,441
Active Idle   0 0
Graph of results
JVM 'linux-node7.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,376
Calibration 2     88,283
Calibration 3     88,319
ssj_ops@calibrated=88,301
100% 99.2% 88,301 87,565
90% 89.8% 79,471 79,306
80% 80.6% 70,641 71,172
70% 69.7% 61,811 61,582
60% 60.1% 52,981 53,099
50% 49.5% 44,151 43,738
40% 41.1% 35,320 36,300
30% 29.8% 26,490 26,301
20% 20.6% 17,660 18,167
10% 10.0% 8,830 8,827
Active Idle   0 0
Graph of results
JVM 'linux-node7.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,781
Calibration 2     78,431
Calibration 3     78,694
ssj_ops@calibrated=78,562
100% 99.9% 78,562 78,519
90% 89.4% 70,706 70,250
80% 80.2% 62,850 62,977
70% 69.3% 54,994 54,434
60% 59.7% 47,137 46,895
50% 50.1% 39,281 39,359
40% 40.0% 31,425 31,436
30% 30.2% 23,569 23,689
20% 20.4% 15,712 16,000
10% 9.9% 7,856 7,787
Active Idle   0 0
Graph of results
JVM 'linux-node7.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,698
Calibration 2     89,163
Calibration 3     89,071
ssj_ops@calibrated=89,117
100% 100.2% 89,117 89,319
90% 89.2% 80,205 79,457
80% 80.5% 71,293 71,712
70% 70.1% 62,382 62,500
60% 59.4% 53,470 52,905
50% 50.1% 44,558 44,660
40% 39.7% 35,647 35,380
30% 30.1% 26,735 26,868
20% 19.3% 17,823 17,217
10% 10.0% 8,912 8,954
Active Idle   0 0
Graph of results
JVM 'linux-node7.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,011
Calibration 2     79,675
Calibration 3     79,451
ssj_ops@calibrated=79,563
100% 99.2% 79,563 78,929
90% 89.8% 71,607 71,429
80% 78.8% 63,650 62,696
70% 70.6% 55,694 56,155
60% 59.7% 47,738 47,525
50% 50.1% 39,781 39,865
40% 40.7% 31,825 32,366
30% 30.5% 23,869 24,240
20% 20.0% 15,913 15,883
10% 9.9% 7,956 7,908
Active Idle   0 0
Graph of results
JVM 'linux-node7.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,830
Calibration 2     89,832
Calibration 3     89,718
ssj_ops@calibrated=89,775
100% 100.2% 89,775 89,941
90% 89.4% 80,798 80,284
80% 80.1% 71,820 71,873
70% 70.6% 62,843 63,390
60% 60.1% 53,865 53,941
50% 49.6% 44,888 44,535
40% 40.0% 35,910 35,888
30% 30.0% 26,933 26,965
20% 19.8% 17,955 17,814
10% 9.7% 8,978 8,733
Active Idle   0 0
Graph of results
JVM 'linux-node7.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,805
Calibration 2     86,508
Calibration 3     86,184
ssj_ops@calibrated=86,346
100% 100.4% 86,346 86,683
90% 89.3% 77,711 77,066
80% 80.1% 69,077 69,183
70% 69.8% 60,442 60,244
60% 60.8% 51,808 52,513
50% 49.9% 43,173 43,107
40% 40.0% 34,538 34,576
30% 30.3% 25,904 26,150
20% 19.8% 17,269 17,106
10% 10.2% 8,635 8,771
Active Idle   0 0
Graph of results
JVM 'linux-node7.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,606
Calibration 2     88,510
Calibration 3     88,577
ssj_ops@calibrated=88,543
100% 99.9% 88,543 88,411
90% 89.9% 79,689 79,599
80% 79.9% 70,835 70,749
70% 70.3% 61,980 62,278
60% 60.8% 53,126 53,808
50% 49.8% 44,272 44,133
40% 40.3% 35,417 35,724
30% 29.8% 26,563 26,400
20% 20.1% 17,709 17,758
10% 9.8% 8,854 8,633
Active Idle   0 0
Graph of results
JVM 'linux-node7.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,217
Calibration 2     89,578
Calibration 3     89,312
ssj_ops@calibrated=89,445
100% 99.5% 89,445 88,955
90% 90.2% 80,501 80,689
80% 79.7% 71,556 71,294
70% 70.9% 62,612 63,406
60% 60.5% 53,667 54,127
50% 49.6% 44,723 44,352
40% 40.0% 35,778 35,744
30% 29.8% 26,834 26,674
20% 19.2% 17,889 17,174
10% 10.3% 8,945 9,175
Active Idle   0 0
Graph of results
JVM 'linux-node7.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,743
Calibration 2     81,919
Calibration 3     81,796
ssj_ops@calibrated=81,857
100% 99.6% 81,857 81,495
90% 89.2% 73,671 73,000
80% 79.6% 65,486 65,198
70% 69.6% 57,300 56,992
60% 59.7% 49,114 48,878
50% 50.6% 40,929 41,446
40% 40.2% 32,743 32,906
30% 30.1% 24,557 24,645
20% 20.0% 16,371 16,380
10% 10.1% 8,186 8,291
Active Idle   0 0
Graph of results
JVM 'linux-node7.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,648
Calibration 2     81,194
Calibration 3     81,186
ssj_ops@calibrated=81,190
100% 99.8% 81,190 81,030
90% 88.9% 73,071 72,218
80% 80.0% 64,952 64,957
70% 69.9% 56,833 56,741
60% 59.4% 48,714 48,210
50% 49.7% 40,595 40,361
40% 39.8% 32,476 32,287
30% 30.2% 24,357 24,512
20% 19.7% 16,238 16,029
10% 9.3% 8,119 7,512
Active Idle   0 0
Graph of results
JVM 'linux-node7.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,362
Calibration 2     84,937
Calibration 3     84,756
ssj_ops@calibrated=84,846
100% 99.8% 84,846 84,695
90% 89.9% 76,362 76,312
80% 79.8% 67,877 67,710
70% 70.4% 59,392 59,759
60% 59.8% 50,908 50,744
50% 49.2% 42,423 41,714
40% 40.1% 33,938 34,007
30% 29.4% 25,454 24,968
20% 20.2% 16,969 17,170
10% 10.1% 8,485 8,583
Active Idle   0 0
Graph of results
JVM 'linux-node7.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,252
Calibration 2     79,809
Calibration 3     79,928
ssj_ops@calibrated=79,868
100% 99.1% 79,868 79,184
90% 89.7% 71,882 71,638
80% 79.8% 63,895 63,724
70% 71.5% 55,908 57,128
60% 61.0% 47,921 48,732
50% 49.8% 39,934 39,805
40% 40.0% 31,947 31,934
30% 30.2% 23,961 24,121
20% 19.9% 15,974 15,908
10% 10.4% 7,987 8,306
Active Idle   0 0
Graph of results
JVM 'linux-node7.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,570
Calibration 2     88,786
Calibration 3     88,756
ssj_ops@calibrated=88,771
100% 99.8% 88,771 88,578
90% 90.8% 79,894 80,624
80% 80.7% 71,017 71,637
70% 69.2% 62,140 61,392
60% 60.8% 53,263 54,011
50% 50.1% 44,385 44,455
40% 40.0% 35,508 35,528
30% 29.7% 26,631 26,398
20% 20.4% 17,754 18,108
10% 10.5% 8,877 9,299
Active Idle   0 0
Graph of results
JVM 'linux-node7.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,857
Calibration 2     77,748
Calibration 3     77,915
ssj_ops@calibrated=77,832
100% 99.4% 77,832 77,350
90% 90.4% 70,048 70,356
80% 79.5% 62,265 61,898
70% 69.2% 54,482 53,857
60% 59.3% 46,699 46,171
50% 50.0% 38,916 38,953
40% 40.7% 31,133 31,666
30% 30.0% 23,349 23,362
20% 19.9% 15,566 15,503
10% 10.3% 7,783 7,999
Active Idle   0 0
Graph of results
JVM 'linux-node7.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,330
Calibration 2     84,000
Calibration 3     83,835
ssj_ops@calibrated=83,917
100% 99.7% 83,917 83,694
90% 90.3% 75,525 75,803
80% 79.8% 67,134 66,978
70% 70.2% 58,742 58,929
60% 60.3% 50,350 50,561
50% 50.2% 41,959 42,166
40% 40.1% 33,567 33,643
30% 30.4% 25,175 25,475
20% 20.2% 16,783 16,983
10% 9.9% 8,392 8,333
Active Idle   0 0
Graph of results
JVM 'linux-node7.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,758
Calibration 2     81,825
Calibration 3     81,626
ssj_ops@calibrated=81,726
100% 100.0% 81,726 81,710
90% 89.3% 73,553 72,986
80% 79.8% 65,380 65,245
70% 70.5% 57,208 57,649
60% 60.0% 49,035 49,033
50% 50.2% 40,863 41,028
40% 39.7% 32,690 32,408
30% 30.2% 24,518 24,720
20% 19.8% 16,345 16,217
10% 9.9% 8,173 8,079
Active Idle   0 0
Graph of results
JVM 'linux-node7.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,876
Calibration 2     79,285
Calibration 3     79,250
ssj_ops@calibrated=79,267
100% 98.7% 79,267 78,212
90% 89.8% 71,341 71,170
80% 79.8% 63,414 63,283
70% 70.5% 55,487 55,919
60% 59.6% 47,560 47,216
50% 50.4% 39,634 39,940
40% 40.3% 31,707 31,929
30% 30.6% 23,780 24,266
20% 20.1% 15,853 15,936
10% 9.9% 7,927 7,857
Active Idle   0 0
Graph of results
JVM 'linux-node7.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,171
Calibration 2     88,852
Calibration 3     88,477
ssj_ops@calibrated=88,664
100% 100.1% 88,664 88,776
90% 88.8% 79,798 78,741
80% 80.1% 70,931 70,997
70% 70.6% 62,065 62,635
60% 59.2% 53,198 52,513
50% 50.5% 44,332 44,778
40% 40.4% 35,466 35,848
30% 30.4% 26,599 26,945
20% 20.4% 17,733 18,119
10% 10.1% 8,866 8,937
Active Idle   0 0
Graph of results
JVM 'linux-node7.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,322
Calibration 2     84,788
Calibration 3     84,938
ssj_ops@calibrated=84,863
100% 99.6% 84,863 84,511
90% 90.5% 76,377 76,811
80% 79.8% 67,891 67,752
70% 69.1% 59,404 58,650
60% 59.4% 50,918 50,448
50% 49.9% 42,432 42,363
40% 39.1% 33,945 33,178
30% 30.5% 25,459 25,875
20% 19.9% 16,973 16,924
10% 10.1% 8,486 8,596
Active Idle   0 0
Graph of results
JVM 'linux-node7.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,353
Calibration 2     90,640
Calibration 3     90,548
ssj_ops@calibrated=90,594
100% 100.1% 90,594 90,648
90% 89.5% 81,535 81,039
80% 80.2% 72,475 72,657
70% 69.9% 63,416 63,338
60% 59.9% 54,357 54,251
50% 49.6% 45,297 44,959
40% 39.5% 36,238 35,751
30% 30.2% 27,178 27,361
20% 19.9% 18,119 17,999
10% 9.8% 9,059 8,848
Active Idle   0 0
Graph of results
JVM 'linux-node7.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,013
Calibration 2     90,090
Calibration 3     90,001
ssj_ops@calibrated=90,046
100% 99.5% 90,046 89,568
90% 91.2% 81,041 82,084
80% 80.6% 72,037 72,562
70% 70.5% 63,032 63,490
60% 60.3% 54,027 54,294
50% 50.3% 45,023 45,261
40% 39.9% 36,018 35,915
30% 30.2% 27,014 27,236
20% 19.6% 18,009 17,620
10% 10.1% 9,005 9,058
Active Idle   0 0
Graph of results
JVM 'linux-node7.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,626
Calibration 2     78,924
Calibration 3     78,734
ssj_ops@calibrated=78,829
100% 99.6% 78,829 78,488
90% 90.0% 70,946 70,983
80% 79.5% 63,063 62,675
70% 69.7% 55,180 54,954
60% 60.7% 47,297 47,863
50% 50.1% 39,414 39,497
40% 40.0% 31,532 31,569
30% 29.5% 23,649 23,283
20% 19.5% 15,766 15,340
10% 9.7% 7,883 7,683
Active Idle   0 0
Graph of results
JVM 'linux-node7.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,368
Calibration 2     79,980
Calibration 3     80,068
ssj_ops@calibrated=80,024
100% 100.2% 80,024 80,188
90% 90.1% 72,021 72,109
80% 79.5% 64,019 63,651
70% 69.8% 56,017 55,893
60% 60.4% 48,014 48,352
50% 49.6% 40,012 39,704
40% 40.7% 32,010 32,566
30% 30.5% 24,007 24,380
20% 19.9% 16,005 15,962
10% 10.0% 8,002 8,012
Active Idle   0 0
Graph of results
JVM 'linux-node7.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,472
Calibration 2     85,967
Calibration 3     85,796
ssj_ops@calibrated=85,882
100% 99.3% 85,882 85,271
90% 90.7% 77,293 77,887
80% 79.6% 68,705 68,374
70% 69.7% 60,117 59,882
60% 59.6% 51,529 51,144
50% 49.2% 42,941 42,243
40% 39.7% 34,353 34,097
30% 29.7% 25,764 25,507
20% 20.0% 17,176 17,178
10% 10.0% 8,588 8,625
Active Idle   0 0
Graph of results
JVM 'linux-node7.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,827
Calibration 2     88,906
Calibration 3     89,148
ssj_ops@calibrated=89,027
100% 100.2% 89,027 89,195
90% 89.4% 80,124 79,616
80% 79.8% 71,222 71,072
70% 69.3% 62,319 61,681
60% 60.5% 53,416 53,835
50% 49.8% 44,514 44,338
40% 39.8% 35,611 35,459
30% 30.2% 26,708 26,871
20% 19.5% 17,805 17,401
10% 9.9% 8,903 8,791
Active Idle   0 0
Graph of results
JVM 'linux-node7.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,799
Calibration 2     90,170
Calibration 3     89,865
ssj_ops@calibrated=90,017
100% 99.5% 90,017 89,556
90% 89.6% 81,015 80,689
80% 80.2% 72,014 72,161
70% 70.6% 63,012 63,573
60% 60.6% 54,010 54,548
50% 50.2% 45,009 45,216
40% 39.7% 36,007 35,748
30% 29.9% 27,005 26,956
20% 20.1% 18,003 18,062
10% 10.0% 9,002 9,004
Active Idle   0 0
Graph of results
JVM 'linux-node7.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,446
Calibration 2     82,166
Calibration 3     82,088
ssj_ops@calibrated=82,127
100% 100.4% 82,127 82,474
90% 90.0% 73,914 73,898
80% 78.7% 65,702 64,608
70% 70.3% 57,489 57,722
60% 60.3% 49,276 49,551
50% 49.9% 41,064 41,004
40% 40.1% 32,851 32,939
30% 30.0% 24,638 24,617
20% 20.1% 16,425 16,525
10% 10.1% 8,213 8,304
Active Idle   0 0
Graph of results
JVM 'linux-node7.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,633
Calibration 2     88,900
Calibration 3     88,621
ssj_ops@calibrated=88,761
100% 99.8% 88,761 88,585
90% 89.8% 79,885 79,740
80% 80.4% 71,008 71,370
70% 70.9% 62,132 62,959
60% 59.3% 53,256 52,663
50% 49.8% 44,380 44,207
40% 40.9% 35,504 36,328
30% 29.7% 26,628 26,390
20% 20.1% 17,752 17,825
10% 10.2% 8,876 9,041
Active Idle   0 0
Graph of results
JVM 'linux-node7.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,145
Calibration 2     82,773
Calibration 3     82,669
ssj_ops@calibrated=82,721
100% 99.9% 82,721 82,620
90% 89.9% 74,449 74,338
80% 79.4% 66,177 65,716
70% 69.6% 57,905 57,561
60% 59.5% 49,633 49,214
50% 49.5% 41,360 40,980
40% 39.9% 33,088 33,011
30% 30.1% 24,816 24,903
20% 19.8% 16,544 16,403
10% 9.8% 8,272 8,083
Active Idle   0 0
Graph of results
JVM 'linux-node7.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,849
Calibration 2     77,382
Calibration 3     77,205
ssj_ops@calibrated=77,293
100% 99.8% 77,293 77,173
90% 91.1% 69,564 70,402
80% 79.7% 61,835 61,627
70% 69.7% 54,105 53,883
60% 60.3% 46,376 46,580
50% 50.7% 38,647 39,182
40% 40.0% 30,917 30,905
30% 29.7% 23,188 22,932
20% 19.0% 15,459 14,695
10% 9.6% 7,729 7,409
Active Idle   0 0
Graph of results
